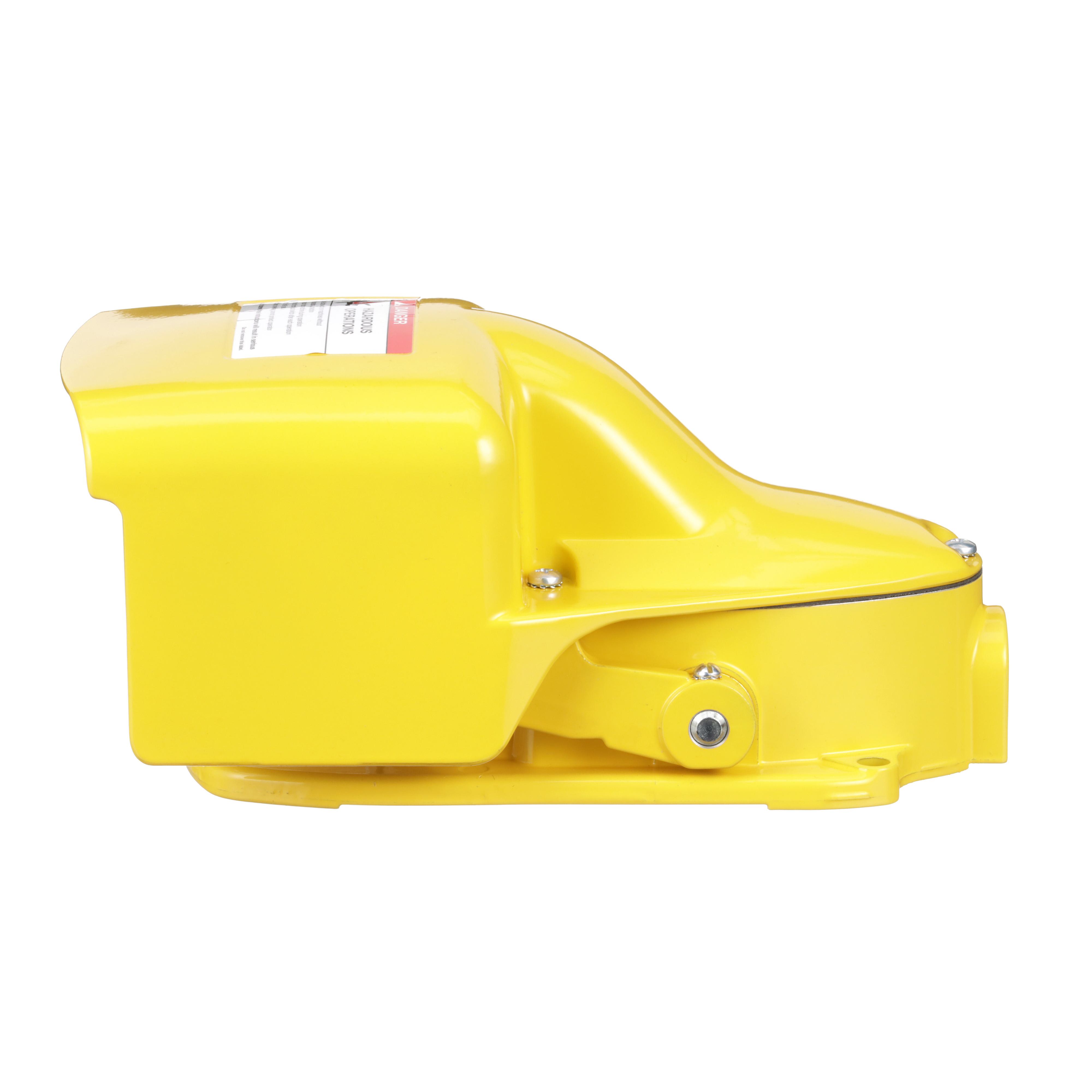

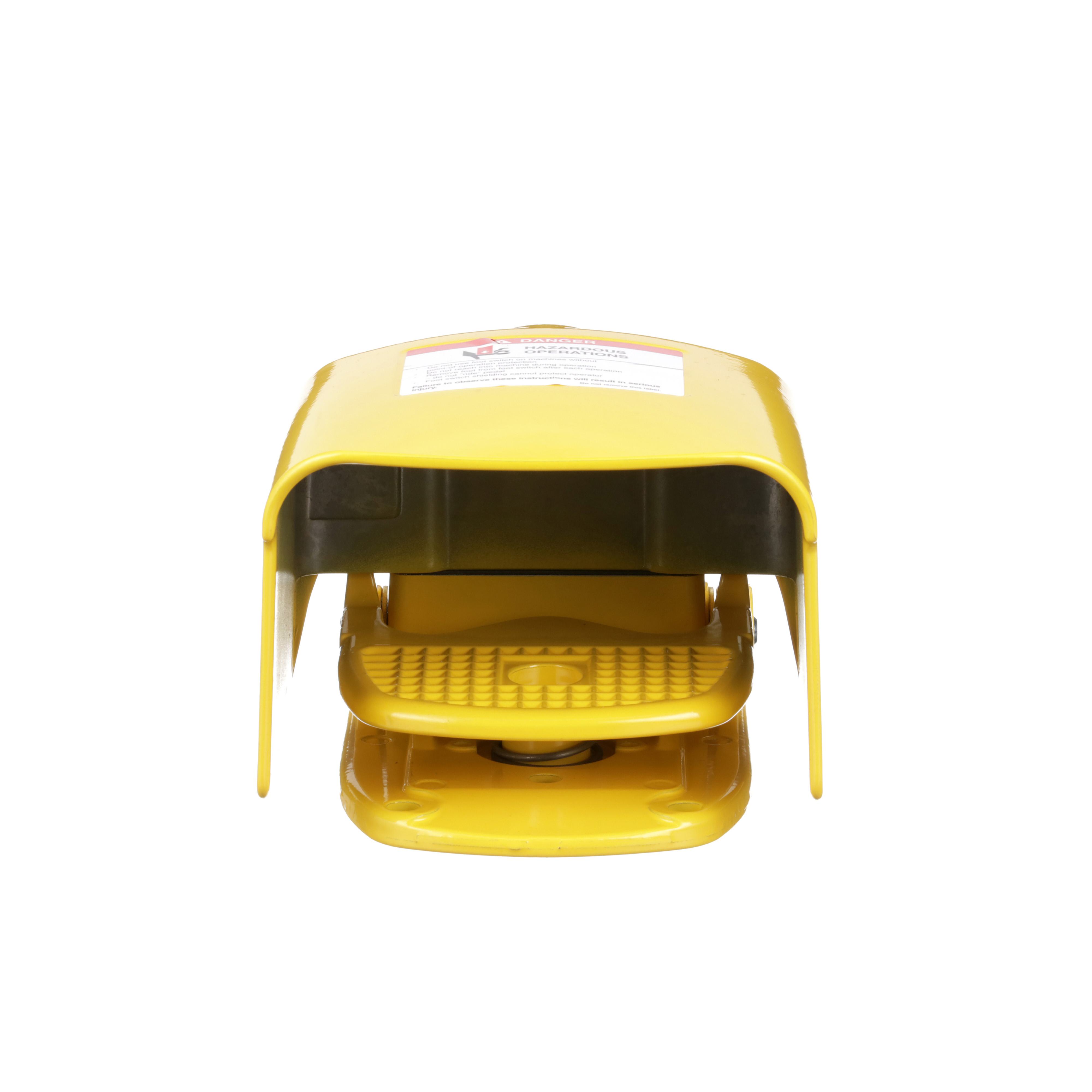

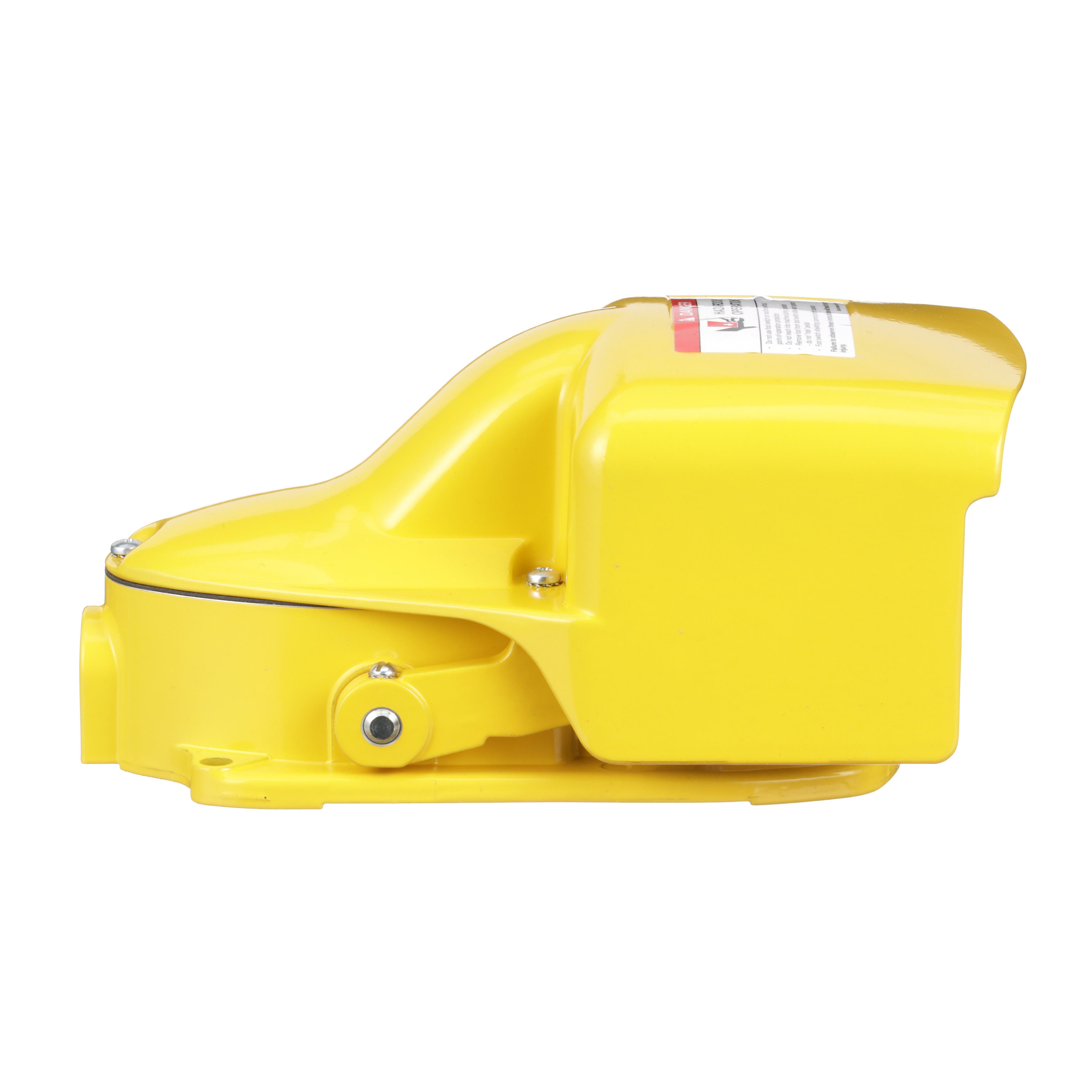

Description: Square D™, 9002AW2, Foot Switch, Series: 9002, 600 V AC/DC, 5 A, SPDT Contact Configuration, 5 A at 600 V AC/15 A at 125/250 V DC Contact, 1-Step Spring Return Action, Pedal Actuator, NEMA 2/4/13 Enclosure, 5.38 in W x 4.84 in D x 9 in H Dimensions

Manufacturer PN: 9002AW2

UPC:  78590181592

Kendall Electric Inc PN: 3998822

Invoice Description:

9002AW2 SQD FOOT SWITCH 600VAC 5AMP


SPEC SHEET

▸ See All in Foot Switches


How Can We Make This Page Better?

Square D™ 9002AW2 9002 Foot Switch, 600 V AC/DC, 5 A

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

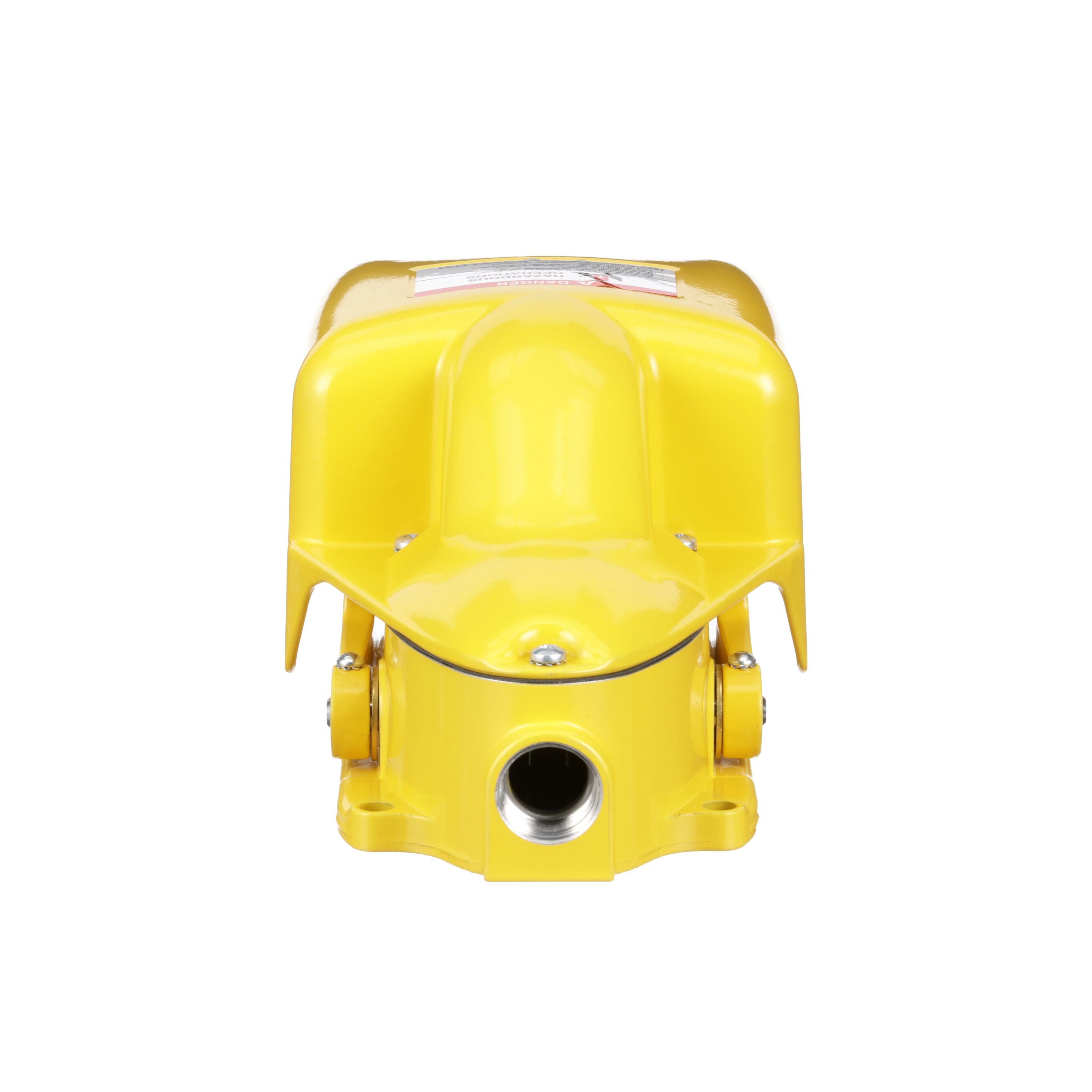

9002AW NEMA industial foot switches are heavy duty devices to used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has pedal and side shields. The single pole double throw snap switch used for the foot switch contact is rated at 5A resistive at 600 VAC. For other contact ratings, refer to the catalog. Snap switch contains two double break contact elements (1 N.O. and 1 N.C.) that must be used on circuits of same polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified.
Square D™, 9002AW2, Foot Switch, Series: 9002, 600 V AC/DC, 5 A, SPDT Contact Configuration, 5 A at 600 V AC/15 A at 125/250 V DC Contact, 1-Step Spring Return Action, Pedal Actuator, NEMA 2/4/13 Enclosure, 5.38 in W x 4.84 in D x 9 in H Dimensions

Specifications

 Actuator Pedal
 Amperage Rating 5 A
 Application Industrial and Indoor/Outdoor Applications
 Brand Name Square D
 Contact Configuration SPDT
 Contact Rating 5 A at 600 V AC/15 A at 125/250 V DC
 Dimensions 5.38 in W x 4.84 in D x 9 in H
 Enclosure NEMA 2/4/13
 Manufacturer Part Number 9002AW2
 Series 9002
 Standards/Approvals RoHS Compliant|UL Listed|CSA Certified|PROP65: This product can expose you to chemicals including Nickel compounds which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Voltage Rating 600 V AC/DC

Features

▪ A variety of shielding
▪ High visibility yellow color
▪ Robust design provides long term reliability
▪ Shielding/safety door helps to prevent inadvertent operation
