Schneider Electric
  • 9002AW132 SQD FOOT SWITCH 600VAC
  • 9002AW132 SQD FOOT SWITCH 600VAC
  • 9002AW132 SQD FOOT SWITCH 600VAC
  • 9002AW132 SQD FOOT SWITCH 600VAC
  • 9002AW132 SQD FOOT SWITCH 600VAC
  • 9002AW132 SQD FOOT SWITCH 600VAC

Description: Square D™ Harmony™ Foot Switch, Heavy Duty, Series: 9002, 600 VAC/VDC, 5 A, SPDT Contact Configuration, 15 A at 120 VAC, 10 A at 240 VAC, 6 A at 480 VAC, 5 A at 600 VAC, 15 A at 125/250 VDC Contact, 1 Pole, 1-Step Spring Return Action, Pedal Actuator, NEMA 2/4/13 Enclosure, Steel, Yellow, 11-1/8 in L x 6-13/32 in W x 6-17/64 in H Dimensions

Manufacturer PN: 9002AW132

UPC:  78590104526

Kendall Electric Inc PN: 3959385

Invoice Description:

9002AW132 SQD FOOT SWITCH 600VAC


SPEC SHEET

▸ See All in Foot Switches


How Can We Make This Page Better?

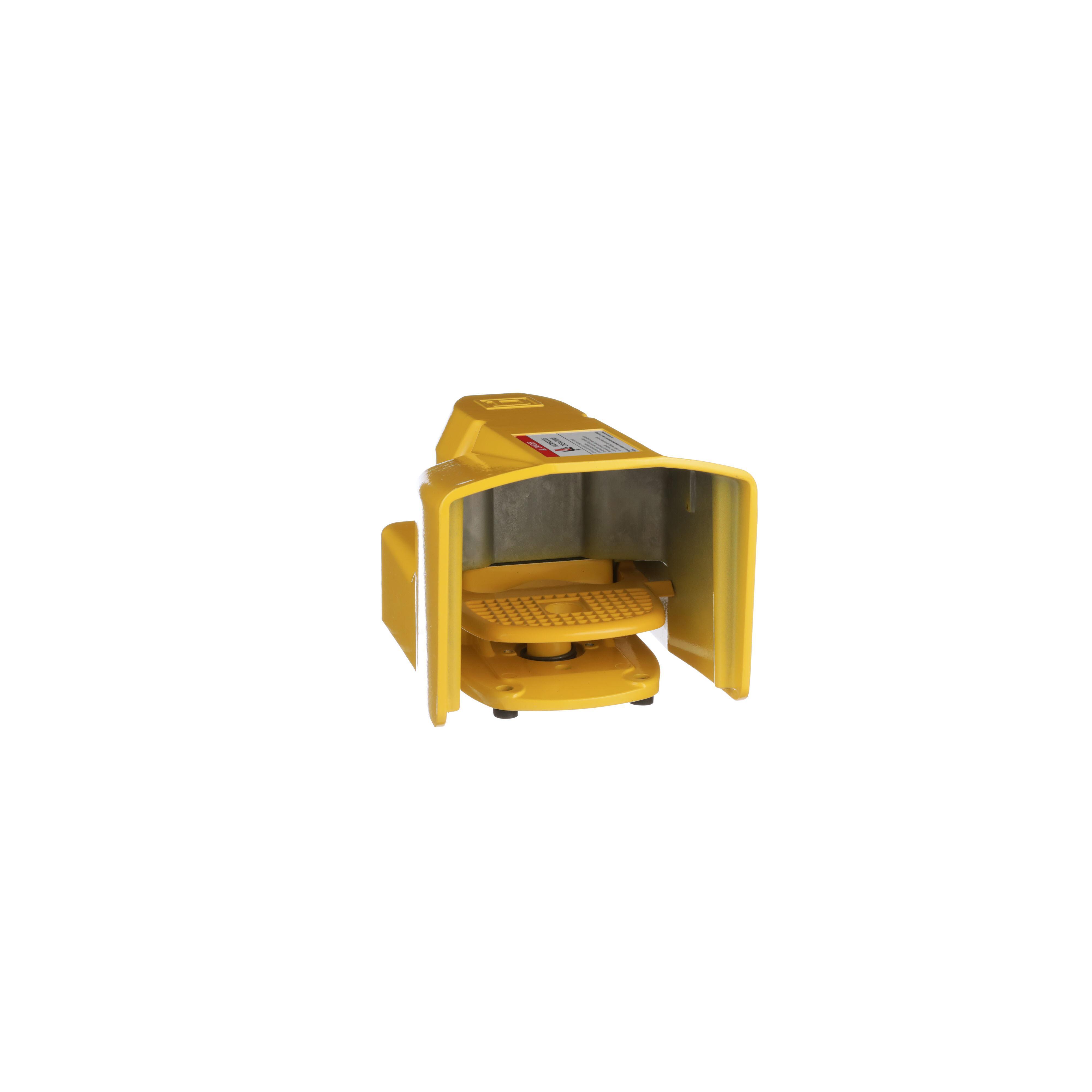

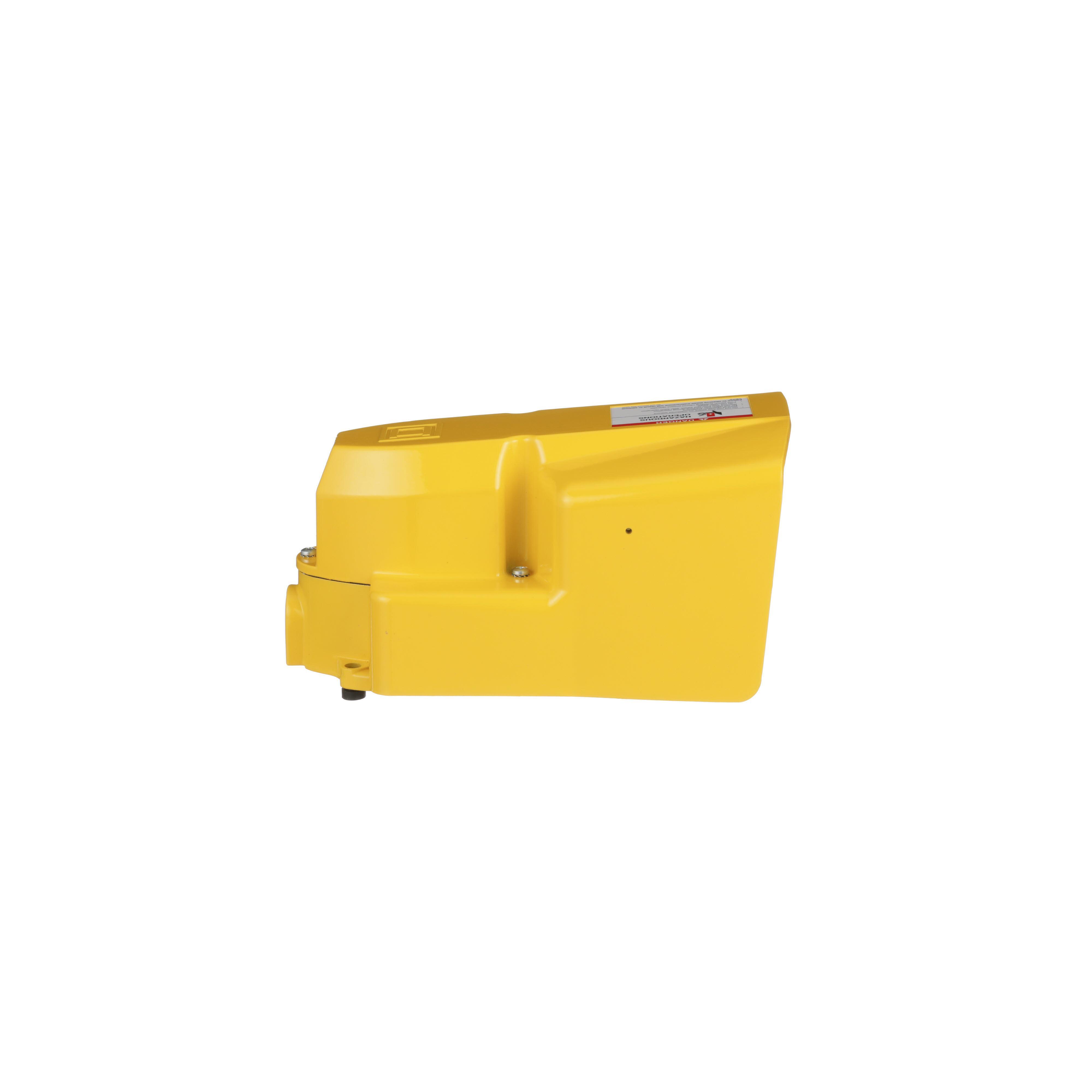

Square D™ Harmony™ 9002AW132 Heavy Duty Foot Switch With Oversized Pedal Shield, Side Shield, Safety Door, 600 VAC/VDC, 5 A, 1 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D™ Harmony™ Foot Switch, Heavy Duty, Series: 9002, 600 VAC/VDC, 5 A, SPDT Contact Configuration, 15 A at 120 VAC, 10 A at 240 VAC, 6 A at 480 VAC, 5 A at 600 VAC, 15 A at 125/250 VDC Contact, 1 Pole, 1-Step Spring Return Action, Pedal Actuator, NEMA 2/4/13 Enclosure, Steel, Yellow, 11-1/8 in L x 6-13/32 in W x 6-17/64 in H Dimensions

Specifications

 Actuator Pedal
 Amperage Rating 5 A
 Application Industrial and Indoor/Outdoor Applications
 Brand Name Square D
 Color Yellow
 Contact Configuration SPDT
 Contact Rating 15 A at 120 VAC, 10 A at 240 VAC, 6 A at 480 VAC, 5 A at 600 VAC, 15 A at 125/250 VDC
 Dimensions 11-1/8 in L x 6-13/32 in W x 6-17/64 in H
 Enclosure NEMA 2/4/13
 Manufacturer Part Number 9002AW132
 Material Steel
 Number of Poles 1
 Series 9002
 Standards/Approvals RoHS Compliant|CSA Certified|UL Listed|PROP65: This product can expose you to chemicals including Nickel compounds which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Type Heavy Duty
 Voltage Rating 600 VAC/VDC

Features

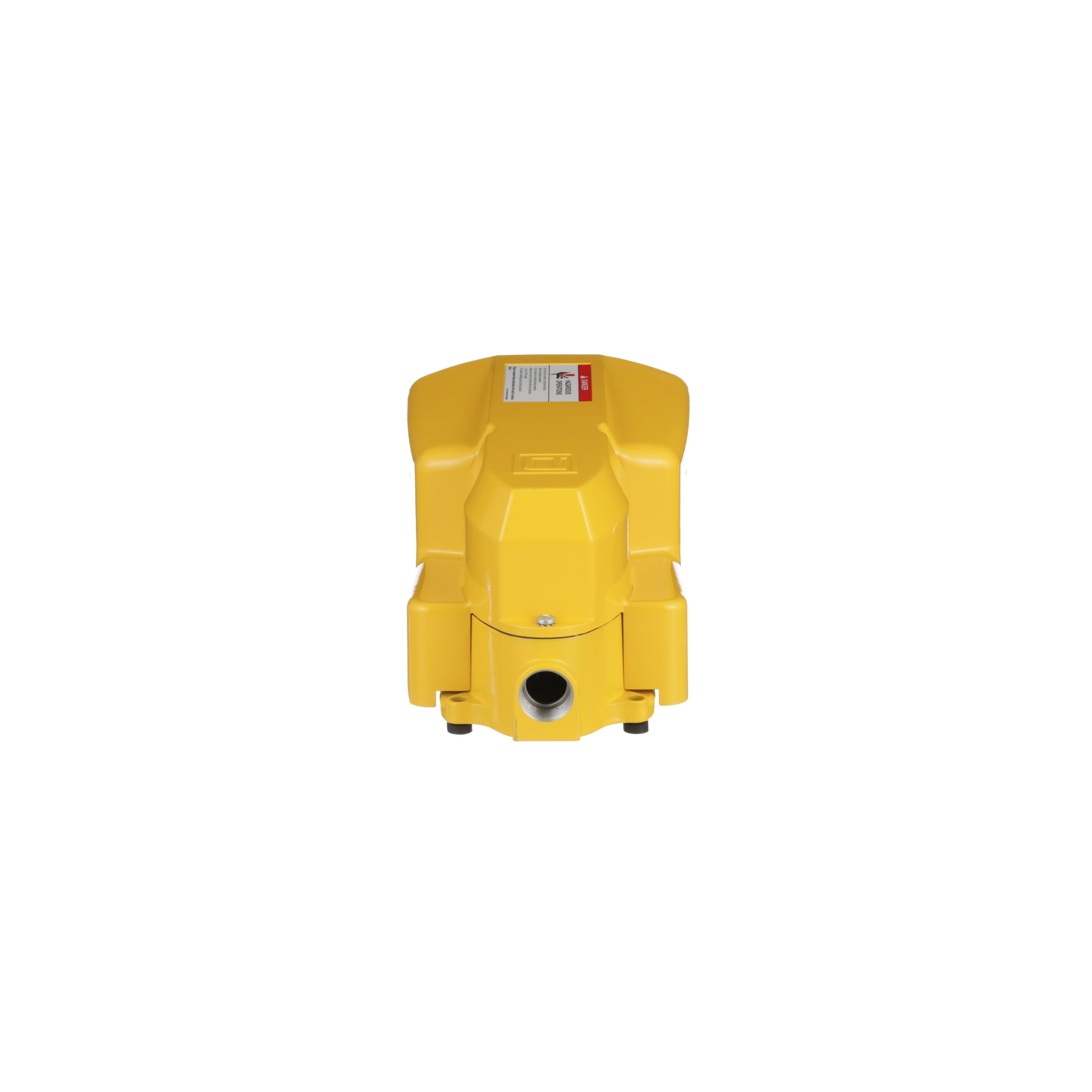

▪ 3/4 in NPT conduit entrance connection
▪ One step contacts operation
▪ Oversized pedal shield and side shields
▪ Machine safety
▪ Dusttight, oiltight and watertight
