Schneider Electric
  • 9001KR1GH13 SQD PUSH BUTTON 600VAC
  • 9001KR1GH13 SQD PUSH BUTTON 600VAC
  • 9001KR1GH13 SQD PUSH BUTTON 600VAC
  • 9001KR1GH13 SQD PUSH BUTTON 600VAC
  • 9001KR1GH13 SQD PUSH BUTTON 600VAC
  • 9001KR1GH13 SQD PUSH BUTTON 600VAC

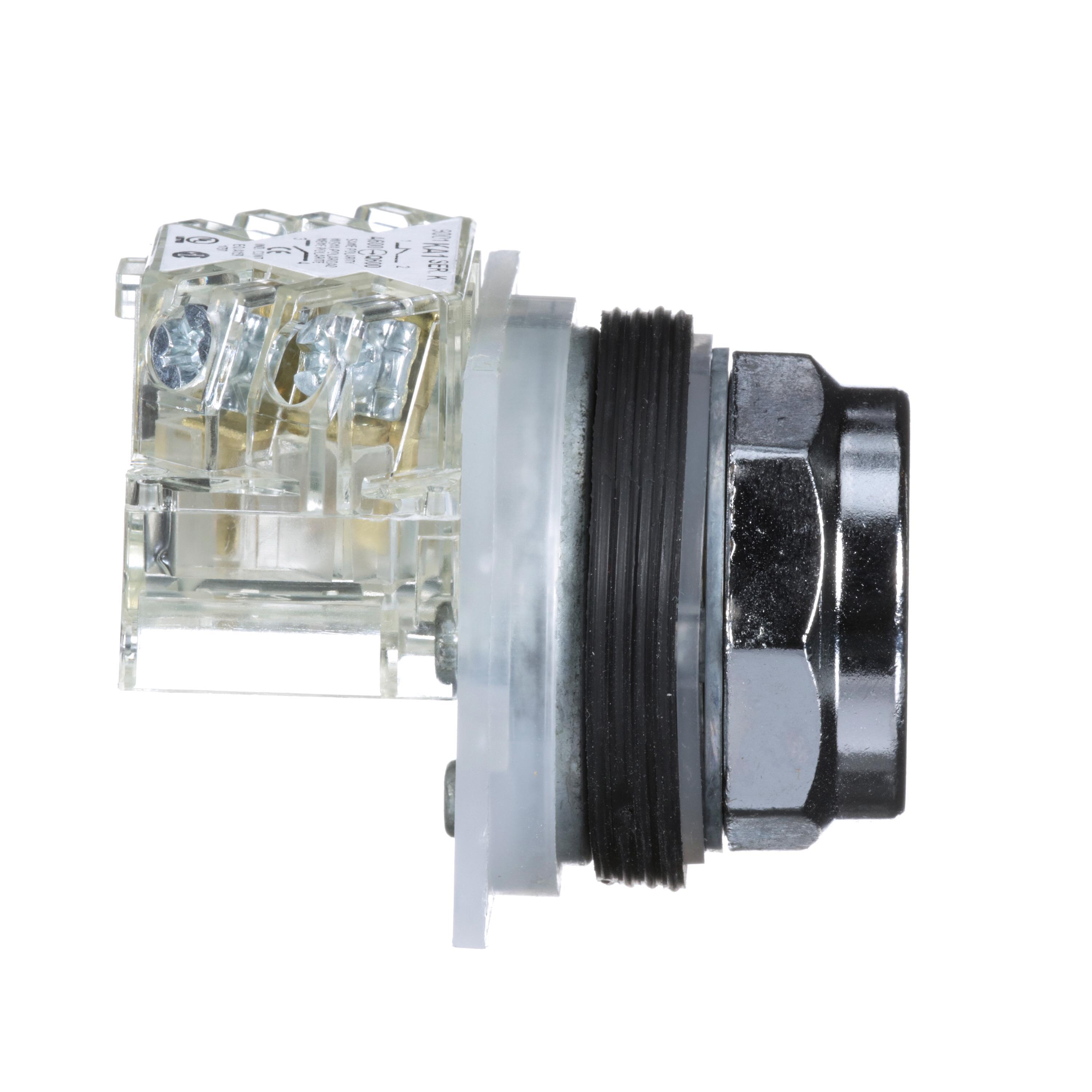

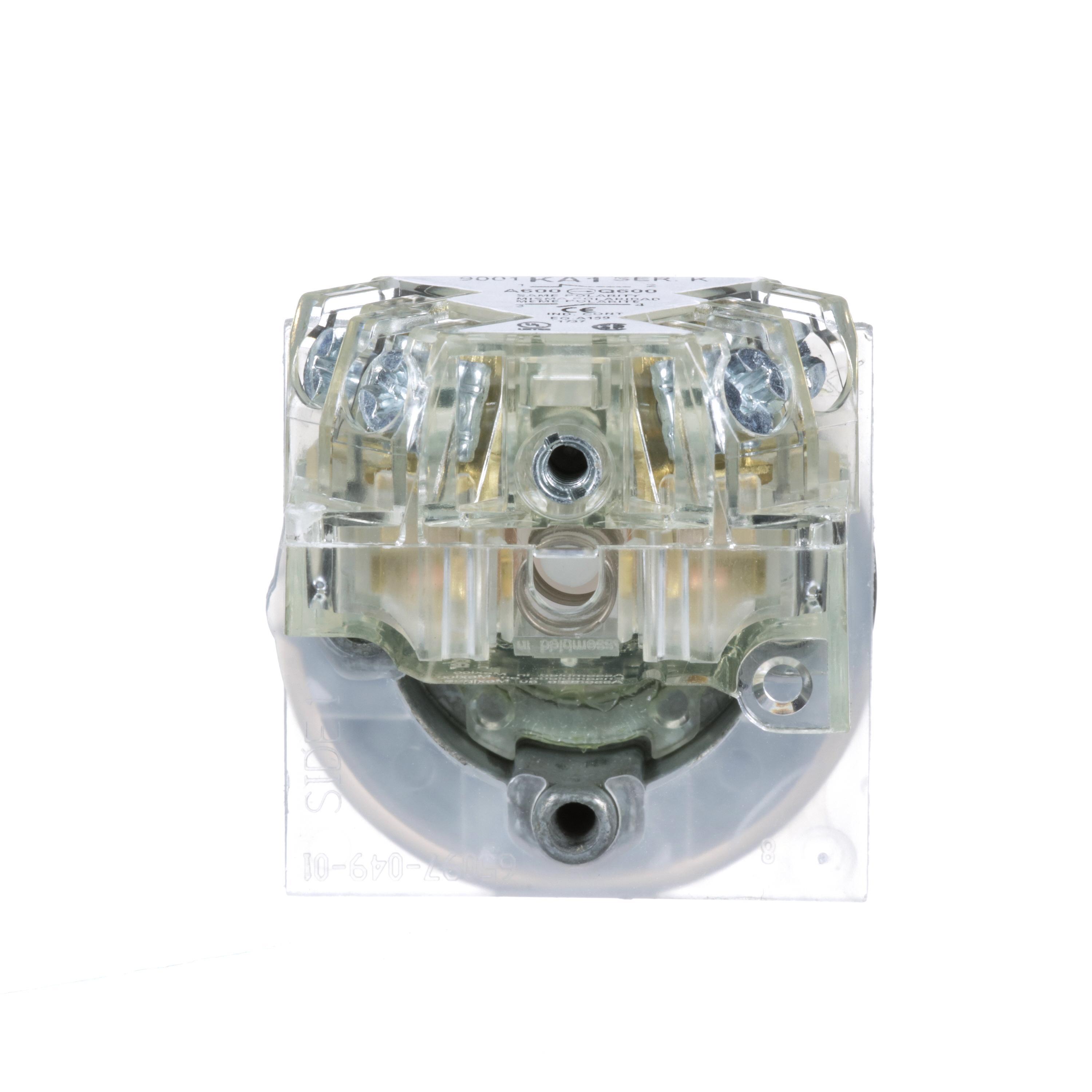

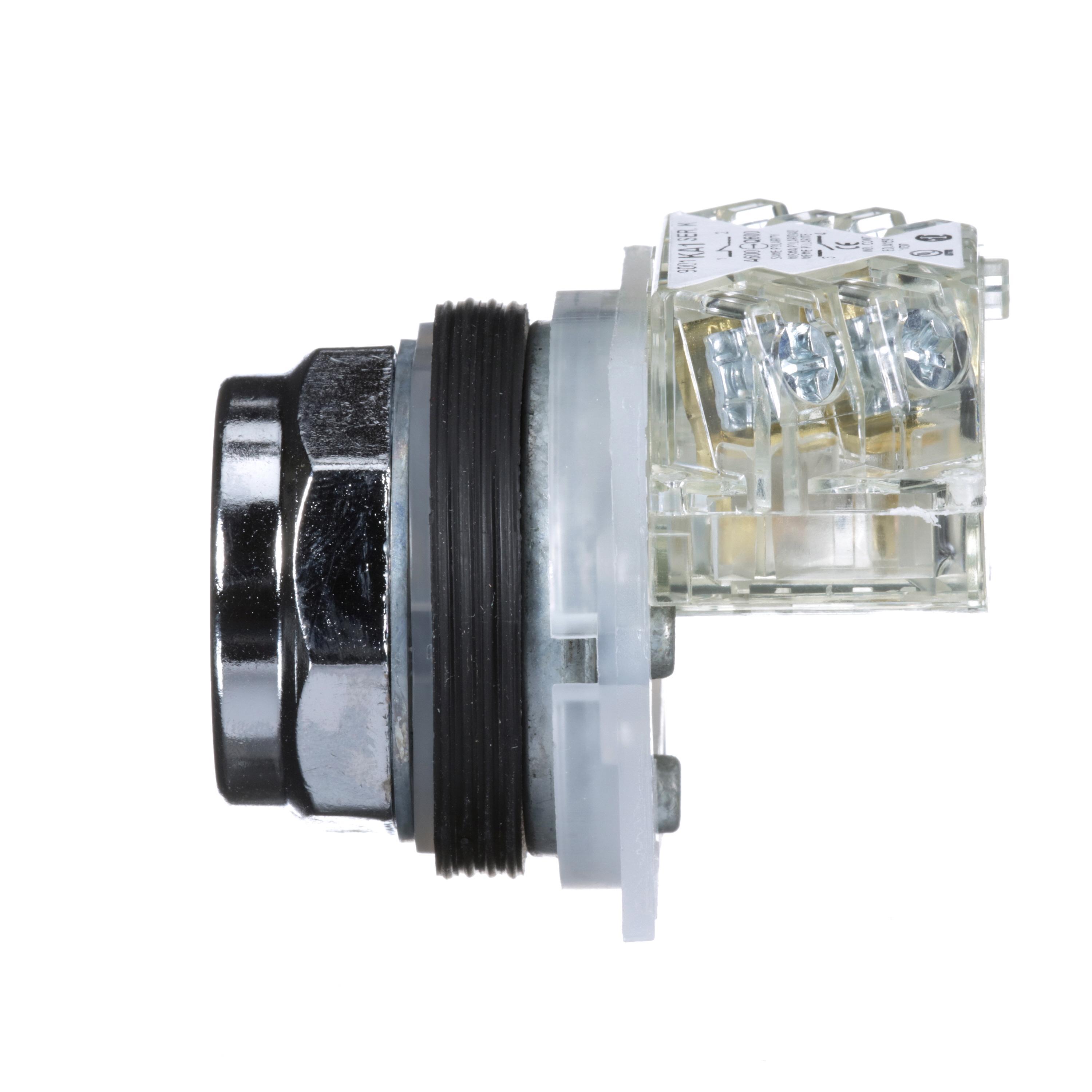

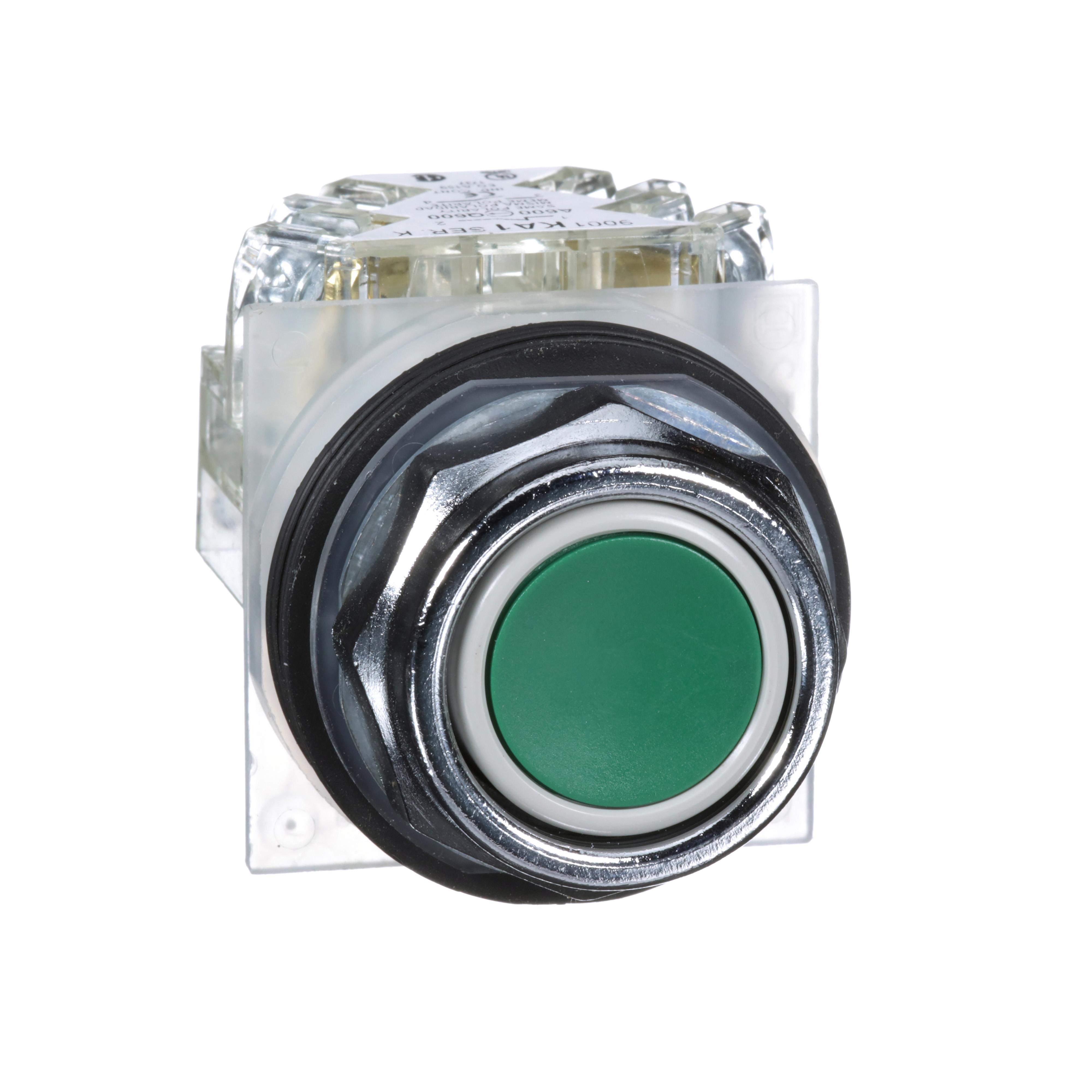

Description: Schneider Electric Harmony™ Non-Illuminated Pushbutton, Type K Heavy Duty Dust/Oil/Watertight Mechanically Interlocked, Series: 9001KR, 30 mm Size, 1NO-1NC Contact Configuration, Slow Break Contact, Momentary Contact Mode, 10 A at 600 V AC Contact, Bezel/Housing: Polished Chrome Bezel, Flush Button/Spring Return Actuator, Screw Clamp Terminal, NEMA 1/2/3/3R/4/12/13/IP65/IP66 Enclosure, Panel Mounting, Green, Environmental Conditions: -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature

Manufacturer PN: 9001KR1GH13

UPC:  78590103333

Kendall Electric Inc PN: 3958678

Invoice Description:

9001KR1GH13 SQD PUSH BUTTON 600VAC


SPEC SHEET

▸ See All in Non-Illuminated Pushbuttons


How Can We Make This Page Better?

Schneider Electric Harmony™ 9001KR1GH13 Type K Heavy Duty Dust/Oil/Watertight Mechanically Interlocked Non-Illuminated Pushbutton, 30 mm, 1NO-1NC Contact, Slow Break Contact, Green

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It features spring return flush push. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.
Schneider Electric Harmony™ Non-Illuminated Pushbutton, Type K Heavy Duty Dust/Oil/Watertight Mechanically Interlocked, Series: 9001KR, 30 mm Size, 1NO-1NC Contact Configuration, Slow Break Contact, Momentary Contact Mode, 10 A at 600 V AC Contact, Bezel/Housing: Polished Chrome Bezel, Flush Button/Spring Return Actuator, Screw Clamp Terminal, NEMA 1/2/3/3R/4/12/13/IP65/IP66 Enclosure, Panel Mounting, Green, Environmental Conditions: -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature

Specifications

 Actuator Flush Button/Spring Return
 Application Food and Beverage, Chemical, Mining, Mineral and Metal Processing, Pulp and Paper, Water and Wastewater, Automotive, Crane and Hoists, Machine Tools, Airport and Transportation and Textile, Petrochemical, Material Handling, Wastewater Treatment, Metallurgy and Industrial Applications
 Bezel Housing Polished Chrome Bezel
 Brand Name Square D
 Color Green
 Contact Configuration 1NO-1NC
 Contact Rating 10 A at 600 V AC
 Contact Type Slow Break
 Enclosure NEMA 1/2/3/3R/4/12/13/IP65/IP66
 Environmental Conditions -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature
 Manufacturer Part Number 9001KR1GH13
 Mounting Type Panel
 PART NUMBER KEYWORDS 9001KR1GH13 ; 8158139 ; 785901033332 ; 78590103333 ; 03389110910742 ; 0785901033332
 Series 9001KR
 Size 30 mm
 Standards/Approvals CE Marking|CSA C22.2 No. 14 File No. LR24590 Class 3211-03|EN/IEC 60947-5-1|EN/IEC 60947-1|ECCN: EAR99|EN/IEC 60947-5-4|JIS C-4520|JIS C-852|Green Premium Compliant|REACH Compliant|UL 508 File No. E42259 CCN NKCR|WEEE Listed|PROP65: This product can expose you to chemicals including - lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Terminal Type Screw Clamp
 Type Type K Heavy Duty Dust/Oil/Watertight Mechanically Interlocked
 Video Links

Features

▪ Improved security thanks to finger-safe contact blocks and light modules
▪ Robustness to withstand the harshest environments
▪ Easy, secure mounting system
▪ Automatic self-grounding operators without additional wiring
▪ A large metal set of accessories to customize your product
▪ Single screw Contact Block Fastening
