Schneider Electric
  • 9001KA2 SQD 30MM CONTACT BLOCK 1N/O
  • 9001KA2 SQD 30MM CONTACT BLOCK 1N/O
  • 9001KA2 SQD 30MM CONTACT BLOCK 1N/O
  • 9001KA2 SQD 30MM CONTACT BLOCK 1N/O
  • 9001KA2 SQD 30MM CONTACT BLOCK 1N/O
  • 9001KA2 SQD 30MM CONTACT BLOCK 1N/O

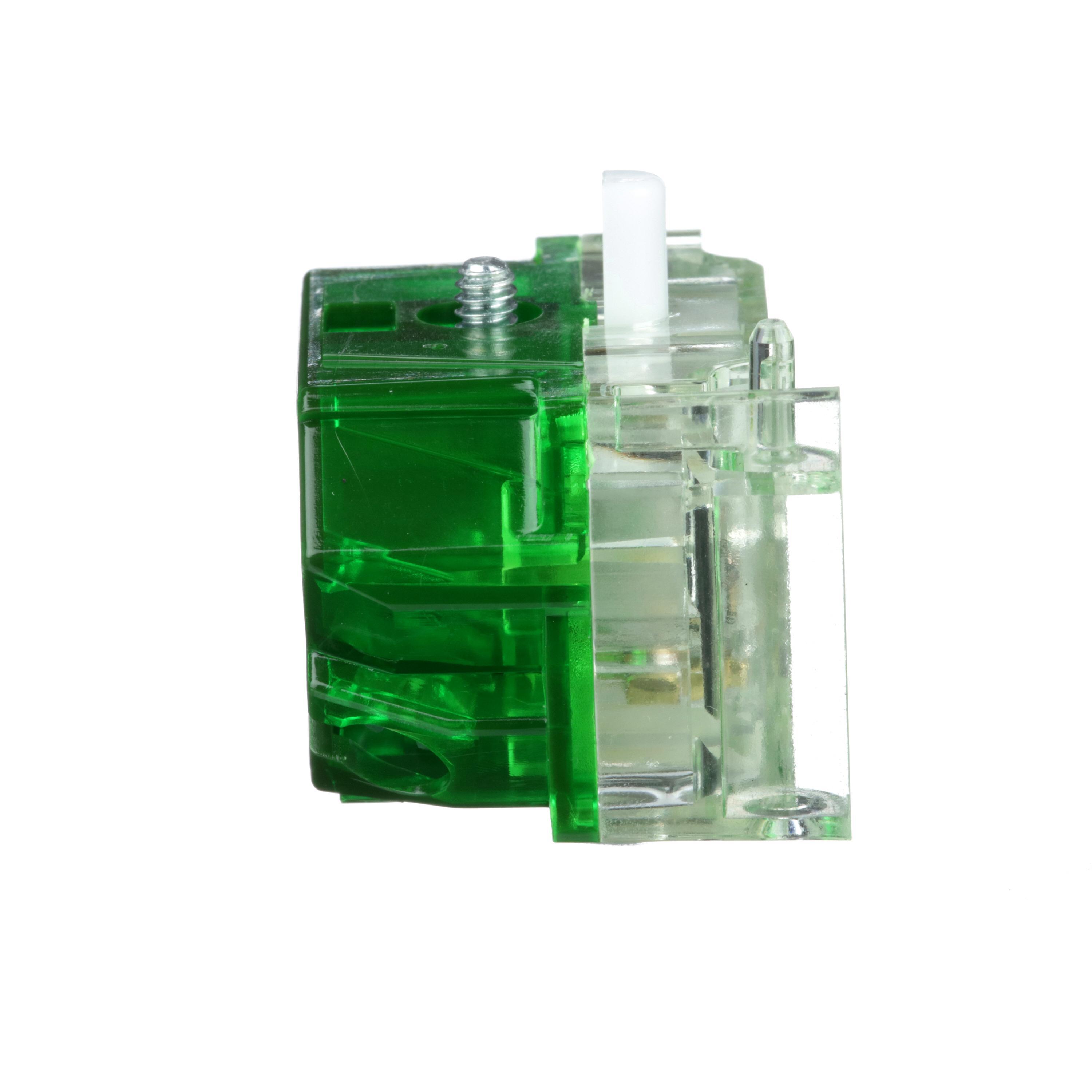

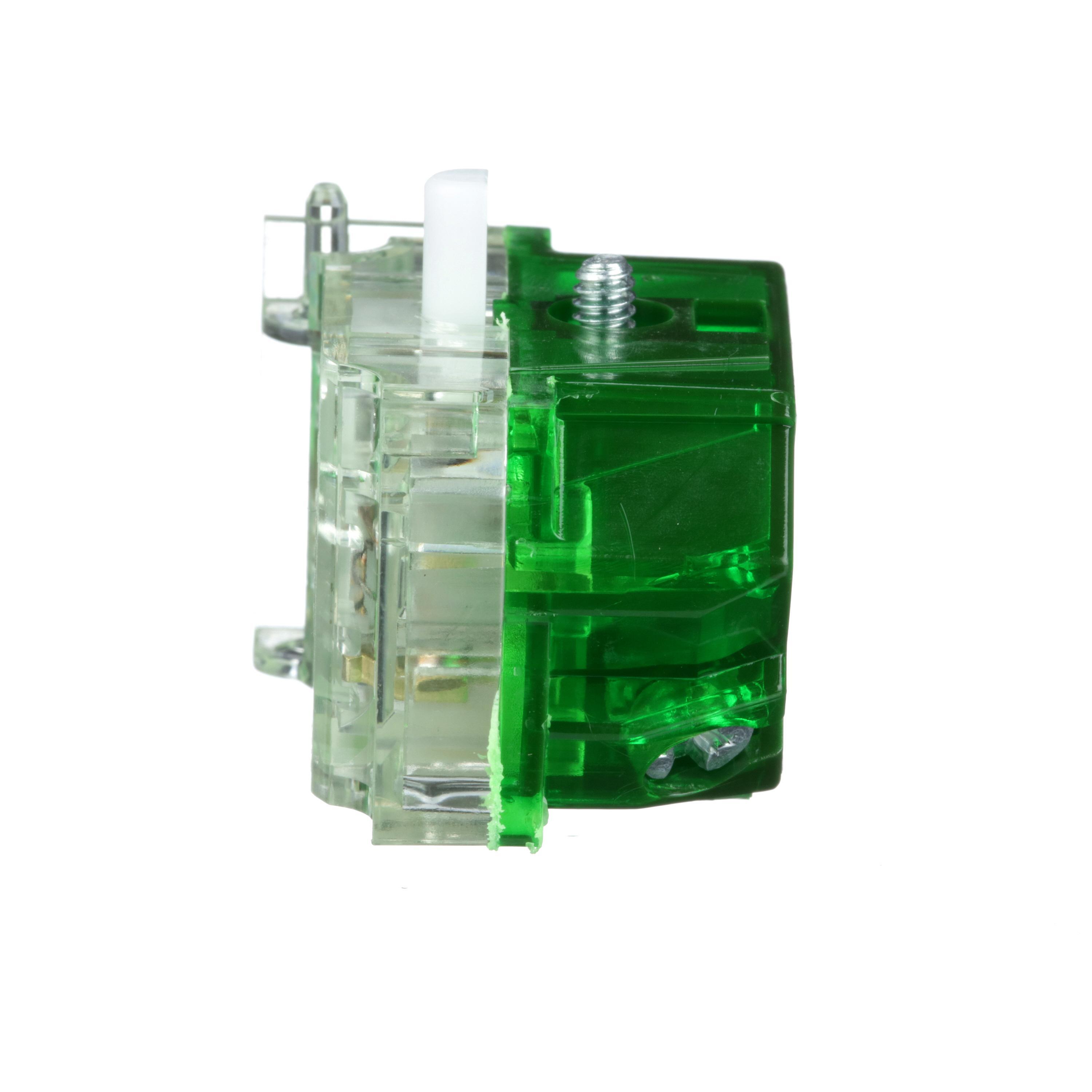

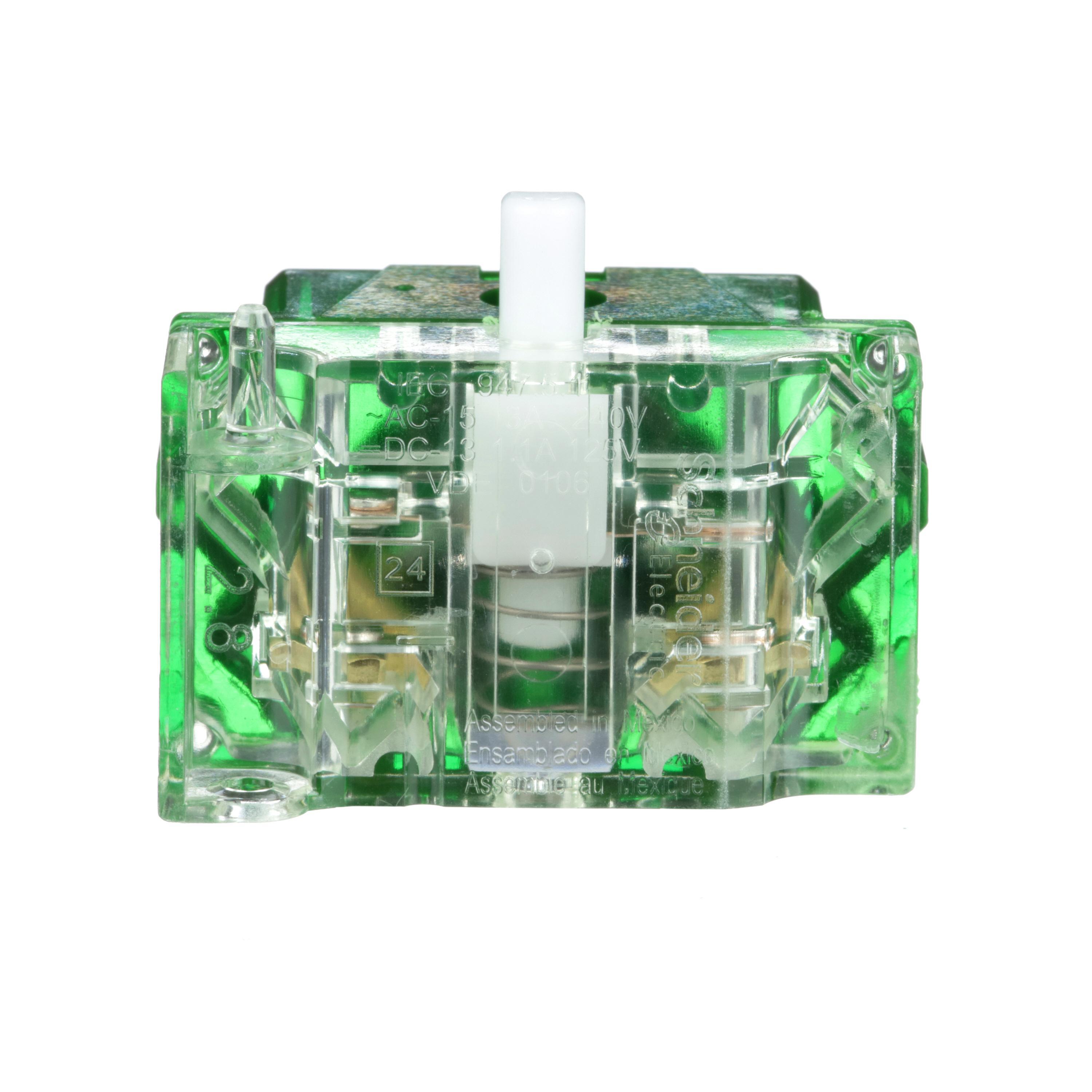

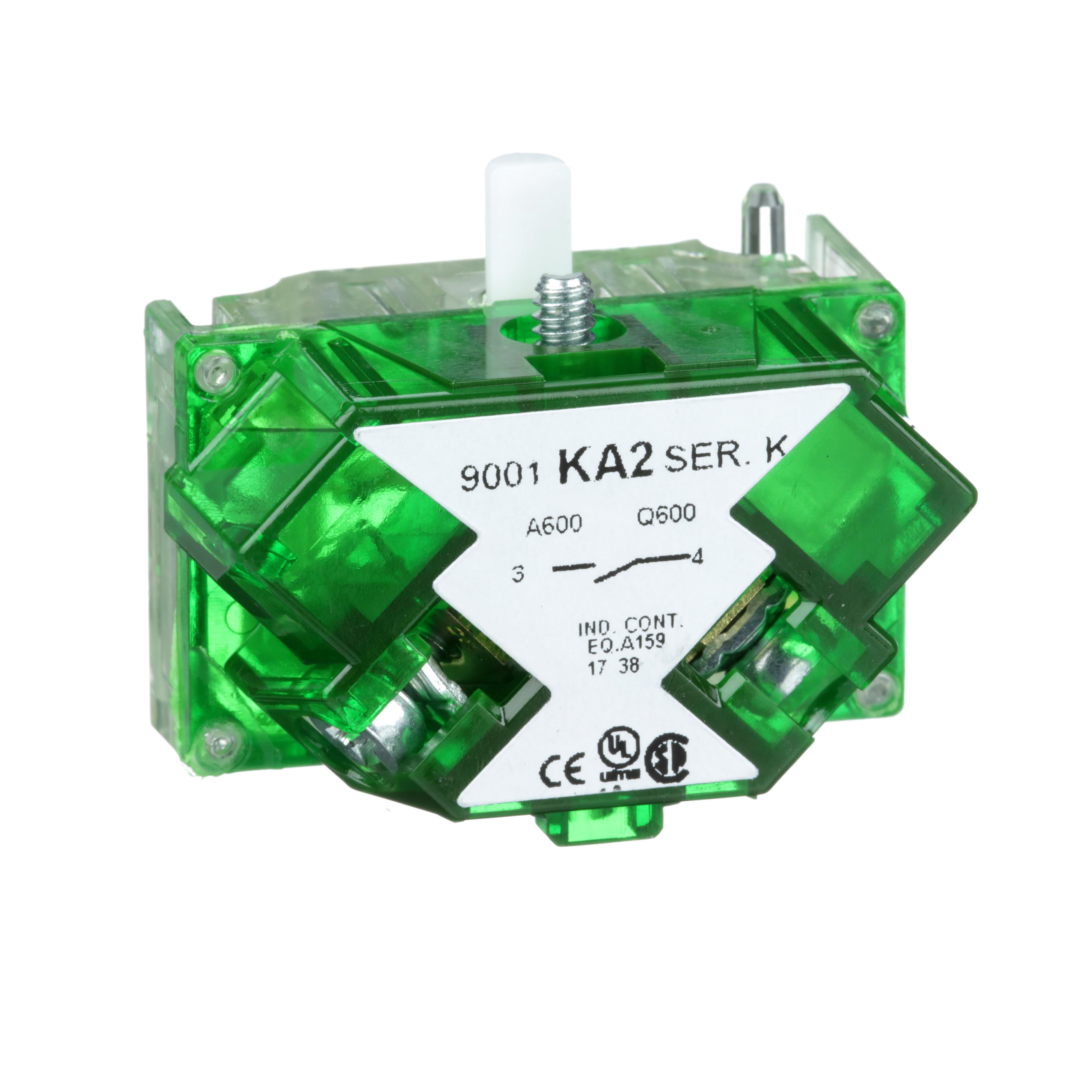

Description: Schneider Electric Harmony Contact Block, Finger Safe Standard, Series: 9001K, 30 mm Size, 1NO Contact Configuration, 10 A, 600 V AC Contact, Silver Alloy Contact, Momentary Action, IP20 Enclosure, Screw Clamp Terminal, Threaded Mounting, Nylon, Clear/Green

Manufacturer PN: 9001KA2

UPC:  78590188001

Kendall Electric Inc PN: 3998704

Invoice Description:

9001KA2 SQD 30MM CONTACT BLOCK 1N/O


SPEC SHEET

▸ See All in Pushbutton & Switch Contact Blocks


How Can We Make This Page Better?

Schneider Electric Harmony 9001KA2 Finger Safe Standard Contact Block, 30 mm, 1NO Contact, 10 A, 600 V AC Contact, Silver Alloy Contact, Momentary Action, Clear/Green

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This contact block is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is compatible with Harmony 9001K or 9001SK push buttons and switches. It uses screw-clamp terminals and has 1 x NO contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It features standard contact operation. It weighs 23g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Schneider Electric Harmony Contact Block, Finger Safe Standard, Series: 9001K, 30 mm Size, 1NO Contact Configuration, 10 A, 600 V AC Contact, Silver Alloy Contact, Momentary Action, IP20 Enclosure, Screw Clamp Terminal, Threaded Mounting, Nylon, Clear/Green

Specifications

 Brand Name Square D
 Color Clear/Green
 Contact Configuration 1NO
 Contact Material Silver Alloy
 Contact Rating 10 A, 600 V AC
 Enclosure IP20
 Manufacturer Part Number 9001KA2
 Material Nylon
 Mounting Type Threaded
 Series 9001K
 Size 30 mm
 Standards/Approvals CE Marking|CSA Certified File No. LR24590 Class 3211-03|UL Listed File No. E42259 CCN NKCR|PROP65: This product can expose you to chemicals including - nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Terminal Type Screw Clamp
 Type Finger Safe Standard

Features

▪ Improved security thanks to finger-safe contact blocks and light modules
▪ Robustness to withstand the harshest environments
▪ Easy, secure mounting system
▪ Automatic self-grounding operators without additional wiring
▪ A large metal set of accessories to customize your product
