Hubbell

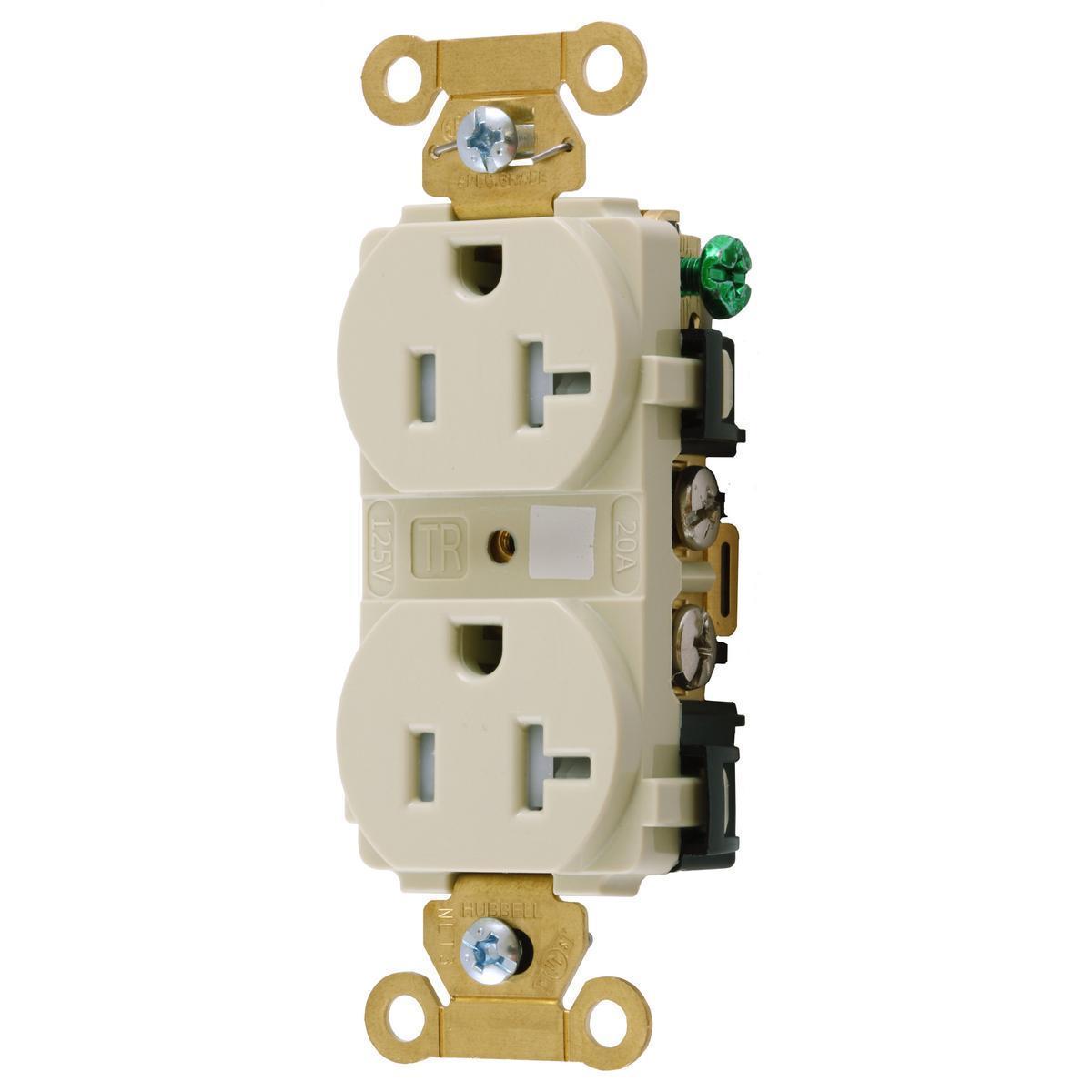

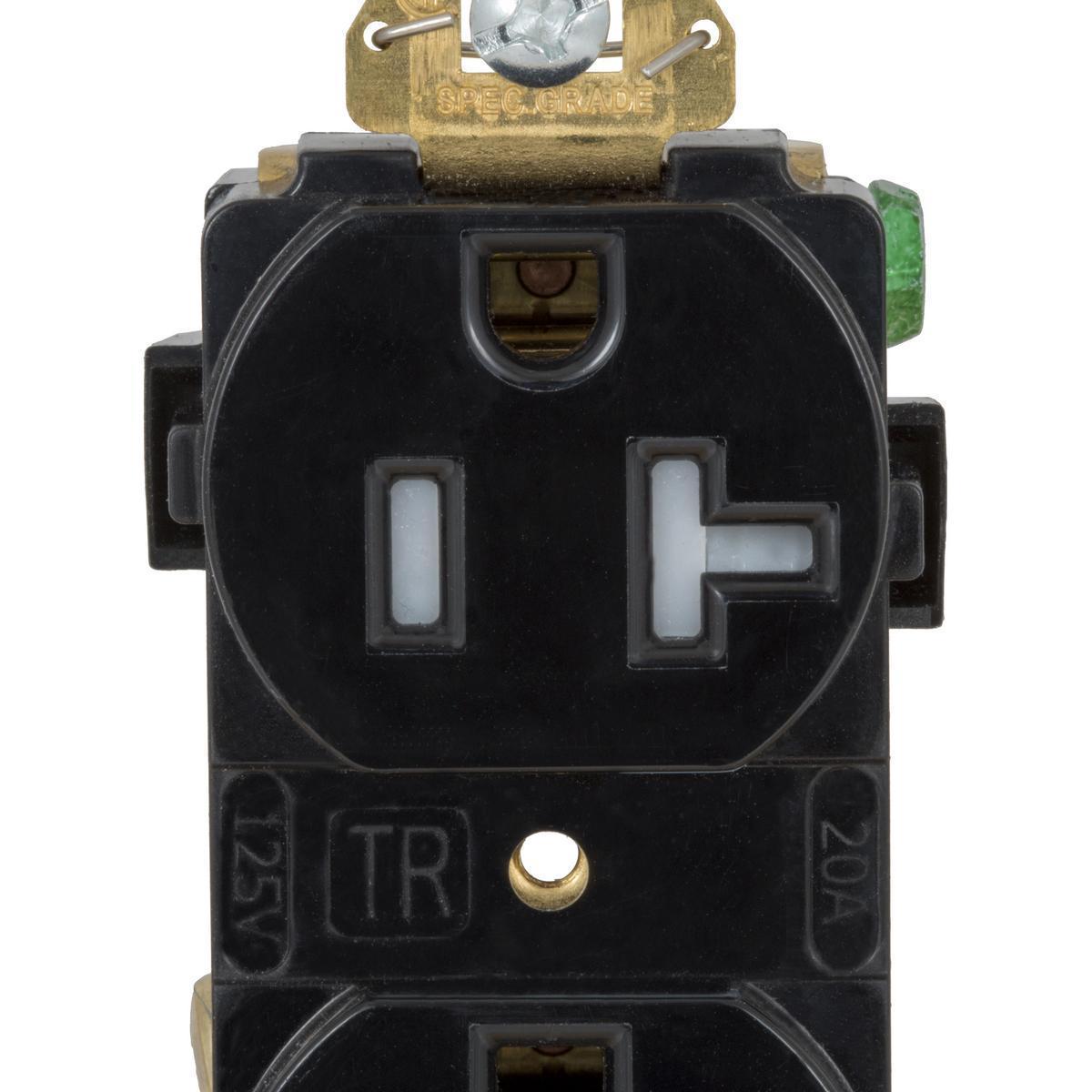

HBL5362I HUB 3W IV DPLX RCPT 5362IAH..

Mouse over image to zoom, click to enlarge

  • HBL5362I HUB 3W IV DPLX RCPT 5362IAH..
  • HBL5362I HUB 3W IV DPLX RCPT 5362IAH..
  • HBL5362I HUB 3W IV DPLX RCPT 5362IAH..

Description: Hubbell Wiring Device-Kellems, HBL5362I, Straight Blade Receptacle, 1-Phase Duplex Grounding Heavy Duty Standard Screw Mount, Series: HBL®, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic/Composite, Ivory, 3.28 x 1.65 x 1.19 in Dimensions

Manufacturer PN: HBL5362I

UPC:  78358543528

Kendall Electric Inc PN: 32662

Invoice Description:

HBL5362I HUB 3W IV DPLX RCPT 5362IAH..


SPEC SHEET

▸ See All in Straight Blade Receptacles


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL5362I HBL® 1-Phase Duplex Grounding Heavy Duty Standard Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Ivory

Log In for Pricing and Availability




Description

Hubbell Wiring Device-Kellems, HBL5362I, Straight Blade Receptacle, 1-Phase Duplex Grounding Heavy Duty Standard Screw Mount, Series: HBL®, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic/Composite, Ivory, 3.28 x 1.65 x 1.19 in Dimensions

Specifications

 Amperage Rating 20 A
 Application Dry Location and Indoor Applications
 Brand Name Hubbell Premise Wiring
 Color Ivory
 Dimensions 3.28 x 1.65 x 1.19 in
 Grade Industrial
 Horsepower 1 hp
 Manufacturer Part Number HBL5362I
 Material Thermoplastic/Composite
 NEMA Rating 5-20R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS HBL5362I ; 8943721 ; 11830773 ; 783585435282 ; 78358543528 ; 00783585435282 ; 0783585435282
 Series HBL®
 Standards/Approvals UL 498 File No. E2186 Listed|UL 94 V-2, UL 94 V-0 Flammability Rating|CSA 22.2 File No. 42, 285|NEMA WD1/WD5|RoHS Compliant
 Temperature Rating -40 to 75 deg C
 Terminal Type Back and Side Wire/Screw
 Type 1-Phase Duplex Grounding Heavy Duty Standard Screw Mount
 Voltage Rating 125 V AC

Features

▪ Back wired ground terminal allows faster, easier installation
▪ Deep body design with circuit ID face
▪ One-piece brass integral ground strap

Resources

 Catalog Page
 Instruction/Installation Manual
 Line Drawing
 MSDS URL None Required
 Product Data Sheet
 Tech Drawing URL
