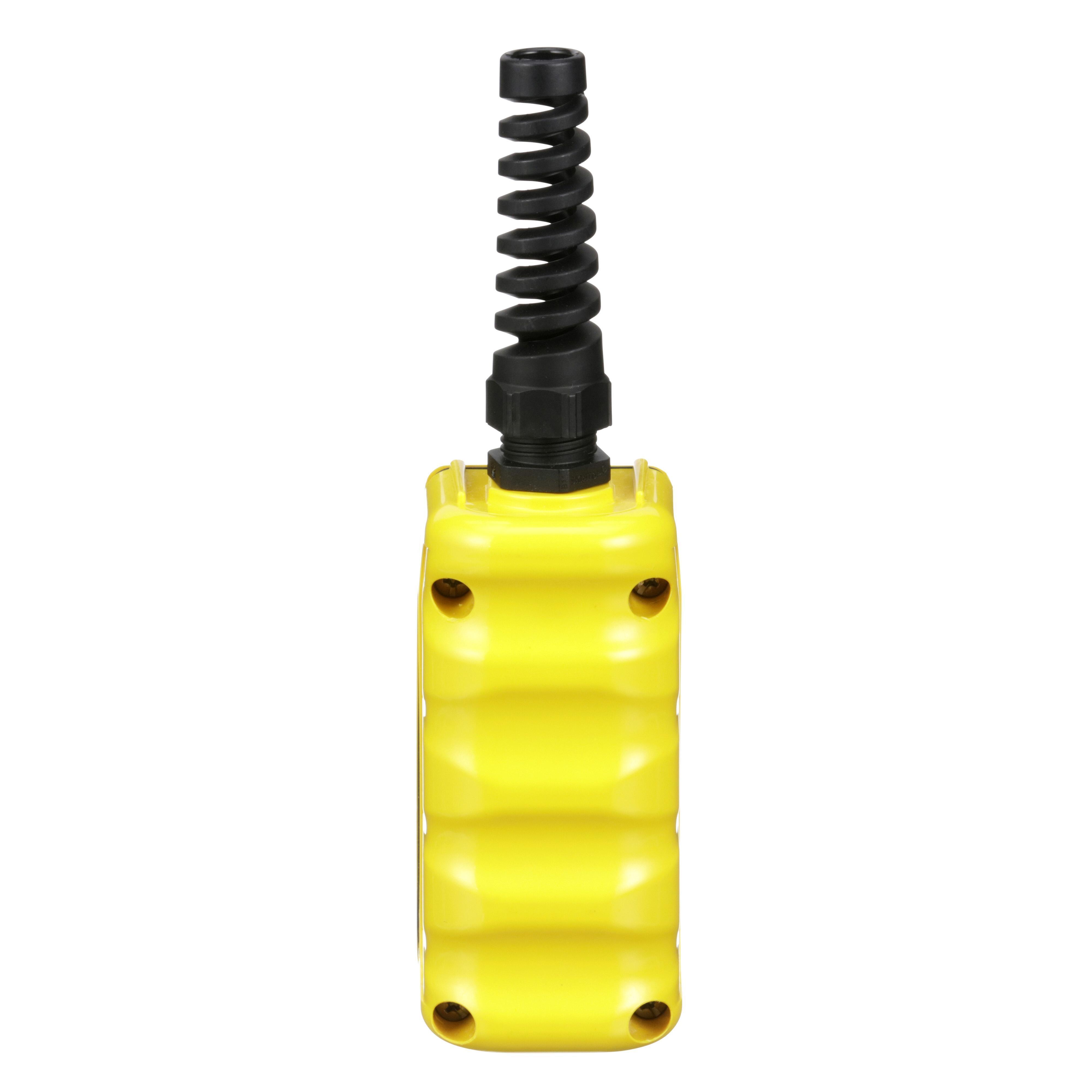

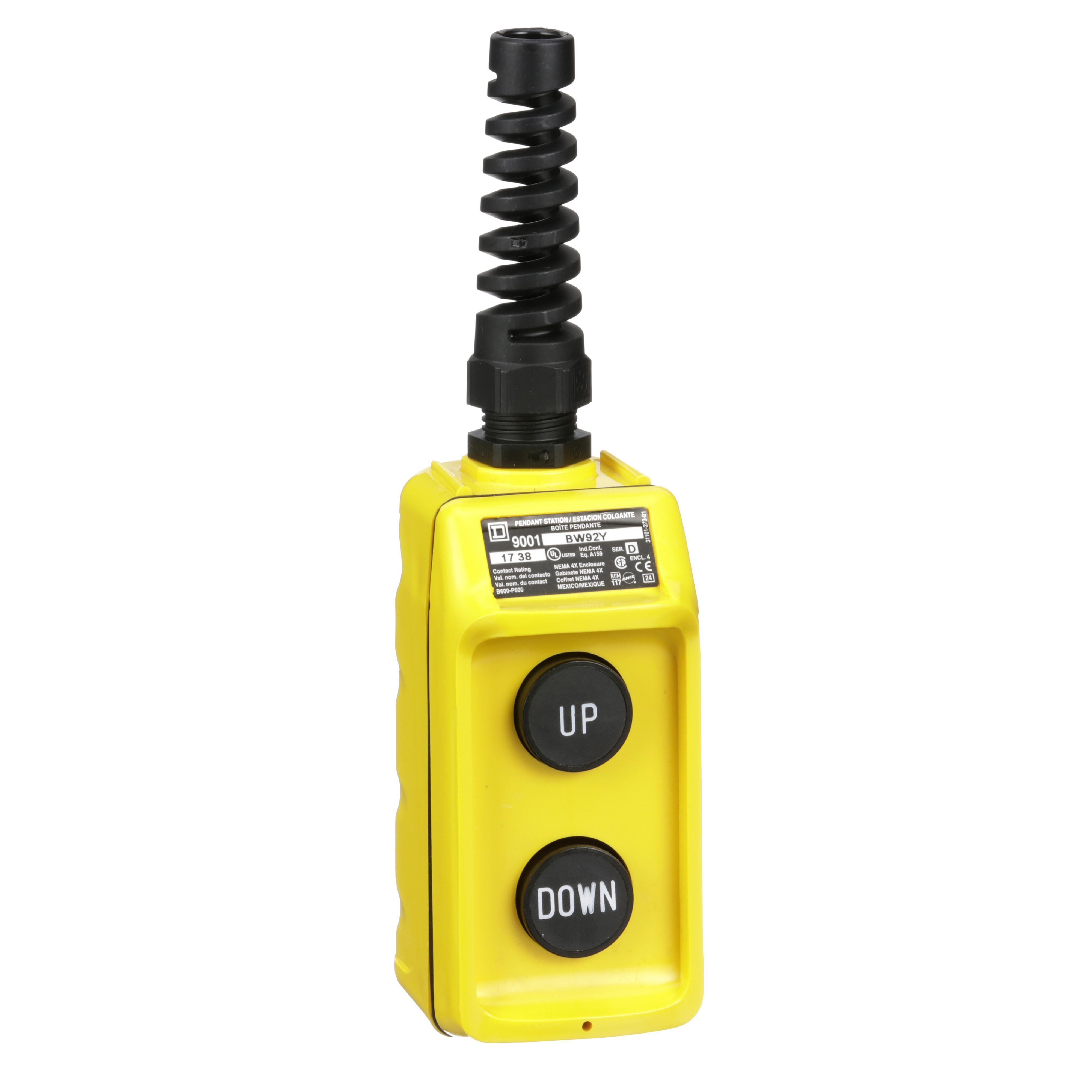

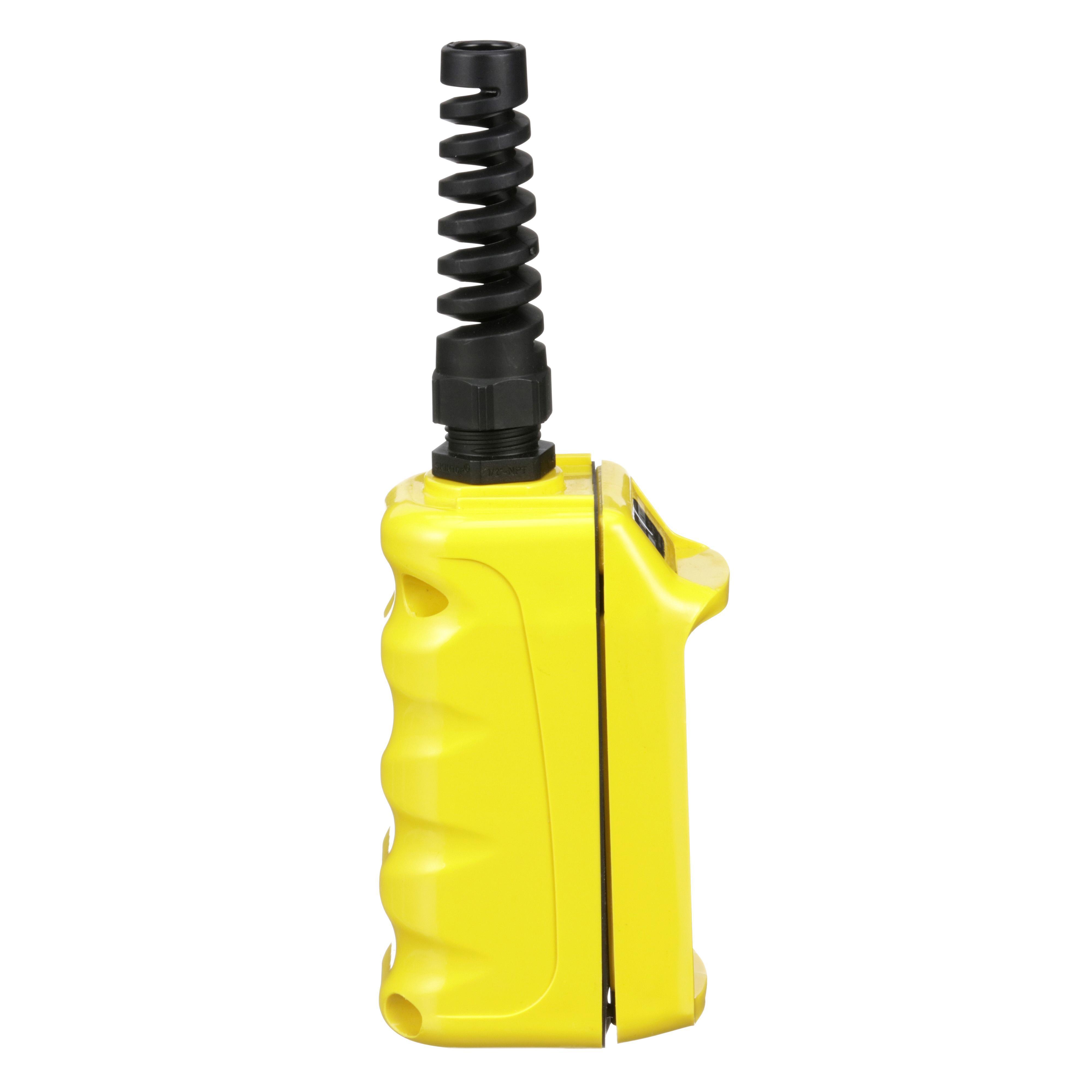

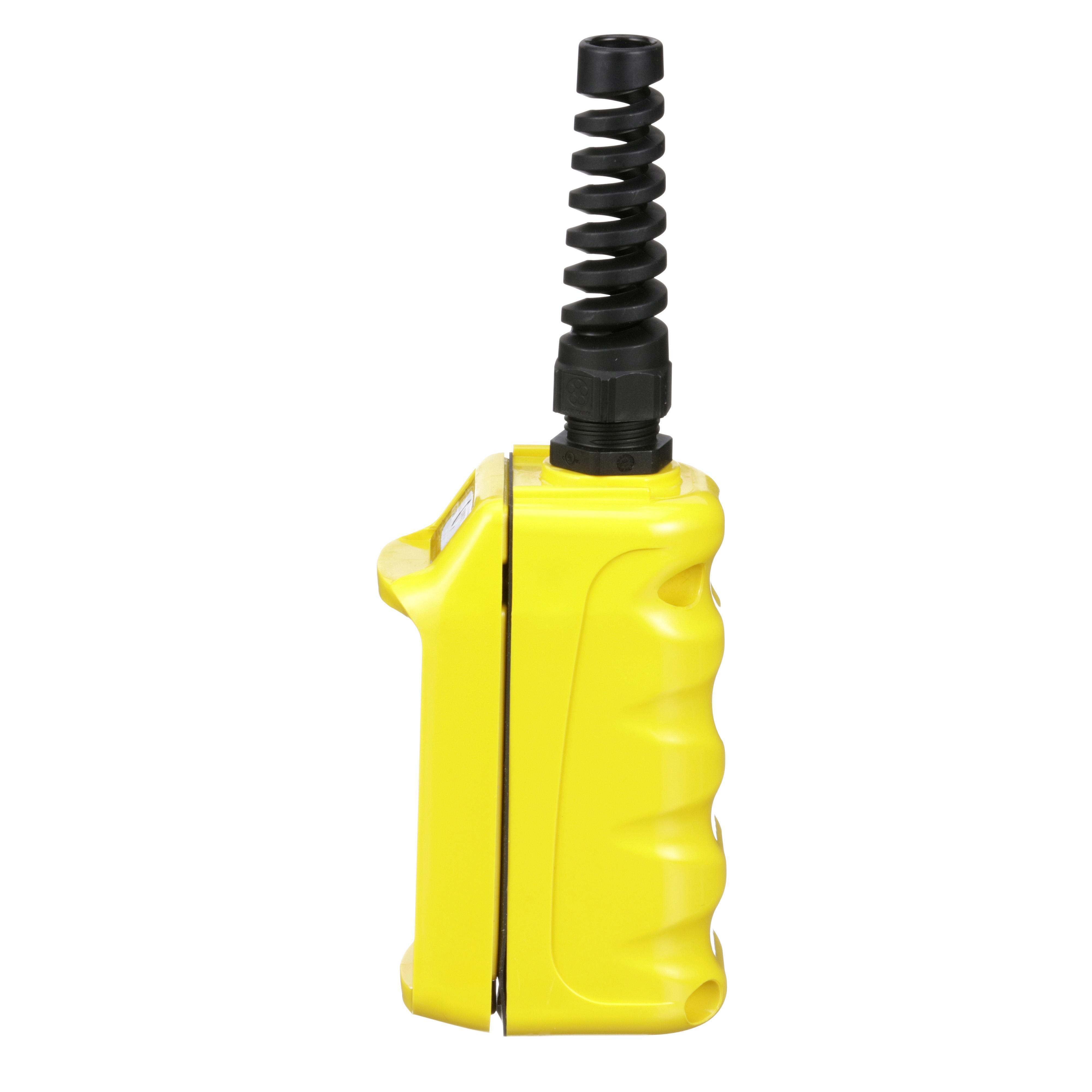

Description: Square D™ Harmony™ Pendant Control Station, Type BW, Series: 9001B, 600 V AC, 5 A, 2 Operators, 1NO-1NC Contact Configuration, Momentary Contact Form, 5 A 600 V AC Contact, Legend: Up-Down, NEMA 1/3/3R/4/4X NEMA Rating, Panel Mounting, Plastic/Polycarbonate, Yellow, 4.25 in H x 2.76 in W x 3.6 in D Dimensions

Manufacturer PN: 9001BW92Y

UPC:  78590166368

Kendall Electric Inc PN: 3998668

Invoice Description:

9001BW92Y SQD PENDANT STATION


SPEC SHEET

▸ See All in Pendant Control Stations


How Can We Make This Page Better?

Square D™ Harmony™ 9001BW92Y Type BW Pendant Control Station, 600 V AC, 5 A, 1NO-1NC Contact, 2 Operators, NEMA 1/3/3R/4/4X NEMA Rating

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

9001BW pendant stations have two push buttons that are fully assembled and are used for standard hoist applications. They can be used for single speed or two speed applications. These pendant stations are easy to hold in one hand with a contoured grip. They can have momentary and maintained contacts. The 9001BW pendant station enclosures can be yellow, black or red. The enclosures are made of high impact thermoplastic and have a self extinguishing flammability rating of UL94V. 9001BW pendants are often used for simple hoisting applications, for overhead cranes, for building cranes, for lifts, and jogging applications on conveyor systems. These 9001BW pendant stations are watertight, dusttight, oiltight, and corrosion resistent and have NEMA 1, 3, 3R, 4, 4X, & 13 ratings.
Square D™ Harmony™ Pendant Control Station, Type BW, Series: 9001B, 600 V AC, 5 A, 2 Operators, 1NO-1NC Contact Configuration, Momentary Contact Form, 5 A 600 V AC Contact, Legend: Up-Down, NEMA 1/3/3R/4/4X NEMA Rating, Panel Mounting, Plastic/Polycarbonate, Yellow, 4.25 in H x 2.76 in W x 3.6 in D Dimensions

Specifications

 Amperage Rating 5 A
 Application Industrial Applications
 Brand Name Square D
 Color Yellow
 Contact Configuration 1NO-1NC
 Contact Form Momentary
 Contact Rating 5 A 600 V AC
 Dimensions 4.25 in H x 2.76 in W x 3.6 in D
 Legend Up-Down
 Manufacturer Part Number 9001BW92Y
 Material Plastic/Polycarbonate
 Mounting Type Panel
 NEMA Rating NEMA 1/3/3R/4/4X
 Number of Operators 2
 PART NUMBER KEYWORDS 9001BW92Y ; 11058126 ; 785901663683 ; 78590166368 ; 00785901663683
 Series 9001B
 Standards/Approvals RoHS Compliant|PPROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Type Type BW
 Voltage Rating 600 V AC

Features

▪ This control station is double insulated
▪ Suitable for use in harsh environment
▪ Wide availability throughout an extensive distribution network
