Eaton

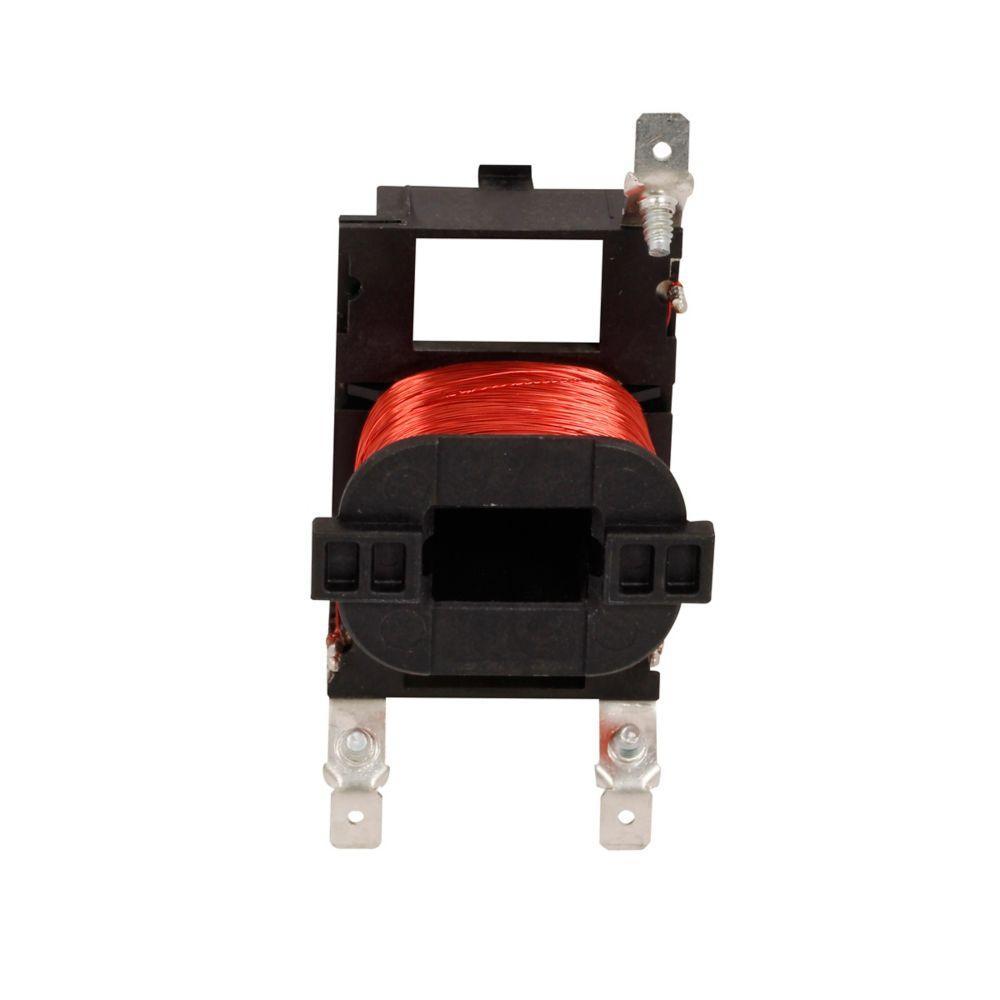

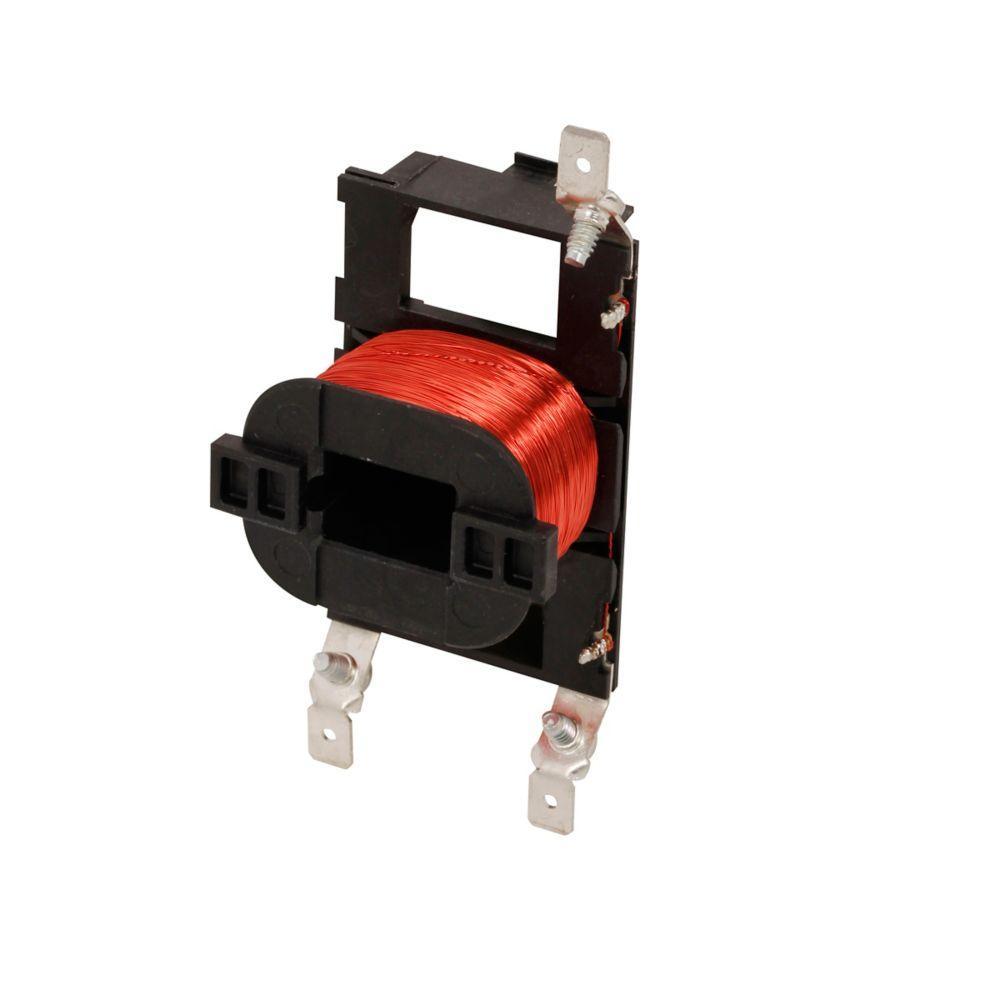

9-3254-3 CH 50 MM DP COIL, 15-40 AMP, 24VDC CLASS F

Mouse over image to zoom, click to enlarge

Description: EATON Magnetic Coil, Type 1T, Series: D1/E1, 50 mm Size, 24 V DC, For Use With: C25 Series Definite Purpose Contactor, Motor Control, 2-1/2 x 2-1/2 x 2-1/2 in Dimensions

Manufacturer PN: 9-3254-3

UPC: 78211632628

Kendall Electric Inc PN: 3817513

Invoice Description:

9-3254-3 CH 50 MM DP COIL, 15-40 AMP, 24VDC CLASS F

SPEC SHEET

▸ See All in Motor Control Coils

How Can We Make This Page Better?

EATON 9-3254-3 D1/E1 Type 1T Magnetic Coil, 50 mm, 24 V DC, For Use With C25 Series Definite Purpose Contactor, Motor Control

Note: Lead times are estimates only

Description Specifications Resources

Description

EATON Magnetic Coil, Type 1T, Series: D1/E1, 50 mm Size, 24 V DC, For Use With: C25 Series Definite Purpose Contactor, Motor Control, 2-1/2 x 2-1/2 x 2-1/2 in Dimensions

Specifications

Application	Commercial, Institutional Buildings, Structures, Lighting and Lighting Controls Applications
Brand Name	EATON
Dimensions	2-1/2 x 2-1/2 x 2-1/2 in
Manufacturer Part Number	9-3254-3
PART NUMBER KEYWORDS	9-3254-3 ; 932543 ; 12073965 ; 782116326280 ; 78211632628 ; 00782116326280
Series	D1/E1
Size	50 mm
Standards/Approvals	Not Applicable
Suitable For Use With	C25 Series Definite Purpose Contactor, Motor Control
Type	Type 1T
Voltage Rating	24 V DC
