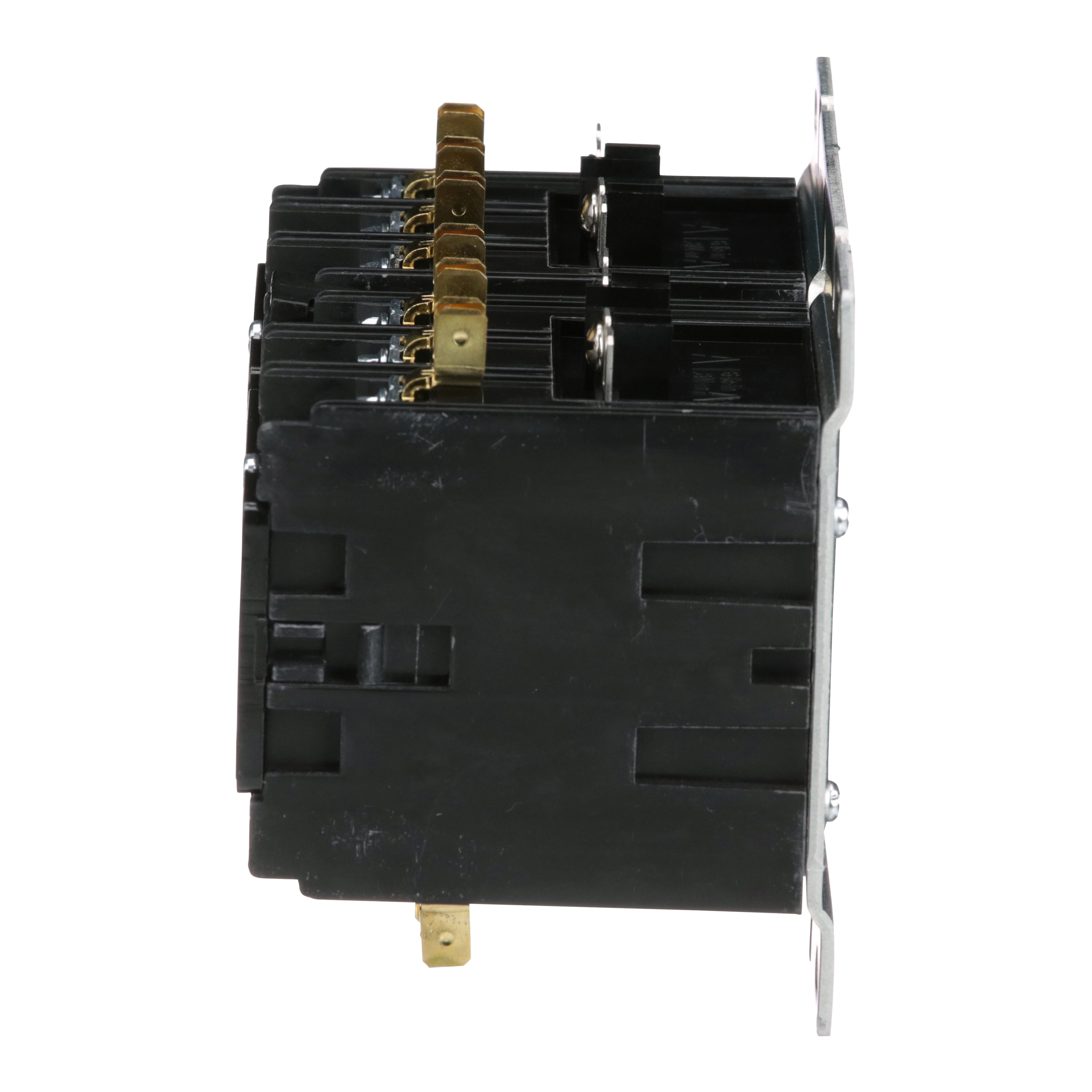

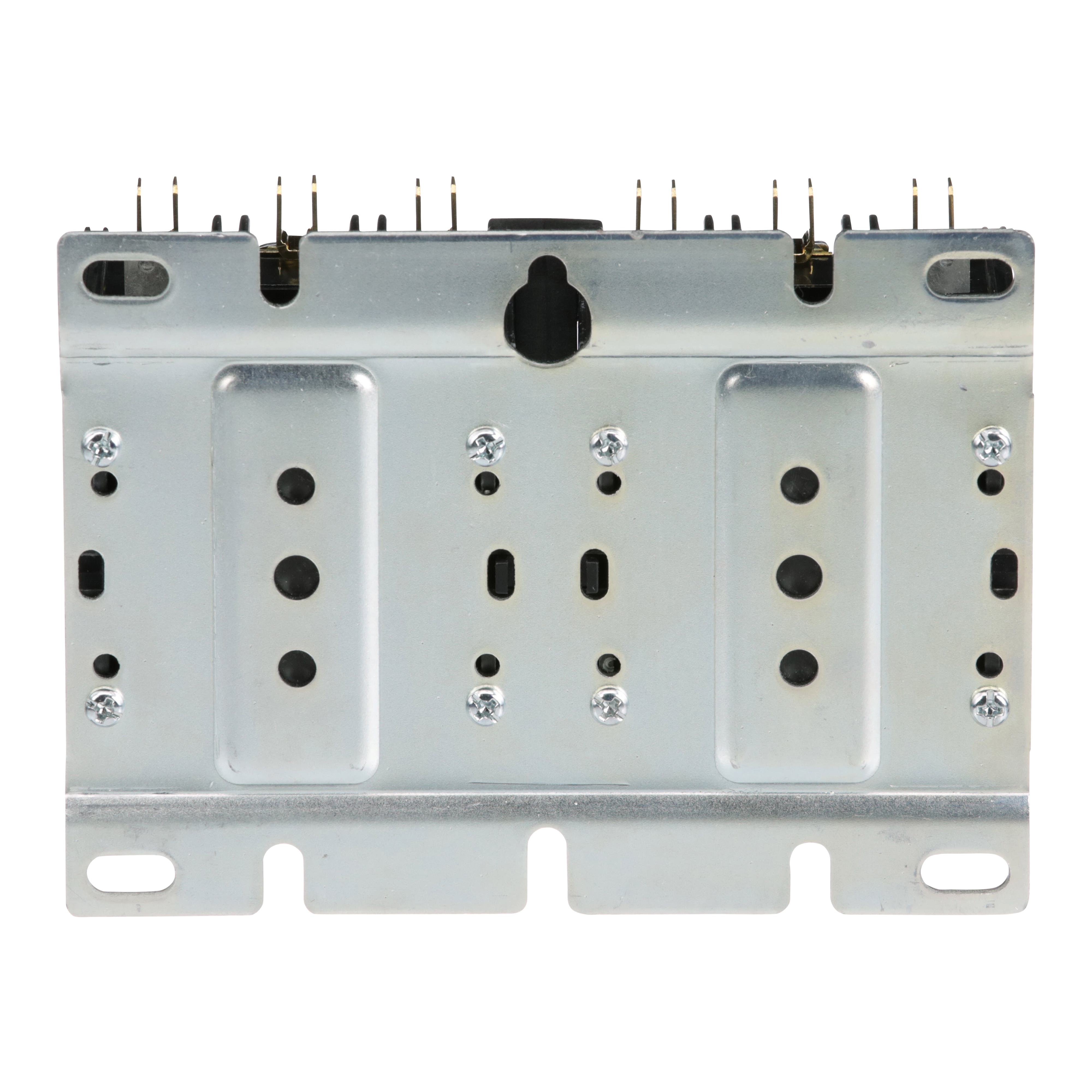

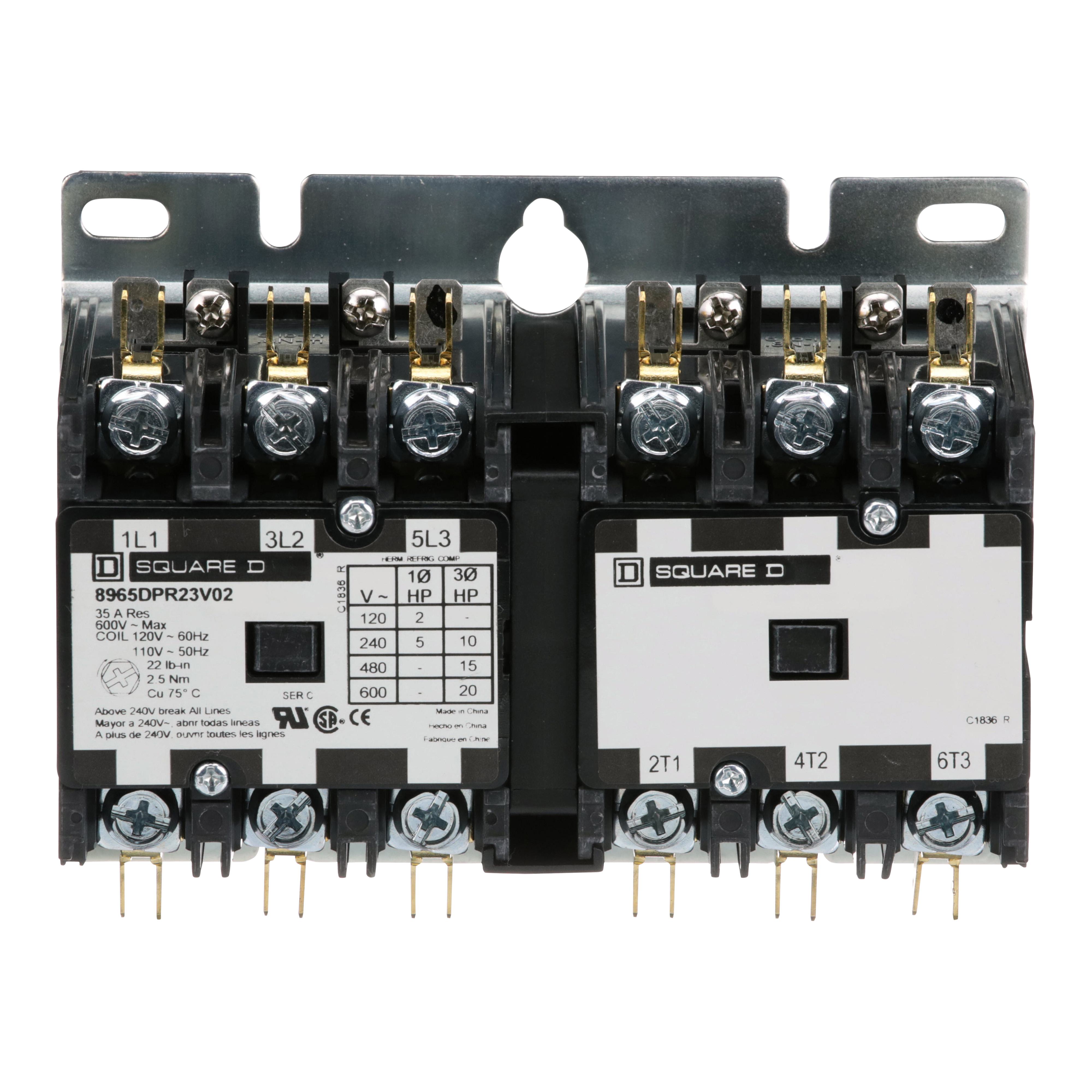

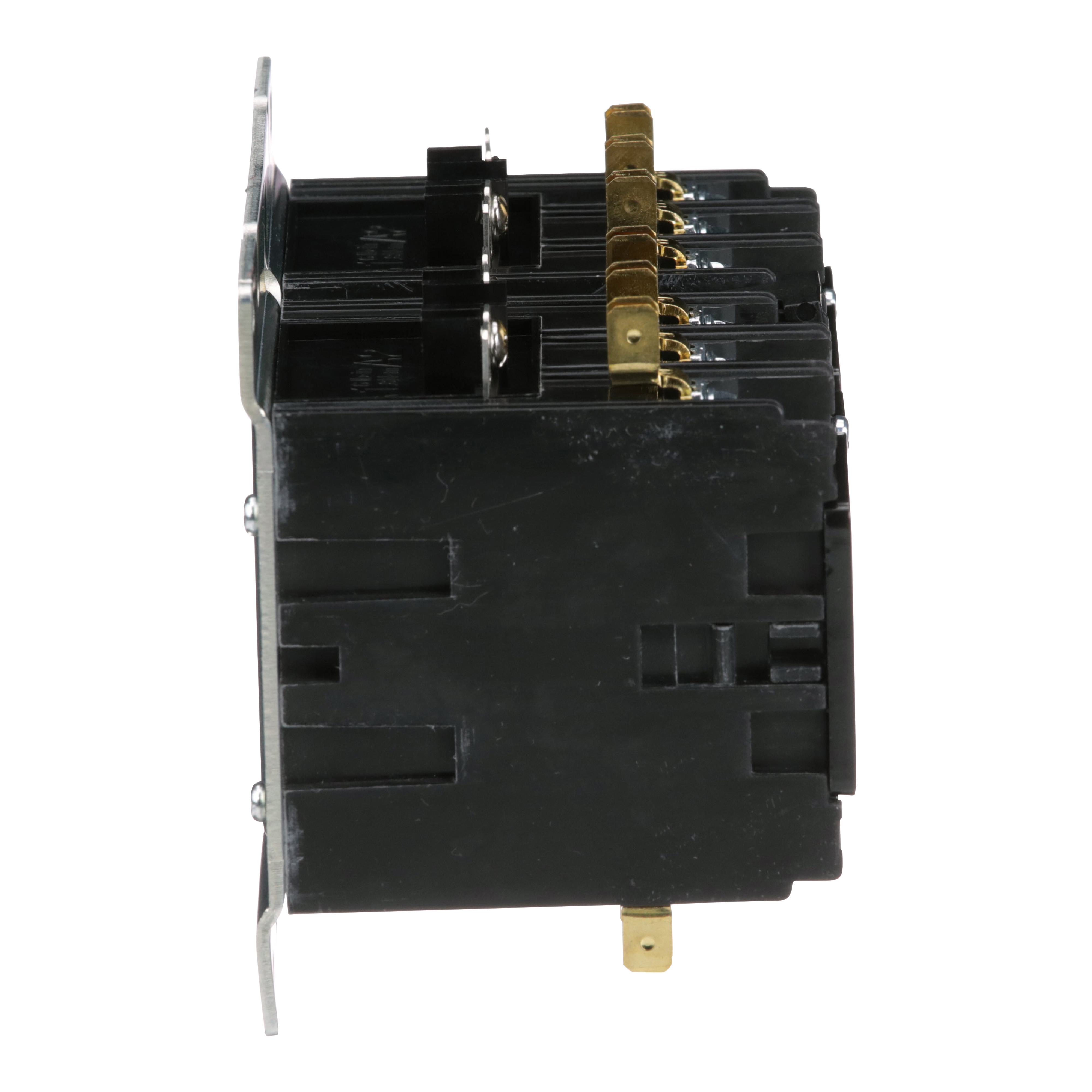

Description: Square D™ Hoist Contactor, 3-Phase, Series: 8965DPR, 110/120 V AC Coil, 25 A Maximum Load Current, 2 hp, 3 hp, 7-1/2 hp, 10 hp Coil, 3 Pole, 50/60 Hz Frequency, Reversing Contact, 3NO Contact Configuration, Open Enclosure, 6.03 in W x 2.98 in D x 3.73 in H Dimensions

Manufacturer PN: 8965DPR23V02

UPC:  78590108137

Kendall Electric Inc PN: 4046770

Invoice Description:

8965DPR23V02 SQD HOIST CONTACTOR


SPEC SHEET

▸ See All in Definite Purpose Contactors AC


How Can We Make This Page Better?

Square D™ 8965DPR23V02 3-Phase Hoist Contactor, 110/120 V AC V Coil, 25 A, 3NO Contact, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

8965 reversing hoist contactors are designed for control of hoists, overhead doors, small elevators and commercial laundry equipment. They are rated to perform in the short periods of jogging experienced in hoist service. This 3 pole contactor has ratings of 2 HP at 115 VAC and 3 HP at 230 VAC single phase. Has ratings of 7.5 HP at 230 HP and 10 HP at 460 VAC and 575 VAC poly phase. The replaceable coil is available with a variety of coil voltages. This device has a 110/240 VAC 50/60 Hz coil. This reversing contactor doesn't have an enclosure. Reversing contactor is 3.98 inches tall, 5.87 inches wide and 3.07 inches deep. Auxiliary contacts are available for these contactors. 8965DPR reversing hoist contactors are UL component recognized and CSA certified.
Square D™ Hoist Contactor, 3-Phase, Series: 8965DPR, 110/120 V AC Coil, 25 A Maximum Load Current, 2 hp, 3 hp, 7-1/2 hp, 10 hp Coil, 3 Pole, 50/60 Hz Frequency, Reversing Contact, 3NO Contact Configuration, Open Enclosure, 6.03 in W x 2.98 in D x 3.73 in H Dimensions

Specifications

 Application For heating, air conditioning, refrigeration, data processing, food service equipment, control of motors in hoists, overhead door, small elevators, commercial laundry equipment and other related products applications
 Brand Name Square D
 Coil Power Rating 2 hp, 3 hp, 7-1/2 hp, 10 hp
 Coil Voltage 110/120 V AC
 Contact Configuration 3NO
 Contact Type Reversing
 Dimensions 6.03 in W x 2.98 in D x 3.73 in H
 Enclosure Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 8965DPR23V02
 Maximum Load Current 25 A
 Number of Poles 3
 PART NUMBER KEYWORDS 8965DPR23V02 ; 8009625 ; 785901081371 ; 78590108137 ; 00785901081371 ; 0785901081371
 Series 8965DPR
 Standards/Approvals RoHS Compliant|CE Certified|CSA File No. LR25490 Class 3211-04|ECCN: EAR99|UL File No. E3190|CCN Guide No. NLDX2|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
 Type 3-Phase

Features

▪ Designed to operate on line voltages of 85% to 110% of rated voltage
▪ Designed for applications at 50 or 60 Hz only
▪ Coils are easily replaced with external base removed
▪ Field installable auxiliary contacts for flexibility
▪ Designed to accept one auxiliary contact module with up to two isolated circuits per side (two modules per device), when auxiliary contacts are ordered separately, two modules are normally used for each device, one for forward, one for reverse
▪ 600 vac system voltage
▪ 2 hp at 115 vac 1 ph/3 hp at 230 vac 1 ph/7.5 hp at 230 vac 3-phase/10 hp at 460/575 VAC three-phase
