Schneider Electric

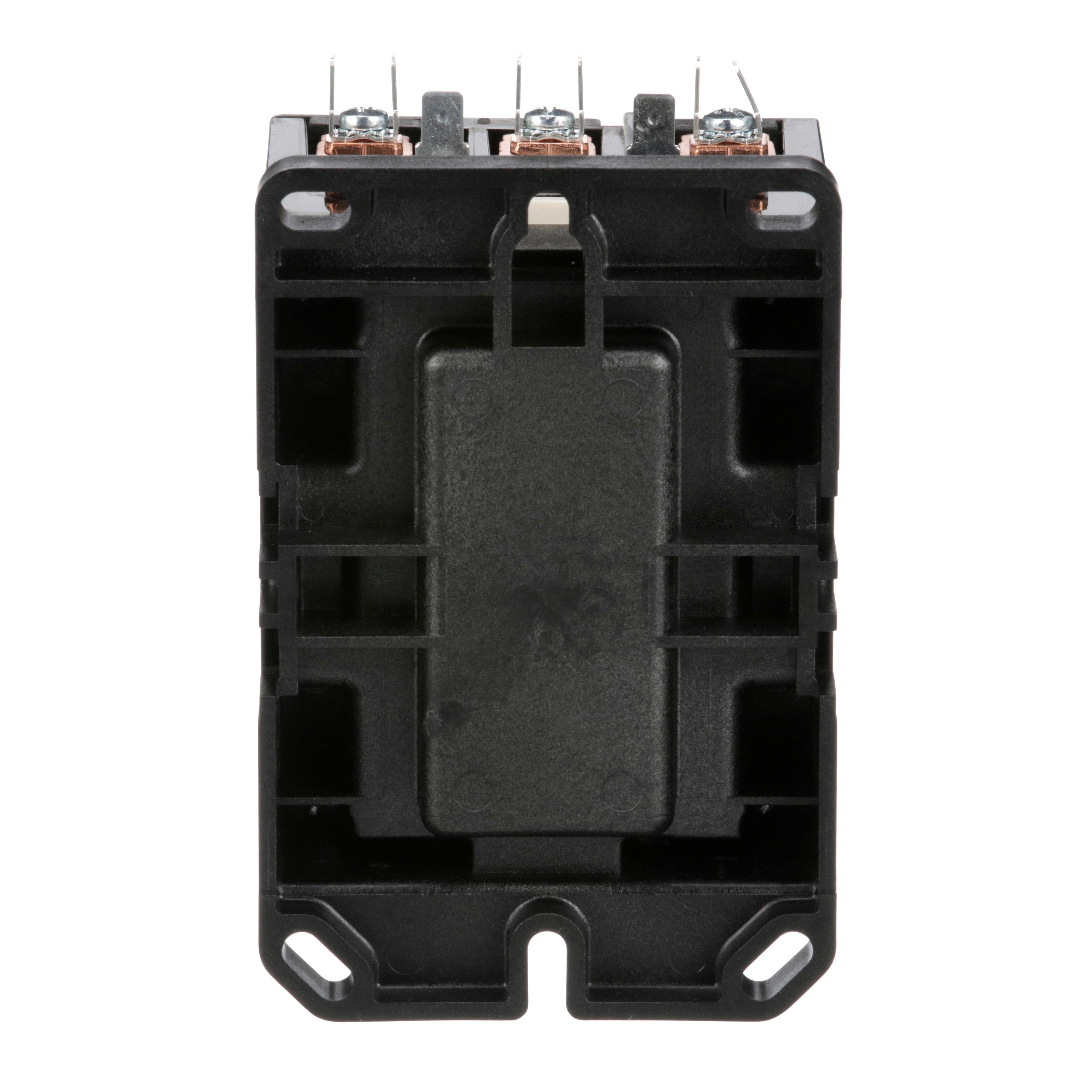

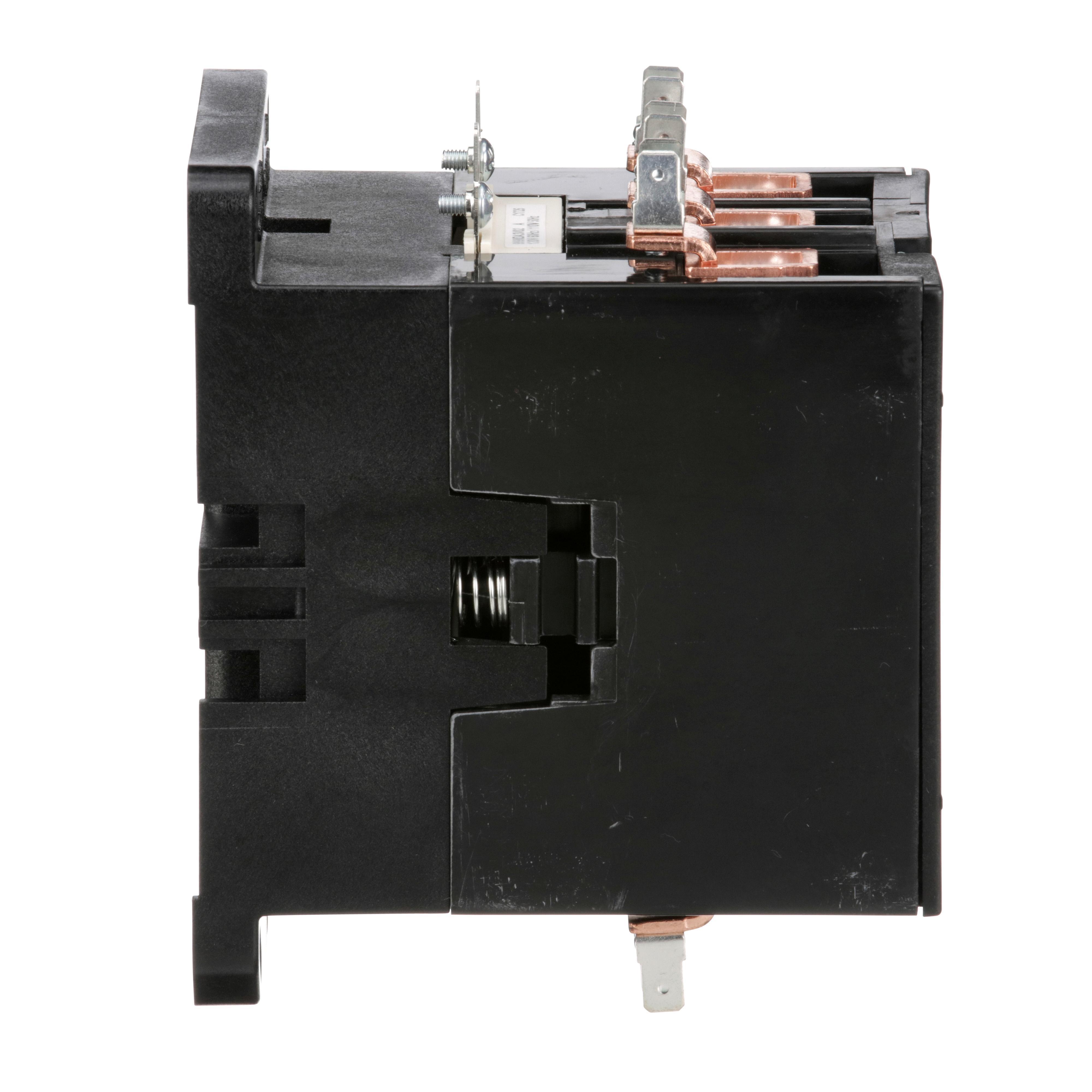

  • 8910DPA93V06 SQD CONTACTOR 600VAC
  • 8910DPA93V06 SQD CONTACTOR 600VAC
  • 8910DPA93V06 SQD CONTACTOR 600VAC
  • 8910DPA93V06 SQD CONTACTOR 600VAC
  • 8910DPA93V06 SQD CONTACTOR 600VAC

Description: Square D™ Definite Purpose Contactor, Type DPA, Series: 8910, 440/480 V AC Coil, 90 A Maximum Load Current, 7.5 hp at 115 VAC/20 hp at 230 VAC/30 hp at 230 VAC/50 hp at 460/575 VAC Coil, 3 Pole, 50/60 Hz Frequency, 5.5 kW at 115 V/15 kW at 230 V/22 kW at 230 V/37 kW at 460/575 V Wattage, 3NO Contact Configuration, 600 VAC Contact, Binding Head Screw Connection, Quick-Connect Terminal, NEMA 1 Enclosure, 500 cpm Operating Cycles, 32 to 149 deg F Operating, Panel Mounting, 2.37 in W x 2.9 in D x 3.25 in H Dimensions

Manufacturer PN: 8910DPA93V06

UPC:  78590102457

Kendall Electric Inc PN: 3960652

Invoice Description:

8910DPA93V06 SQD CONTACTOR 600VAC


SPEC SHEET

▸ See All in Definite Purpose Contactors AC


How Can We Make This Page Better?

Square D™ 8910DPA93V06 Type DPA Definite Purpose Contactor, 440/480 V AC V Coil, 90 A, 3NO Contact, 3 Poles

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

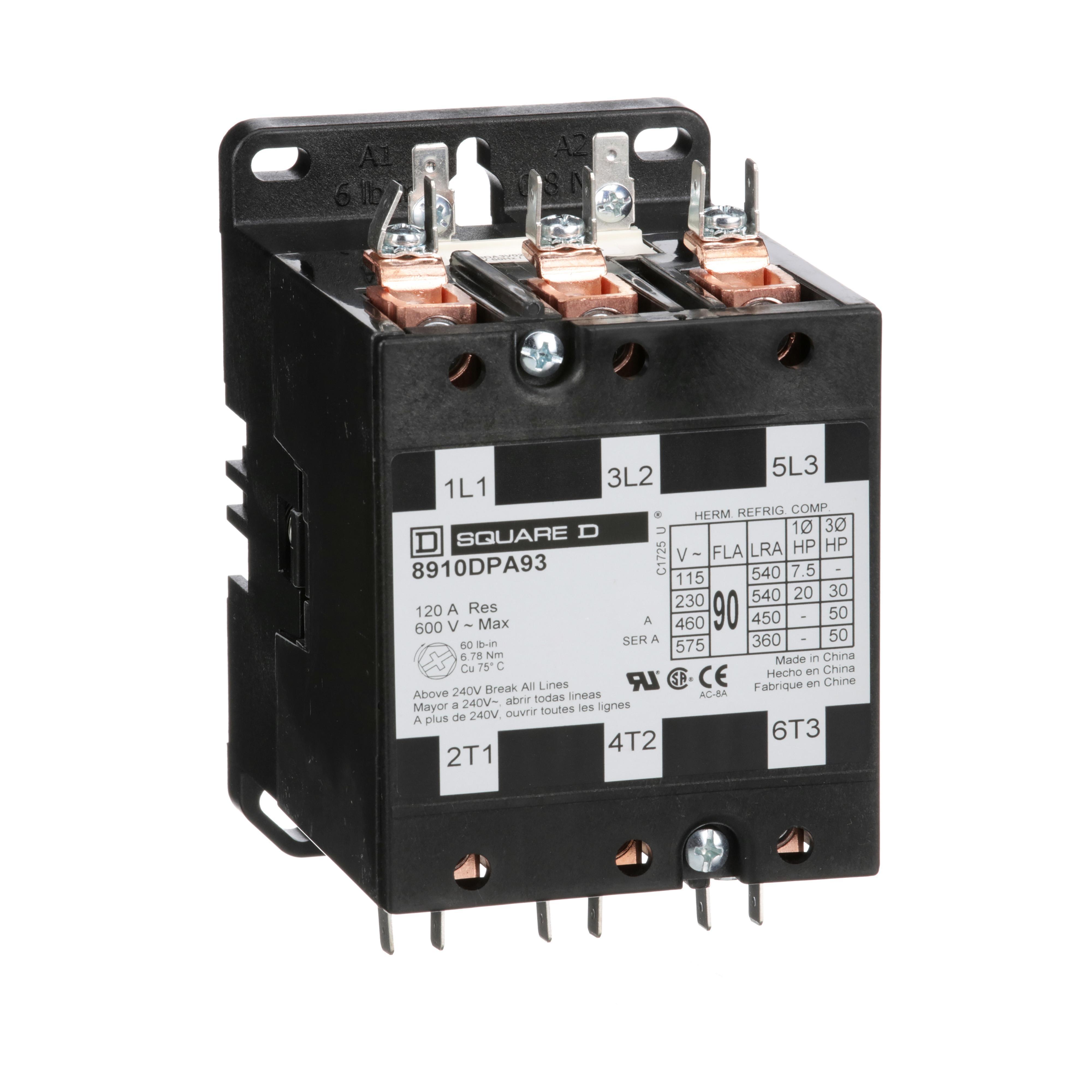

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 90 ampere and a resistive rating of 120 amperes. It also has a 7.5 HP at 115 VAC single phase, 20 HP at 230 VAC single phase and 30 HP at 230 VAC three phase, 50 HP at 460 VAC three phase and 50 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 440/480 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 5.20 inches by 3.39 inches and 4.76 tall. These contactors are UL component recognized and CSA certified.
Square D™ Definite Purpose Contactor, Type DPA, Series: 8910, 440/480 V AC Coil, 90 A Maximum Load Current, 7.5 hp at 115 VAC/20 hp at 230 VAC/30 hp at 230 VAC/50 hp at 460/575 VAC Coil, 3 Pole, 50/60 Hz Frequency, 5.5 kW at 115 V/15 kW at 230 V/22 kW at 230 V/37 kW at 460/575 V Wattage, 3NO Contact Configuration, 600 VAC Contact, Binding Head Screw Connection, Quick-Connect Terminal, NEMA 1 Enclosure, 500 cpm Operating Cycles, 32 to 149 deg F Operating, Panel Mounting, 2.37 in W x 2.9 in D x 3.25 in H Dimensions

Specifications

 Application Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment
 Brand Name Square D
 Coil Power Rating 7.5 hp at 115 VAC/20 hp at 230 VAC/30 hp at 230 VAC/50 hp at 460/575 VAC
 Coil Voltage 440/480 V AC
 Connection Type Binding Head Screw

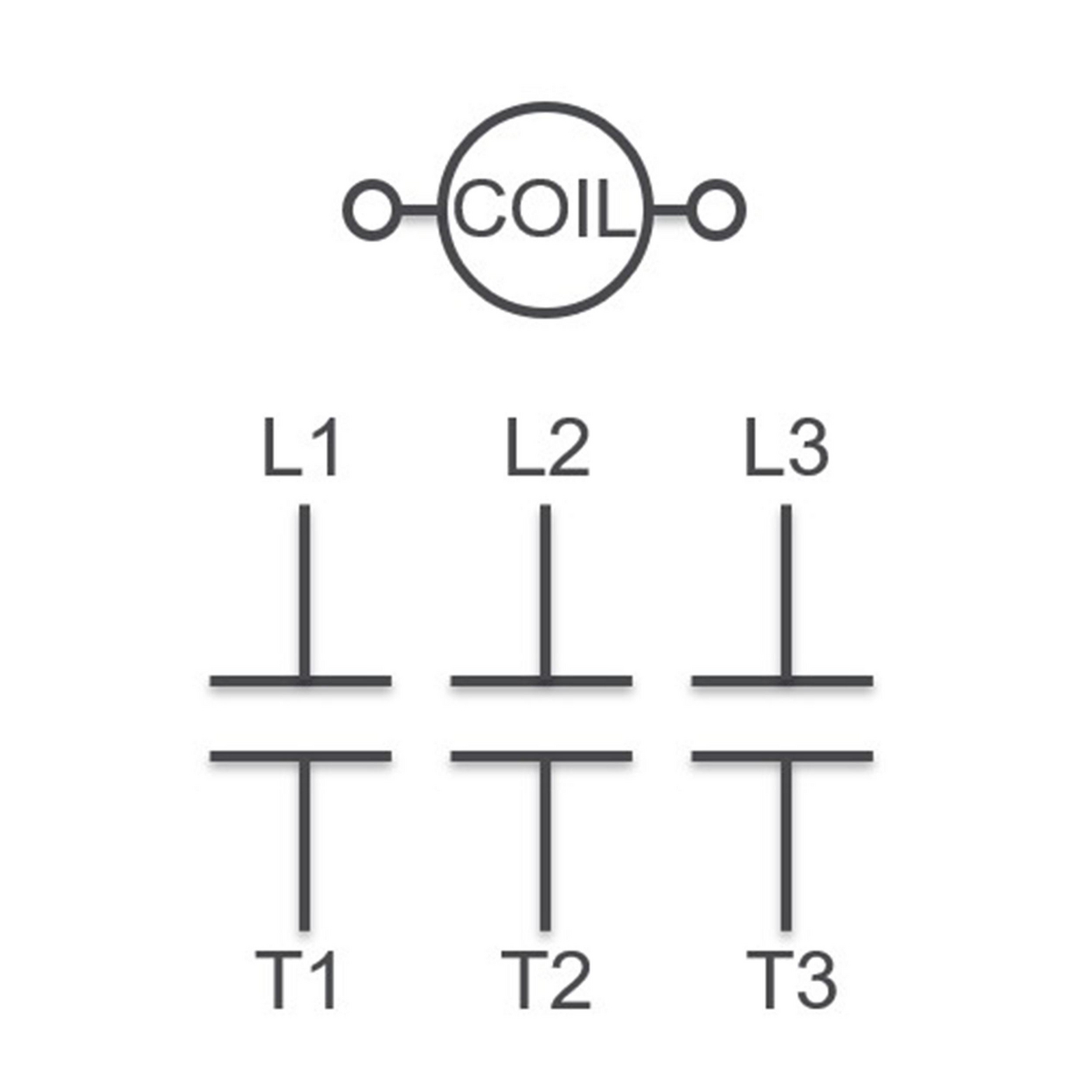

 Contact Configuration 3NO
 Contact Rating 600 V AC
 Dimensions 2.37 in W x 2.9 in D x 3.25 in H
 Enclosure NEMA 1
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 8910DPA93V06
 Maximum Load Current 90 A
 Mounting Type Panel
 Number of Poles 3
 Operating Cycles 500 cpm
 Operating Temperature 32 to 149 deg F
 PART NUMBER KEYWORDS 8910DPA93V06 ; 8152401 ; 785901024576 ; 78590102457 ; 00785901024576 ; 0785901024576
 Series 8910
 Standards/Approvals CE Certified|CSA File LR25490 Class 3211-04|ECCN EAR99|RoHS Compliant|UL File E3190 CCN NLDX2|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
 Terminal Type Quick-Connect
 Type Type DPA
 Wattage 5.5 kW at 115 V/15 kW at 230 V/22 kW at 230 V/37 kW at 460/575 V

Features

▪ Electrical systems protection from overloads and short circuits
▪ Quick connect terminals and binder head screws for easy wiring
▪ Compact design and exclusive DIN mounting option
