Schneider Electric

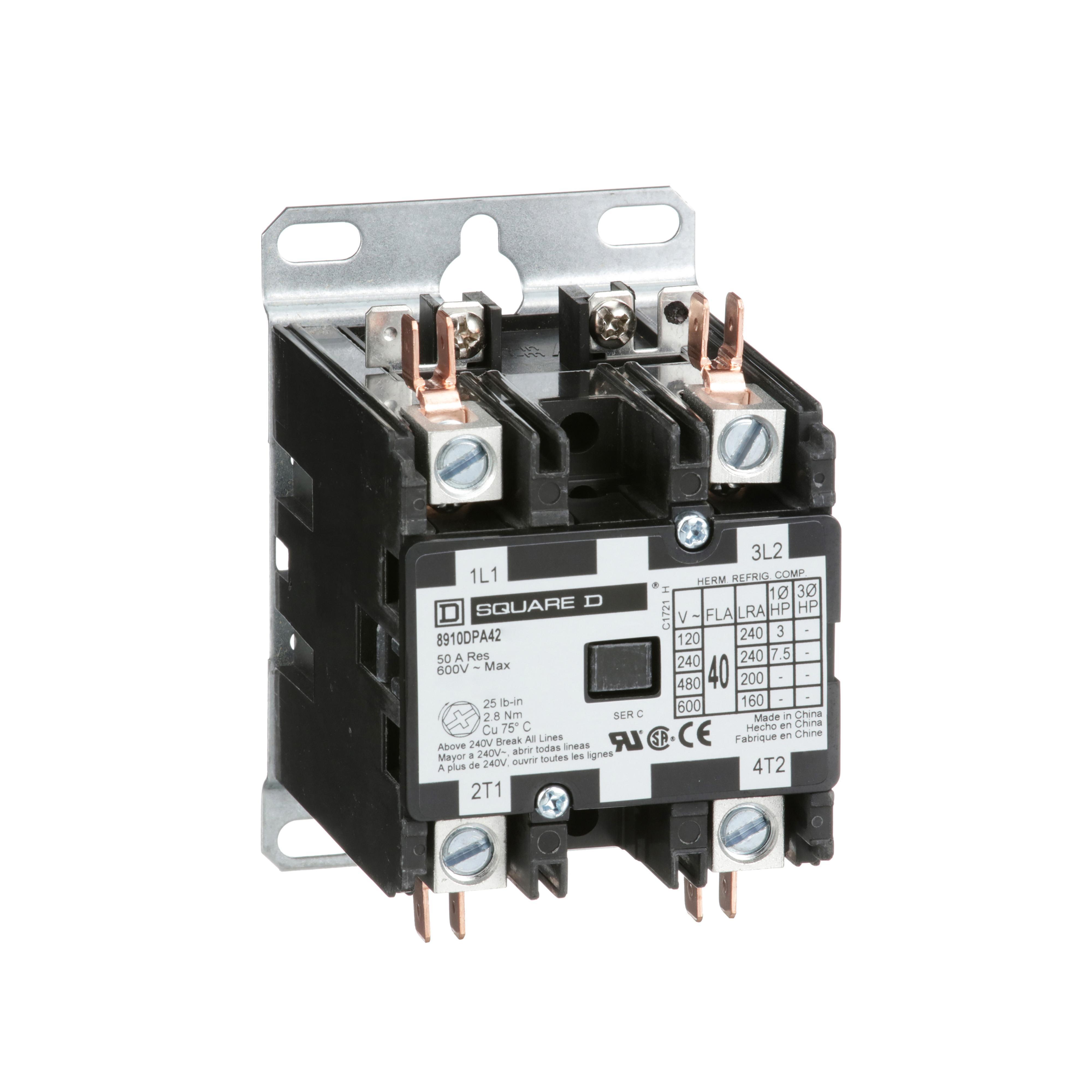

  • 8910DPA42V14 SQD CONTACTOR 600VAC

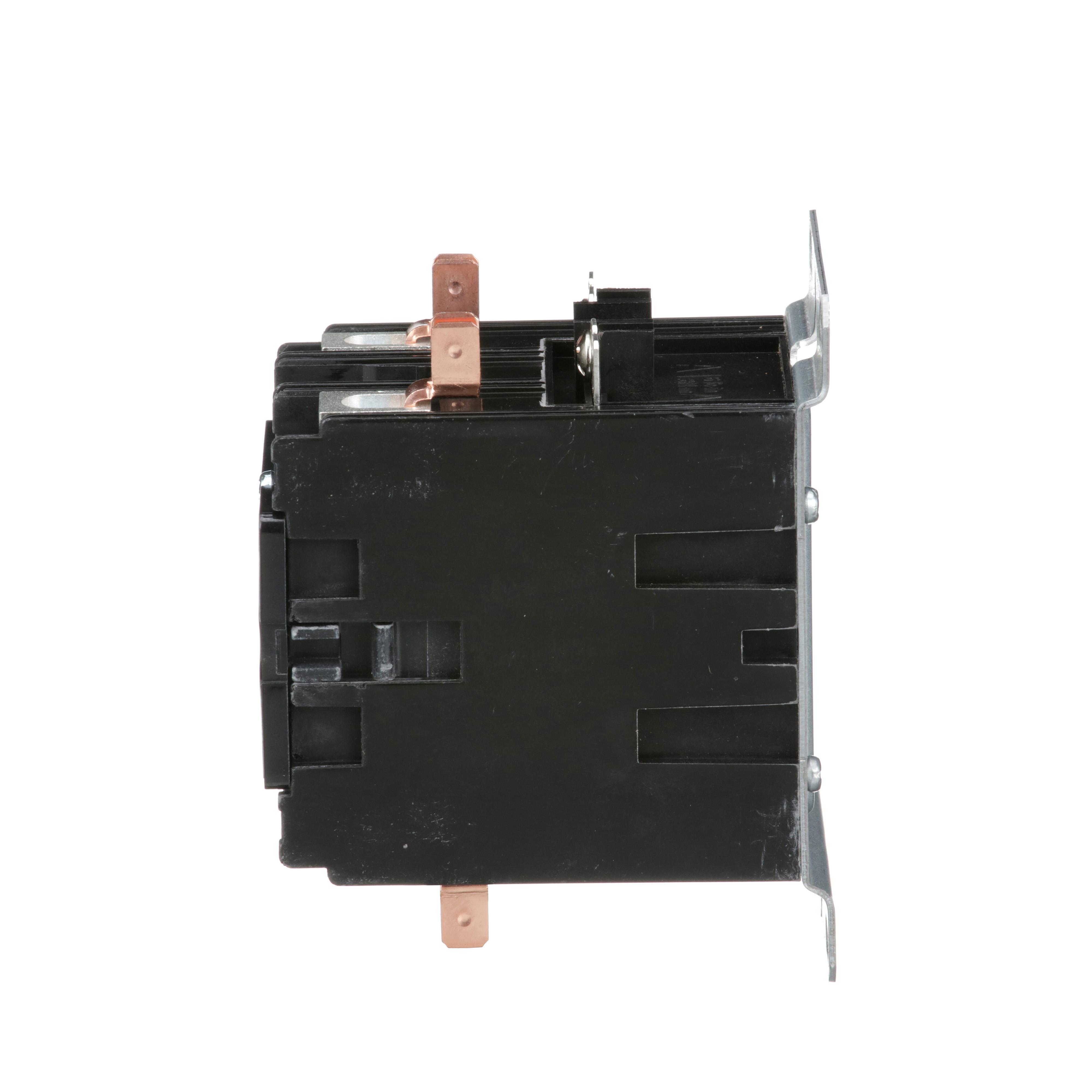

  • 8910DPA42V14 SQD CONTACTOR 600VAC

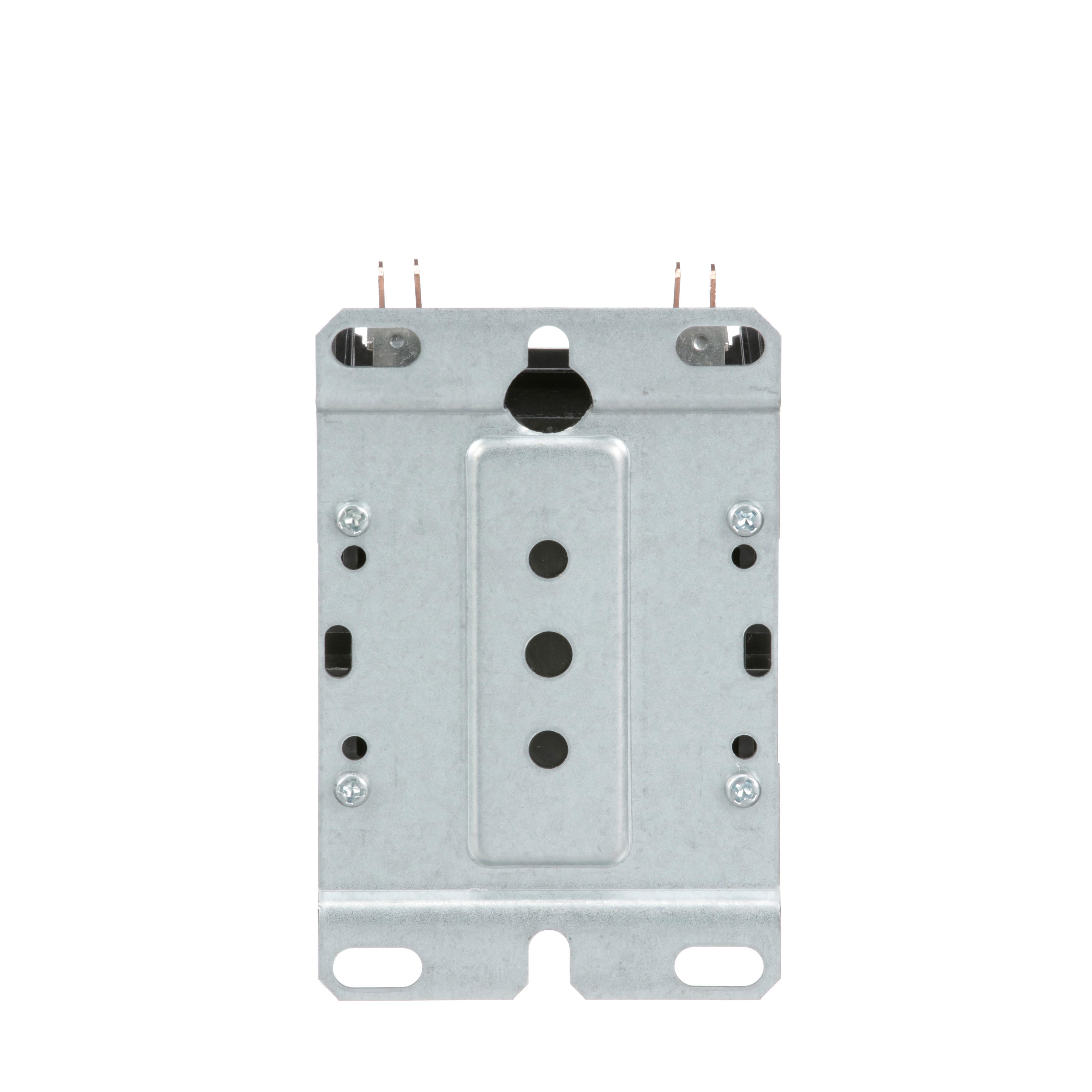

  • 8910DPA42V14 SQD CONTACTOR 600VAC

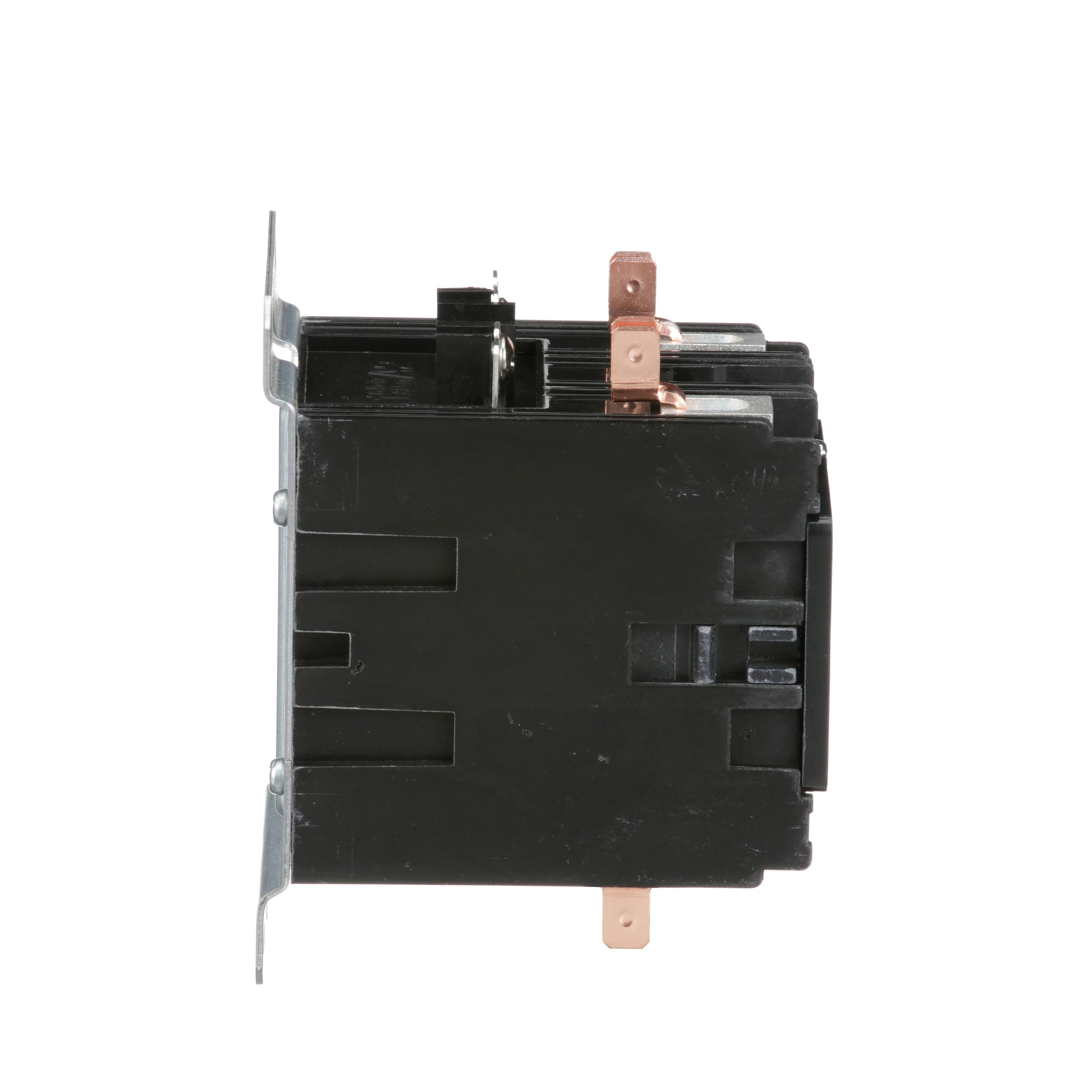

  • 8910DPA42V14 SQD CONTACTOR 600VAC
  • 8910DPA42V14 SQD CONTACTOR 600VAC
  • 8910DPA42V14 SQD CONTACTOR 600VAC

Description: Square D™ Definite Purpose Contactor, Type DPA 1-Phase Electromechanical, Series: 8910, 24 V AC Coil, 40 A Maximum Load Current, Coil Power Rating: 3 hp at 115 VAC/7.5 hp at 230 VAC, 2 Pole, 50/60 Hz, Non-Reversing Contact, 2NO, 600 VAC Contact, Binding Head Screw, Quick-Connect Terminal, Open, 500000 cycles Mechanical/200000 cycles Electrical cycles Operating Cycles, 32 to 149 deg F Operating, DIN Track/Panel Mount, 2.5 in W x 3.12 in D x 4 in H

Manufacturer PN: 8910DPA42V14

UPC:  78590107348

Kendall Electric Inc PN: 3998635

Invoice Description:

8910DPA42V14 SQD CONTACTOR 600VAC


SPEC SHEET

▸ See All in Definite Purpose Contactors AC


How Can We Make This Page Better?

Square D™ 8910DPA42V14 Type DPA 1-Phase Electromechanical Definite Purpose Contactor, 24 V AC V Coil, 40 A, 2NO Contact, 2 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
Square D™ Definite Purpose Contactor, Type DPA 1-Phase Electromechanical, Series: 8910, 24 V AC Coil, 40 A Maximum Load Current, Coil Power Rating: 3 hp at 115 VAC/7.5 hp at 230 VAC, 2 Pole, 50/60 Hz, Non-Reversing Contact, 2NO, 600 VAC Contact, Binding Head Screw, Quick-Connect Terminal, Open, 500000 cycles Mechanical/200000 cycles Electrical cycles Operating Cycles, 32 to 149 deg F Operating, DIN Track/Panel Mount, 2.5 in W x 3.12 in D x 4 in H

Specifications

 Application Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment Applications
 Brand Name Square D
 Coil Power Rating 3 hp at 115 VAC/7.5 hp at 230 VAC
 Coil Voltage 24 V AC
 Connection Type Binding Head Screw
 Contact Configuration 2NO
 Contact Rating 600 V AC
 Contact Type Non-Reversing
 Dimensions 2.5 in W x 3.12 in D x 4 in H
 Enclosure Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 8910DPA42V14
 Maximum Load Current 40 A
 Mounting Type DIN Track/Panel
 Number of Poles 2
 Operating Cycles 500000 cycles Mechanical/200000 cycles Electrical cycles
 Operating Temperature 32 to 149 deg F
 Series 8910
 Standards/Approvals CCN NLDX2|CE Certified|CSA File No. LR25490/Class 3211-04|RoHS Compliant|UL File No. E3190|UR Certified|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
 Terminal Type Quick-Connect
 Type Type DPA 1-Phase Electromechanical

Features

▪ Electrical systems protection from overloads and short circuits
▪ Quick connect terminals and binder head screws for easy wiring
▪ Compact design and exclusive DIN mounting option
