Schneider Electric

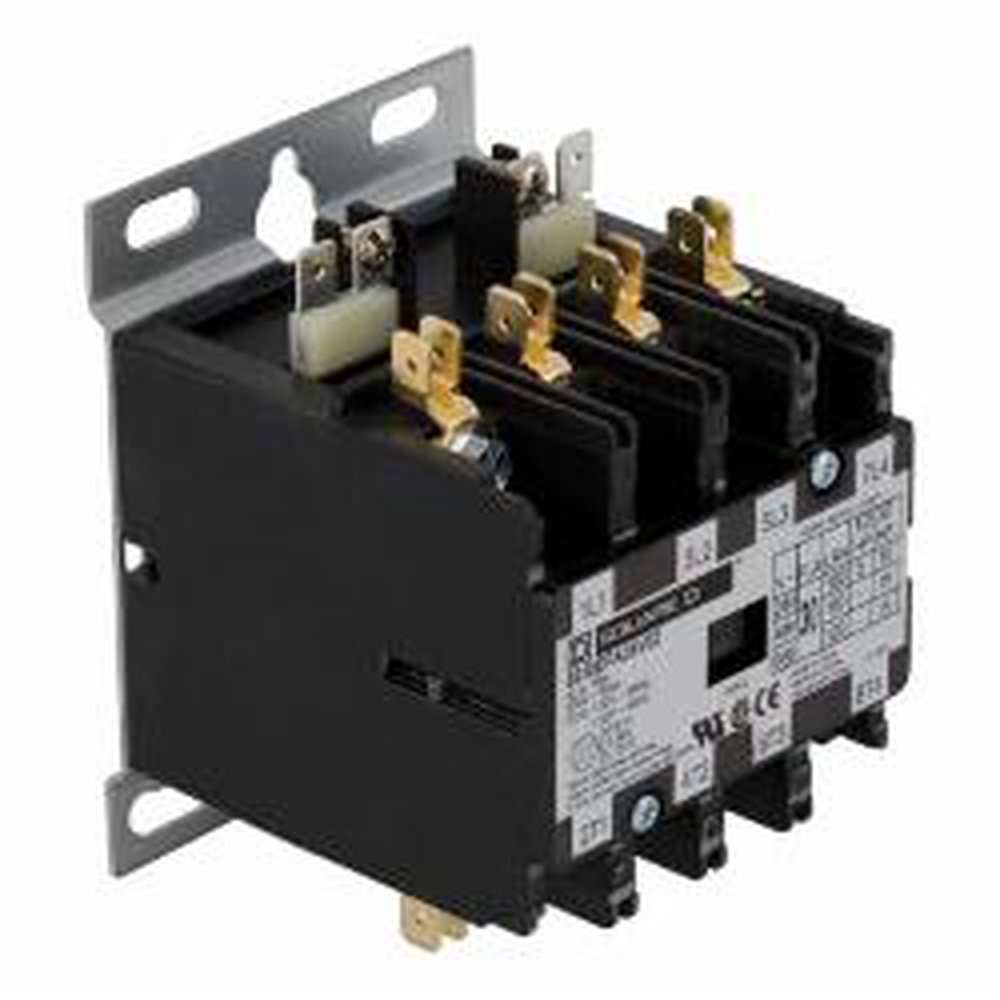

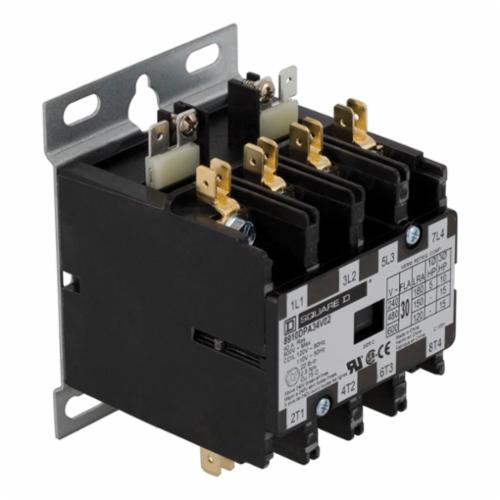

8910DPA24V02 SQD CONTACTOR 600VAC

Mouse over image to zoom, click to enlarge

  • 8910DPA24V02 SQD CONTACTOR 600VAC
  • 8910DPA24V02 SQD CONTACTOR 600VAC

Description: Square D™ Definite Purpose Contactor, 3-Phase Electro-Mechanical, Series: 8910, 110/120 V AC Coil, 25 A Maximum Load Current, 4 Pole, 50/60 Hz Frequency, Non-Reversing Contact, 4NO Contact Configuration, 600 VAC Contact, Binding Head Screw Connection, Quick-Connect Terminal, Open Enclosure, 500000 Mechanical/200000 Electrical Cycles Operating Cycles, 32 to 149 deg F Operating, DIN Track/Panel Mounting, 4 in H x 3.17 in W x 3.11 in D Dimensions

Manufacturer PN: 8910DPA24V02

UPC:  78590108008

Kendall Electric Inc PN: 3959800

Invoice Description:

8910DPA24V02 SQD CONTACTOR 600VAC


SPEC SHEET

▸ See All in Definite Purpose Contactors AC


How Can We Make This Page Better?

Square D™ 8910DPA24V02 3-Phase Electro-Mechanical Definite Purpose Contactor, 110/120 V AC V Coil, 25 A, 4NO Contact, 4 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D™ 8910DPA24V02 magnetic contactor, definite purpose, for heating, air conditioning and refrigeration applications, 4-pole, 25 A (inductive) and 35 A (resistive) maximum at 600 V, 120 VAC, 60 Hz. operating coil, UL recognized, CSA Certified, CE marked, open style, with Type 1 enclosure and DIN mounting bracket available.
Square D™ Definite Purpose Contactor, 3-Phase Electro-Mechanical, Series: 8910, 110/120 V AC Coil, 25 A Maximum Load Current, 4 Pole, 50/60 Hz Frequency, Non-Reversing Contact, 4NO Contact Configuration, 600 VAC Contact, Binding Head Screw Connection, Quick-Connect Terminal, Open Enclosure, 500000 Mechanical/200000 Electrical Cycles Operating Cycles, 32 to 149 deg F Operating, DIN Track/Panel Mounting, 4 in H x 3.17 in W x 3.11 in D Dimensions

Specifications

 Application Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment
 Brand Name Square D
 Coil Voltage 110/120 V AC
 Connection Type Binding Head Screw
 Contact Configuration 4NO
 Contact Rating 600 V AC
 Contact Type Non-Reversing
 Dimensions 4 in H x 3.17 in W x 3.11 in D
 Enclosure Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 8910DPA24V02
 Maximum Load Current 25 A
 Mounting Type DIN Track/Panel
 Number of Poles 4
 Operating Cycles 500000 Mechanical/200000 Electrical Cycles
 Operating Temperature 32 to 149 deg F
 PART NUMBER KEYWORDS 8910DPA24V02 ; 8008995 ; 785901080084 ; 78590108008 ; 00785901080084 ; 0785901080084
 Series 8910
 Standards/Approvals CCN NLDX2|CE Certified|CSA File #LR25490/Class 3211-04|RoHS Compliant|UL File #E3190|UR Certified|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
 Terminal Type Quick-Connect
 Type 3-Phase Electro-Mechanical

Features

▪ Quick-connect terminals and binder head screws allow for easy wiring
▪ Coils can be changed quickly, without a tool, on the type DPA 50 to 90 A contactors
▪ Auxiliary contact modules snap-on either side of the type DPA contactors
▪ Box lugs are standard on contactors 40 A and larger
