Schneider Electric

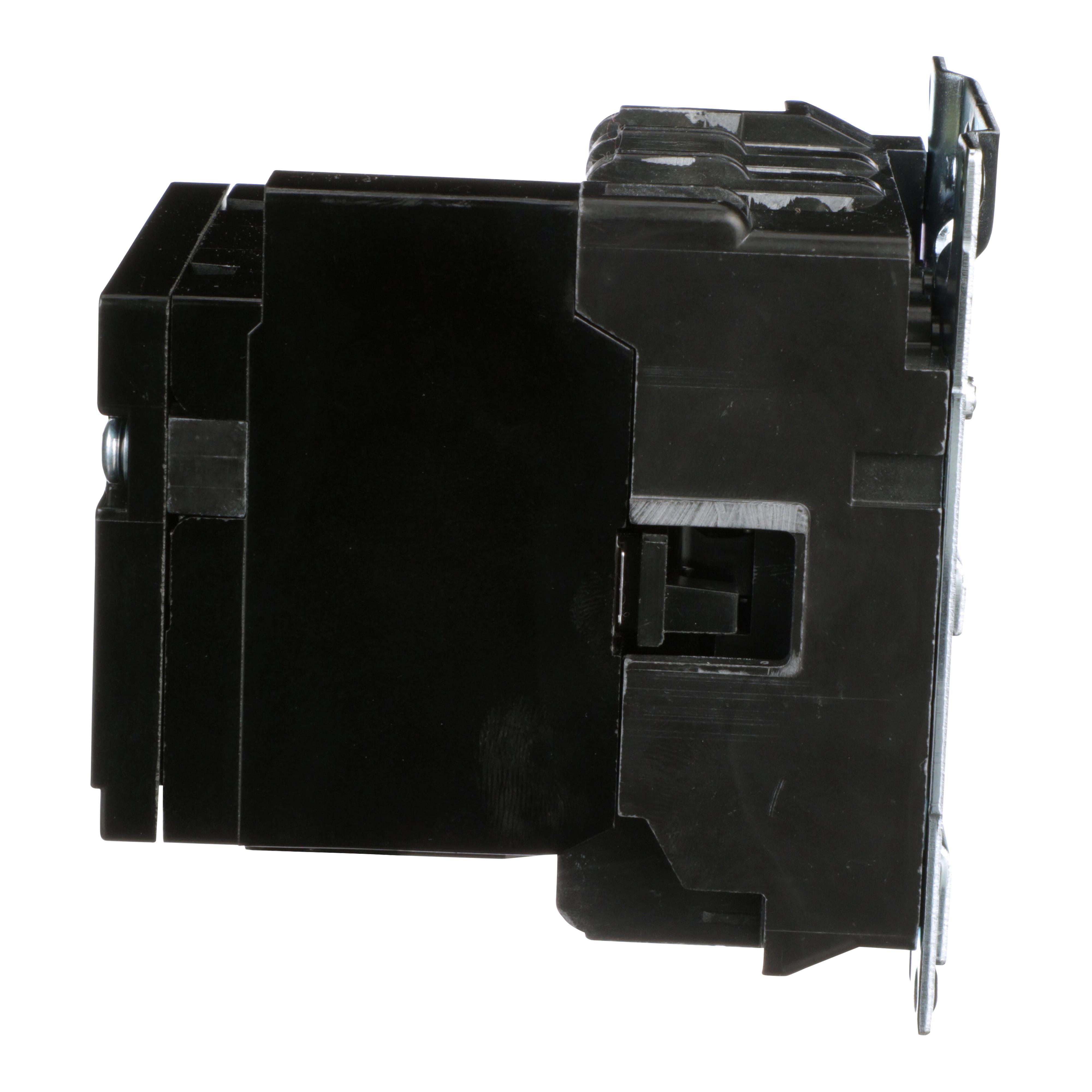

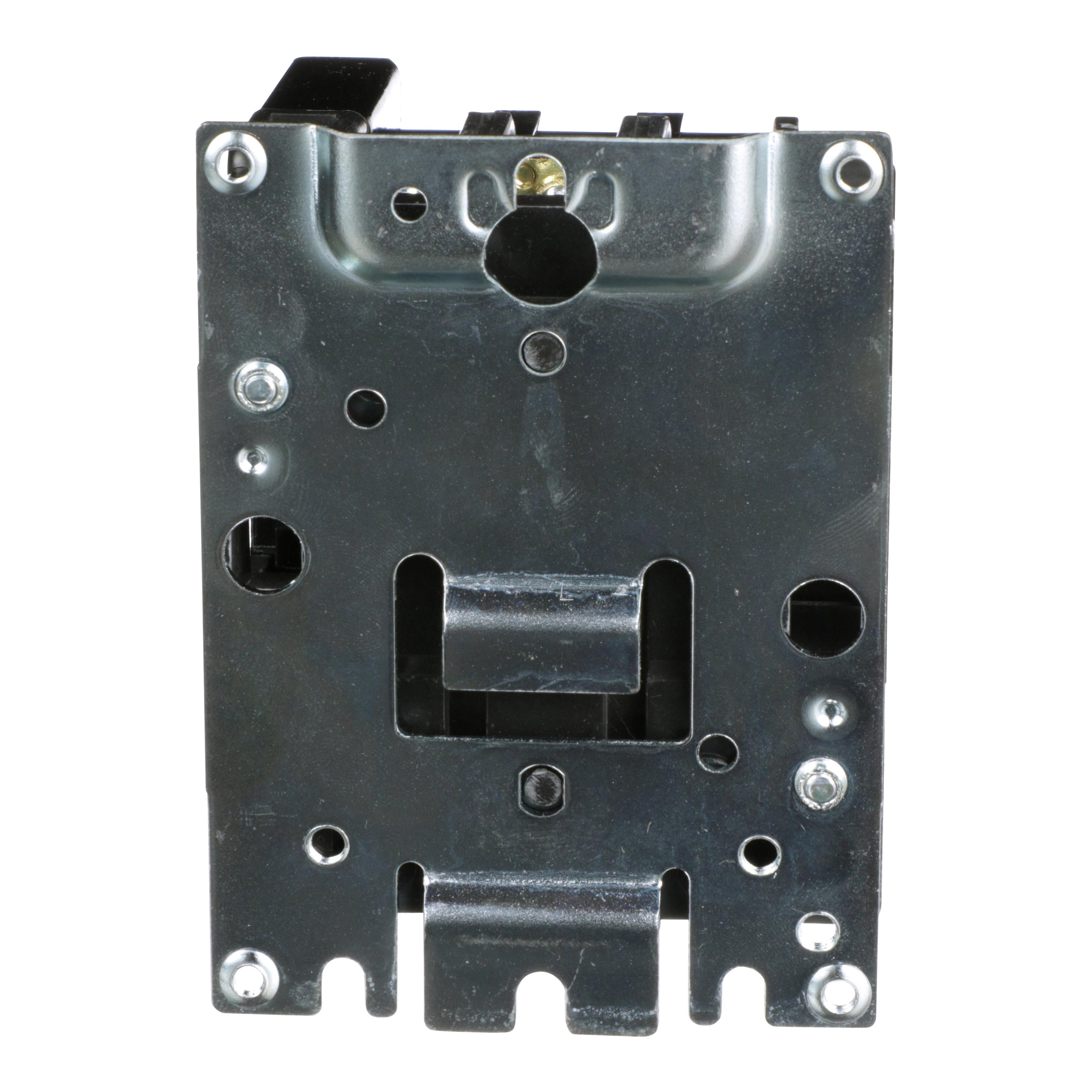

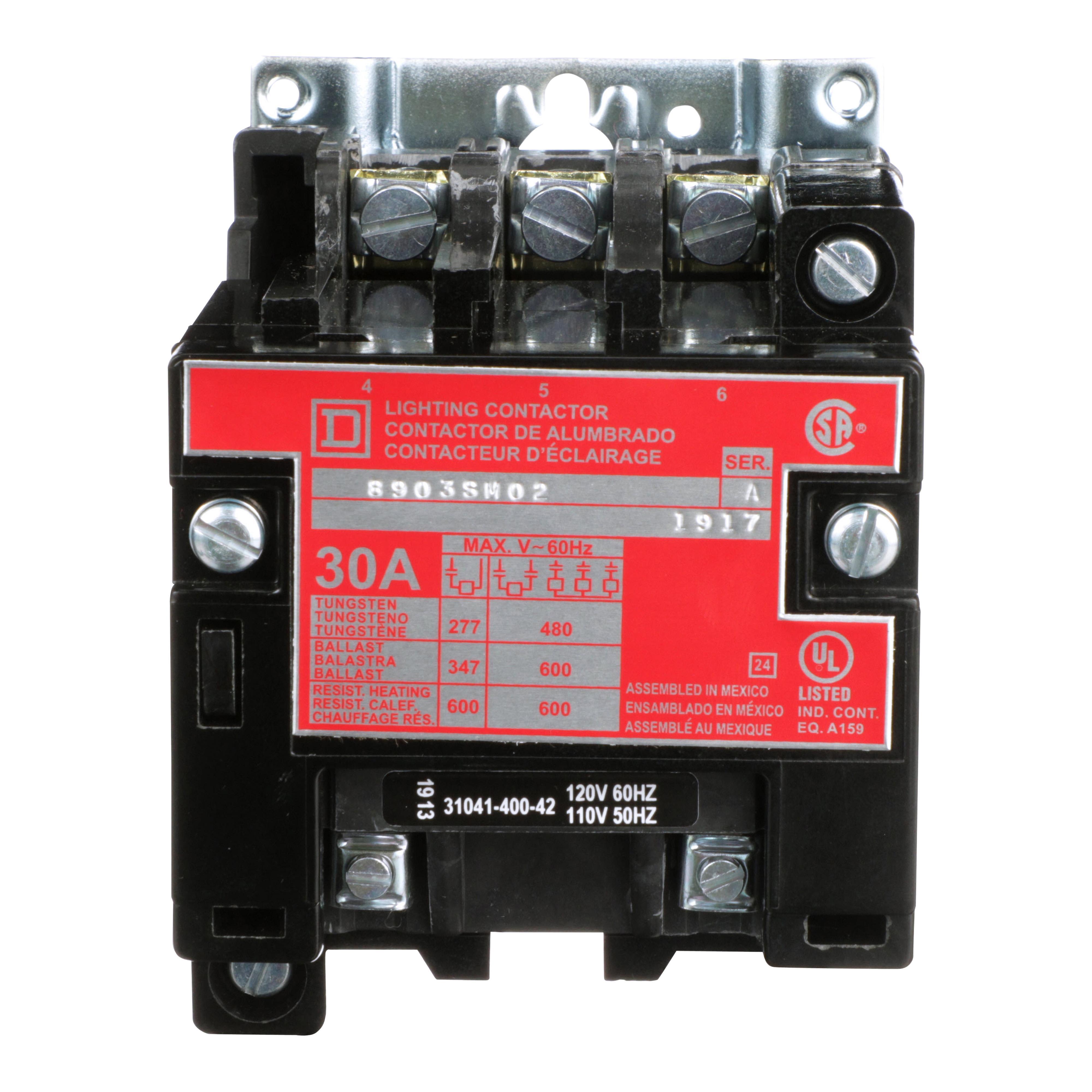

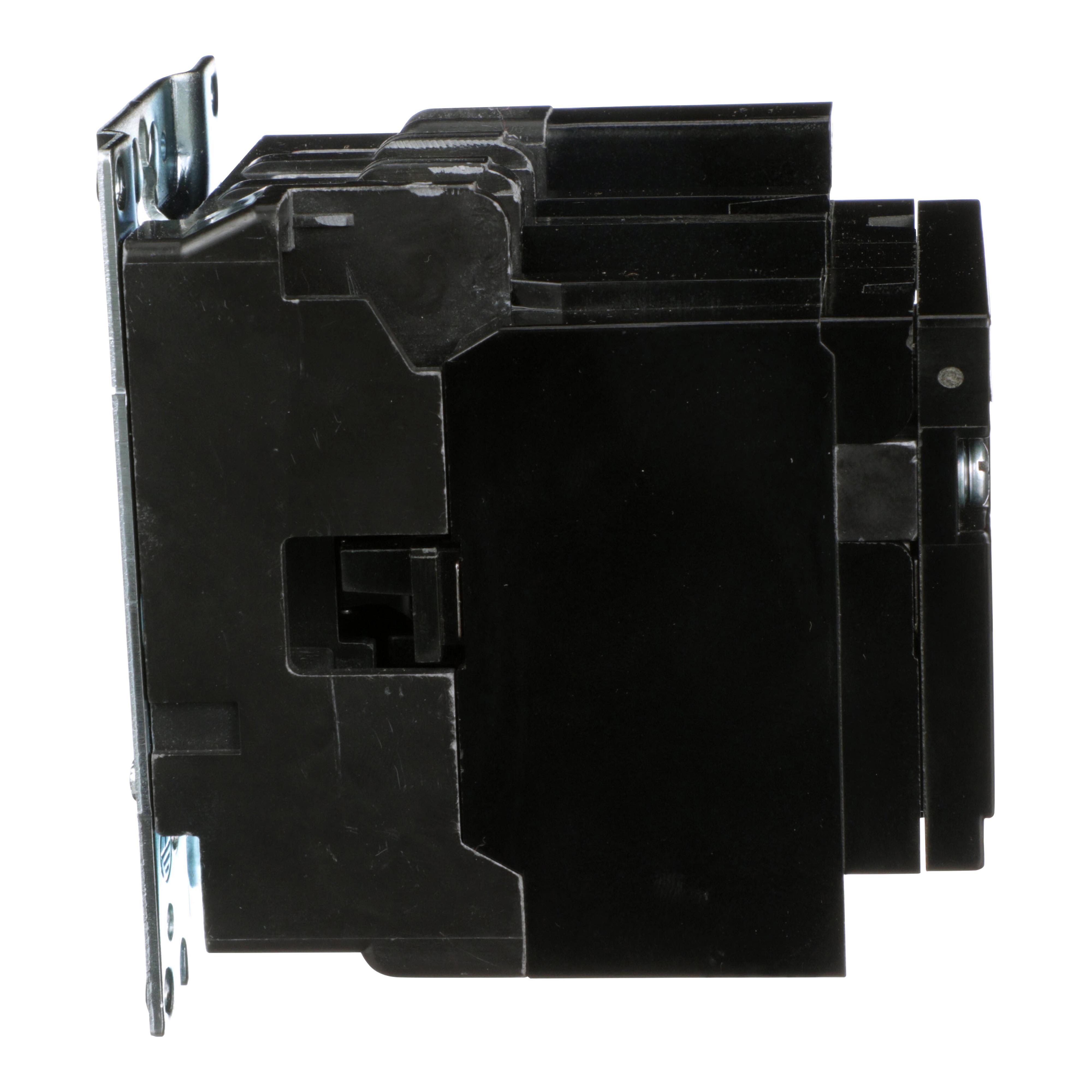

  • 8903SMO2V02 SQD LIGHTING CONTACTOR
  • 8903SMO2V02 SQD LIGHTING CONTACTOR
  • 8903SMO2V02 SQD LIGHTING CONTACTOR
  • 8903SMO2V02 SQD LIGHTING CONTACTOR
  • 8903SMO2V02 SQD LIGHTING CONTACTOR
  • 8903SMO2V02 SQD LIGHTING CONTACTOR

Description: Square D™ Lighting Contactor, Type S Electrically Held Multi-Pole, Series: 8903S, 110/120 V AC Coil, 30 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 600 VAC Contact, Lug Connection, Open Enclosure, Surface Mounting, 3.22 in W x 4.22 in D x 4.34 in H Dimensions

Manufacturer PN: 8903SMO2V02

UPC:  78590161952

Kendall Electric Inc PN: 3958877

Invoice Description:

8903SMO2V02 SQD LIGHTING CONTACTOR


SPEC SHEET

▸ See All in Lighting Contactors


How Can We Make This Page Better?

Square D™ 8903SMO2V02 Type S Electrically Held Multi-Pole Lighting Contactor, 110/120 V AC V Coil, 30 A, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. This contactor is designed to switch 30 amperes. This device 3 pole device has 3 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 3.50 inches tall, 3.22 inches wide and 4.22 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
Square D™ Lighting Contactor, Type S Electrically Held Multi-Pole, Series: 8903S, 110/120 V AC Coil, 30 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 600 VAC Contact, Lug Connection, Open Enclosure, Surface Mounting, 3.22 in W x 4.22 in D x 4.34 in H Dimensions

Specifications

 Brand Name Square D
 Coil Voltage 110/120 V AC
 Connection Type Lug
 Contact Rating 600 V AC
 Dimensions 3.22 in W x 4.22 in D x 4.34 in H
 Enclosure Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 8903SMO2V02
 Maximum Load Current 30 A
 Mounting Type Surface
 Number of Poles 3
 PART NUMBER KEYWORDS 8903SMO2V02 ; 8113355 ; 785901619529 ; 78590161952 ; 00785901619529 ; 0785901619529
 Series 8903S
 Standards/Approvals CSA File No. LR60905 Class 3231-01|ECCN: EAR99|UL File No. E78427 CCN Guide No. NRNT
 Type Type S Electrically Held Multi-Pole

Features

▪ Customizable with hundreds of combinations of contactors, starters and accessories
▪ Robust design and reliable build for long mechanical life and electrical endurance
▪ Serviceable by replacing contacts and coils rather than replacing the entire product
