Schneider Electric

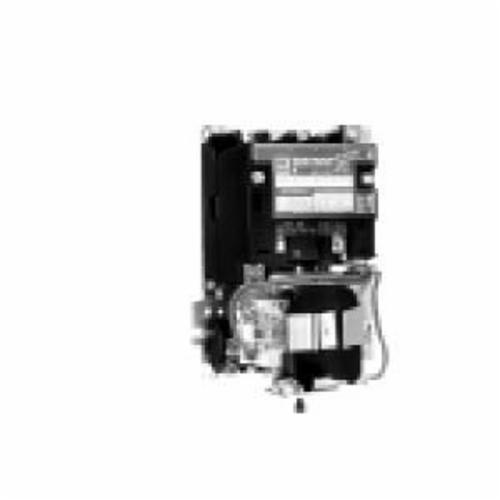

8903SMO10V02 SQD LIGHTING CONTACTOR

Mouse over image to zoom, click to enlarge

  • 8903SMO10V02 SQD LIGHTING CONTACTOR
  • 8903SMO10V02 SQD LIGHTING CONTACTOR

Description: Square D™ Lighting Contactor, Mechanically Held Multi-Pole, Series: 8903S, 110/120 V AC Coil, 30 A Maximum Load Current, 2 Pole, 50/60 Hz Frequency, 600 VAC, 30 A Contact, Lug/Screw Clamp Connection, Open Enclosure, Surface Mounting, 7.15 in H x 3.79 in W x 4.68 in D Dimensions

Manufacturer PN: 8903SMO10V02

UPC:  78590110244

Kendall Electric Inc PN: 3960786

Invoice Description:

8903SMO10V02 SQD LIGHTING CONTACTOR


SPEC SHEET

▸ See All in Lighting Contactors


How Can We Make This Page Better?

Square D™ 8903SMO10V02 Mechanically Held Multi-Pole Lighting Contactor, 110/120 V AC V Coil, 30 A, 2 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. This contactor is designed to switch 30 amperes. This 2 pole device has 2 normally open contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 110/120 VAC 50/60 Hz coil. This lighting contactor is an open device without an enclosure. contactor is 6.04 inches tall, 3.79 inches wide and 4.68 inches deep. A wide variety of accessories are available for Type S lighting contactors. 8903S lighting contactors are UL Listed and CSA Certified.
Square D™ Lighting Contactor, Mechanically Held Multi-Pole, Series: 8903S, 110/120 V AC Coil, 30 A Maximum Load Current, 2 Pole, 50/60 Hz Frequency, 600 VAC, 30 A Contact, Lug/Screw Clamp Connection, Open Enclosure, Surface Mounting, 7.15 in H x 3.79 in W x 4.68 in D Dimensions

Specifications

 Brand Name Square D
 Coil Voltage 110/120 V AC
 Connection Type Lug/Screw Clamp
 Contact Rating 600 V AC, 30 A
 Dimensions 7.15 in H x 3.79 in W x 4.68 in D
 Enclosure Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 8903SMO10V02
 Maximum Load Current 30 A
 Mounting Type Surface
 Number of Poles 2
 PART NUMBER KEYWORDS 8903SMO10V02 ; 8021676 ; 785901102441 ; 78590110244 ; 00785901102441 ; 0785901102441
 Series 8903S
 Standards/Approvals UL E78427|CCN NRNT Listed|CSA LR60905 Certified|Class 3231 01|PROP65: This product can expose you to chemicals including: Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
 Type Mechanically Held Multi-Pole

Features

▪ Customizable with hundreds of combinations of contactors, starters and accessories
▪ Robust design and reliable build for long mechanical life and electrical endurance
▪ Serviceable by replacing contacts and coils rather than replacing the entire product
