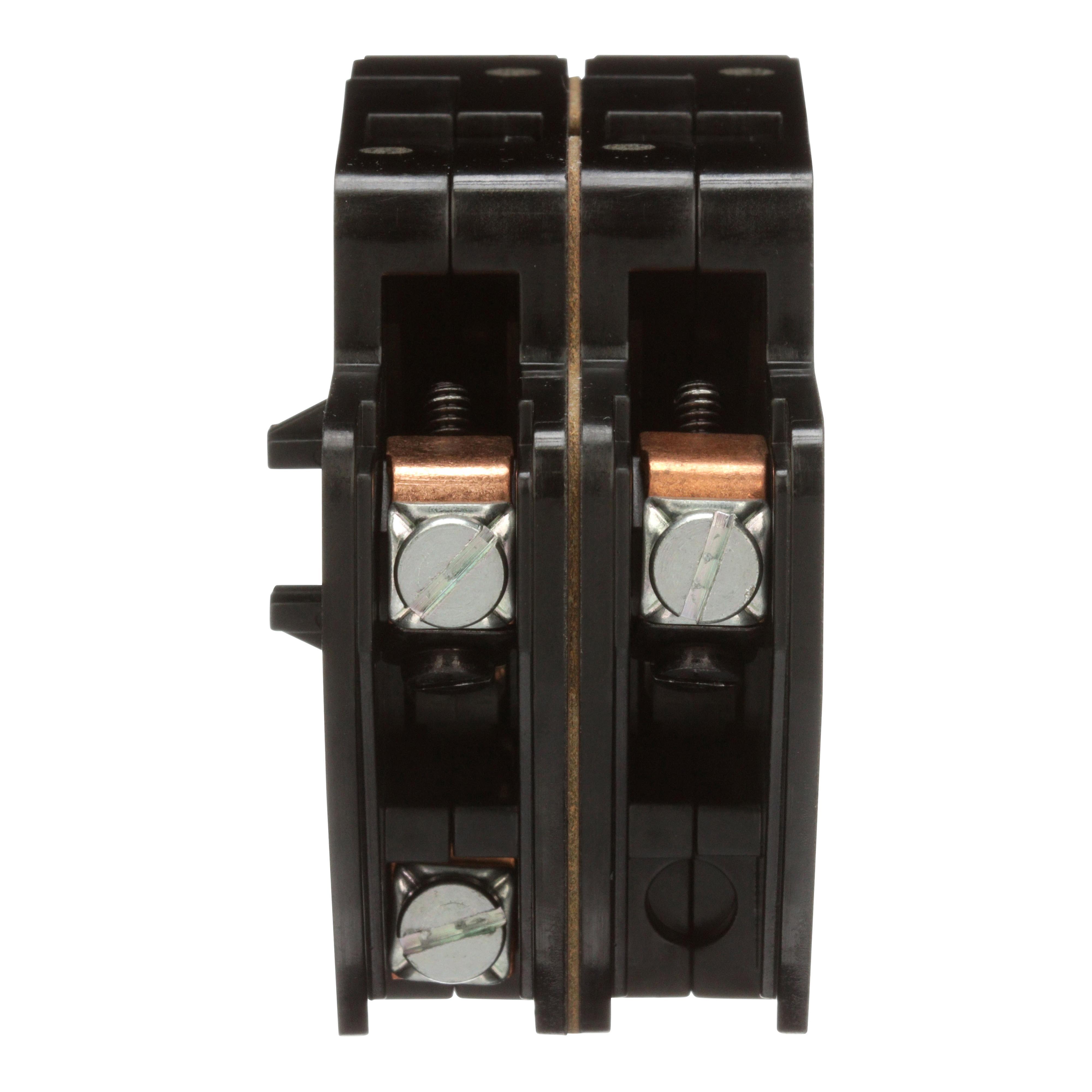

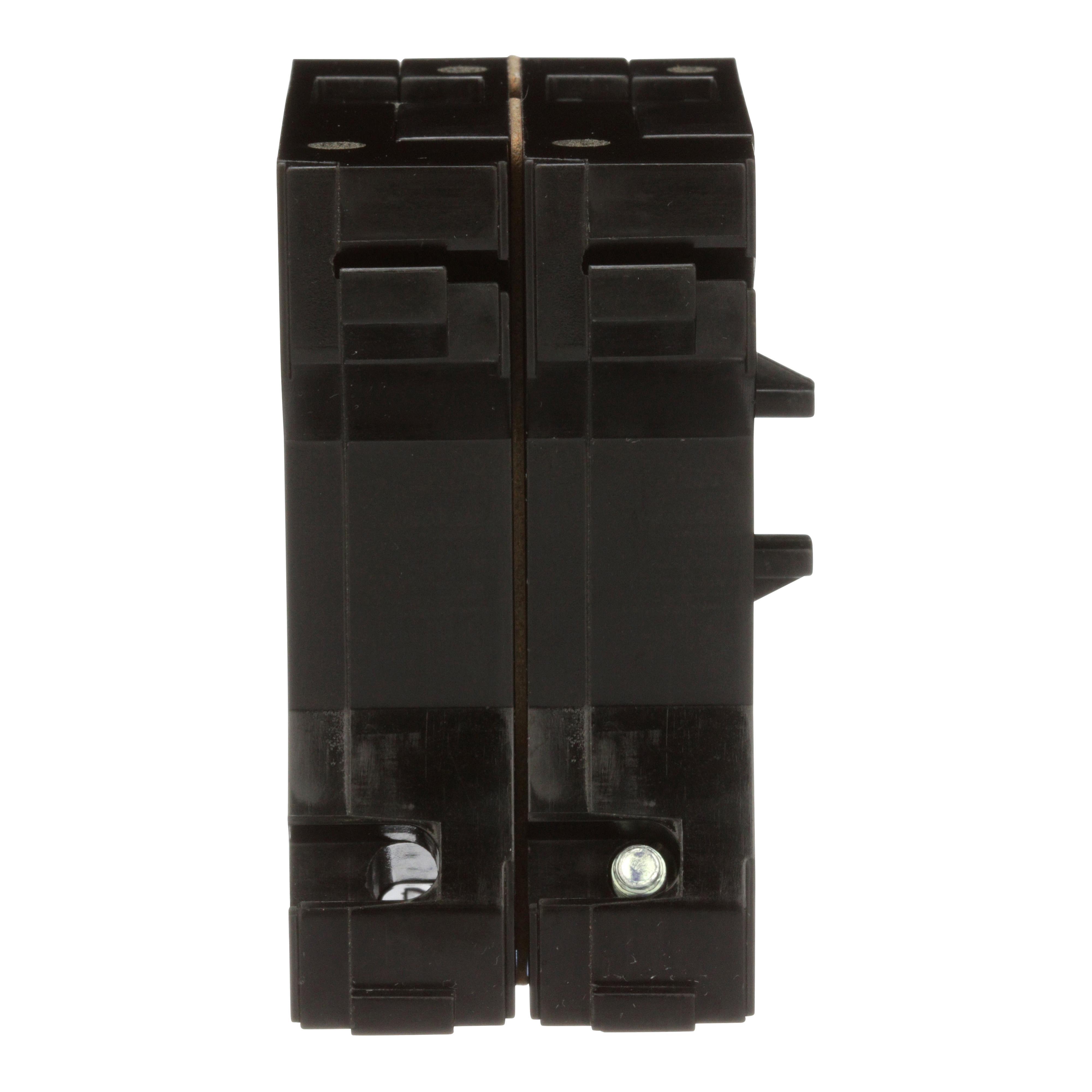

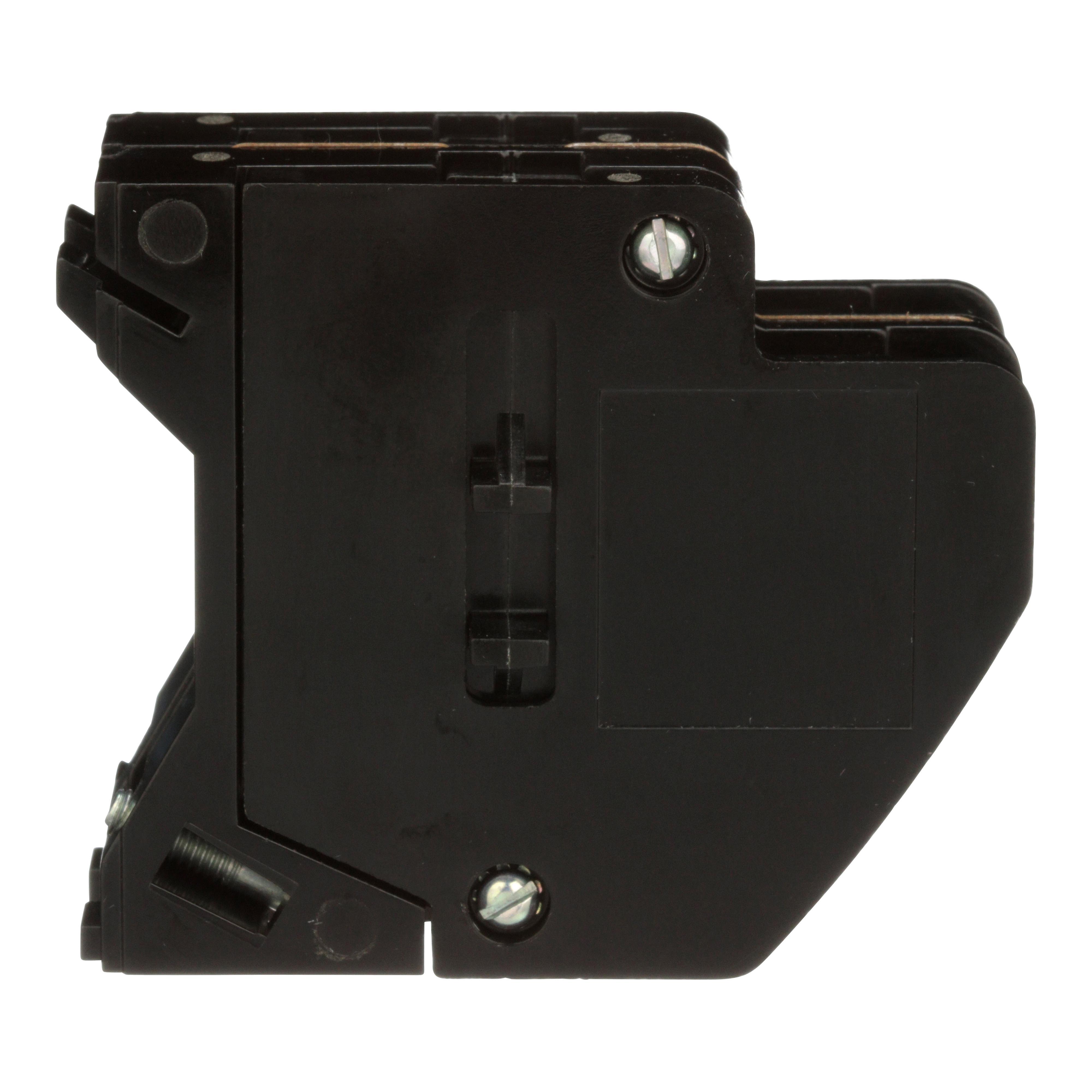

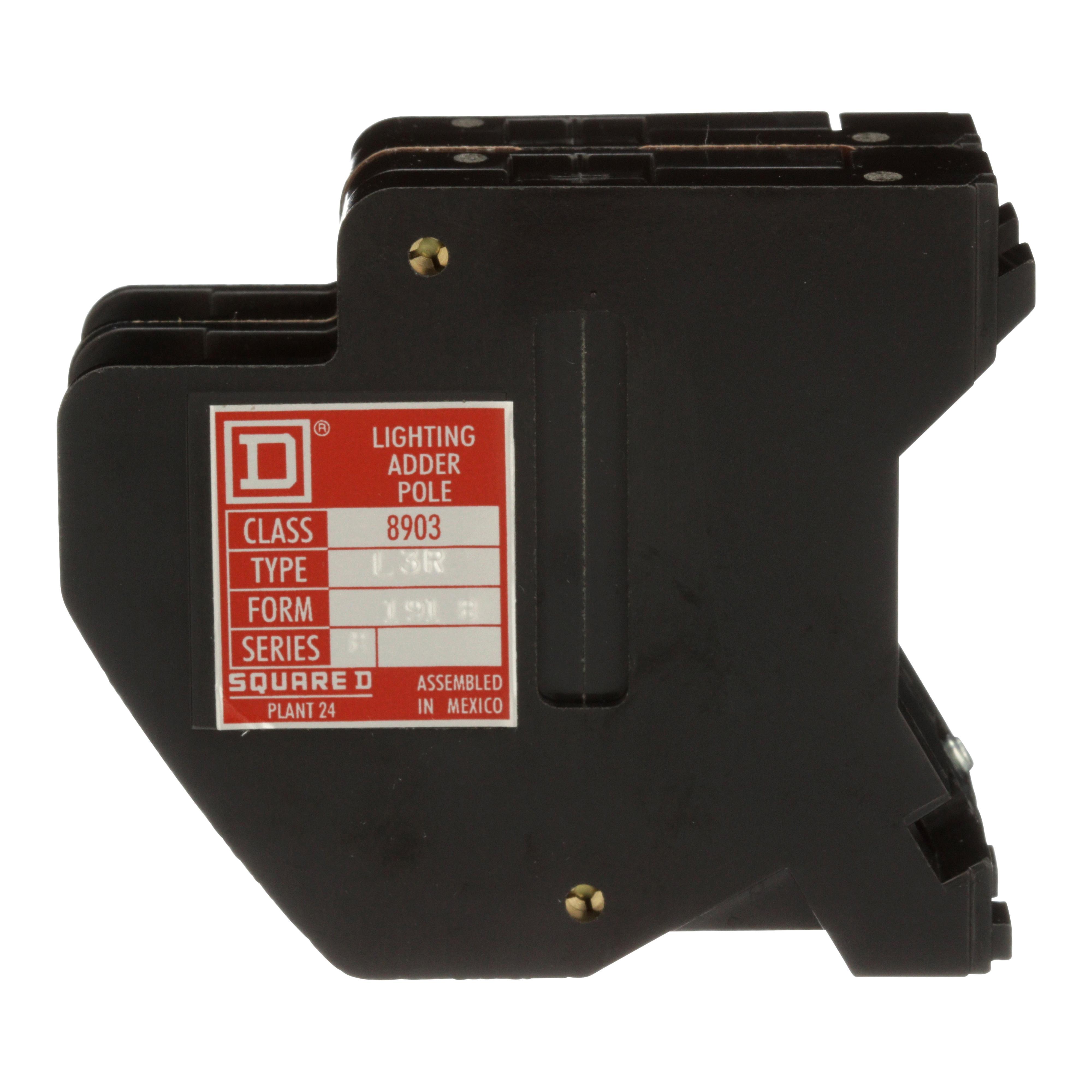

Description: Square D™ Power Pole Adder, Type L 1-Phase Right Side, 600 V, 30 A, For Use With: Class 8903L/LX Type Lighting Contactor, 2.52 in W x 1.97 in D x 3.03 in H Dimensions

Manufacturer PN: 8903L3R

UPC:  78590162025

Kendall Electric Inc PN: 3958869

Invoice Description:

8903L3R SQD LIGHTING CONTACTOR


SPEC SHEET

▸ See All in Power Pole Adders


How Can We Make This Page Better?

Square D™ 8903L3R Type L 1-Phase Right Side Power Pole Adder, 600 V, 30 A

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This two pole power pole can be added to the right side of any 8903L lighting contactor. This power pole has two normally open contact that can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. 8903L lighting contactors are limited to a maximum of 12 contacts. The power pole is UL Listed and CSA Certified when used with 8903L lighting contactors.
Square D™ Power Pole Adder, Type L 1-Phase Right Side, 600 V, 30 A, For Use With: Class 8903L/LX Type Lighting Contactor, 2.52 in W x 1.97 in D x 3.03 in H Dimensions

Specifications

 Amperage Rating 30 A
 Brand Name Square D
 Dimensions 2.52 in W x 1.97 in D x 3.03 in H
 Manufacturer Part Number 8903L3R
 Standards/Approvals RoHS Compliant|CSA Certified|ECCN: EAR99|UL Listed
 Suitable For Use With Class 8903L/LX Type Lighting Contactor
 Type Type L 1-Phase Right Side
 Voltage Rating 600 V

Features

▪ Electrically and mechanically held
▪ Rugged design
▪ Silent operation
