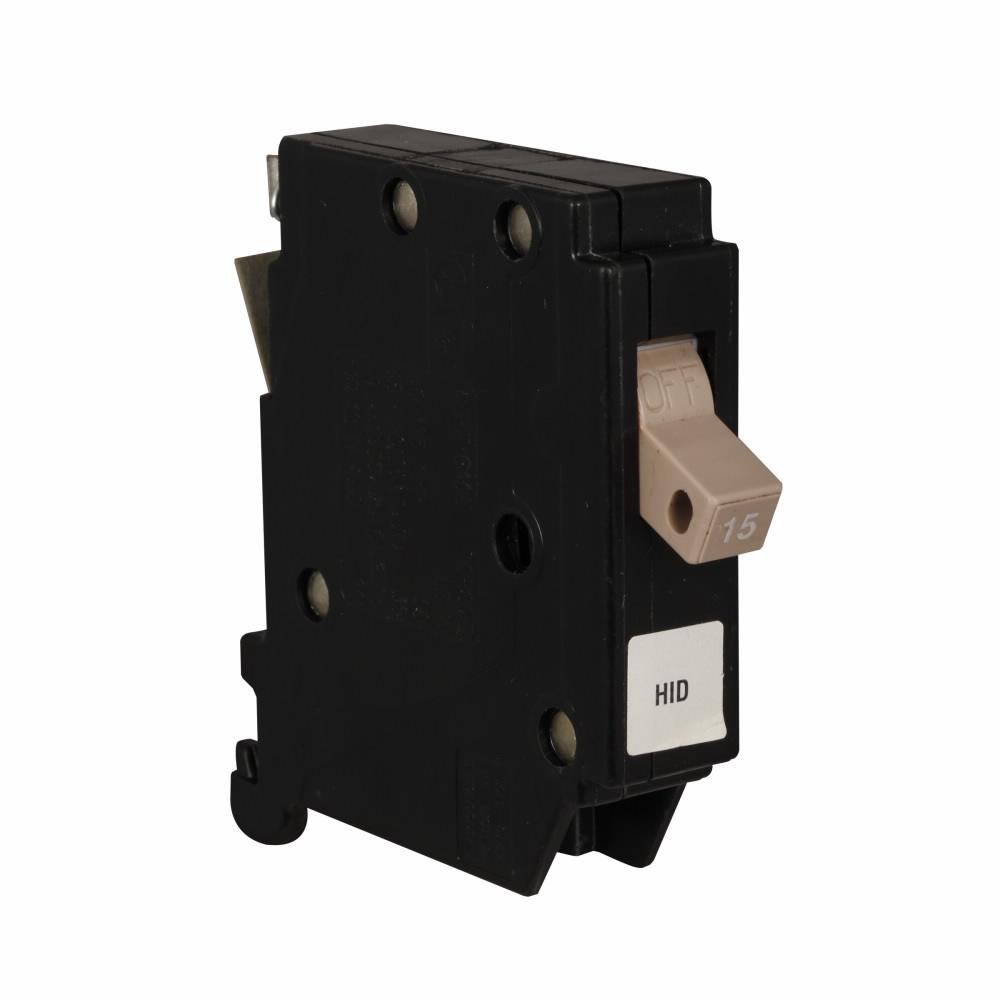

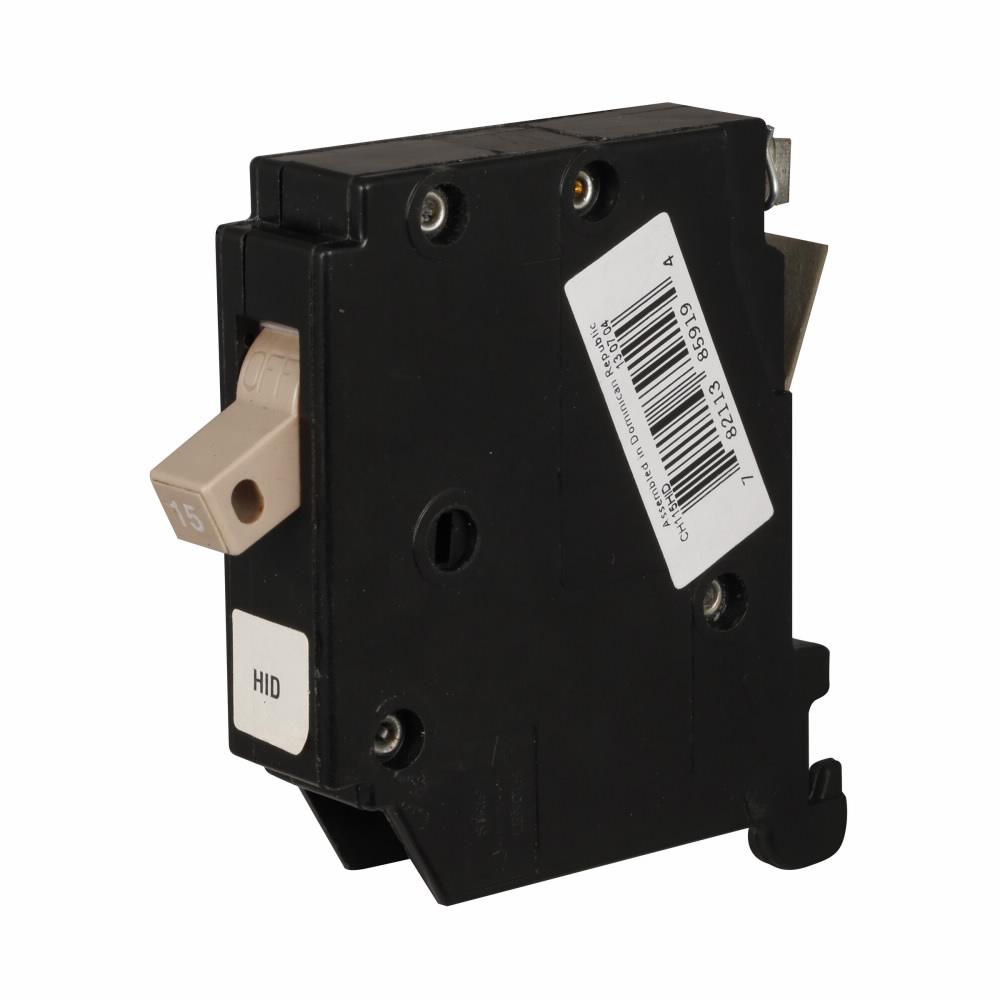

CH120HID CH Type CH High Intensity Discharge Circuit Breaker 78211385917

Mouse over image to zoom, click to enlarge

  • CH120HID CH Type CH High Intensity Discharge Circuit Breaker 78211385917
  • CH120HID CH Type CH High Intensity Discharge Circuit Breaker 78211385917
  • CH120HID CH Type CH High Intensity Discharge Circuit Breaker 78211385917

Description: EATON Molded Case Circuit Breaker, Type CH High Intensity Discharge, 120/240 V AC, 20 A, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Handle Actuator, 14 to 8 AWG, 14 to 10 AWG Wire, NEMA 1/3R Enclosure, Plug-On Mounting, 40 deg C, 3 in H x 3/4 in W x 3 in D Dimensions, Bakelite, Black

Manufacturer PN: CH120HID

UPC:  78211385917

Kendall Electric Inc PN: 2014338

Invoice Description:

CH120HID CH Type CH High Intensity Discharge Circuit Breaker 78211385917


SPEC SHEET

▸ See All in Molded Case Circuit Breakers


How Can We Make This Page Better?

EATON CH120HID Type CH High Intensity Discharge Molded Case Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

EATON has Enhanced its premium Type CH residential circuit breakers, making the best even better. These features further establish the CH Series of products as best in Class. EATON offers CH 3/4 in circuit breakers with a thermal magnetic trip curve that avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions.
EATON Molded Case Circuit Breaker, Type CH High Intensity Discharge, 120/240 V AC, 20 A, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Handle Actuator, 14 to 8 AWG, 14 to 10 AWG Wire, NEMA 1/3R Enclosure, Plug-On Mounting, 40 deg C, 3 in H x 3/4 in W x 3 in D Dimensions, Bakelite, Black

Specifications

 Actuator Type Handle
 Amperage Rating 20 A
 Application For use in circuits for fluorescent and high intensity discharge lighting also suitable for HACR applications
 Brand Name EATON
 Color Black
 Dimensions 3 in H x 3/4 in W x 3 in D
 Enclosure NEMA 1/3R
 Manufacturer Part Number CH120HID
 Material Bakelite
 Mounting Type Plug-On
 Number of Poles 1
 PART NUMBER KEYWORDS CH120HID ; 20895832 ; 782113859170 ; 78211385917 ; 00782113859170
 Phase 1
 Standards/Approvals UL 489|cULus Listed|Federal Specification WW-H-171E/A-A-1192A Type 1|ANSI/MSS SP-69/SP-58 Type 1|FM Approved|NFPA Pamphlet 13|OSHPD Approved
 Temperature Rating 40 deg C
 Type Type CH High Intensity Discharge
 Voltage Rating 120/240 V AC

Features

▪ Space saving 3/4 in design accommodates more breakers per panel
▪ Tri-drive screw accepts flat, Robertson or Phillips® drivers, making it easier for electricians to install
▪ Single and 2-pole breakers up to 50 A
▪ Units feature a quick make, quick break switch mechanism combined with inverse time element tripping operation and trip-free handle design
▪ Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks
▪ CH interiors feature 100% copper bus
▪ Single pole requires one 3/4 in (19.1 mm) space
