Southwire Company

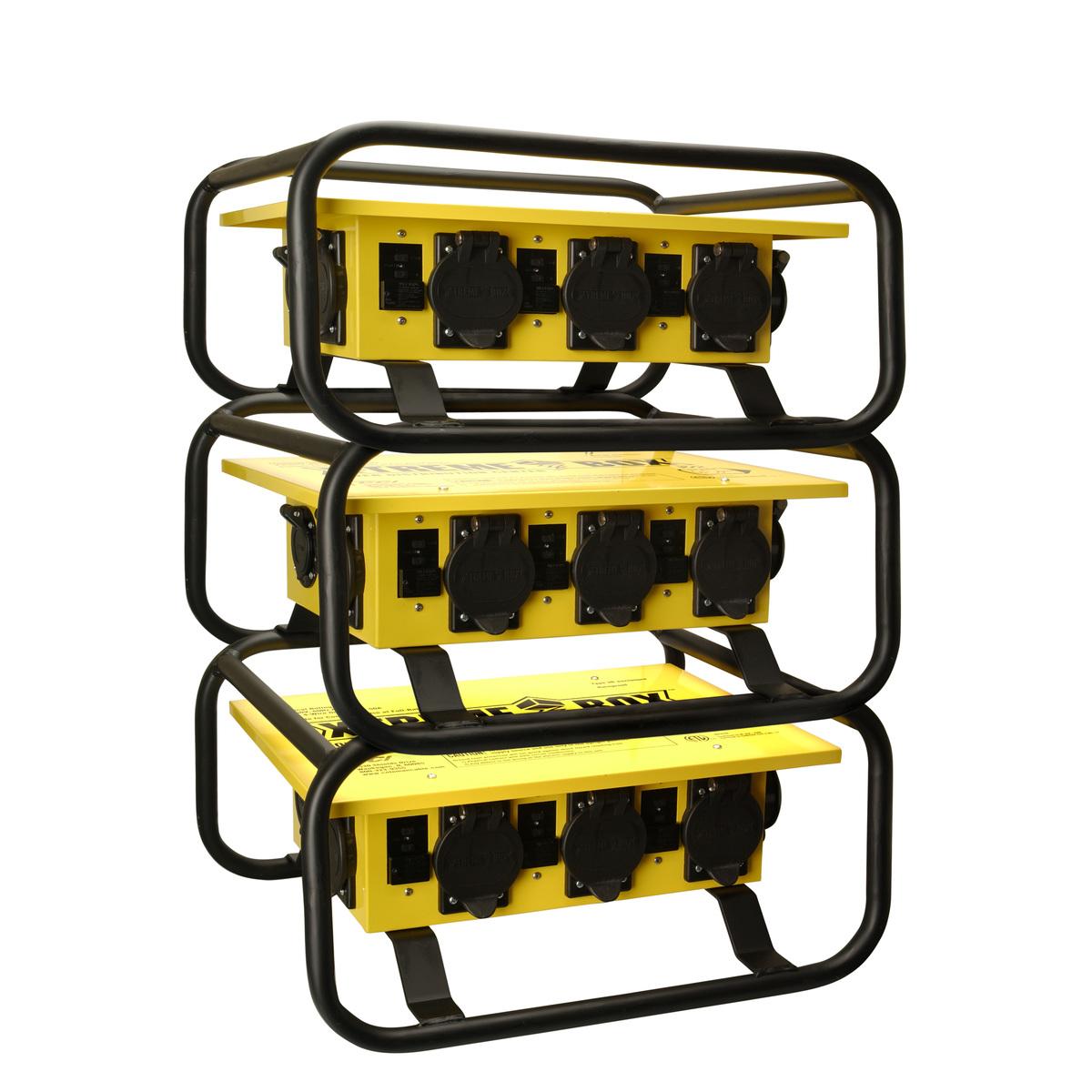

8706UGCX SOUTHWIRE POWER DISTRIBUTION BOX

Mouse over image to zoom, click to enlarge

  • 8706UGCX SOUTHWIRE POWER DISTRIBUTION BOX
  • 8706UGCX SOUTHWIRE POWER DISTRIBUTION BOX

Description: Southwire® X-Treme Box™ Temporary Power Distribution, Roll Cage, Series: 1970, 125/250 V, 50 A, 6 Outlets, 3 Pole, 4 Wires, 3R/L5-20/L6-30 NEMA Rating, Carbon Steel, 20-1/2 in W x 12-1/2 in D x 24-1/4 in H Dimensions

Manufacturer PN: 8706UGCX

Kendall Electric Inc PN: 4853650

Invoice Description:

8706UGCX SOUTHWIRE POWER DISTRIBUTION BOX


SPEC SHEET

▸ See All in Temporary Power Distribution Boxes/Carts


How Can We Make This Page Better?

Southwire® X-Treme Box™ 19723R02 1970 Roll Cage Temporary Power Distribution, 125/250 V, 50 A, 3 Poles, 4 Wires

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

When there's a job to do there's no time to fool around with power Southwire® X-Treme Box™ unit provides work site power distribution that's economical, rugged and most of all, safe Now available in two version to meet contractor demand. The new roll cage design are constructed with a tubular steel frame for added durability and are vertically stackable for easy transport. The X-Treme Box™ power distribution center is the only choice for your harsh jobsite condition.
Southwire® X-Treme Box™ Temporary Power Distribution, Roll Cage, Series: 1970, 125/250 V, 50 A, 6 Outlets, 3 Pole, 4 Wires, 3R/L5-20/L6-30 NEMA Rating, Carbon Steel, 20-1/2 in W x 12-1/2 in D x 24-1/4 in H Dimensions

Specifications

 Amperage Rating 50 A
 Brand Name Southwire®
 Dimensions 20-1/2 in W x 12-1/2 in D x 24-1/4 in H
 Manufacturer Part Number 19723R02
 Material Carbon Steel
 NEMA Rating 3R/L5-20/L6-30
 Number of Outlets 6
 Number of Poles 3
 Number of Wires 4
 Series 1970
 Standards/Approvals CEC Certified|cULus Listed|OHA/NEC Standard
 Type Roll Cage
 Voltage Rating 125/250 V

Features

▪ Dedicated GFCI module and circuit breaker for each 20 Areceptacle
▪ Flagged circuit breakers for easier troubleshooting
▪ Premium breakers and all-copper backplane for superior performance
▪ CORROSION-RESISTANT powder coat finish
