United Technologies

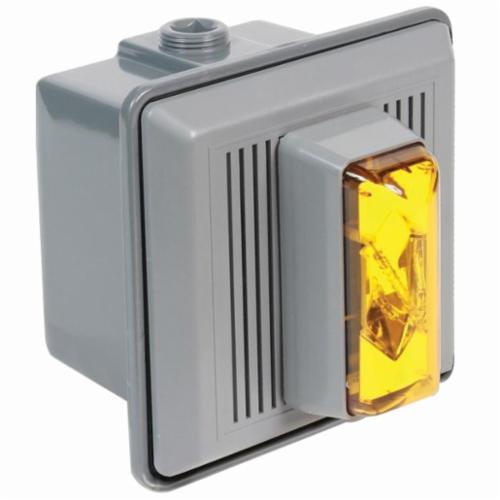

868STRA-N5 EDW AMBER XENON STROBE WITH HORN

Mouse over image to zoom, click to enlarge

  • 868STRA-N5 EDW AMBER XENON STROBE WITH HORN
  • 868STRA-N5 EDW AMBER XENON STROBE WITH HORN

Description: Edwards Signaling™ Electronic Horn/Strobe, Industrial, Series: 860, 120 V AC, 0.021 A, Xenon Lamp, Amber Lens, 100/90 dB Sound Level, Specifications Met: UL 1638, UL 464, 50/60 Hz Tone Frequency, 60 fpm Flash, 90 cd Light Output, Surface Mounting, -31 to 150 deg F, Thermoplastic, 5-1/2 in H x 5-1/2 in W x 5/8 in D Dimensions

Manufacturer PN: 868STRA-N5

UPC:  78264023932

Kendall Electric Inc PN: 2167883

Invoice Description:

868STRA-N5 EDW AMBER XENON STROBE WITH HORN


How Can We Make This Page Better?

Edwards Signaling™ 868STRA-N5 860 Industrial Electronic Horn/Strobe, 120 V AC, Xenon Lamp, 100/90 dB Sound, Surface Mount, Amber Lens, UL 1638, UL 464

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Edwards 860 series xenon strobe beacons with horns are bright, low-current, high-decibel, combination signals designed for use where a distinctive visual or audible signal is required. The housing is made of gray, engineered thermoplastic. The strobe and horn can be operated independently. The 867STR (indoor) and 868STR (outdoor) series can be surface mounted on-the supplied surface box. The 869STR and 869DSTR series beacons can be flush mounted. They are designed to mount in a standard 4 in (102 mm) square electrical box with extension ring (total min. Depth of 3 in (76 mm) not supplied.) the 869DSTR series is diode polarized for use in electrically supervised circuits.
Edwards Signaling™ Electronic Horn/Strobe, Industrial, Series: 860, 120 V AC, 0.021 A, Xenon Lamp, Amber Lens, 100/90 dB Sound Level, Specifications Met: UL 1638, UL 464, 50/60 Hz Tone Frequency, 60 fpm Flash, 90 cd Light Output, Surface Mounting, -31 to 150 deg F, Thermoplastic, 5-1/2 in H x 5-1/2 in W x 5/8 in D Dimensions

Specifications

 Amperage Rating 0.021 A
 Application For indoor/outdoor applications
 Brand Name Edwards Signaling™
 Dimensions 5-1/2 in H x 5-1/2 in W x 5/8 in D
 Flash Rate 60 fpm
 Lamp Type Xenon
 Lens Color Amber
 Light Output 90 cd
 Manufacturer Part Number 868STRA-N5
 Material Thermoplastic
 Mounting Type Surface
 PART NUMBER KEYWORDS 868STRA-N5 ; 868STRAN5 ; 782640239322 ; 78264023932 ; 00782640239322
 Series 860
 Sound Level 100/90 dB
 Specifications Met UL 1638, UL 464
 Standards/Approvals ARRA Compliant|Buy American Act Compliant
 Temperature Rating -31 to 150 deg F
 Tone Frequency 50/60 Hz
 Type Industrial
 Voltage Rating 120 V AC

Features

▪ Low current draw, bright, high-decibel
▪ Terminals for easy wiring
▪ Operating indoor temperature range at 85% relative humidity at 86 deg F, 32 to 120 deg F variable ambient temperature
▪ Strobe and horn may be operated independently
