8564 3M BREAKOUT BOOT 05400743146

Mouse over image to zoom, click to enlarge

  • 8564 3M BREAKOUT BOOT 05400743146
  • 8564 3M BREAKOUT BOOT 05400743146

Description: 3M™, 7100009350, Cable Breakout Boot, Cold Shrink, Series: 8560, 4.32 in ID Expanded, 2.52 in ID Recovered, 3 Leg, 8-1/4 in Length, Silicon Rubber, Dark Gray

Manufacturer PN: 7100009350

UPC:  05400743146

Kendall Electric Inc PN: 3427231

Invoice Description:

8564 3M BREAKOUT BOOT 05400743146


SPEC SHEET

▸ See All in Shrink-On Tubing Boots


How Can We Make This Page Better?

3M™ 7100009350 8560 Cold Shrink Cable Breakout Boot, 4.32 in ID Expanded, 2.52 in ID Recovered, Silicon Rubber

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

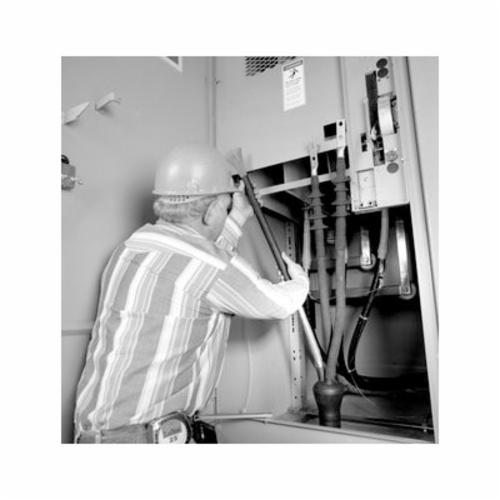

3M™ 8560 3 Way Cold Shrink Cable Breakout Boot is made of a dark gray silicone rubber and protects the phase leg breakout of 3 way medium voltage power cables. It shields power cables from moisture, contamination, corrosion, ozone, UV radiation, physical contact and other hazards in associated environments. It allows quick installation while accommodating a wide range of cables.
3M™, 7100009350, Cable Breakout Boot, Cold Shrink, Series: 8560, 4.32 in ID Expanded, 2.52 in ID Recovered, 3 Leg, 8-1/4 in Length, Silicon Rubber, Dark Gray

Specifications

 Brand Name 3M
 Color Dark Gray
 Includes Poly-Bagged Break-Out Boot Assembly (includes Scotch® Mastic Strip 2230) and Instruction Sheet
 Inner Diameter Expanded 4.32 in
 Inner Diameter Recovered 2.52 in
 Length 8-1/4 in
 Manufacturer Part Number 7100009350
 Material Silicon Rubber
 Number Of Legs 3
 PART NUMBER KEYWORDS 7100009350 ; 7629936 ; 8564 ; 054007431466 ; 54007431466 ; 05400743146 ; 00054007431466
 Series 8560
 Type 3-Way Cold Shrink Highly Flexible

Features

▪ Ensures excellent insulation and void-free sealing of cable breakouts
▪ High dry- and wet-insulation resistance
▪ Creates an environmental enclosure for individual cable phases
▪ Has an outer jacket diameter range of 1.3 to 1.94 in
▪ 3-way outlet
▪ Withstands temperatures of 221 deg F (105 deg C)
