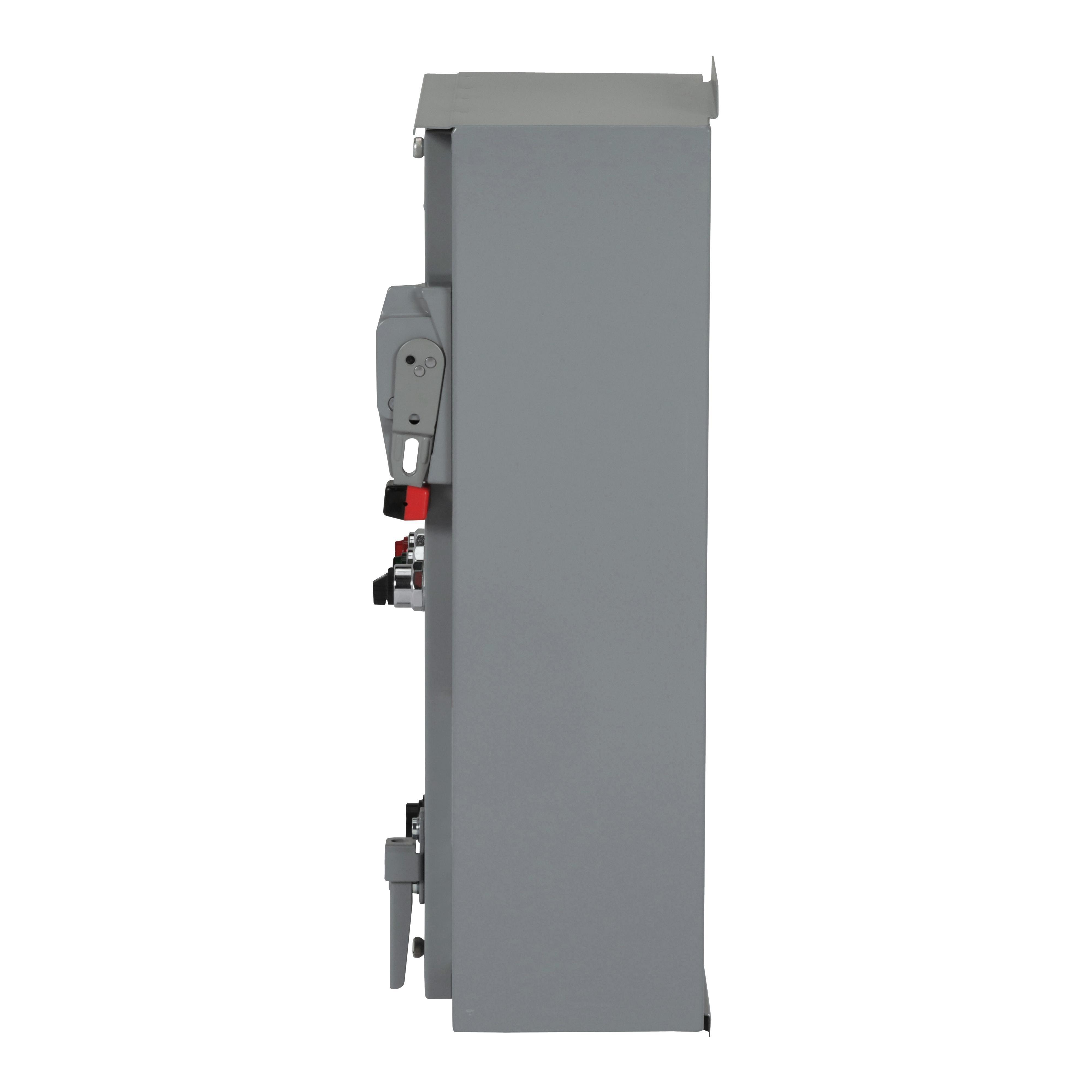

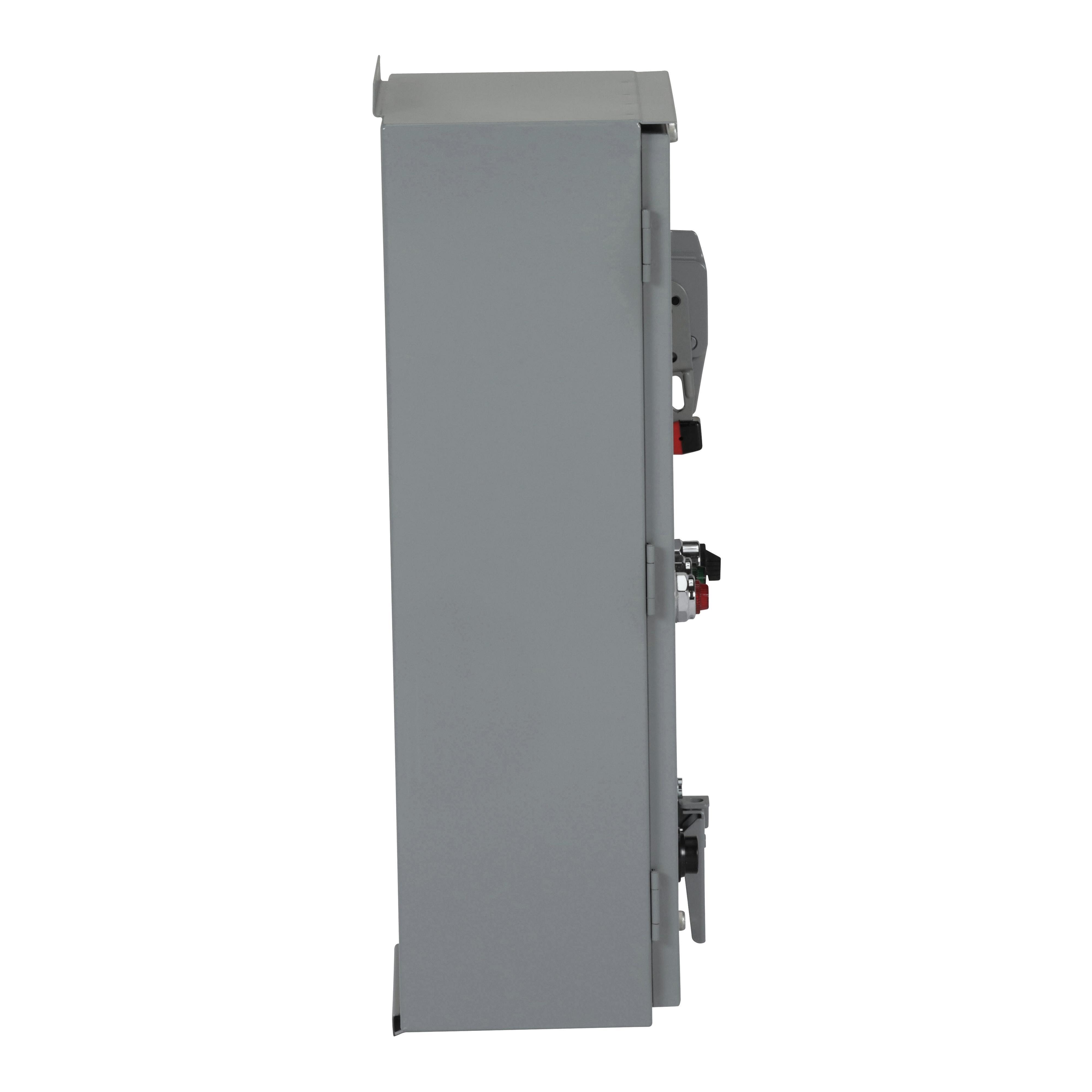

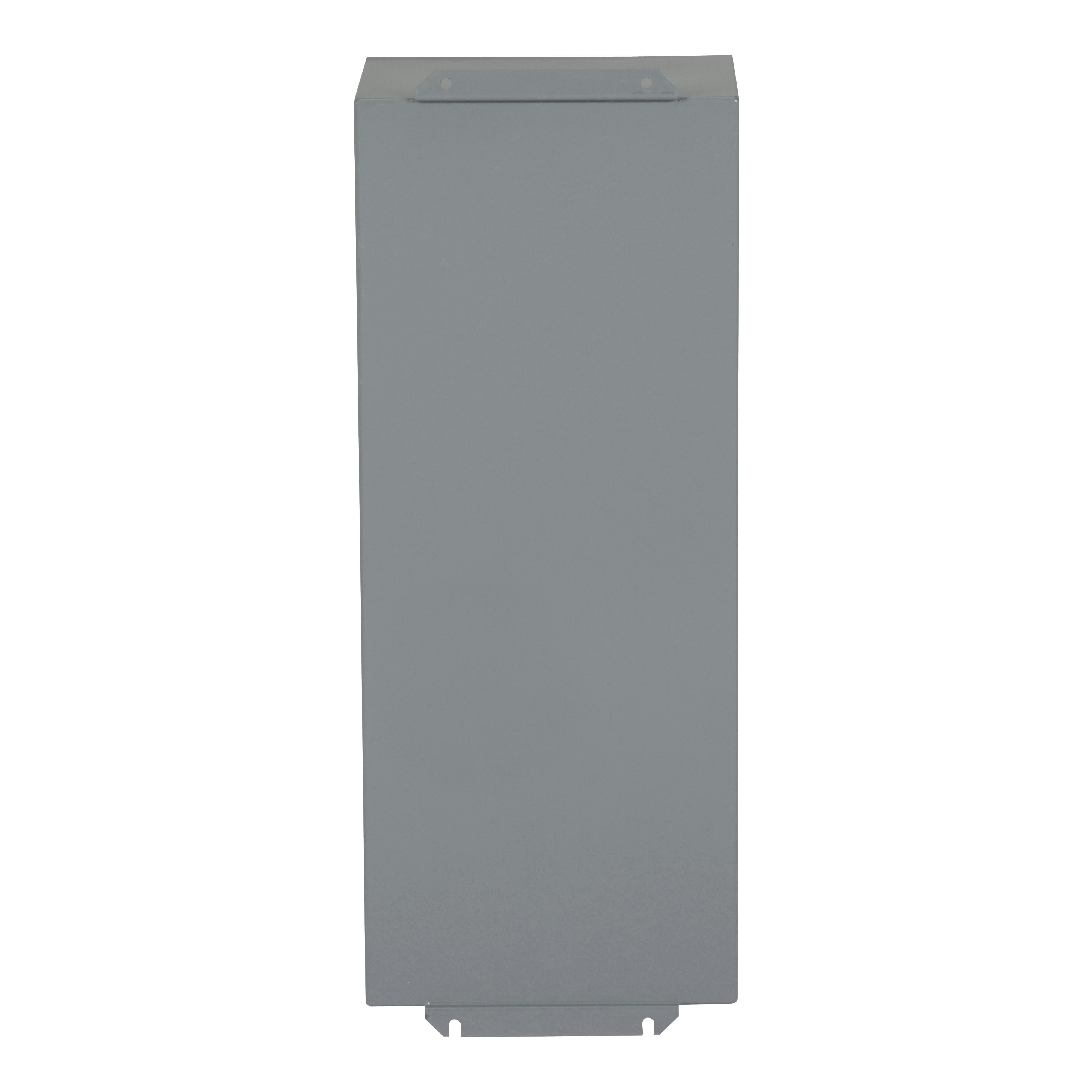

Description: Square D™ Combination Magnetic Starter, Type S, Series: 8538, 600 VAC, 45 A, 50/60 Hz Frequency, 25 hp at 460/575 VAC Motor, 110 V AC at 50 Hz, 120 V AC at 60 Hz Coil, 3 Pole, Motor Logic™ Solid-State Reset, 3 ph, Box Lug Connection, Non-Reversing Action, Motor Logic™ Solid-State Overload Relay, 15 to 45 A Full Load, HAND/OFF/AUTO Selector Switch Control, NEMA 12 Enclosure, Sheet Steel, 32 to 104 deg F Operating, 27.75 in H x 10.5 in W x 9.59 in D Dimensions

Manufacturer PN: 8538SDASP6

UPC:  78590190852

Kendall Electric Inc PN: 3962760

Invoice Description:

8538SDASP6 SQD COMBINATION STARTER


SPEC SHEET

▸ See All in NEMA Combination Starters


How Can We Make This Page Better?

Square D™ 8538SDASP6 Type S Combination Magnetic Starter, 110 V AC at 50 Hz, 120 V AC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, NEMA 12 Enclosure

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 2 starters have ratings of up to 25 HP at 480 and 600 VAC poly phase. Combination starter has 30 ampere Class H and K fuse clips. This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a Motor Logic solid state overload relay to detect over current conditions. A painted sheet steel NEMA 3R/12 dusttight enclosure is used to protect this starter. Enclosure is 27.75 inches tall, 10.5 inches wide and 9.59 inches deep. A wide variety of accessories are available for Type S starters. This combination starters is supplied with a HOA selector switch, a red and green pilot light, auxiliary contacts and an interlock on disconnect. Type S combination starters are UL listed and CSA certified.
Square D™ Combination Magnetic Starter, Type S, Series: 8538, 600 VAC, 45 A, 50/60 Hz Frequency, 25 hp at 460/575 VAC Motor, 110 V AC at 50 Hz, 120 V AC at 60 Hz Coil, 3 Pole, Motor Logic™ Solid-State Reset, 3 ph, Box Lug Connection, Non-Reversing Action, Motor Logic™ Solid-State Overload Relay, 15 to 45 A Full Load, HAND/OFF/AUTO Selector Switch Control, NEMA 12 Enclosure, Sheet Steel, 32 to 104 deg F Operating, 27.75 in H x 10.5 in W x 9.59 in D Dimensions

Specifications

 Amperage Rating 45 A
 Application Indoor, Construction, Infrastructure, Industrial Markets, Commercial Office Buildings and Building Automation Applications
 Brand Name Square D
 Coil Voltage 110 V AC at 50 Hz, 120 V AC at 60 Hz
 Connection Type Box Lug
 Control Type HAND/OFF/AUTO Selector Switch
 Dimensions 27.75 in H x 10.5 in W x 9.59 in D
 Enclosure NEMA 12
 Frequency Rating 50/60 Hz
 Full Load Current 15 to 45 A
 Includes External Reset, Separate Control Circuit and 60 A Type H/K Fuse
 Manufacturer Part Number 8538SDASP6
 Material Sheet Steel
 Motor Power 25 hp at 460/575 VAC
 Number of Poles 3
 Operating Temperature 32 to 104 deg F
 Overload Relay Motor Logic™ Solid-State
 Phase 3
 Reset Type Motor Logic™ Solid-State
 Series 8538
 Standards/Approvals CSA LR584 Class 3211-04|ECCN EAR99|UL File E152395 NKJH7|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
 Type Type S
 Video Links
 Voltage Rating 600 V AC

Features

▪ Offer unmatched reliability and flexibility for quick access and less install downtime
▪ Longer lasting, energy efficient 30 mm LED pilot lights
▪ Specially designed, pliable foam-in-place cabinet seals that protect from harmful outside elements
▪ Operator smart by resetting the overload without special tools
