Description: Square D™ Combination Magnetic Starter, Type S, Series: 8538, 600 VAC, 27 A, 50/60 Hz Frequency, 5 hp at 230 VAC/5 hp at 200 VAC Motor, 110 V AC at 50 Hz/120 V AC at 60 Hz Coil, 3 Pole, Motor Logic™ Solid-State Reset, 3 ph ph, Pressure Wire Lug Connection, 3 to 9 A Full Load, HAND/OFF/AUTO Selector Switch Control, NEMA 12 Enclosure, Sheet Steel, 32 to 104 deg F Ambient Operating, 9.5 in W x 8.34 in D x 24 in H Dimensions

Manufacturer PN: 8538SCASP4

UPC:  78590116953

Kendall Electric Inc PN: 4093738

Invoice Description:

8538SCASP4 SQD COMBINATION STARTER


SPEC SHEET

▸ See All in NEMA Combination Starters


How Can We Make This Page Better?

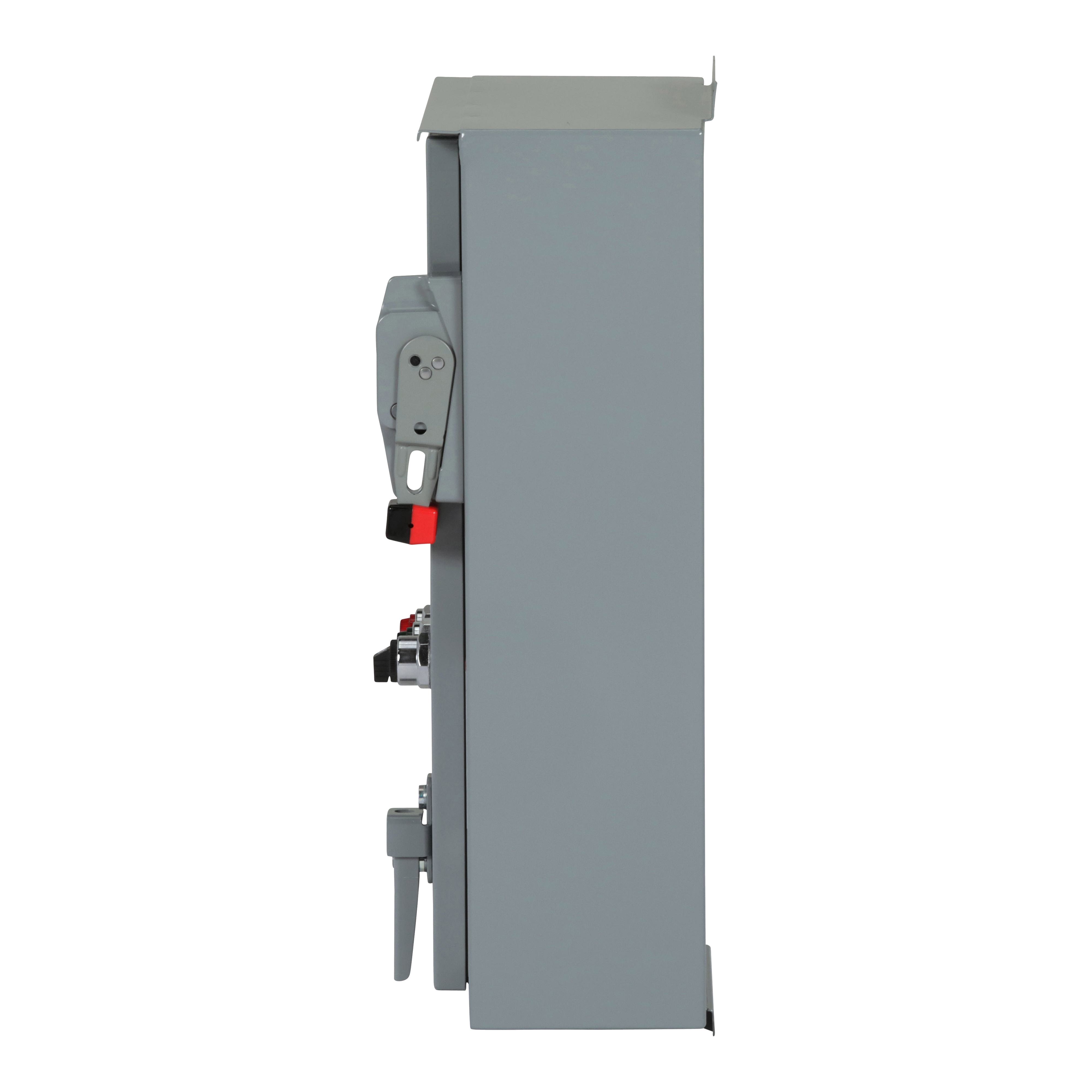

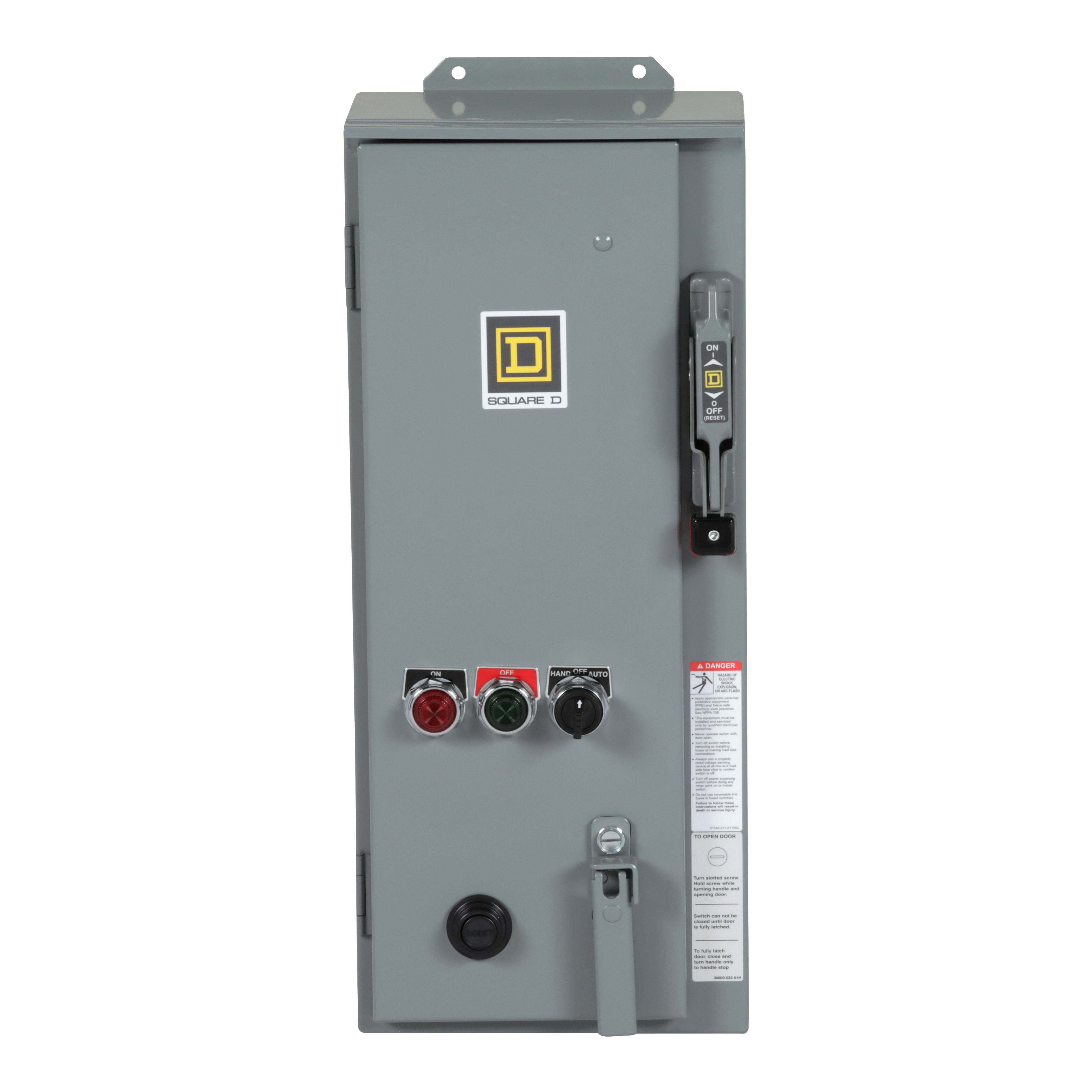

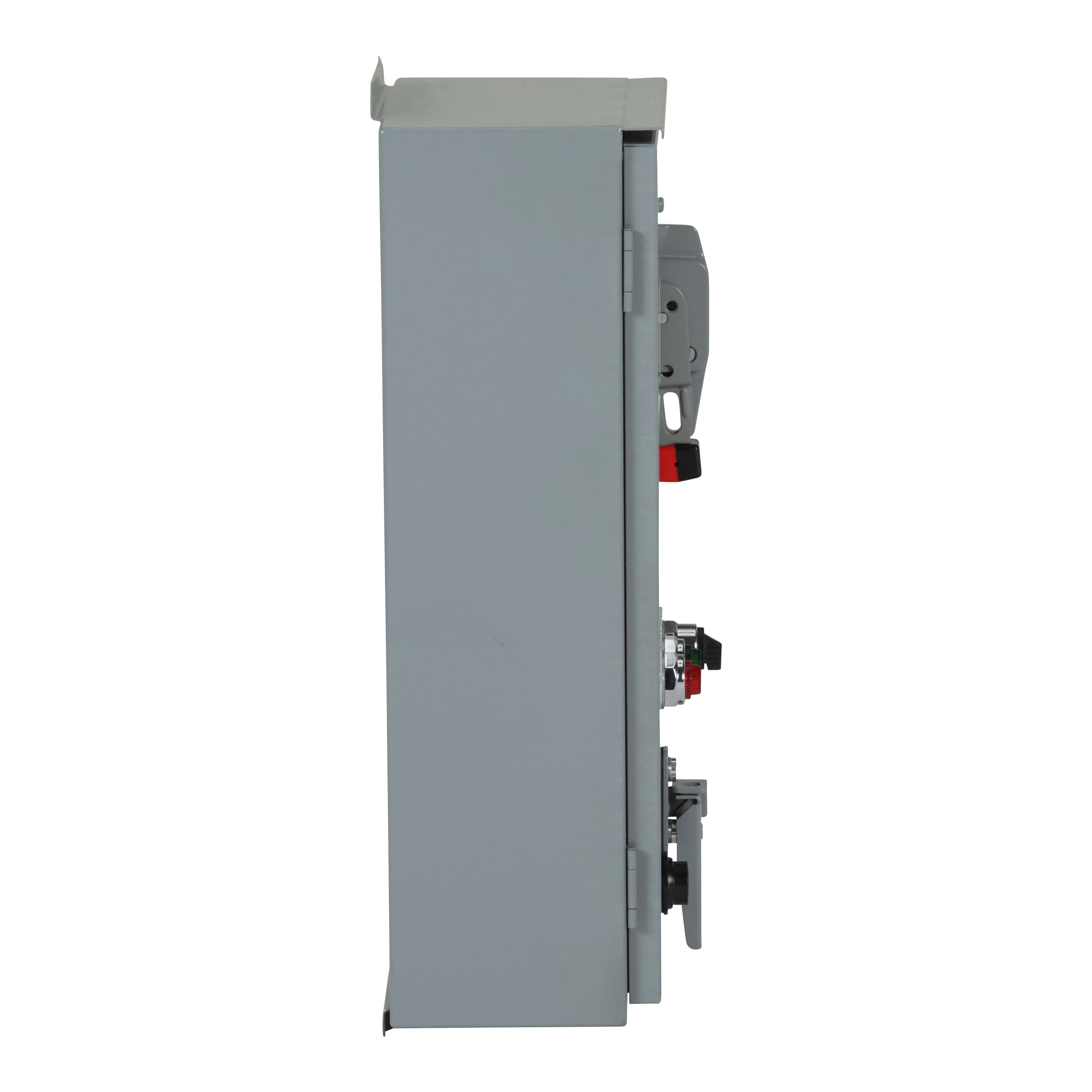

Square D™ 8538SCASP4 Type S Combination Magnetic Starter With Fusible Disconnect Switch, 110 V AC at 50 Hz/120 V AC at 60 Hz V Coil, 3 Poles, NEMA 12 Enclosure

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 1 starters have ratings of up to 5 HP at 208 and 240 VAC poly phase. Combination starter has 30 ampere Class H and K fuse clips. This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a Motor Logic solid state overload relay to detect over current conditions. A painted sheet steel NEMA 3R/12 dusttight enclosure is used to protect this starter. Enclosure is 24.0 inches tall, 8.34 inches wide and 9.5 inches deep. A wide variety of accessories are available for Type S starters. This combination starters is supplied with a HOA selector switch, a red and green pilot light, auxiliary contacts and an interlock on disconnect. Type S combination starters are UL listed and CSA certified.
Square D™ Combination Magnetic Starter, Type S, Series: 8538, 600 VAC, 27 A, 50/60 Hz Frequency, 5 hp at 230 VAC/5 hp at 200 VAC Motor, 110 V AC at 50 Hz/120 V AC at 60 Hz Coil, 3 Pole, Motor Logic™ Solid-State Reset, 3 ph ph, Pressure Wire Lug Connection, 3 to 9 A Full Load, HAND/OFF/AUTO Selector Switch Control, NEMA 12 Enclosure, Sheet Steel, 32 to 104 deg F Ambient Operating, 9.5 in W x 8.34 in D x 24 in H Dimensions

Specifications

 Amperage Rating 27 A
 Application Construction, Infrastructure, Industrial Markets, Commercial Office Buildings and Building Automation
 Brand Name Square D
 Coil Voltage 110 V AC at 50 Hz/120 V AC at 60 Hz
 Connection Type Pressure Wire Lug
 Control Type HAND/OFF/AUTO Selector Switch
 Dimensions 9.5 in W x 8.34 in D x 24 in H
 Enclosure NEMA 12
 Frequency Rating 50/60 Hz
 Full Load Current 3 to 9 A
 Includes External Reset, Separate Control Circuit and 30 A Type H/K Fuse
 Manufacturer Part Number 8538SCASP4
 Material Sheet Steel
 Motor Power 5 hp at 230 VAC/5 hp at 200 VAC
 Number of Poles 3
 Operating Temperature 32 to 104 deg F Ambient
 PART NUMBER KEYWORDS 8538SCASP4 ; 8063631 ; 785901169536 ; 78590116953 ; 00785901169536 ; 0785901169536
 Phase 3
 Reset Type Motor Logic™ Solid-State
 Series 8538
 Standards/Approvals CSA LR584 Class 3211-04|ECCN EAR99|UL File E152395 NKJH7|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
 Type Type S
 Video Links
 Voltage Rating 600 V AC

Features

▪ Flexible with four overload relays types
▪ Customizable with hundreds of combinations
▪ Streamline installation, wiring, maintenance and field modifications
▪ Reliable build for long mechanical life and electrical endurance
