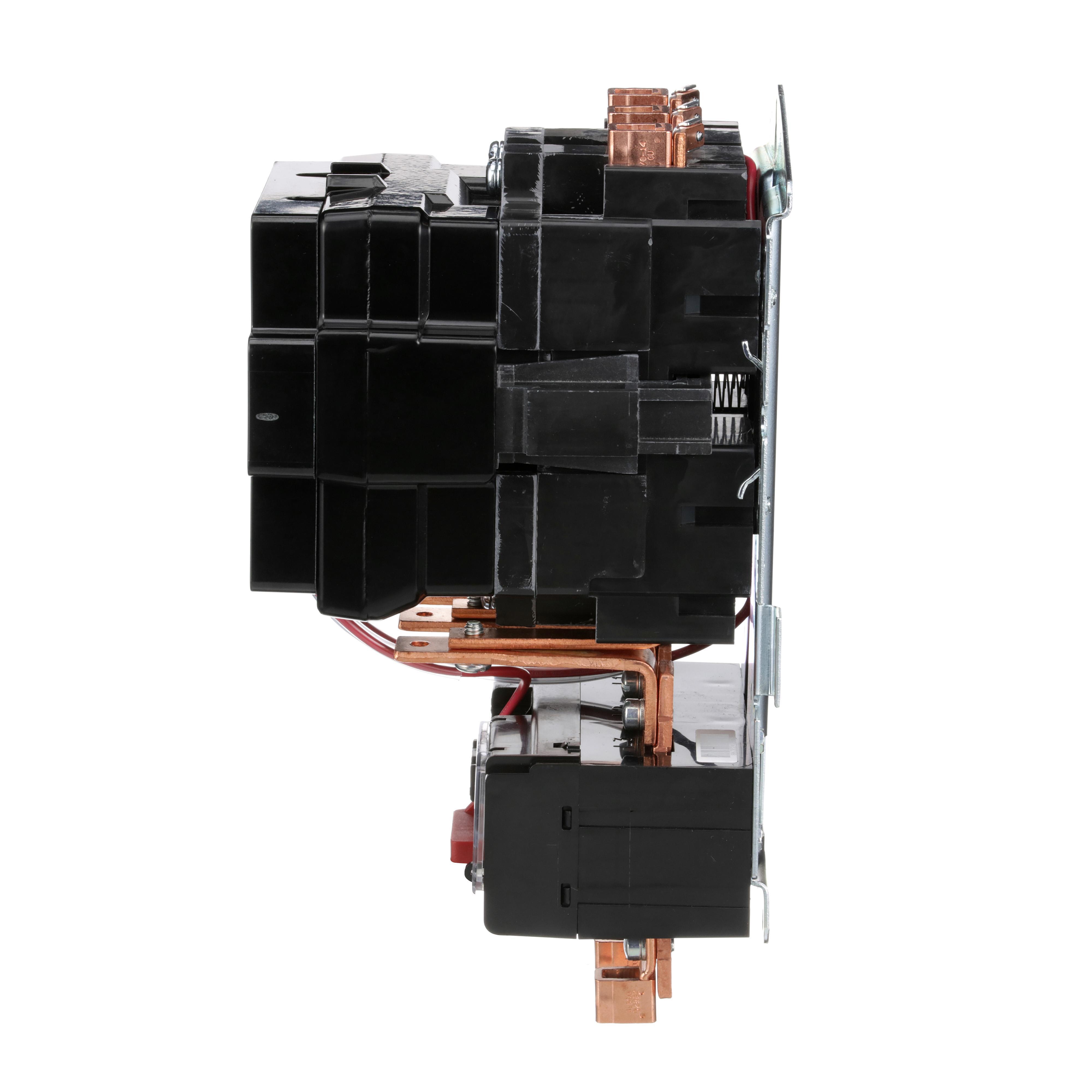

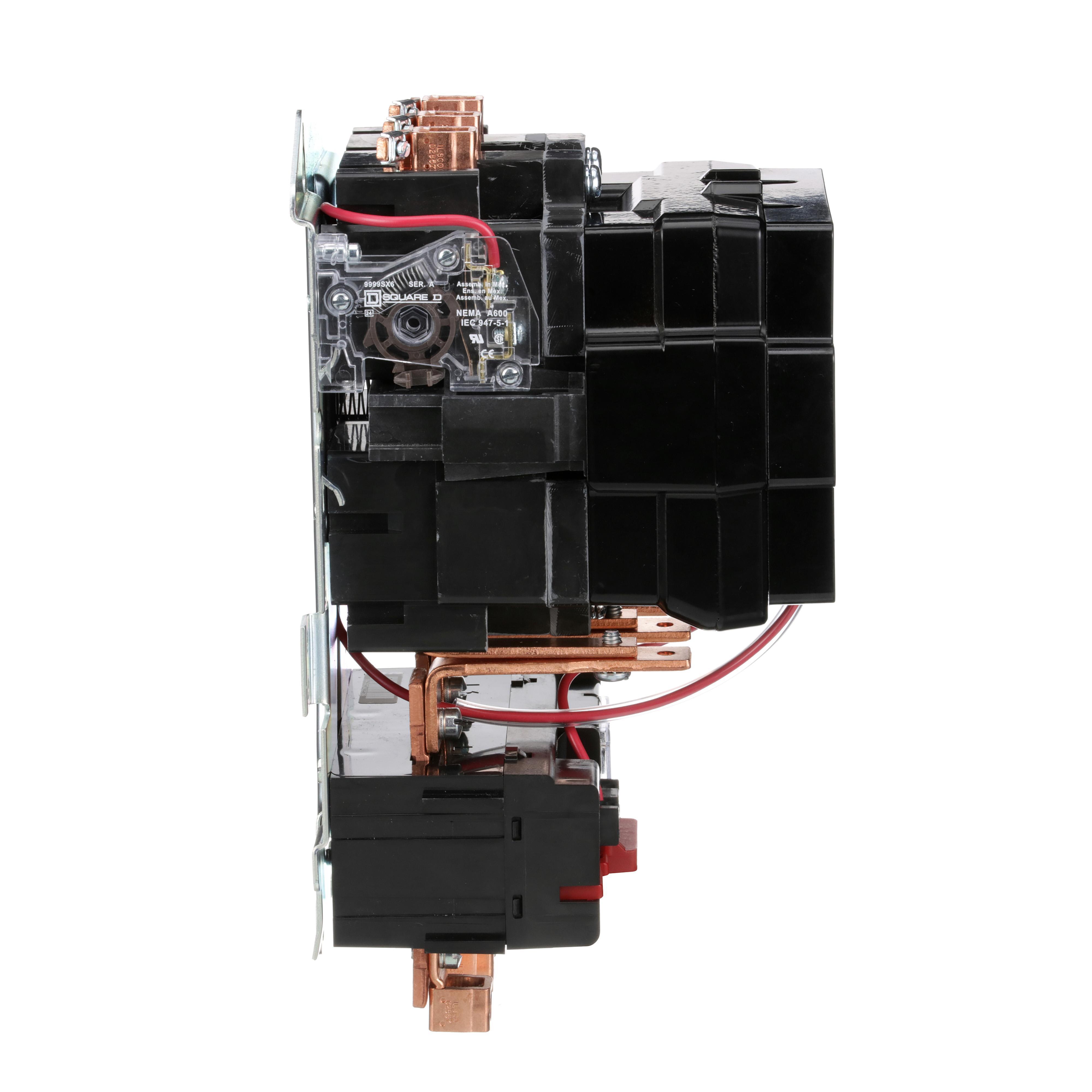

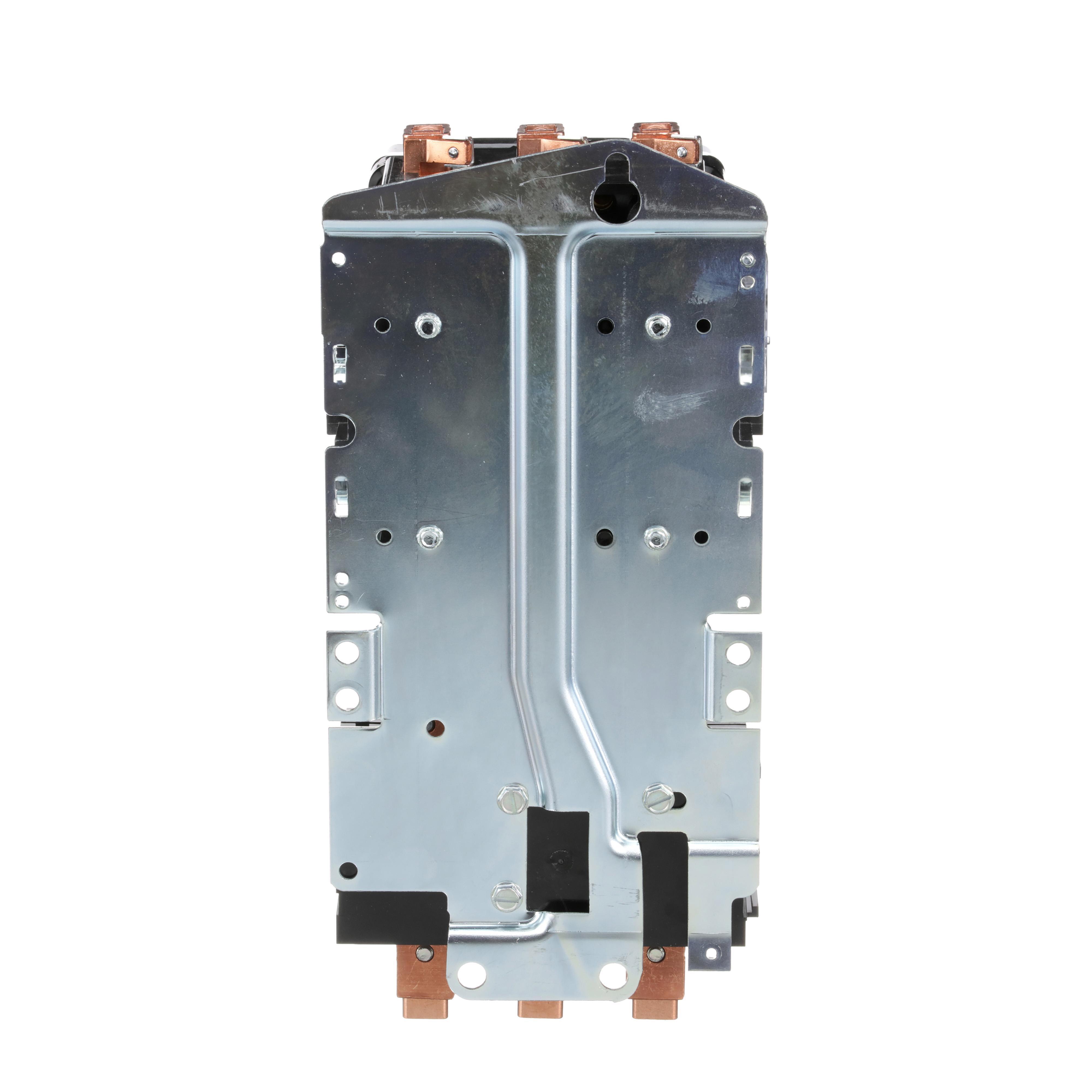

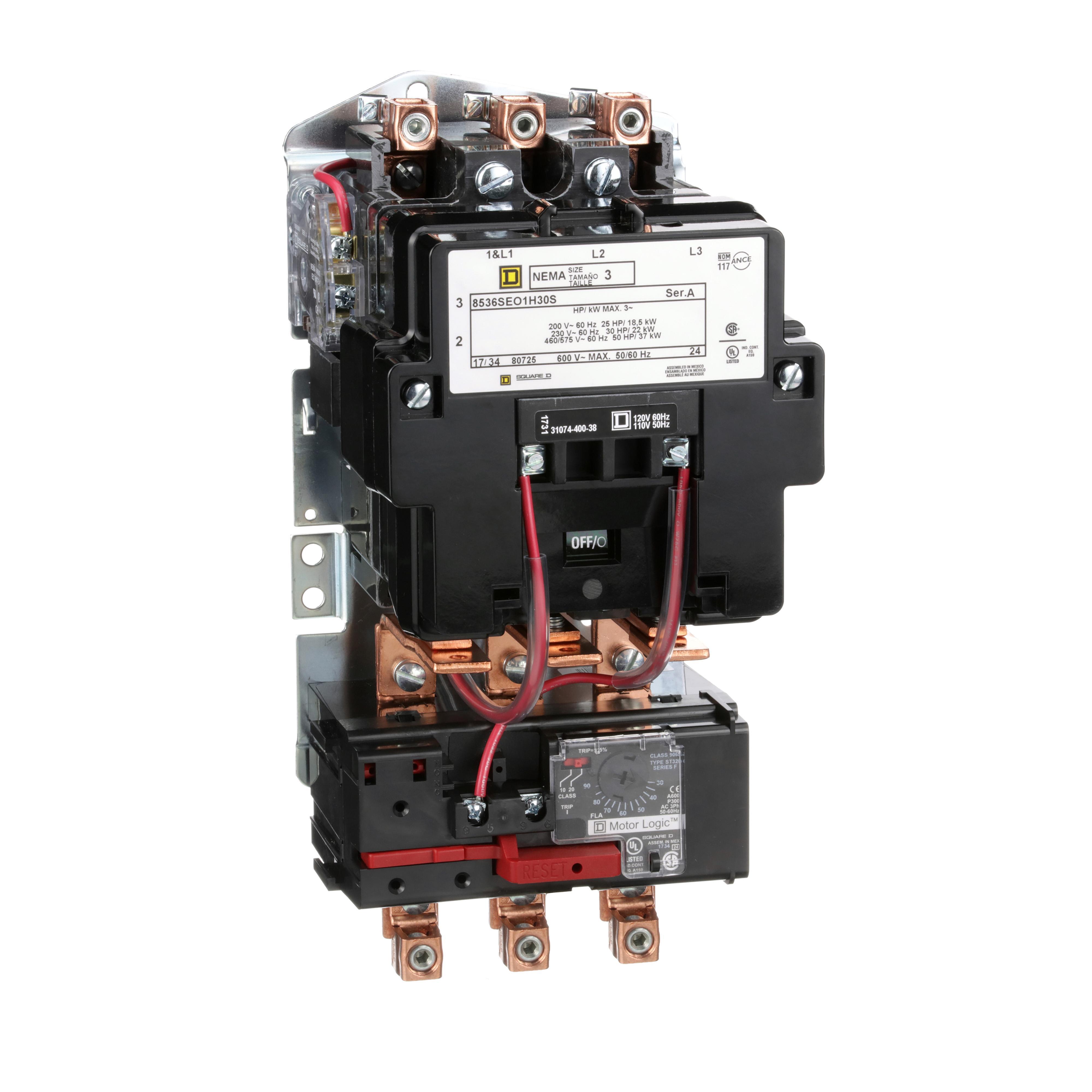

Description: Square D™ Starter, Type S, 600 V AC, 90 A, 50/60 Hz, 50 hp Motor, 110/120 VAC Coil, 3 Pole, Motor Logic™ Solid State Reset, 3 ph, Screw Clamp, Non-Reversing, Motor Logic™ Solid State Overload Relay, Open, Starting Modes: Magnetic, 5-15/32 in W x 6-1/2 in D x 11-3/32 in H

Manufacturer PN: 8536SEO1V02H30S

UPC:  78590180725

Kendall Electric Inc PN: 3959399

Invoice Description:

8536SEO1V02H30S SQD STARTER 600VAC


SPEC SHEET

How Can We Make This Page Better?

Square D™ 8536SEO1V02H30S Type S Starter, 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, Open Enclosure

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 3 non-reversing starter has a 90 ampere rating. This NEMA Size 3 motor starter has 3 phase ratings of 25 HP at 200 VAC, 30 HP at 230 VAC and 50 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 30A to 90A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 11.09 inches tall, 5.47 inches wide and 6.50 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Square D™ Starter, Type S, 600 V AC, 90 A, 50/60 Hz, 50 hp Motor, 110/120 VAC Coil, 3 Pole, Motor Logic™ Solid State Reset, 3 ph, Screw Clamp, Non-Reversing, Motor Logic™ Solid State Overload Relay, Open, Starting Modes: Magnetic, 5-15/32 in W x 6-1/2 in D x 11-3/32 in H

Specifications

 Amperage Rating 90 A
 Application For full voltage starting, stopping of AC squirrel cage motor and indoor applications
 Brand Name Square D
 Coil Voltage 110/120 V AC
 Connection Type Screw Clamp
 Dimensions 5-15/32 in W x 6-1/2 in D x 11-3/32 in H
 Enclosure Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 8536SEO1V02H30S
 Motor Power 50 hp
 Number of Poles 3
 Overload Relay Motor Logic™ Solid State
 PART NUMBER KEYWORDS 8536SEO1V02H30S ; 8042441 ; 785901807254 ; 78590180725 ; 00785901807254 ; 0785901807254
 Phase 3
 Reset Type Motor Logic™ Solid State
 Standards/Approvals UL Listed|CSA Certified|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Starting Modes Magnetic
 Type Type S
 Video Links
 Voltage Rating 600 V AC

Features

▪ Flexible with four overload relays types
▪ Customizable with hundreds of combinations
▪ Streamline installation, wiring, maintenance and field modifications
▪ Reliable build for long mechanical life and electrical endurance
