Description: Square D™ NEMA Starter, Type S Non-Reversing, 600 V AC, 27 A, 50/60 Hz Frequency, 7-1/2 hp/10 hp Motor, 110/120 VAC Coil, 3 Pole, Motor Logic™ Solid-State Reset, 3 ph ph, Screw Clamp Connection, Class 10/20 Motor Logic™ Solid-State Overload Relay, Open Enclosure, Starting Modes: Magnetic, 3.5 in W x 4.21 in D x 6.77 in H Dimensions

Manufacturer PN: 8536SCO3V02H30S

UPC:  78590180705

Kendall Electric Inc PN: 3959746

Invoice Description:

8536SCO3V02H30S SQD STARTER 600VAC


SPEC SHEET

▸ See All in NEMA Starters


How Can We Make This Page Better?

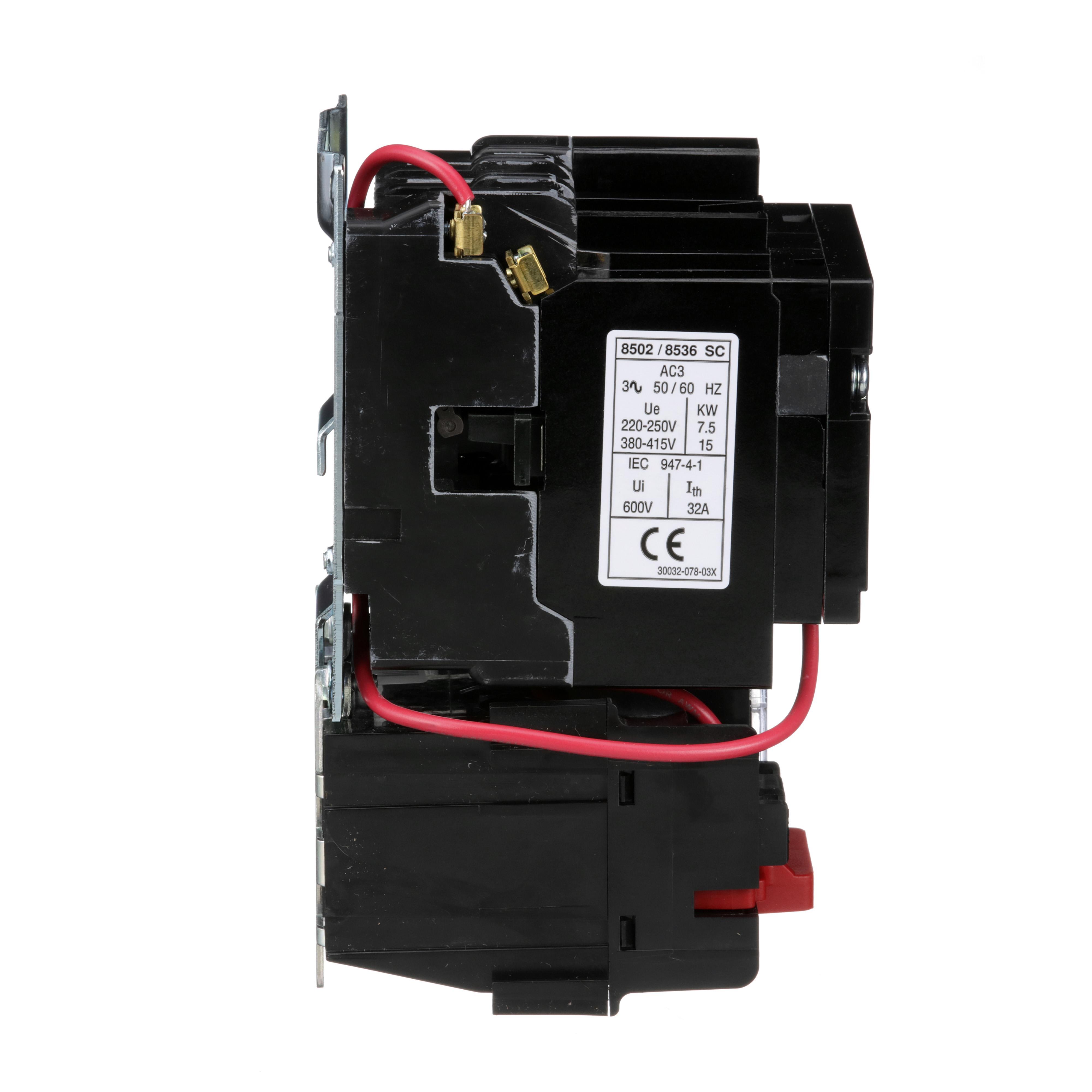

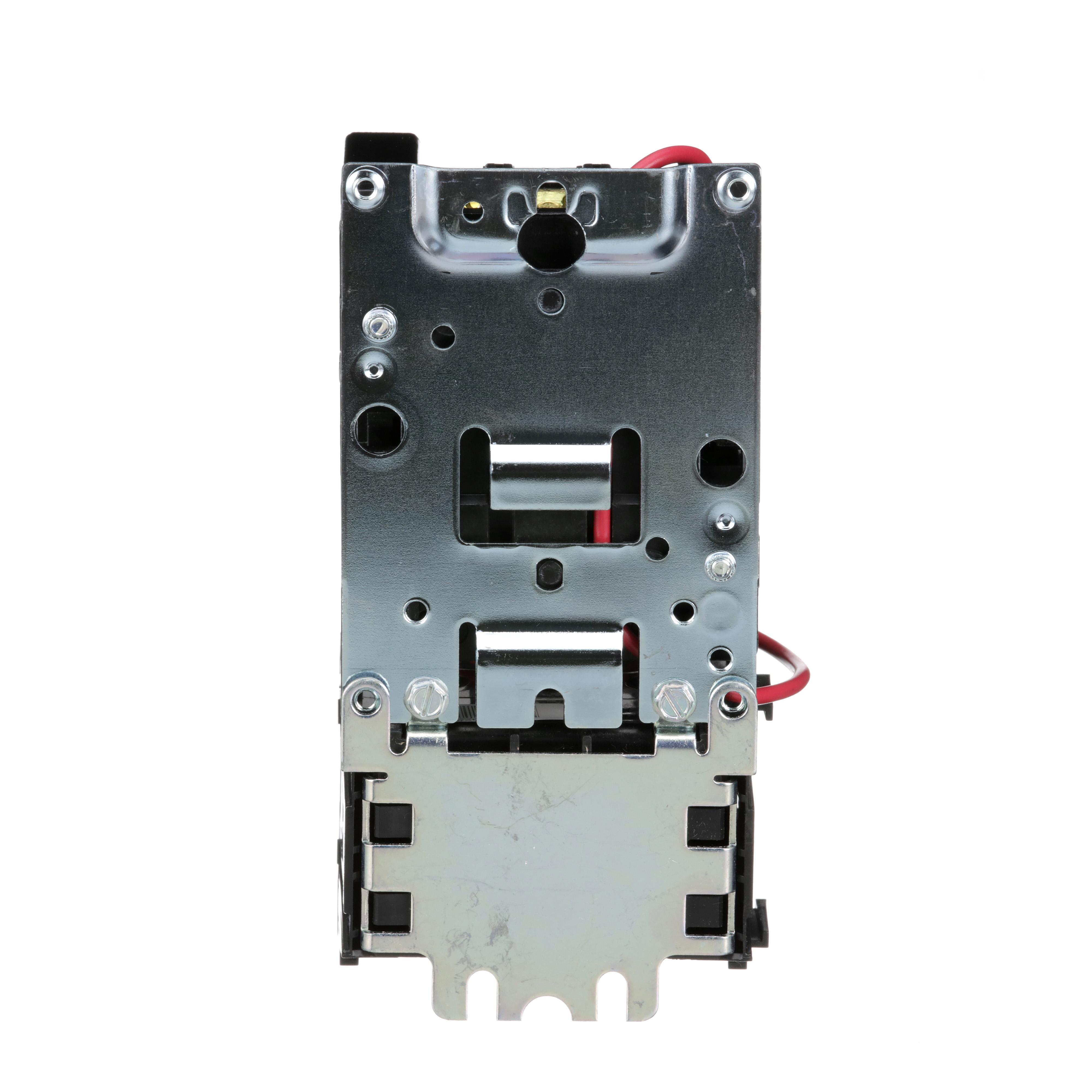

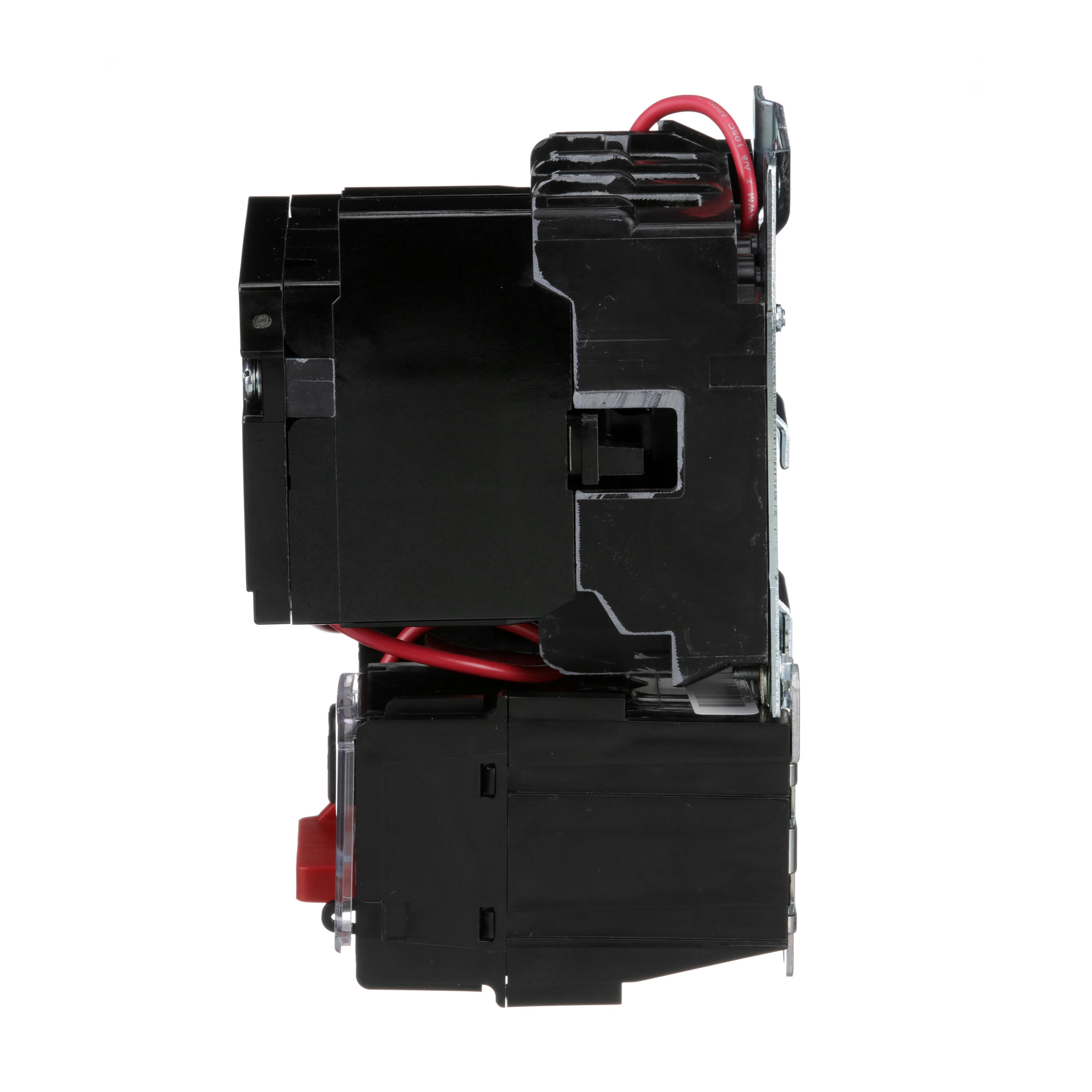

Square D™ 8536SCO3V02H30S Type S Non-Reversing NEMA Starter, 110/120 VAC V Coil, 3 Poles, Open Enclosure

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing starter has a 27 ampere rating. This NEMA Size 1 motor starter has 3 phase ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 9A to 27A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Square D™ NEMA Starter, Type S Non-Reversing, 600 V AC, 27 A, 50/60 Hz Frequency, 7-1/2 hp/10 hp Motor, 110/120 VAC Coil, 3 Pole, Motor Logic™ Solid-State Reset, 3 ph ph, Screw Clamp Connection, Class 10/20 Motor Logic™ Solid-State Overload Relay, Open Enclosure, Starting Modes: Magnetic, 3.5 in W x 4.21 in D x 6.77 in H Dimensions

Specifications

 Amperage Rating 27 A
 Application For full voltage starting, stopping of AC squirrel cage motor and indoor applications
 Brand Name Square D
 Coil Voltage 110/120 V AC
 Connection Type Screw Clamp
 Dimensions 3.5 in W x 4.21 in D x 6.77 in H
 Enclosure Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 8536SCO3V02H30S
 Motor Power 7-1/2 hp/10 hp
 Number of Poles 3
 Overload Relay Motor Logic™ Class 10/20 Solid State
 PART NUMBER KEYWORDS 8536SCO3V02H30S ; 8039495 ; 785901807056 ; 78590180705 ; 00785901807056
 Phase 3
 Reset Type Motor Logic™ Solid-State
 Standards/Approvals UL Listed|CSA Certified|ECCN EAR99|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Starting Modes Magnetic
 Type Type S Non-Reversing
 Video Links
 Voltage Rating 600 V AC

Features

▪ Flexible with four overload relays types
▪ Customizable with hundreds of combinations
▪ Streamline installation, wiring, maintenance and field modifications
▪ Reliable build for long mechanical life and electrical endurance
▪ Ideal for use in construction, industrial markets, building automation
