Schneider Electric
  • 8502SDO2V02S SQD CONTACTOR 600VAC
  • 8502SDO2V02S SQD CONTACTOR 600VAC
  • 8502SDO2V02S SQD CONTACTOR 600VAC
  • 8502SDO2V02S SQD CONTACTOR 600VAC
  • 8502SDO2V02S SQD CONTACTOR 600VAC
  • 8502SDO2V02S SQD CONTACTOR 600VAC

Description: Square D™ IEC Contactor, 3-Phase, Series: 8502S, 110/120 V AC Coil, 45 A Maximum Load Current, 3 Pole, 50/60 Hz, Non-Reversing Contact, Screw Clamp, SZ 2, Screw Terminal, NEMA 2, Surface Mount, 125 mm W x 125 mm D x 130 mm H

Manufacturer PN: 8502SDO2V02S

UPC:  78590188161

Kendall Electric Inc PN: 3998567

Invoice Description:

8502SDO2V02S SQD CONTACTOR 600VAC


SPEC SHEET

How Can We Make This Page Better?

Square D™ 8502SDO2V02S 3-Phase IEC Contactor, 110/120 V AC V Coil, 45 A, 3 Poles

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

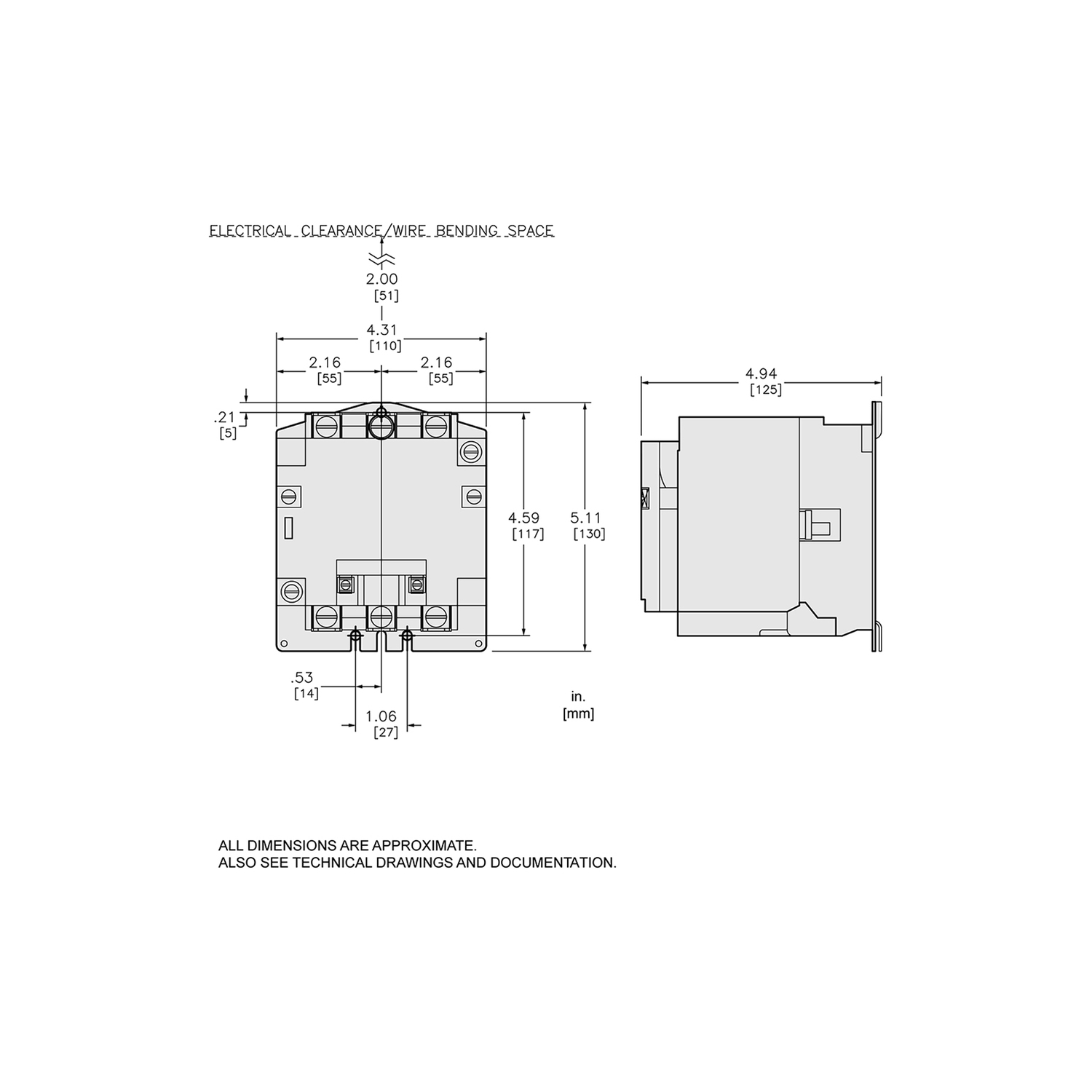

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 2 non-reversing contactor has a 45 ampere rating. Three phase NEMA Size 2 contactors have 10 HP at 200, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 5.13 inches tall, 4.31 inches wide and 4.94 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
Square D™ IEC Contactor, 3-Phase, Series: 8502S, 110/120 V AC Coil, 45 A Maximum Load Current, 3 Pole, 50/60 Hz, Non-Reversing Contact, Screw Clamp, SZ 2, Screw Terminal, NEMA 2, Surface Mount, 125 mm W x 125 mm D x 130 mm H

Specifications

 Application For use to switch heating loads, capacitors, transformer and electric motors where overload protection is provided separately applications
 Brand Name Square D
 Coil Voltage 110/120 V AC
 Connection Type Screw Clamp
 Contact Type Non-Reversing
 Dimensions 125 mm W x 125 mm D x 130 mm H
 Enclosure NEMA 2
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 8502SDO2V02S
 Maximum Load Current 45 A
 Mounting Type Surface
 Number of Poles 3
 PART NUMBER KEYWORDS 8502SDO2V02S ; 8074602 ; 785901881612 ; 78590188161 ; 00785901881612 ; 0785901881612
 Series 8502S
 Size SZ 2
 Standards/Approvals UL File No. E78351|CCN Guide No. NLDX|CSA File No. LR12751|60905|Class 3211-04|Class 3211-04|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Terminal Type Screw
 Type 3-Phase

Features

▪ Robustdesign and reliable build for long mechanical life and electrical endurance
▪ Serviceableby replacing contacts and coils
