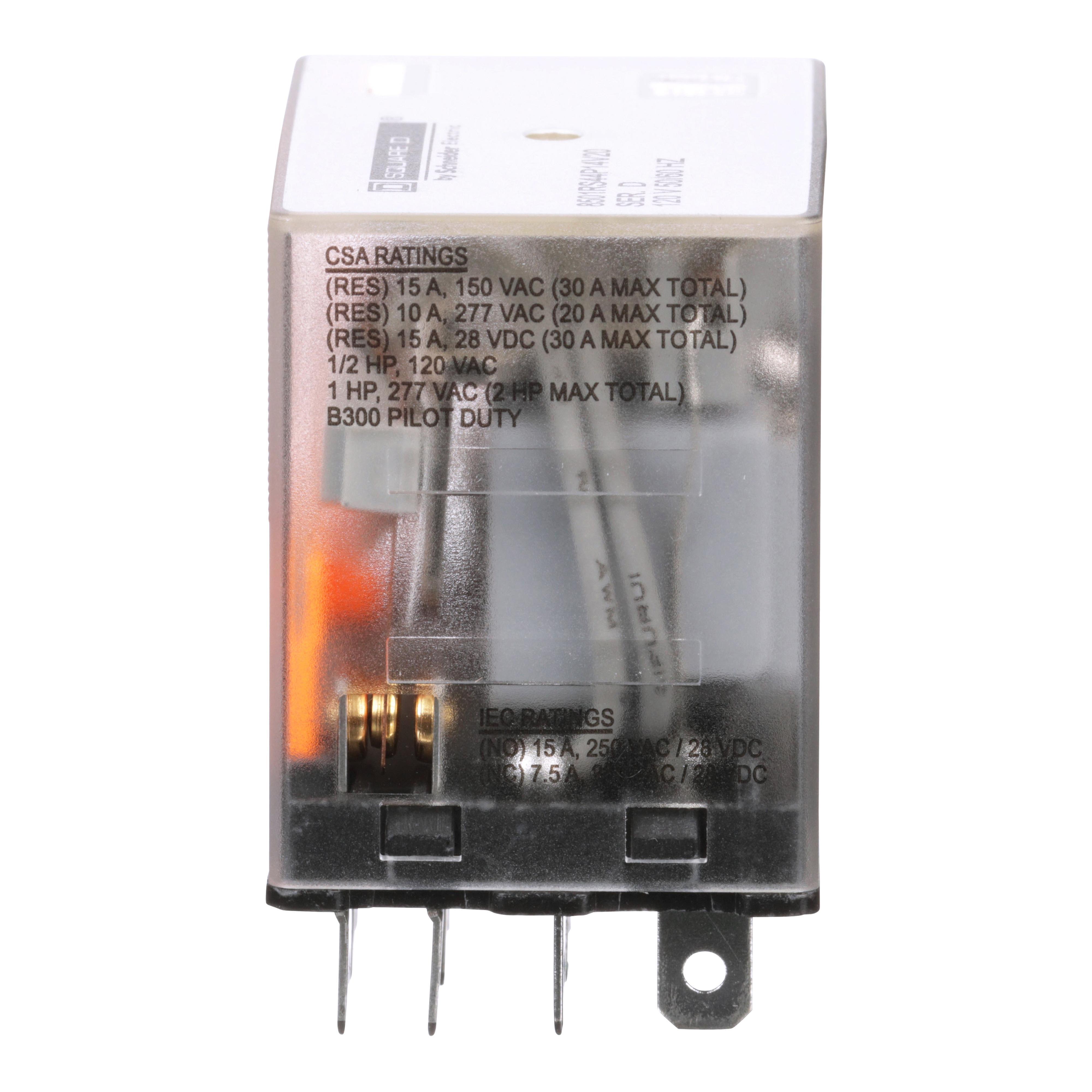

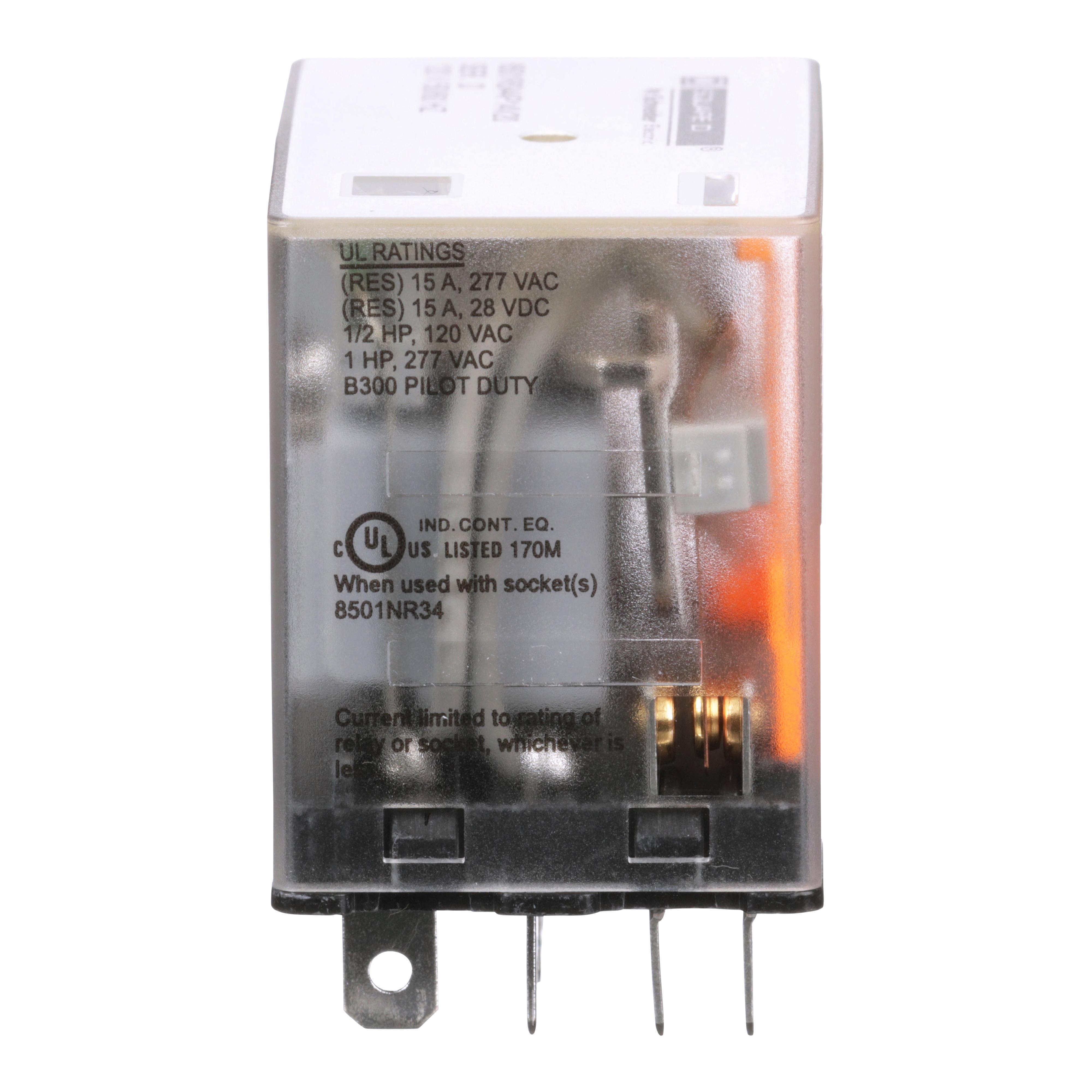

Description: Square D™ Plug-In Relay, Type R Standard Miniature, Series: 8501R, 12 A, 1 hp at 277 VAC Power, 50/60 Hz Frequency, 300 V AC, 30 V DC Coil, 4 Form C 4PDT Contact Form, 15 A Contact, 14 Pins, 4 Pole, Socket Mounting, Spade Terminal, LED Display, -40 to 131 deg F, 40.6 mm W x 41.8 mm D x 27.3 mm H Dimensions

Manufacturer PN: 8501RS44P14V20

UPC:  78590113718

Kendall Electric Inc PN: 3958612

Invoice Description:

8501RS44P14V20 SQD RELAY 250VAC


SPEC SHEET

▸ See All in General Purpose Relays


How Can We Make This Page Better?

Square D™ 8501RS44P14V20 Type R Standard Miniature Plug-In Relay With Standard Cover, 12 A, 14 Pin, 4 Form C 4PDT Contact, 300 V AC, 30 V DC V Coil

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR34 or 8501NR34B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 15 ampere resistive rating at 277 VAC and at 28VDC, a 10 ampere resistive rating at 277 VAC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. Relay has a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Square D™ Plug-In Relay, Type R Standard Miniature, Series: 8501R, 12 A, 1 hp at 277 VAC Power, 50/60 Hz Frequency, 300 V AC, 30 V DC Coil, 4 Form C 4PDT Contact Form, 15 A Contact, 14 Pins, 4 Pole, Socket Mounting, Spade Terminal, LED Display, -40 to 131 deg F, 40.6 mm W x 41.8 mm D x 27.3 mm H Dimensions

Specifications

 Amperage Rating 12 A
 Application Material Handling, Processing, Lighting control, HVAC/R, Industrial and General Purpose Applications
 Brand Name Square D
 Coil Voltage 300 V AC, 30 V DC
 Contact Form 4 Form C 4PDT
 Contact Rating 15 A
 Dimensions 40.6 mm W x 41.8 mm D x 27.3 mm H
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 8501RS44P14V20
 Mounting Type Socket
 Number of Pins 14
 Number of Poles 4
 PART NUMBER KEYWORDS 8501RS44P14V20 ; 8042806 ; 785901137184 ; 78590113718 ; 00785901137184 ; 0785901137184
 Power Rating 1 hp at 277 VAC
 Series 8501R
 Standards/Approvals CE Certified|CSA Certified|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|REACH Compliant|RoHS Compliant|UL Listed|UL Recognized
 Temperature Rating -40 to 131 deg F
 Terminal Type Spade
 Type Type R Standard Miniature
 Video Links

Features

▪ Complete socket line
▪ 0.5 hp at 120 VAC power
▪ Without test button and LED
▪ Green indicator relay energized on LED
