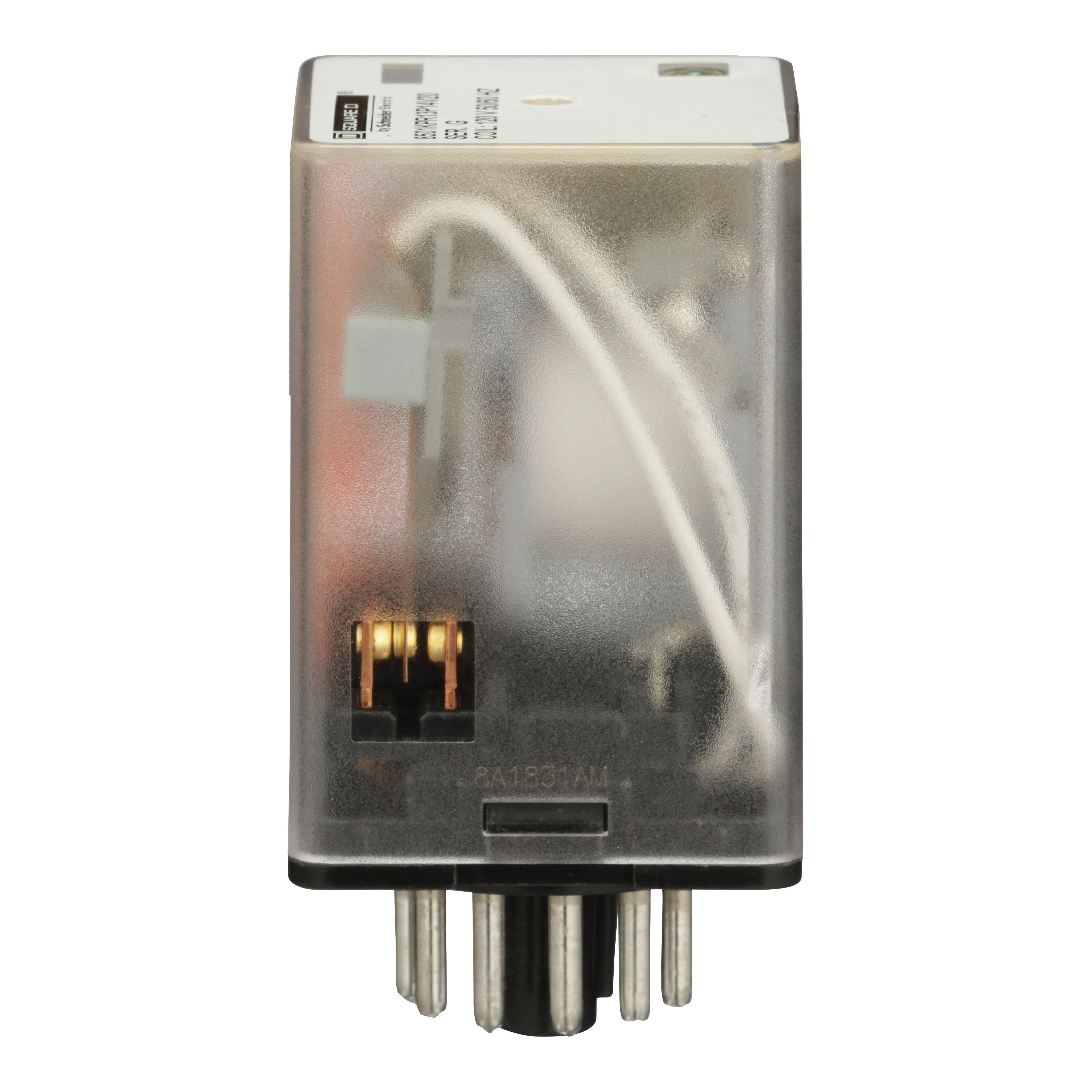

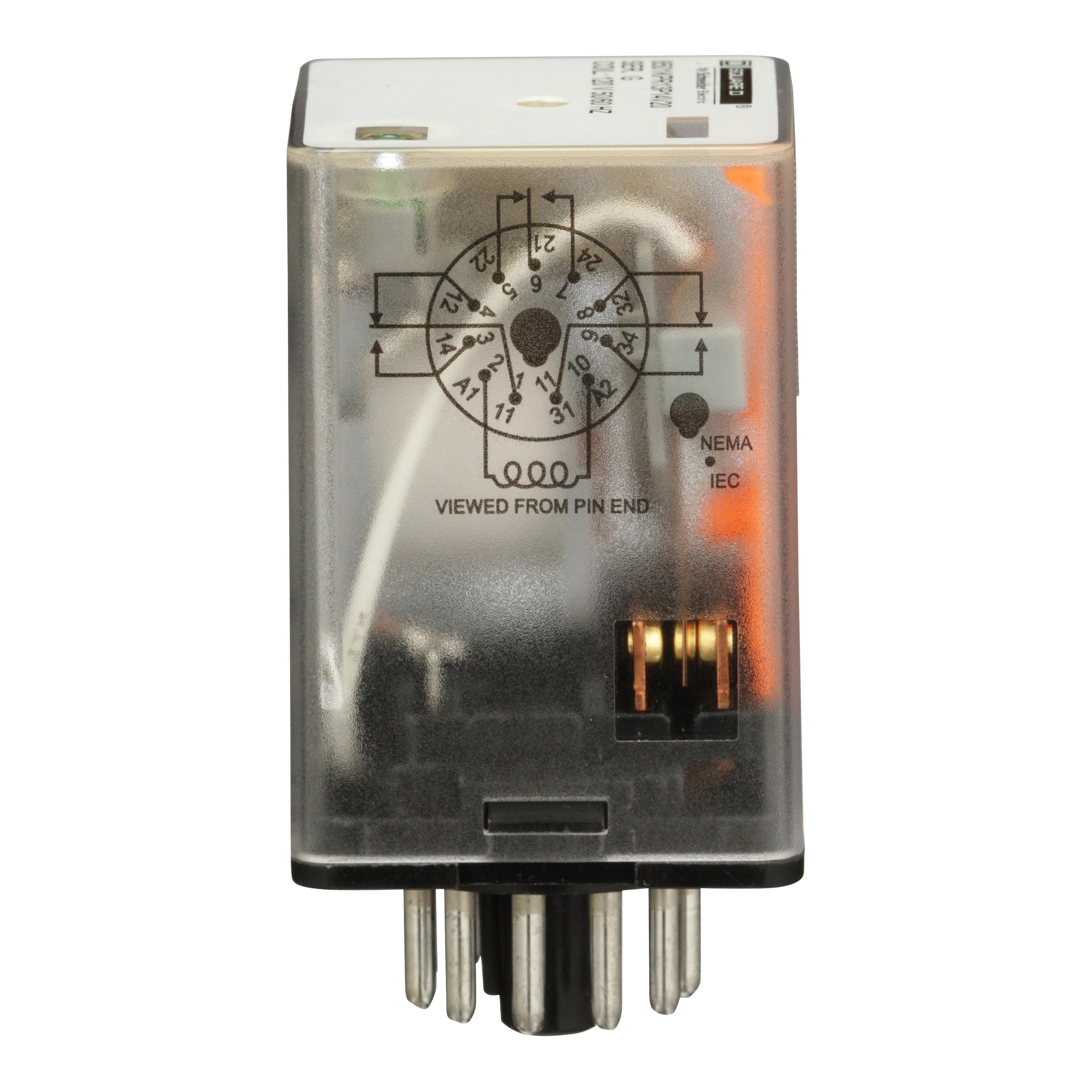

Description: Schneider Electric Square D™ General Purpose Relay, Type K, Series: 8501K, 10 A, 0.33 hp, 1 hp Power, 300 V AC, 30 V DC Coil, 3CO 3 Form C 3PDT Contact Form, 11 Pins, 3 Pole, DIN Rail/Socket Mounting, Octal Pin/Plug-In/Screw Clamp Terminal, IP20/IP40 Enclosure, -40 to 131 deg F, 2.66 in H x 1.4 in W x 1.4 in D Dimensions

Manufacturer PN: 8501KPR13P14V20

UPC:  78590170388

Kendall Electric Inc PN: 3963105

Invoice Description:

8501KPR13P14V20 SQD RELAY 3CO CYL


SPEC SHEET

▸ See All in General Purpose Relays


How Can We Make This Page Better?

Schneider Electric Square D™ 8501KPR13P14V20 Type K General Purpose Relay With LED and Standard Cover, 10 A, 11 Pin, 3CO 3 Form C 3PDT Contact, 300 V AC, 30 V DC V Coil

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR61 or 8501NR62 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. A green LED indicator is supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Schneider Electric Square D™ General Purpose Relay, Type K, Series: 8501K, 10 A, 0.33 hp, 1 hp Power, 300 V AC, 30 V DC Coil, 3CO 3 Form C 3PDT Contact Form, 11 Pins, 3 Pole, DIN Rail/Socket Mounting, Octal Pin/Plug-In/Screw Clamp Terminal, IP20/IP40 Enclosure, -40 to 131 deg F, 2.66 in H x 1.4 in W x 1.4 in D Dimensions

Specifications

 Amperage Rating 10 A
 Application Material Handling, Processing, Lighting Control, HVAC/R and Industrial Applications
 Brand Name Square D
 Coil Voltage 300 V AC, 30 V DC
 Contact Form 3CO 3 Form C 3PDT
 Dimensions 2.66 in H x 1.4 in W x 1.4 in D
 Enclosure IP20/IP40
 Manufacturer Part Number 8501KPR13P14V20
 Mounting Type DIN Rail/Socket
 Number of Pins 11
 Number of Poles 3
 PART NUMBER KEYWORDS 8501KPR13P14V20 ; 785901703884 ; 78590170388 ; 00785901703884
 Power Rating 0.33 hp, 1 hp
 Series 8501K
 Standards/Approvals RoHS Compliant|REACH Compliant|CE Certified|CSA File No. 260367 Class 3211 07|UL Listed|UL Recognized|cULus File No. E3190 CCN NLDX, NLDX7|cULus File No. E3190 CCN NLDX2/NLDX8 Recognized|IEC 61810-1|Green Premium|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
 Temperature Rating -40 to 131 deg F
 Terminal Type Octal Pin/Plug-In/Screw Clamp
 Type Type K
