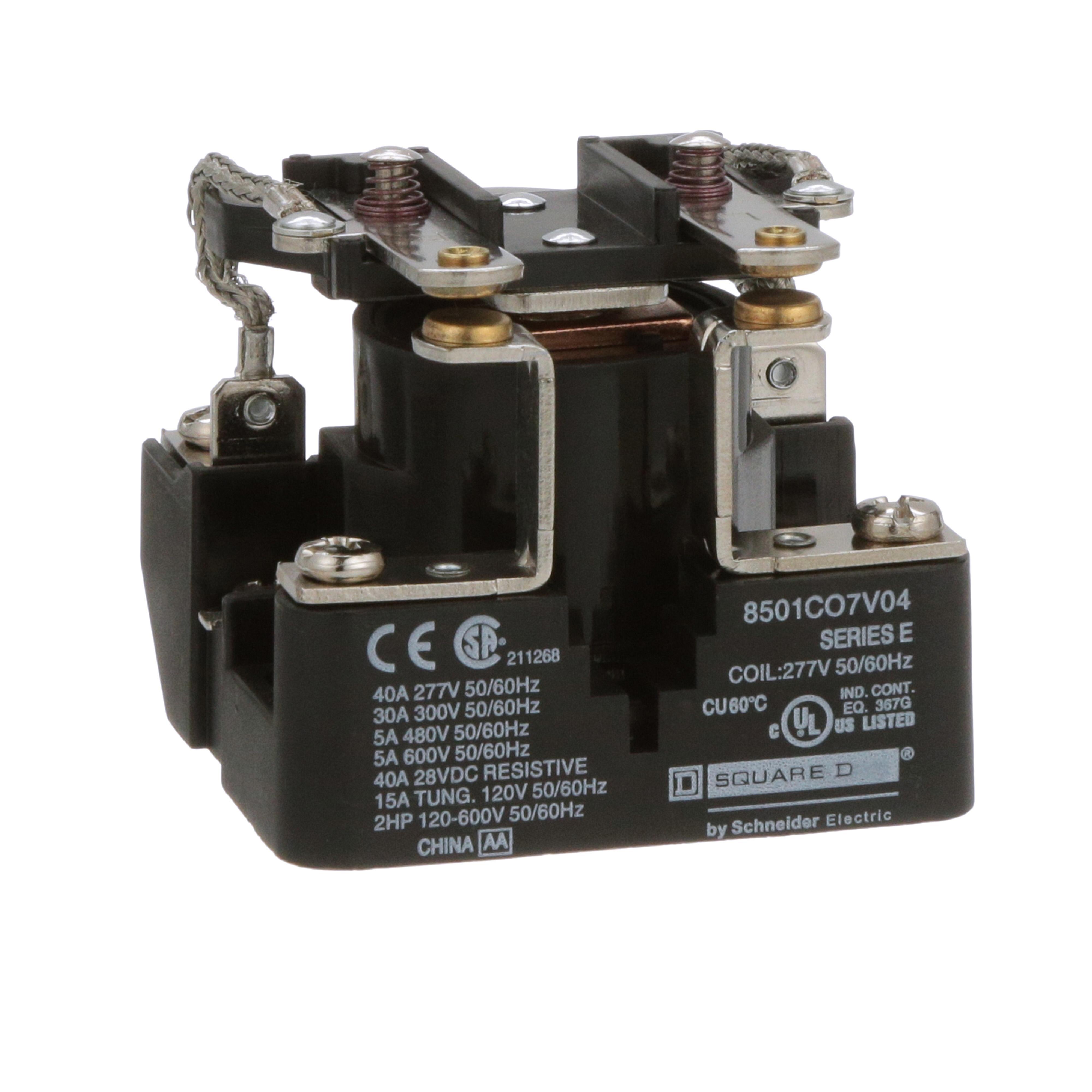

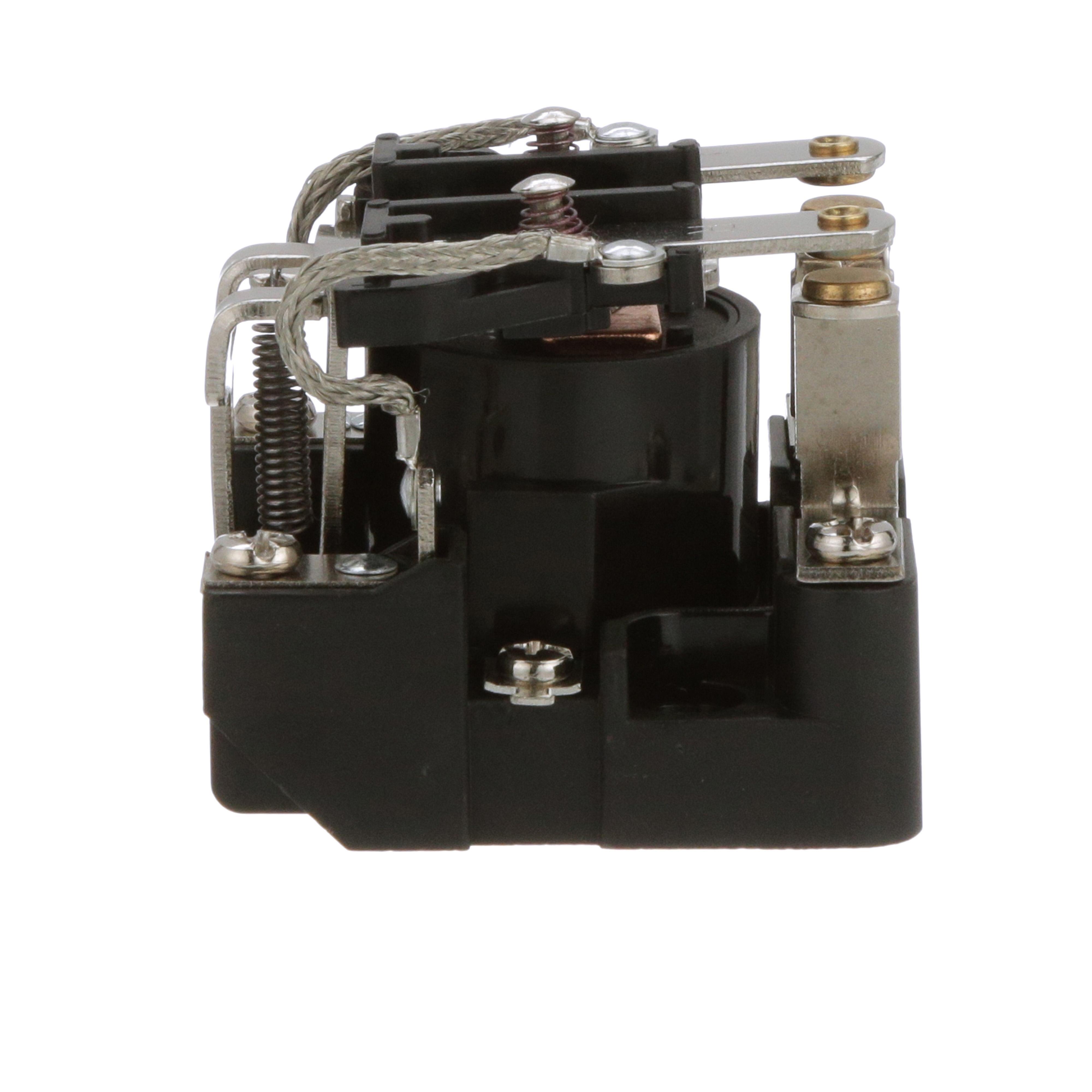

Description: Square D™ Power Relay, Type C 1-Phase Heavy Duty, Series: 8501C, 5 A, 1.5 hp Power, 50/60 Hz Frequency, 277 V AC Coil, 2NO 2 Form A DPST Contact Form, 30 A Contact, 6 Pins, 2 Pole, Panel Mounting, Screw Clamp Terminal, Open Enclosure, -22 to 122 deg F, 2.5 in W x 2.43 in H x 2.25 in D Dimensions

Manufacturer PN: 8501CO7V04

UPC:  78590105958

Kendall Electric Inc PN: 3959426

Invoice Description:

8501CO7V04 SQD RELAY 600VAC 5AMP


SPEC SHEET

▸ See All in Power Relays


How Can We Make This Page Better?

Square D™ 8501CO7V04 Type C 1-Phase Heavy Duty Power Relay, 5 A, 6 Pin, 2NO 2 Form A DPST Contact, 277 V AC V Coil

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a DPST contact configuration with two normally open and no normally closed contact. A variety of coil voltages are available. This relay has a 277 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.
Square D™ Power Relay, Type C 1-Phase Heavy Duty, Series: 8501C, 5 A, 1.5 hp Power, 50/60 Hz Frequency, 277 V AC Coil, 2NO 2 Form A DPST Contact Form, 30 A Contact, 6 Pins, 2 Pole, Panel Mounting, Screw Clamp Terminal, Open Enclosure, -22 to 122 deg F, 2.5 in W x 2.43 in H x 2.25 in D Dimensions

Specifications

 Amperage Rating 5 A
 Application Electric Heaters, Pumps, Conveyors, Material Handling, General Purpose, Controlling Small Single Phase Motors, Other Light Loads Such as Electric Heaters, Pilot Lights or Audible Signals Applications
 Brand Name Square D
 Coil Voltage 277 V AC
 Contact Form 2NO 2 Form A DPST
 Contact Rating 30 A
 Dimensions 2.5 in W x 2.43 in H x 2.25 in D
 Enclosure Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 8501CO7V04
 Mounting Type Panel
 Number of Pins 6
 Number of Poles 2
 PART NUMBER KEYWORDS 8501CO7V04 ; 7999359 ; 785901059585 ; 78590105958 ; 00785901059585 ; 0785901059585
 Power Rating 1.5 hp
 Series 8501C
 Standards/Approvals CCN NLDX/NLDX7|CE Marked|CSA Certified|CSA File No. 218139 Class 321104|ECCN: EAR99|REACH Compliant|RoHS Compliant|UL File No. E78351|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Temperature Rating -22 to 122 deg F
 Terminal Type Screw Clamp
 Type Type C 1-Phase Heavy Duty

Features

▪ Ideally suited for controlling 1-ph motors used in robust conditions
▪ Durable open frame construction
