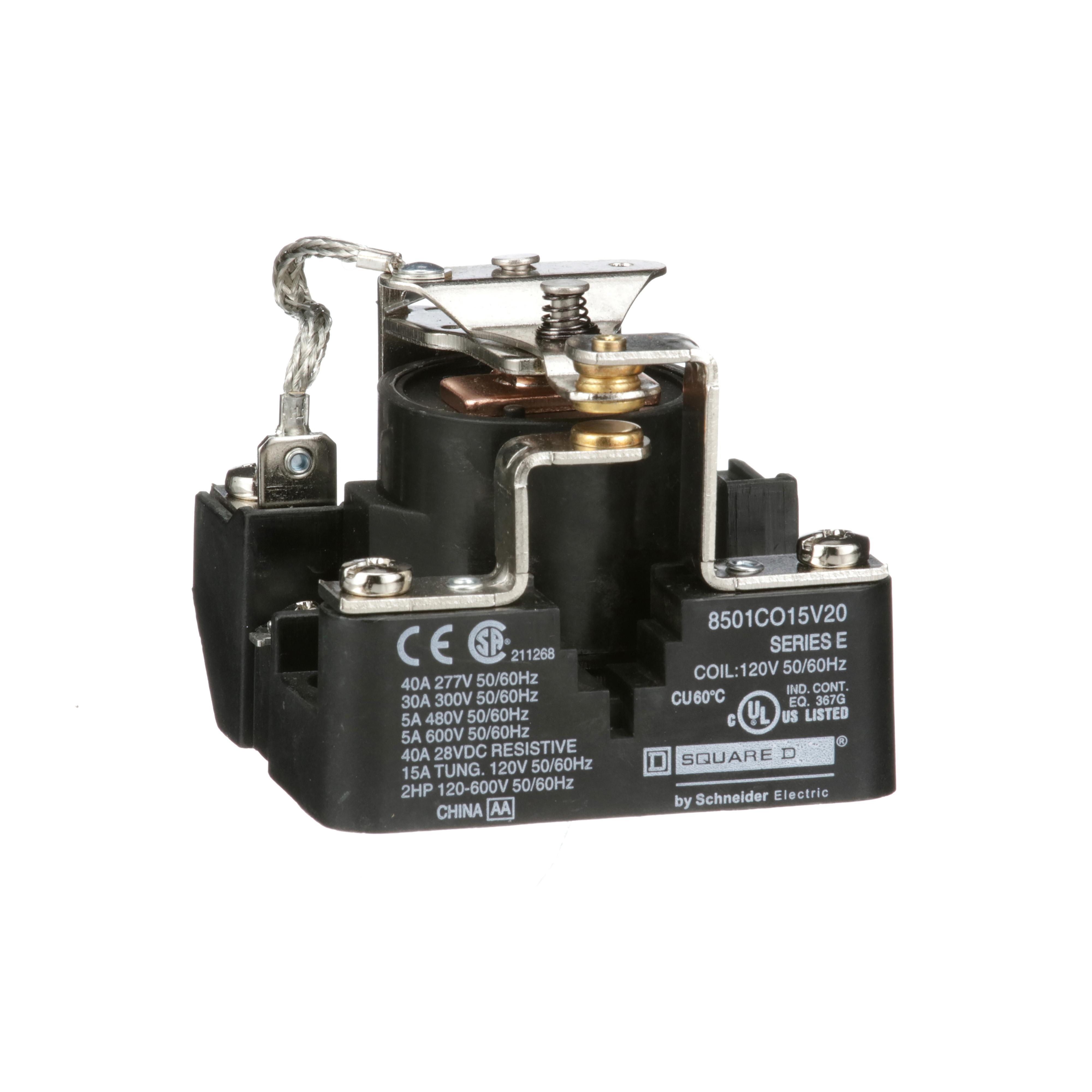

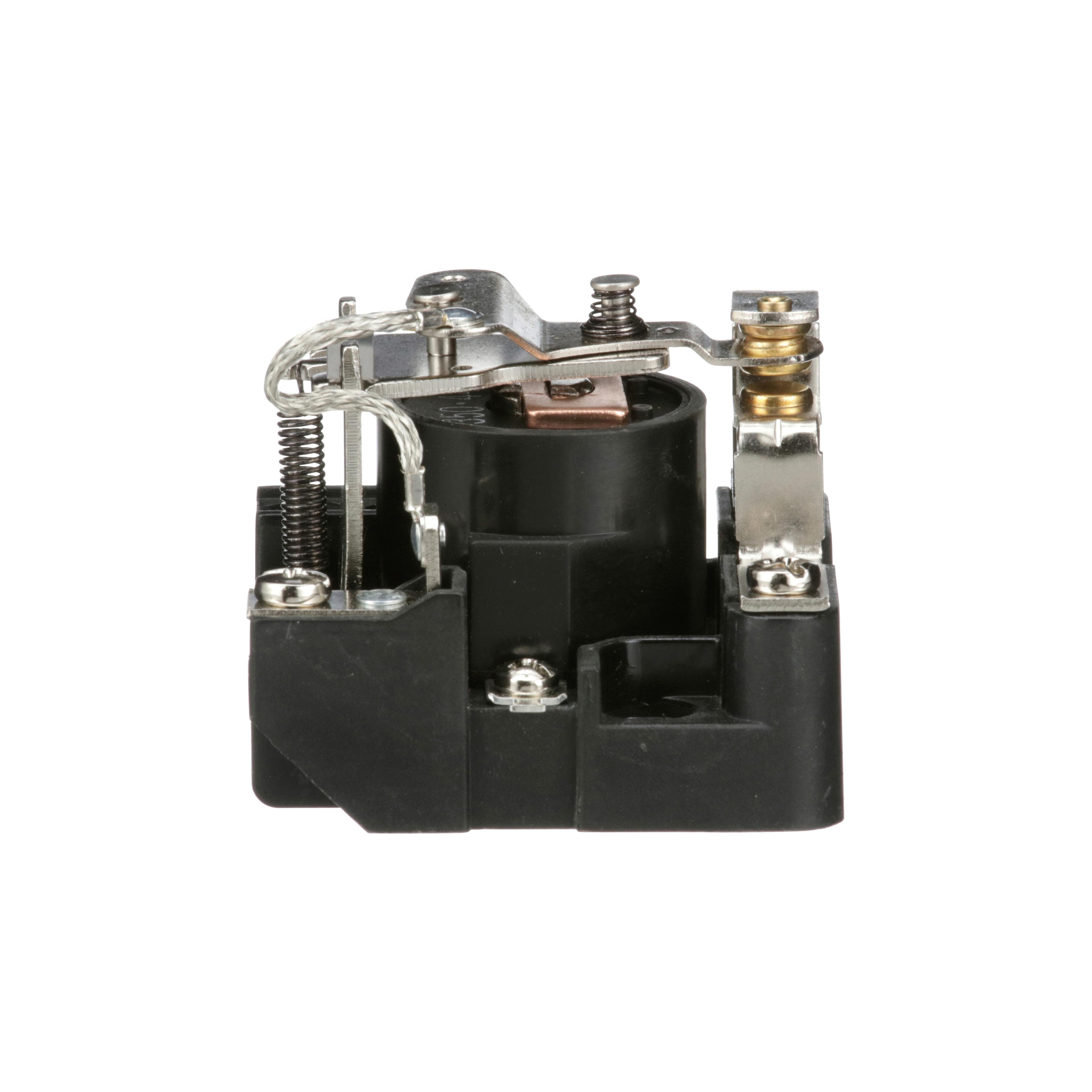

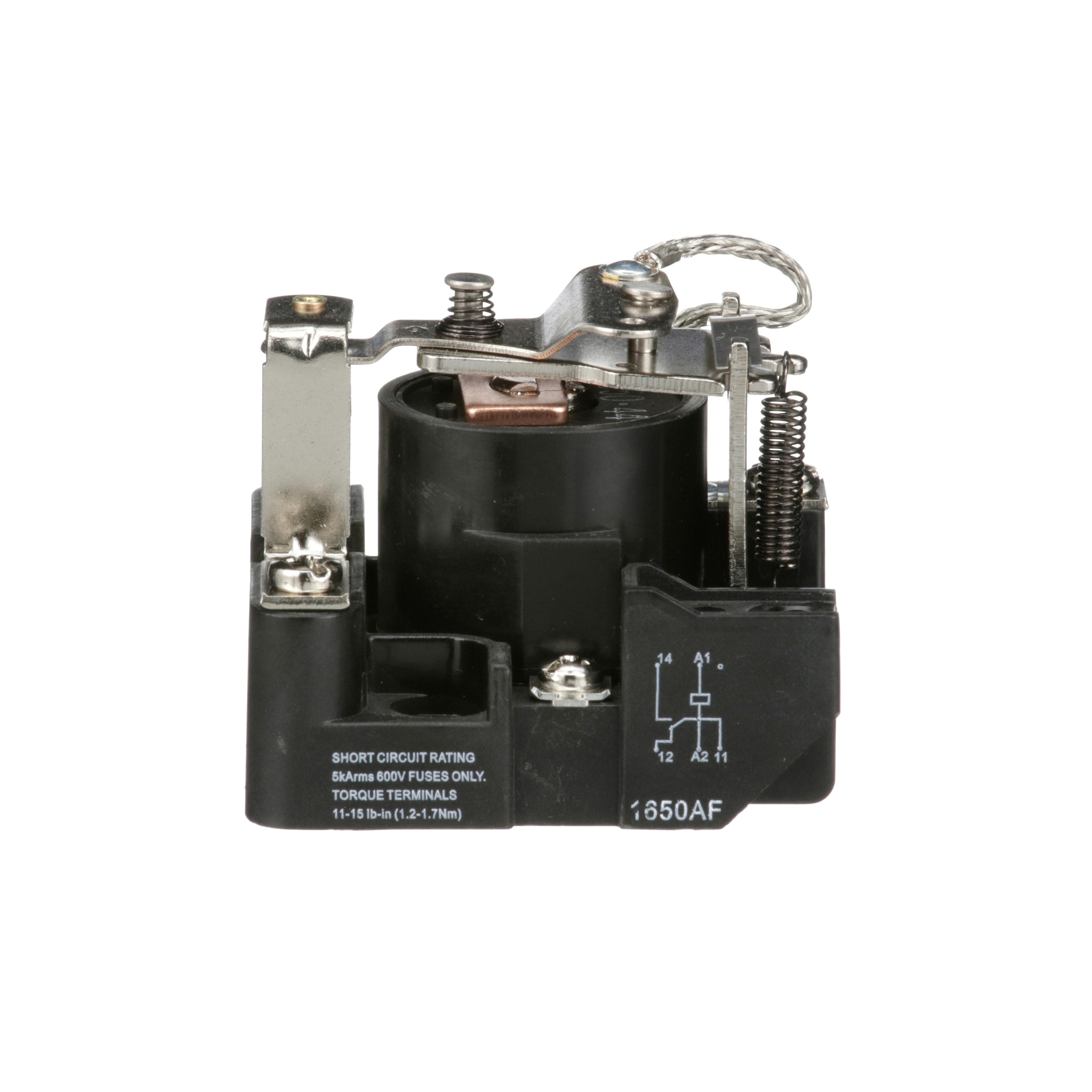

Description: Square D™ Power Relay, General Purpose Type C, Series: 8501C, 30 A, 1.5 hp, 50/60 Hz, 120 V AC Coil, 1CO 1 Form C SPDT, 30 A at 300 VAC, 5 A at 600 VAC Contact, 1 Pole, Panel Mount, Screw Terminal, NEMA 1, -22 to 122 deg F, 2.43 in W x 2.5 in D x 2.18 in H

Manufacturer PN: 8501CO15V20

UPC:  78590105210

Kendall Electric Inc PN: 3958589

Invoice Description:

8501CO15V20 SQD RELAY 600VAC 5AMP


SPEC SHEET

▸ See All in Power Relays


How Can We Make This Page Better?

Square D™ 8501CO15V20 General Purpose Type C Power Relay, 30 A, 1CO 1 Form C SPDT Contact, 120 V AC V Coil

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a SPDT contact configuration with one normally open and one normally closed contact. A variety of coil voltages are available. This relay has a 120 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.
Square D™ Power Relay, General Purpose Type C, Series: 8501C, 30 A, 1.5 hp, 50/60 Hz, 120 V AC Coil, 1CO 1 Form C SPDT, 30 A at 300 VAC, 5 A at 600 VAC Contact, 1 Pole, Panel Mount, Screw Terminal, NEMA 1, -22 to 122 deg F, 2.43 in W x 2.5 in D x 2.18 in H

Specifications

 Amperage Rating 30 A
 Application Suited For Controlling Small Single Phase Motors and Other Light Loads Such As Electric Heaters, Pilot Lights Or Audible Signals Applications
 Brand Name Square D
 Coil Voltage 120 V AC
 Contact Form 1CO 1 Form C SPDT
 Contact Rating 30 A at 300 V AC, 5 A at 600 V AC
 Dimensions 2.43 in W x 2.5 in D x 2.18 in H
 Enclosure NEMA 1
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 8501CO15V20
 Mounting Type Panel
 Number of Poles 1
 PART NUMBER KEYWORDS 8501CO15V20 ; 7994205 ; 785901052104 ; 78590105210 ; 00785901052104 ; 0785901052104
 Power Rating 1.5 hp
 Series 8501C
 Standards/Approvals CE Certified|CSA Certified (File 218139 Class 3211 04)|IEC 60947-4-1|NLDX7 Listed|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|RoHS Compliant|UL File No. E78351 CCN NLDX
 Temperature Rating -22 to 122 deg F
 Terminal Type Screw
 Type General Purpose Type C

Features

▪ Used in robust conditions
▪ Durable, open frame construction
▪ With optional blowout magnet for DC switching
▪ 2HP motor load rating
▪ Wide range of operating temperature from -22 deg F to 122 deg F
