Schneider Electric

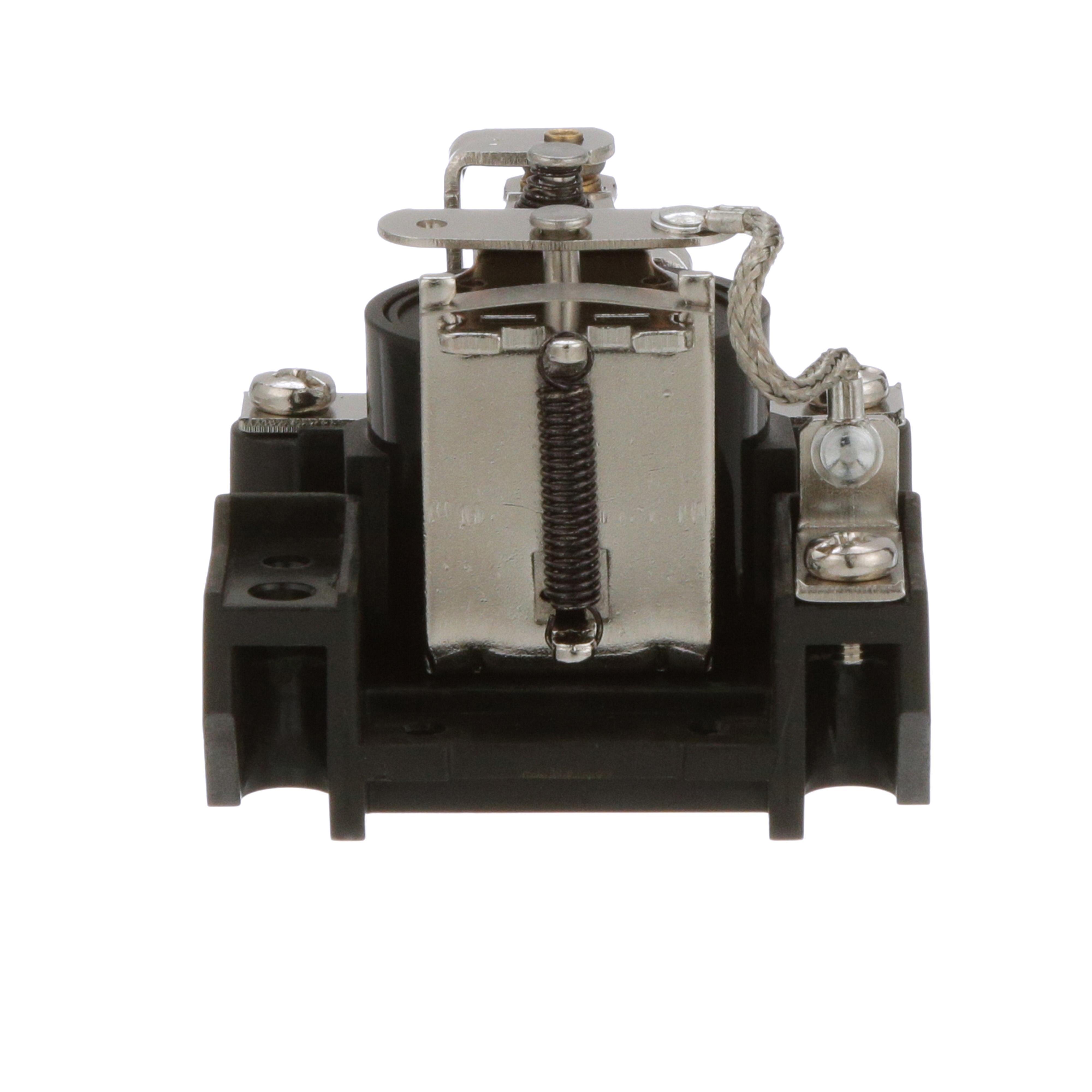

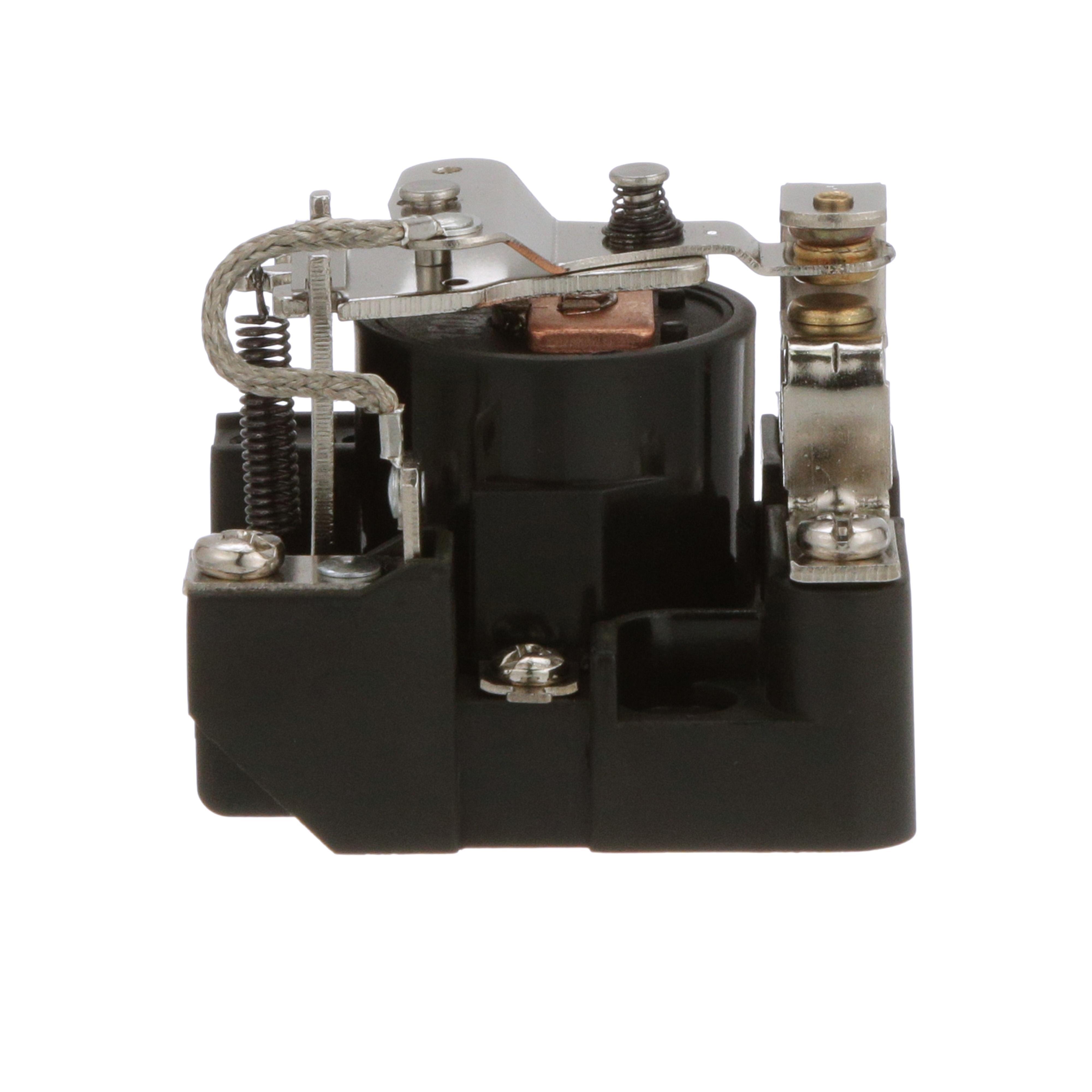

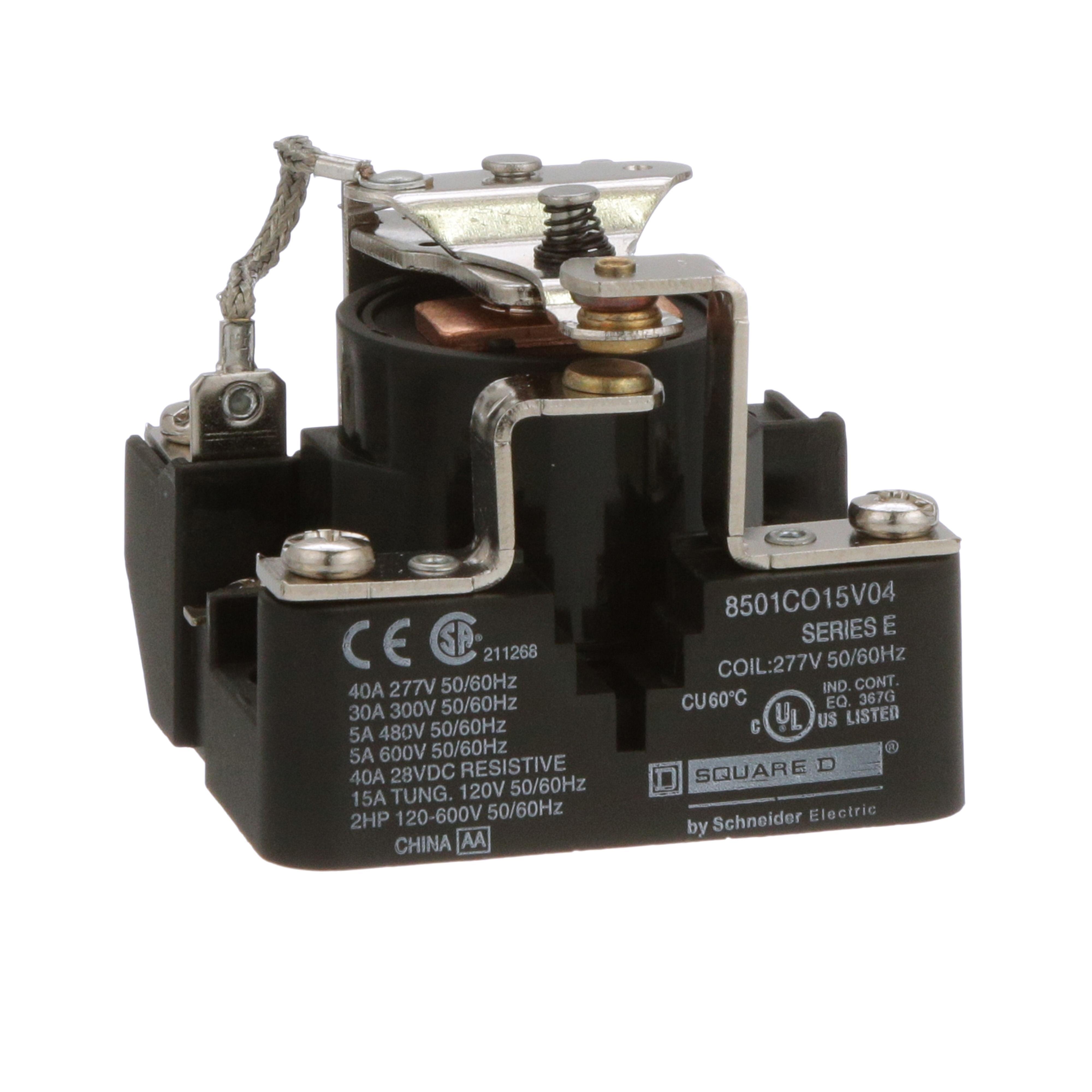

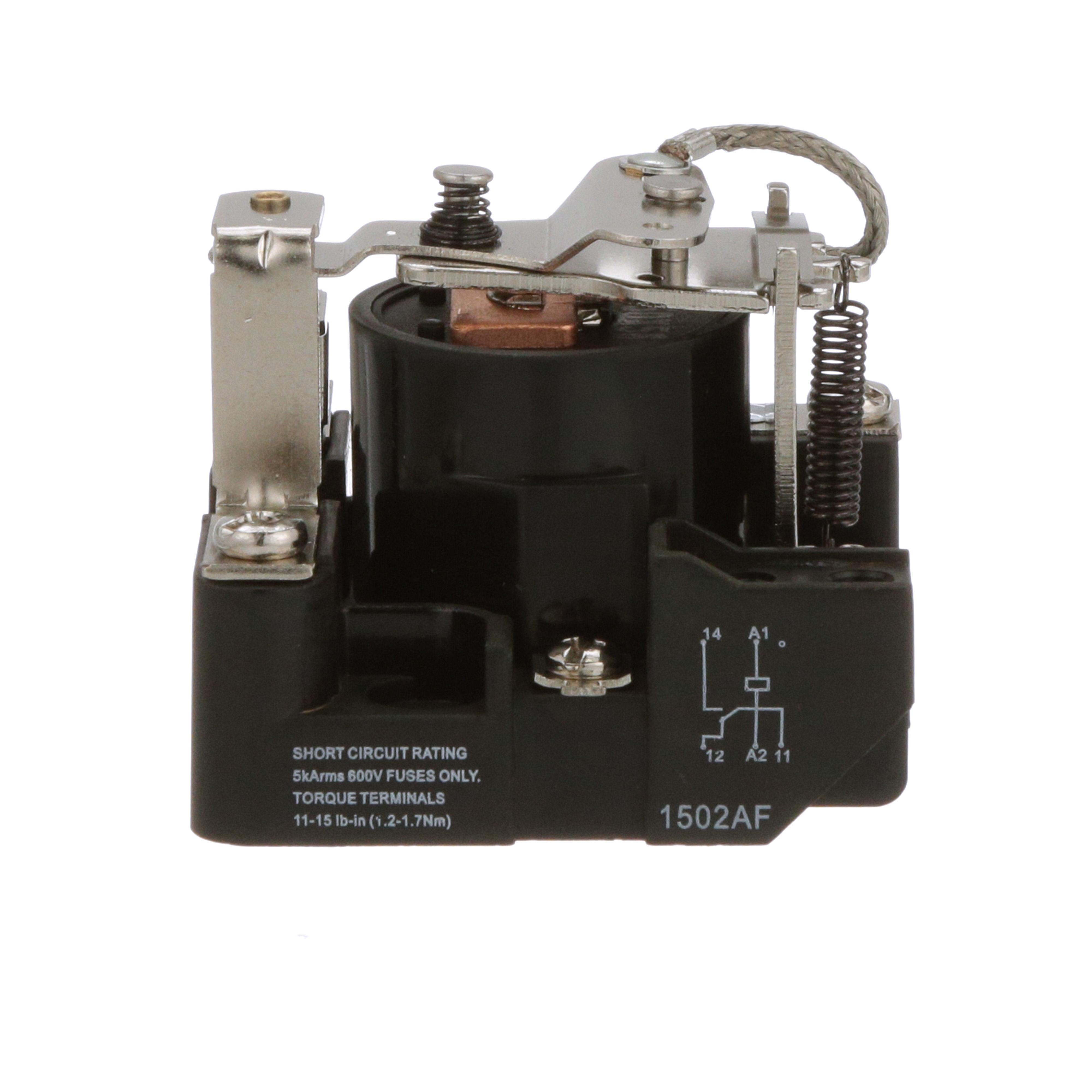

  • 8501CO15V04 SQD RELAY 600VAC 5AMP
  • 8501CO15V04 SQD RELAY 600VAC 5AMP
  • 8501CO15V04 SQD RELAY 600VAC 5AMP
  • 8501CO15V04 SQD RELAY 600VAC 5AMP
  • 8501CO15V04 SQD RELAY 600VAC 5AMP
  • 8501CO15V04 SQD RELAY 600VAC 5AMP

Description: Square D™ Power Relay, Heavy Duty Type C, Series: 8501, 5 A, 1.5 hp Power, 50/60 Hz Frequency, 277 V AC at 60 Hz Coil, 1CO 1 Form C SPDT Contact Form, 30 A Contact, 5 Pins, 1 Pole, Panel Mounting, Screw Clamp Terminal, Open Enclosure, 2.5 in W x 2.18 in D x 2.43 in H

Manufacturer PN: 8501CO15V04

UPC:  78590105226

Kendall Electric Inc PN: 4644806

Invoice Description:

8501CO15V04 SQD RELAY 600VAC 5AMP


SPEC SHEET

▸ See All in Power Relays


How Can We Make This Page Better?

Square D™ 8501CO15V04 Heavy Duty Type C Power Relay, 5 A, 5 Pin, 1CO 1 Form C SPDT Contact, 277 V AC at 60 Hz V Coil

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a SPDT contact configuration with one normally open and one normally closed contact. A variety of coil voltages are available. This relay has a 277 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.

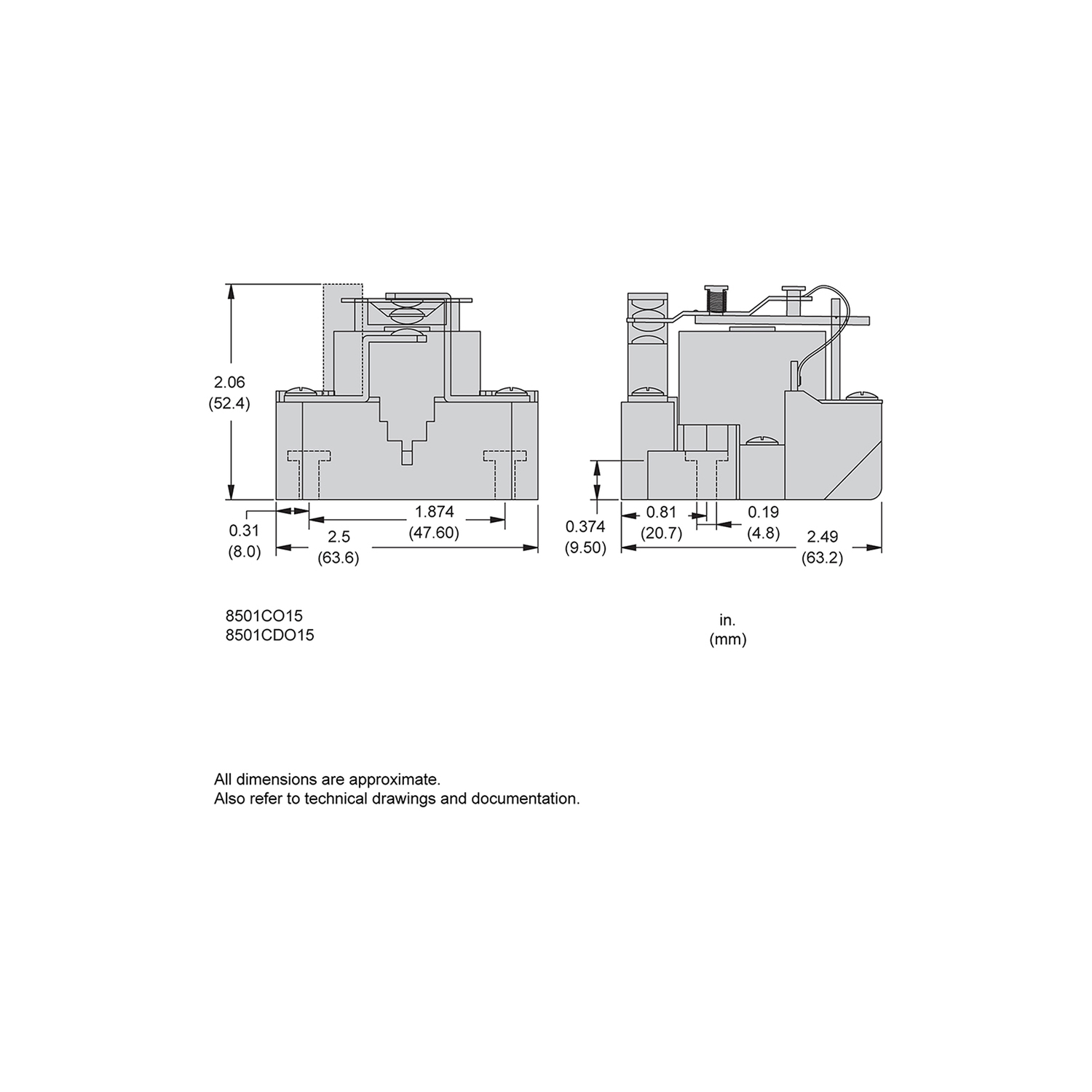

Square D™ Power Relay, Heavy Duty Type C, Series: 8501, 5 A, 1.5 hp Power, 50/60 Hz Frequency, 277 V AC at 60 Hz Coil, 1CO 1 Form C SPDT Contact Form, 30 A Contact, 5 Pins, 1 Pole, Panel Mounting, Screw Clamp Terminal, Open Enclosure, 2.5 in W x 2.18 in D x 2.43 in H

Specifications

 Amperage Rating 5 A
 Application Electric heaters, pumps, conveyors, material handling and general purpose, suited for controlling small single phase motors and other light loads such as electric heaters, pilot lights or audible signals
 Brand Name Square D
 Coil Voltage 277 V AC at 60 Hz
 Contact Form 1CO 1 Form C SPDT
 Contact Rating 30 A
 Enclosure Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 8501CO15V04
 Mounting Type Panel
 Number of Pins 5
 Number of Poles 1
 PART NUMBER KEYWORDS 8501CO15V04 ; 7994342 ; 785901052265 ; 78590105226 ; 00785901052265 ; 0785901052265
 Power Rating 1.5 hp
 Series 8501
 Standards/Approvals ECCN EAR99|CE Certified|CSA File 218139 Class 3211-04|REACH Compliant|RoHS Compliant|UL File E78351 CCN: NLDX/NLDX7|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
 Temperature Rating 2.5 in W x 2.18 in D x 2.43 in H
 Terminal Type Screw Clamp
 Type Heavy Duty Type C

Features

▪ Ideally suited for controlling 1-ph motors used in robust conditions
▪ Durable open-frame construction
