Leviton

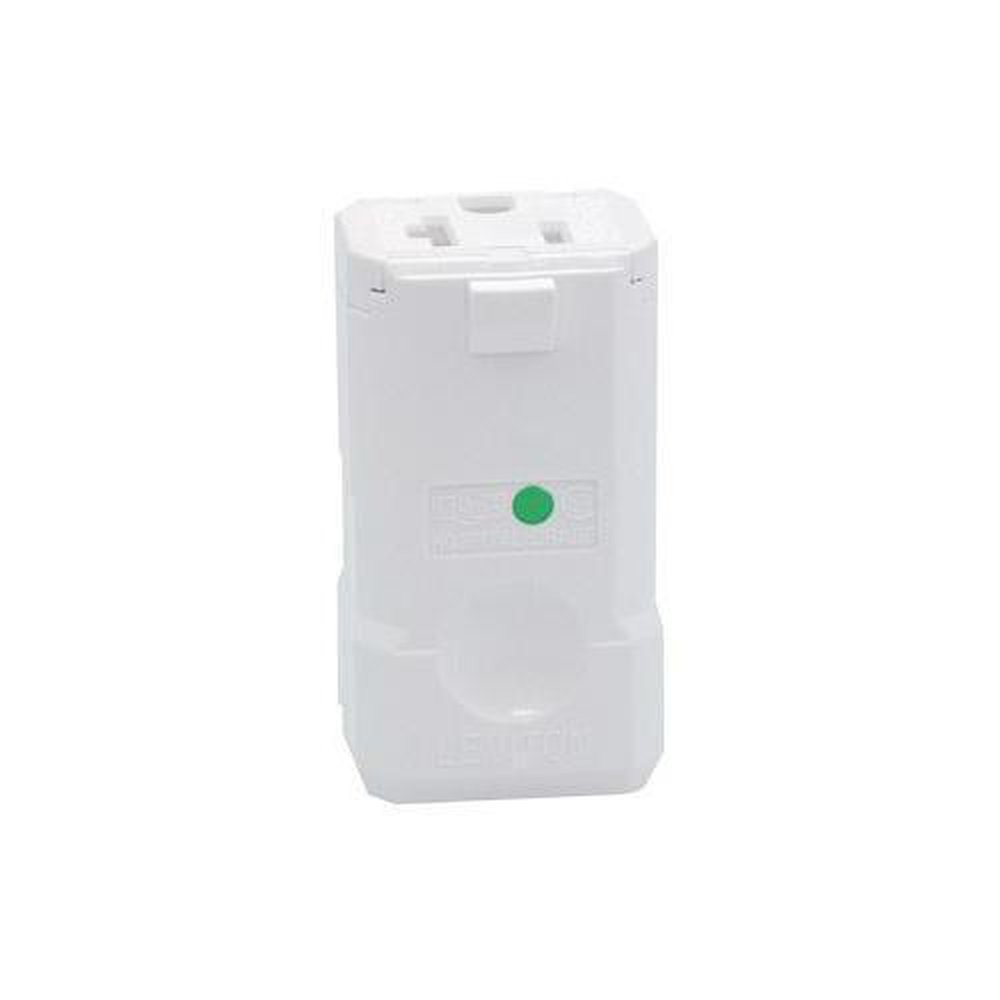

8359-V LEVITON PYTHON CONN C/I 07847705528

Mouse over image to zoom, click to enlarge

Description: Leviton® 8359-V Straight Blade Connector, Grounding Hinged, 125 V AC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, 0.245 to 0.7 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, White, 1.41 in L x 1.23 in W x 2.5 in H Dimensions

Manufacturer PN: 8359-V

UPC:  07847705528

Kendall Electric Inc PN: 2617496

Invoice Description:

8359-V LEVITON PYTHON CONN C/I 07847705528


SPEC SHEET

▸ See All in Straight Blade Connectors


How Can We Make This Page Better?

Leviton® 8359-V Grounding Hinged Straight Blade Connector, 125 V AC, 20 A, 2 Poles, 3 Wires, White

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

When it comes to the demanding nature of todays commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton® Python® straight blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python® exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in todays faced paced world where lost minutes on a job can translate into lost profits.
Leviton® 8359-V Straight Blade Connector, Grounding Hinged, 125 V AC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, 0.245 to 0.7 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, White, 1.41 in L x 1.23 in W x 2.5 in H Dimensions

Specifications

 Amperage Rating 20 A
 Brand Name Leviton®
 Color White
 Cord Diameter 0.245 to 0.7 in
 Dimensions 1.41 in L x 1.23 in W x 2.5 in H
 Grade Hospital
 Manufacturer Part Number 8359-V
 Material Nylon
 NEMA Rating NEMA 5-20R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS 8359-V ; 8359V
 Standards/Approvals ANSI C-73|NOM 057|NEMA WD-1/WD-6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13399|UL94 V-2 Flammability Rating
 Temperature Rating -40 to 60 deg C
 Terminal Type Screw
 Type Grounding Hinged
 Voltage Rating 125 V AC

Features

▪ Hinged design for fast, easy, installation and assembly
▪ Tough high impact body
▪ Triple drive screws for easy wiring standard, Philips® and Robertson
▪ Wide cord clamp range, 18/3 AWG SVT to 10/3 AWG ST (0.245 to 0.7 in)
▪ Clear thermoplastic back cover for easy visual inspection of wiring
▪ 18 to 10 AWG terminal accommodation
▪ Features hinged design for fast, easy, installation and assembly
