Eaton
8300WS CWD 20A HOSP GRD TVSS WHITE 04089368971

Mouse over image to zoom, click to enlarge

  • 8300WS CWD 20A HOSP GRD TVSS WHITE 04089368971
  • 8300WS CWD 20A HOSP GRD TVSS WHITE 04089368971
  • 8300WS CWD 20A HOSP GRD TVSS WHITE 04089368971
  • 8300WS CWD 20A HOSP GRD TVSS WHITE 04089368971

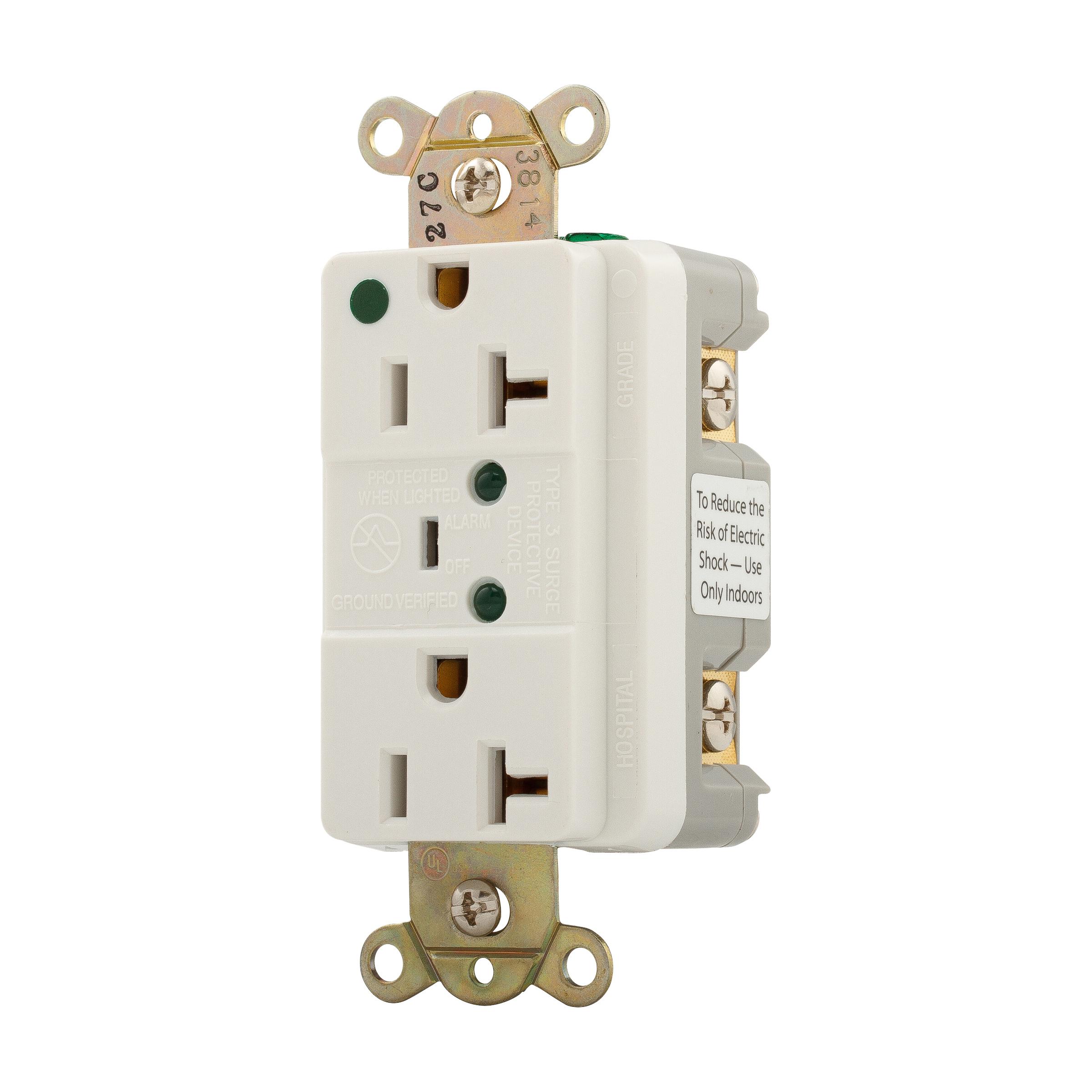

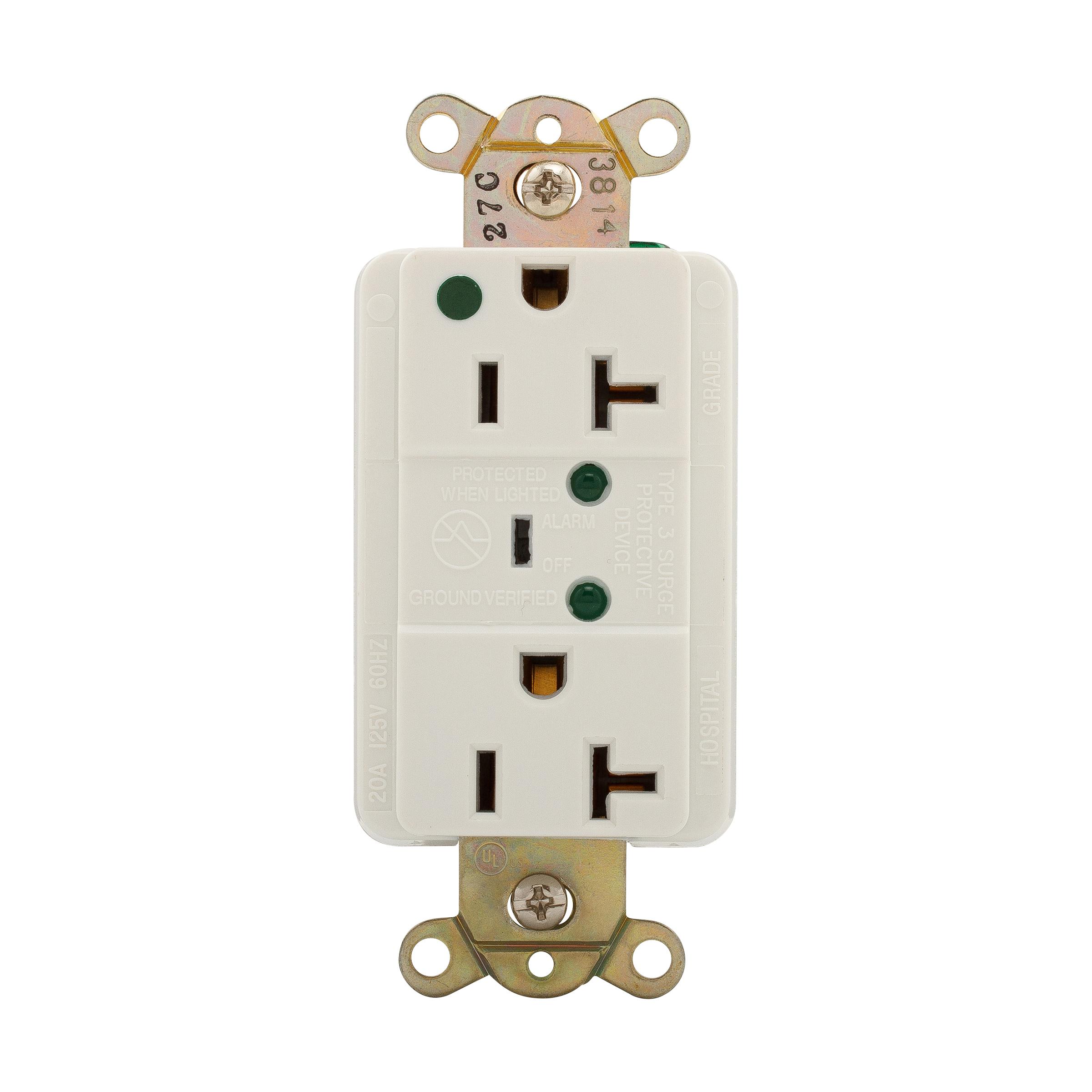

Description: Eaton Wiring Devices Arrow Hart® Surge Suppression Receptacle, 2-Pole 3-Wire Duplex Grounding Straight Blade TVSS, 125 VAC, 20 A, Indicators: Alarm/LED, Back and Side Wired/Screw, 4.19 in H, -20 to 90 deg C Operating, Nylon/Thermoplastic, White

Manufacturer PN: 8300WS

UPC:  04089361927

Kendall Electric Inc PN: 2115388

Invoice Description:

8300WS CWD 20A HOSP GRD TVSS WHITE 04089368971


SPEC SHEET

▸ See All in Straight Blade Surge Suppressions


How Can We Make This Page Better?

Eaton Wiring Devices Arrow Hart® 8300WS 2-Pole 3-Wire Duplex Grounding Straight Blade TVSS Surge Suppression Receptacle With LED Indicator and Audible Alarm, 125 VAC, 20 A

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton Wiring Devices Arrow Hart® Surge Suppression Receptacle, 2-Pole 3-Wire Duplex Grounding Straight Blade TVSS, 125 VAC, 20 A, Indicators: Alarm/LED, Back and Side Wired/Screw, 4.19 in H, -20 to 90 deg C Operating, Nylon/Thermoplastic, White

Specifications

 Amperage Rating 20 A
 Application Hospital Applications
 Brand Name EATON
 Color White
 Insulation Back and Side Wired/Screw
 Manufacturer Part Number 8300WS
 Material Thermoplastic
 Operating Temperature -20 to 90 deg C
 PART NUMBER KEYWORDS 8300WS ; 8207585 ; 040893619279 ; 40893619279 ; 04089361927 ; 00040893619279
 Size 4.19 in H
 Standards/Approvals UL 498 File NO E15058|CSA C22.2 NO 42 File NO 6914|Federal Specification WC-596G|NOM Certified
 Type Duplex
 Type of Indicators Alarm/LED
 Voltage Rating 125 V AC

Features

▪ Thermoplastic/nylon top housing, nylon bottom housing
▪ 14 to 10 AWG wire

Resources

 Catalog Page
 Product Data Sheet
