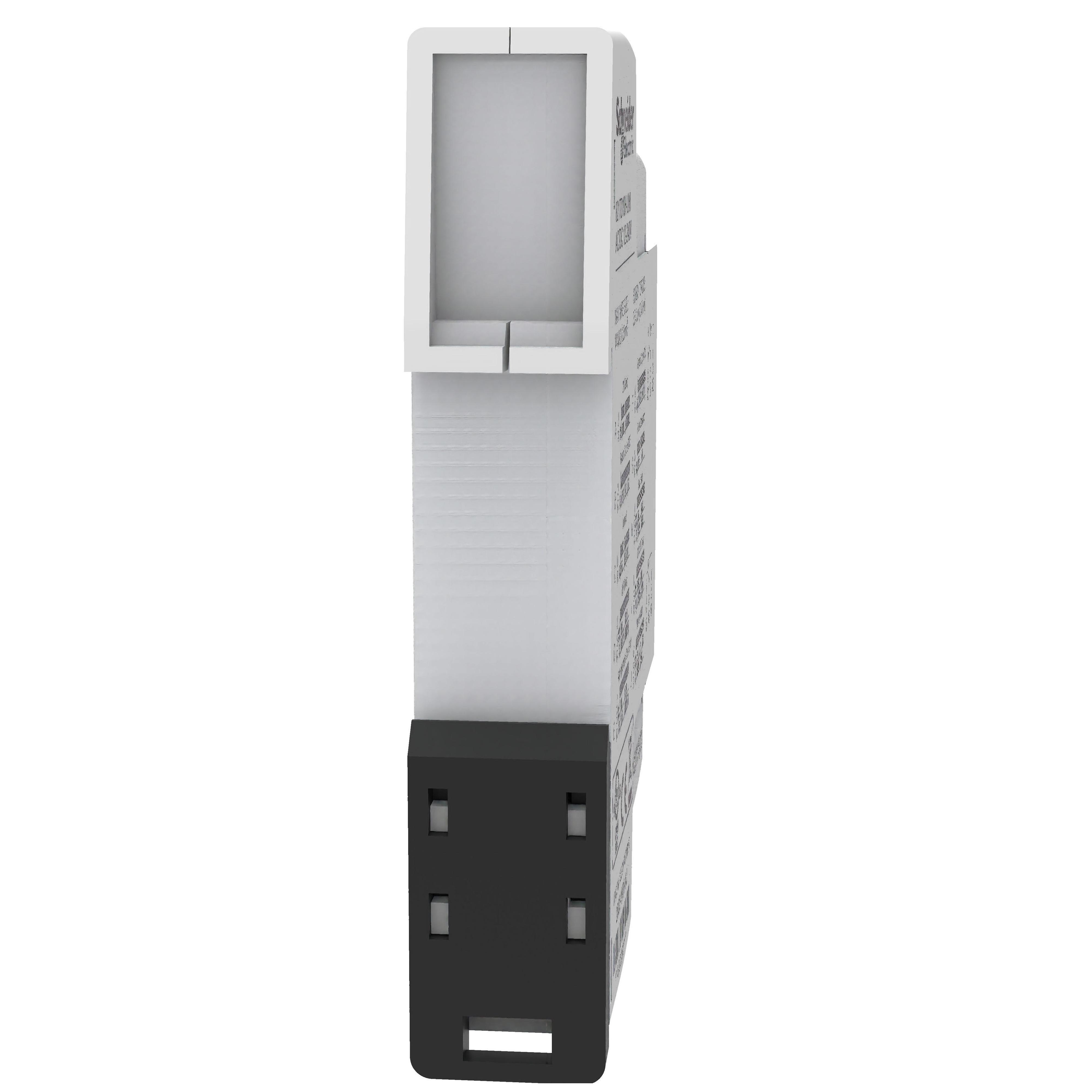

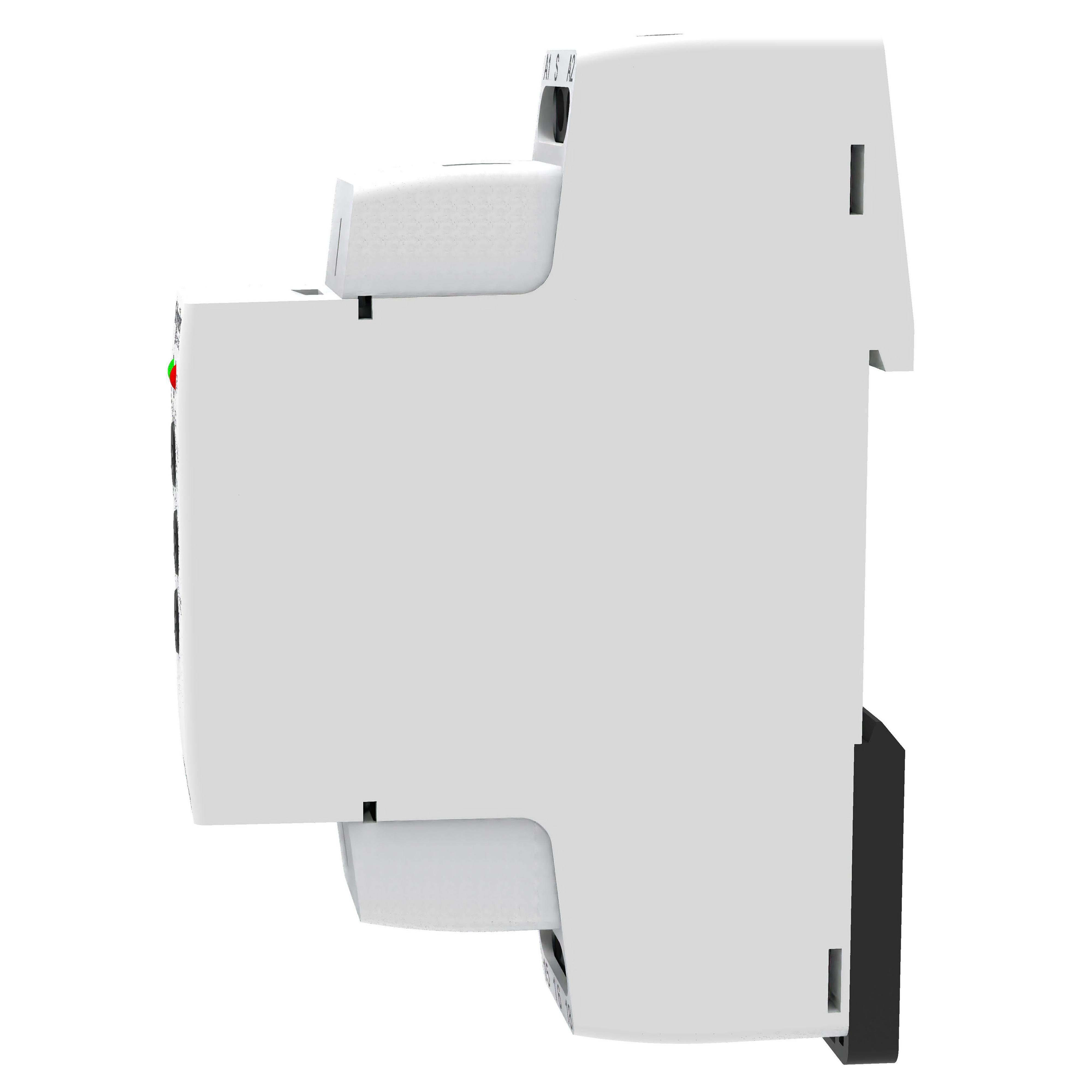

Description: Schneider Electric 821TD10H-UNI, Time Delay, Time Delay Time Delay, Time Delay Time Delay, 821 Series, 12 to 240 V AC/DC, 15 A, SPDT (1 Form C) Contact Form, 0.10 s to 10 hr Time Setting, 50 ms Pulse, IP20 Enclosure, -4 to 131 deg F, 2.57 in H x 0.69 in W x 3.54 in D Dimensions

Manufacturer PN: 821TD10H-UNI

Kendall Electric Inc PN: 2647955

Invoice Description:

821TD10H-UNI MAGNECRAFT RE E-MECH; TIMING; SINGLE SHOT; SPDT; CUR-RTG 15A; CTRL-V 12-240AC/DC; DIN RAIL MNT 850-0333


SPEC SHEET

▸ See All in Electronic Timers


How Can We Make This Page Better?

Schneider Electric 821TD10H-UNI 821 Series Time Delay, 0.10 s to 10 hr setting, 12 to 240 V AC/DC, 1 Form C SPDT contact

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

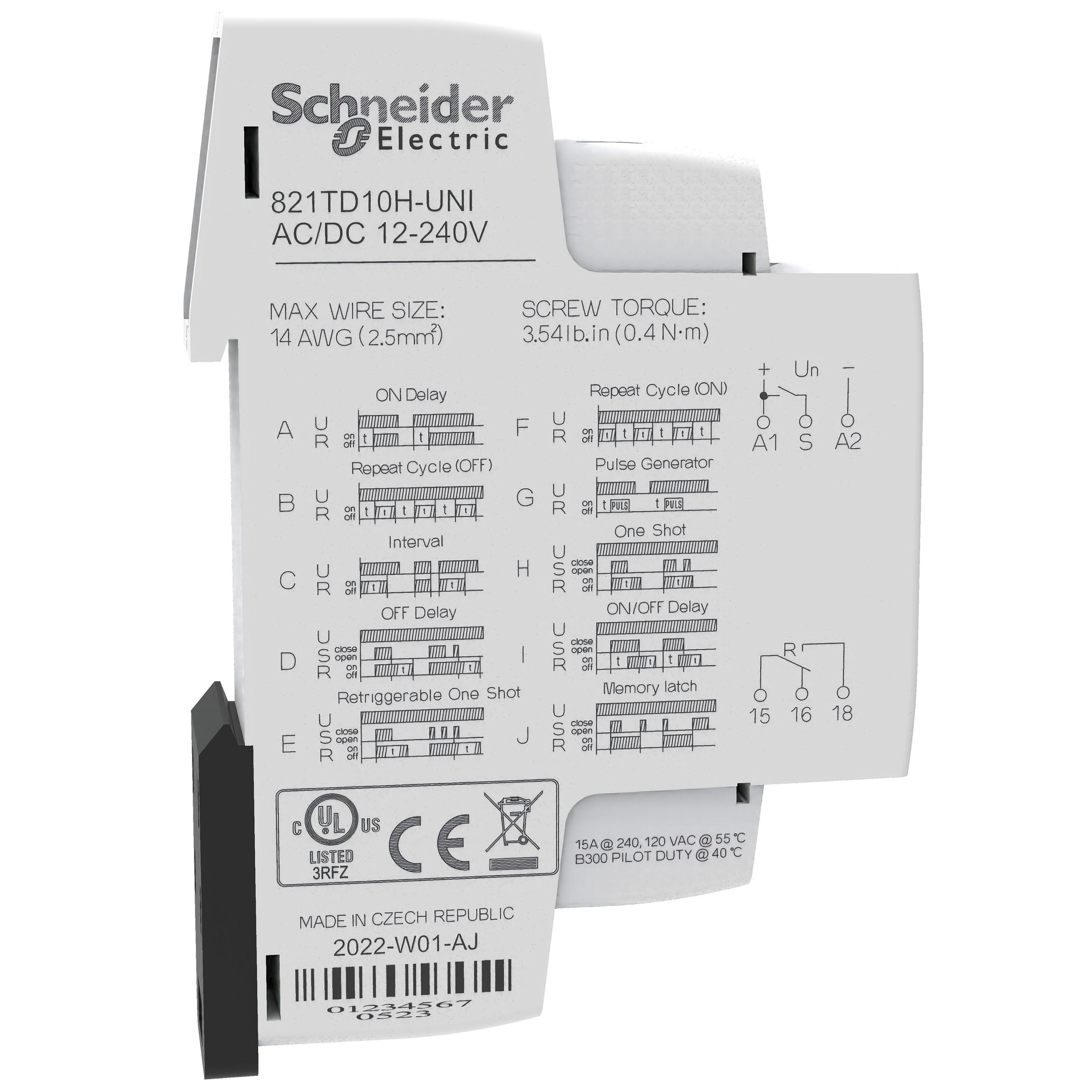

The SE Relays 820 series, time delay relay offers 10 different timing functions with ultra-wide timing range of 100 ms to 10 days and meets most timing requirements. Universal voltage input of 12 to 240 VAC/VDC with contact ratings of 15A, 1/2hp at 120VAC and 1hp at 240 VAC makes it suitable for wide range applications. Contact configaration is performed by silver alloy contacts as SPDT. Slim modular package 17.5mm and 35-mm DIN-rail mounting is ideal for tight spaces and allows easy installation. 2 LED status indicators shows input indication in green LED and output indication in red LED blinking light as timing status relay or red steady on light as energized relay status.
Schneider Electric 821TD10H-UNI, Time Delay, Time Delay Time Delay, Time Delay Time Delay, 821 Series, 12 to 240 V AC/DC, 15 A, SPDT (1 Form C) Contact Form, 0.10 s to 10 hr Time Setting, 50 ms Pulse, IP20 Enclosure, -4 to 131 deg F, 2.57 in H x 0.69 in W x 3.54 in D Dimensions

Specifications

 Amperage Rating 15 A
 Application For tight spaces and allows easy installation, For wide range applications
 Brand Name Square D
 Contact Form 1 Form C SPDT
 Dimensions 2.57 in H x 0.69 in W x 3.54 in D
 Enclosure IP20
 Manufacturer Part Number 821TD10H-UNI
 PART NUMBER KEYWORDS 821TD10H-UNI ; 821TD10HUNI ; 3606480282027
 Pulse Duration 50 ms
 Series 821 Series
 Standards/Approvals Electrostatic discharge 4 kV level 2 conforming to IEC 61000-4-2;electrostatic discharge 8 kV level 2 conforming to IEC 61000-4-2;radiated radio-frequency electromagnetic field immunity test 10 V/m level 3 conforming to IEC 61000-4-3;surge immunity test 2 kV level 3 conforming to IEC 61000-4-5;surge immunity test 1 kV level 3 conforming to IEC 61000-4-5;fast transient bursts 2 kV level 3 conforming to IEC 61000-4-4;conducted RF disturbances 10 V, 0.15...80 MHz level 3 conforming to IEC 61000-4-6;immunity to microbreaks and voltage drops 30 %, 500 ms conforming to IEC 61000-4-11;immunity to microbreaks and voltage drops 100 %, 20 ms conforming to IEC 61000-4-11
 Temperature Rating -4 to 131 deg F
 Time Setting 0.10 s to 10 hr
 Type Time Delay
 Voltage Rating 12 to 240 V AC/DC

Features

▪ 30000000 cycles mechanical durability
▪ 2.40 oz (68 g) product weight
▪ 2500 V between input and output1000 V between open contacts dielectric strength
▪ With toxic heavy metal free
▪ Multifunction
▪ Wide voltage range from 12 to 240 V
▪ Single timing range or multi-range from 100 ms to 10 days
▪ Conforms to international standards including UL, CSA, RoHS and CE
▪ AgNi contacts material
▪ Multifunction time delay type
▪ 100 ms to 1 s1 to 10 s0.1 to 1 min1 to 10 min0.1 to 1 h1 to 10 h72 min to 12 h1 to 10 d time delay range
▪ 50 ms minimum pulse duration
▪ 150 ms maximum reset time
