Eaton
  • 80NHG00B-690 BUS NH FUSE 80AMP 690V gG SIZE 00 DUAL IND
  • 80NHG00B-690 BUS NH FUSE 80AMP 690V gG SIZE 00 DUAL IND
  • 80NHG00B-690 BUS NH FUSE 80AMP 690V gG SIZE 00 DUAL IND
  • 80NHG00B-690 BUS NH FUSE 80AMP 690V gG SIZE 00 DUAL IND
  • 80NHG00B-690 BUS NH FUSE 80AMP 690V gG SIZE 00 DUAL IND
  • 80NHG00B-690 BUS NH FUSE 80AMP 690V gG SIZE 00 DUAL IND

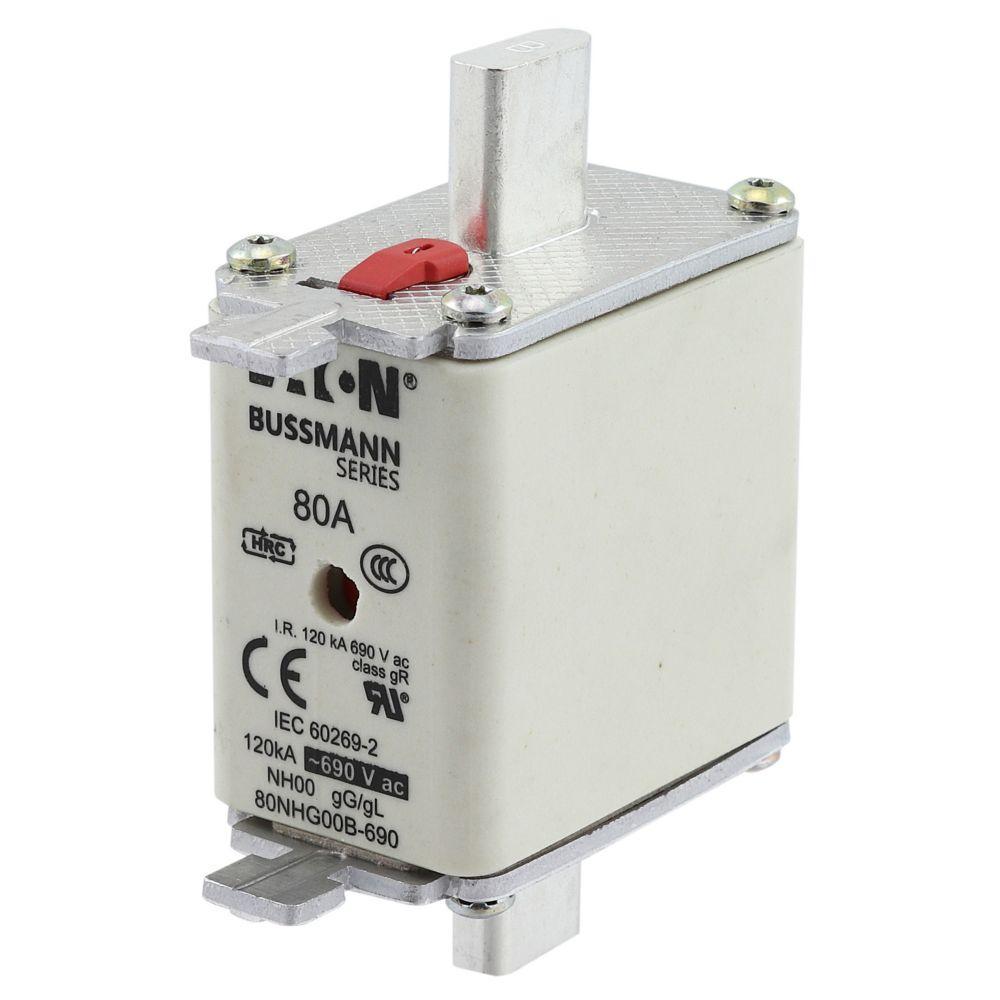

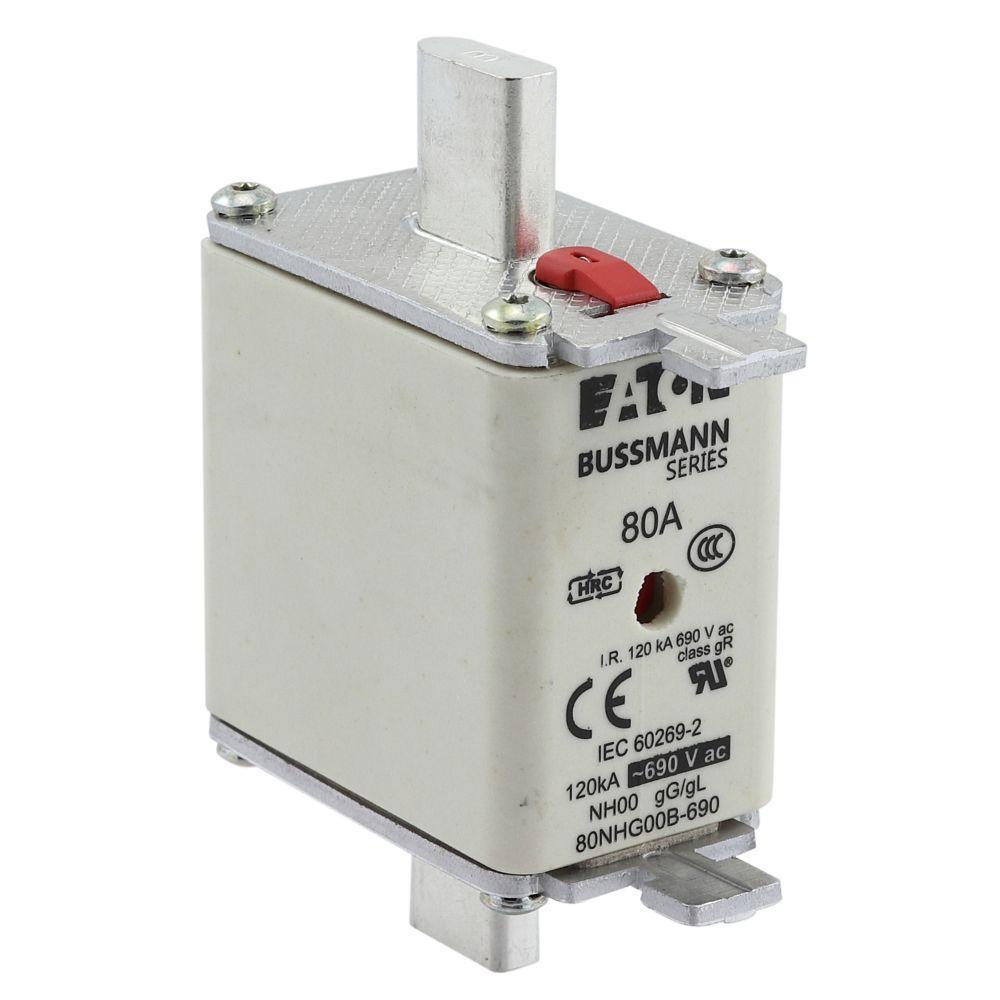

Description: EATON, 80NHG00B-690, Low Voltage, Series: 80NHG00B, 690 V, 80 A, Rated Breaking Capacity: 120 kA, For Use With: SD00-D Single Pole NH Fuse Base/Microswitch 170H0236/EBH Size 00 to 4 Horizontal Fuse Switch-Disconnectors/TD00-D Triple Pole NH Fuse Base, Ceramic Body, 58 mm H x 30 mm W x 79 mm L Dimensions

Manufacturer PN: 80NHG00B-690

UPC:  05171219324

Kendall Electric Inc PN: 2777567

Invoice Description:

80NHG00B-690 BUS NH FUSE 80AMP 690V gG SIZE 00 DUAL IND


SPEC SHEET

How Can We Make This Page Better?

EATON 80NHG00B-690 80NHG00B Low Voltage, 690 V, 80 A, For Use With SD00-D Single Pole NH Fuse Base/Microswitch 170H0236/EBH Size 00 to 4 Horizontal Fuse Switch-Disconnectors/TD00-D Triple Pole NH Fuse Base, Ceramic Body

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.
EATON, 80NHG00B-690, Low Voltage, Series: 80NHG00B, 690 V, 80 A, Rated Breaking Capacity: 120 kA, For Use With: SD00-D Single Pole NH Fuse Base/Microswitch 170H0236/EBH Size 00 to 4 Horizontal Fuse Switch-Disconnectors/TD00-D Triple Pole NH Fuse Base, Ceramic Body, 58 mm H x 30 mm W x 79 mm L Dimensions

Specifications

 Amperage Rating 80 A
 Application For Industrial Facilities & Factories - Facility: Safety and Security Systems, Electrical Assemblies, Electrical Assemblies, Panels & EOEM Applications, Industrial Facilities & Factories - Facility: Power Distribution and Control, Electrical Assemblies, Panels & EOEM - Panel Builders, Electrical Assemblies, Panels & EOEM - Control Panels for Machines, Electrical Assemblies, Panels & EOEM Applications, Electrical Assemblies, Panels and EOEMs Applications, Panels and EOEMs
 Brand Name EATON
 Dimensions 58 mm H x 30 mm W x 79 mm L
 Frequency Rating 45 to 62 Hz
 Manufacturer Part Number 80NHG00B-690
 Material Ceramic Body
 Mounting Type Holder
 PART NUMBER KEYWORDS 80NHG00B-690 ; 80NHG00B690 ; 10771318 ; 051712193245 ; 51712193245 ; 05171219324 ; 5027590490795
 Rated Breaking Capacity 120 kA
 Series 80NHG00B
 Standards/Approvals IEC 60269-2 ,IEC 60269-1 ,DIN 43620 ,IEC 60269-1 ,IEC 60269-2 ,DIN 43620 ,IEC 60269-2 ,IEC 60269-1 ,DIN 43620 ,IEC 60269-1 ,DIN 43620 ,IEC 60269-2 ,IEC 60269-2 ,DIN 43620 ,IEC 60269-1 ,DIN 43620 ,IEC 60269-1 ,IEC 60269-2,CE Marked,RoHS Compliant,Conformité RoHS,Marquage CE,RoHS-konform,CE-Kennzeichnung,CE-markering,RoHS-compliant,Conforme a RoHS,Con marchio CE,CE-merket,RoHS-kompatibel
 Suitable For Use With SD00-D Single Pole NH Fuse Base/Microswitch 170H0236/EBH Size 00 to 4 Horizontal Fuse Switch-Disconnectors/TD00-D Triple Pole NH Fuse Base
 Type Low Voltage
 Video Links
 Voltage Rating 690 V

Features

▪ Square body with knife blade contact
▪ Live gripping lugs
