Eaton

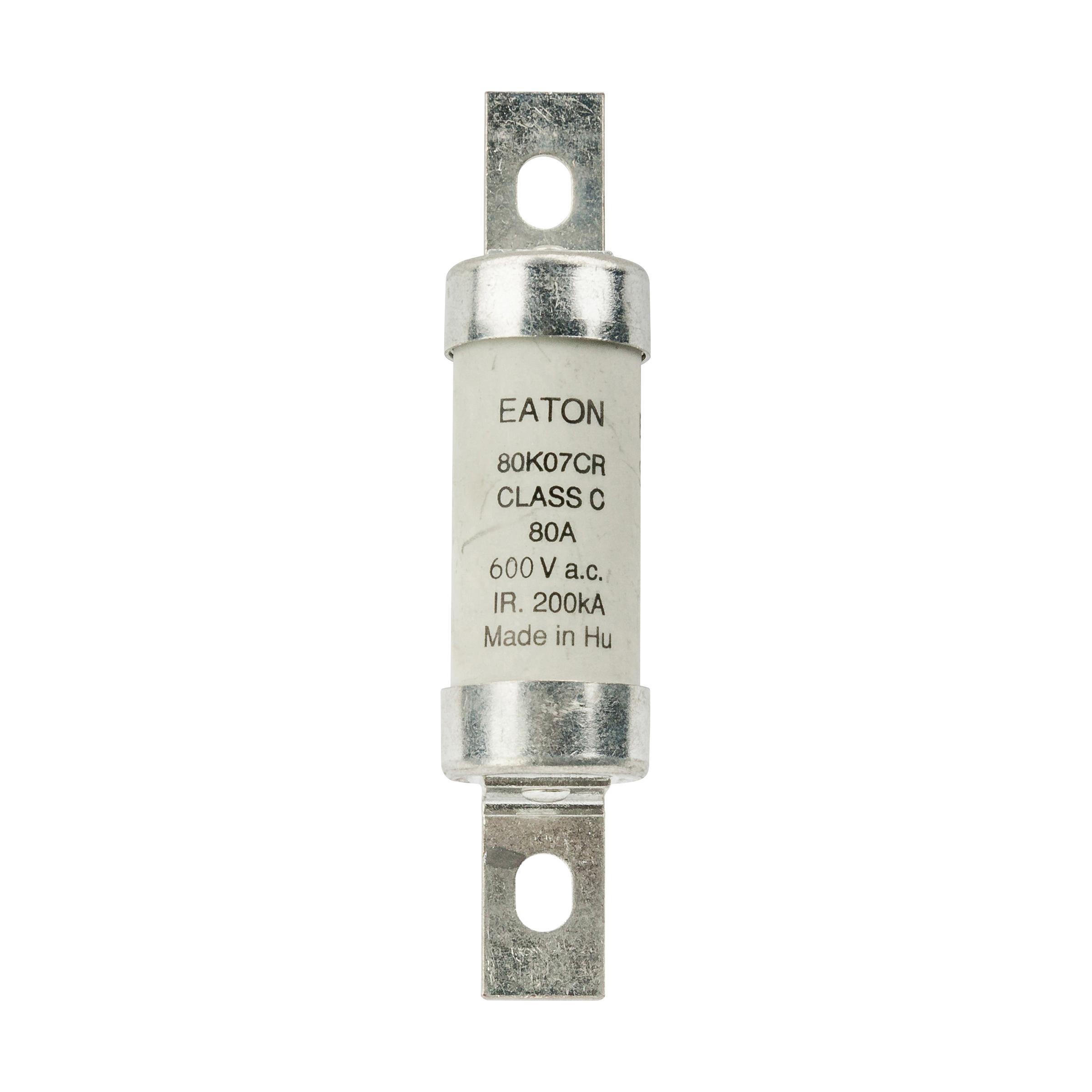

80K07CR BUS SPECIALITY FUSE (1)

Mouse over image to zoom, click to enlarge

  • 80K07CR BUS SPECIALITY FUSE (1)
  • 80K07CR BUS SPECIALITY FUSE (1)

Description: Bussmann Cable Limiter Fuse, Canadian Non-Indicating, 80 A, 600 V AC, 200 kA Interrupt, Class: gG/gL, Bolted-Down Terminal, Stud Mounting, Cartridge Blade Body, Ceramic, 0.88 in Dia x 30.75 in L Body

Manufacturer PN: 80K07CR

UPC:  05171255081

Kendall Electric Inc PN: 2048193

Invoice Description:

80K07CR BUS SPECIALITY FUSE (1)


SPEC SHEET

▸ See All in Cable Limiter Fuses


How Can We Make This Page Better?

Bussmann 80K07CR Canadian Non-Indicating Cable Limiter Fuse, 80 A, 600 V AC, 200 kA Interrupt, Class: gG/gL, Cartridge Blade Body

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.
Bussmann Cable Limiter Fuse, Canadian Non-Indicating, 80 A, 600 V AC, 200 kA Interrupt, Class: gG/gL, Bolted-Down Terminal, Stud Mounting, Cartridge Blade Body, Ceramic, 0.88 in Dia x 30.75 in L Body

Specifications

 Amperage Rating 80 A
 Application Used to protect motor control circuits together with contactors and overload protection relays
 Body Size 0.88 in Dia x 30.75 in L
 Body Type Cartridge Blade
 Brand Name Bussmann
 Class gG/gL
 Manufacturer Part Number 80K07CR
 Material Ceramic
 Mounting Type Stud
 Standards/Approvals CSA C22.2|CE Certified|IEC 60269
 Terminal Type Bolted-Down
 Type Canadian Non-Indicating
 Video Links
 Voltage Rating 600 V AC

Features

▪ Package Type: Standard
▪ Connection Type: Offset Blade Connection
▪ Contact Material: British Style, Current-Limiting, HRC Form II
▪ Width: 0.625 in
▪ Dimensions: 0.88 in Dia x 3.75 in L
▪ Weight: 0.117 lbs
▪ Length: 0.625 in
▪ Height: 3.625 in
▪ Indicator: Non-Indicating
