ABB

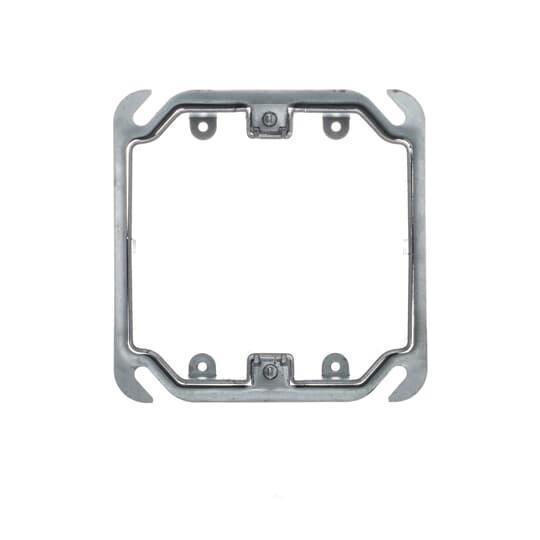

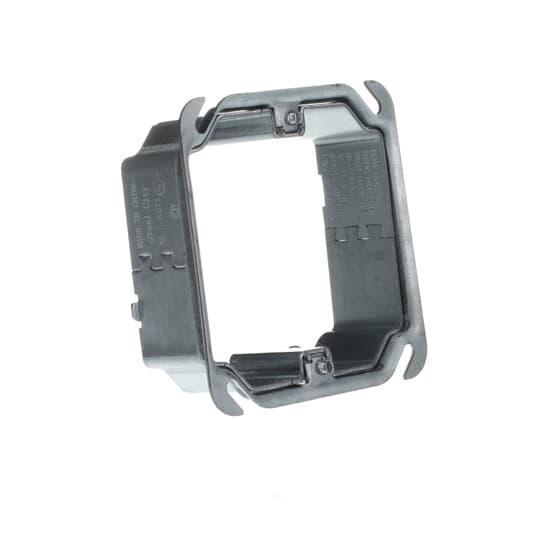

52CADJ2 STEEL CITY 2 GANG AJUSTABLE MUD RING..

Mouse over image to zoom, click to enlarge

  • 52CADJ2 STEEL CITY 2 GANG AJUSTABLE MUD RING..
  • 52CADJ2 STEEL CITY 2 GANG AJUSTABLE MUD RING..
  • 52CADJ2 STEEL CITY 2 GANG AJUSTABLE MUD RING..

Description: Steel City® Mud Ring, Adjustable, 4 in Length, 4 in W, 2-1/8 in D, 1/2 to 1-1/2 in Raised, Surface Mount, 3 to 11 cu-in, Steel, Pre-Galvanized, Silver

Manufacturer PN: 52CADJ2

UPC:  78599104860

Kendall Electric Inc PN: 4367036

Invoice Description:

52CADJ2 STEEL CITY 2 GANG AJUSTABLE MUD RING..


SPEC SHEET

▸ See All in Square Box Plaster/Mud Rings


How Can We Make This Page Better?

Steel City® 52CADJ2 Adjustable Mud Ring, 4 in L x 4 in W x 2-1/8 in D, Steel, 1/2 to 1-1/2 in Raised

Log In for Pricing and Availability




Description

Steel City® Mud Ring, Adjustable, 4 in Length, 4 in W, 2-1/8 in D, 1/2 to 1-1/2 in Raised, Surface Mount, 3 to 11 cu-in, Steel, Pre-Galvanized, Silver

Specifications

 Application For 4 in square boxes and hospital construction where drywall depth often varies
 Brand Name Steel City
 Color Silver
 Depth 2-1/8 in
 Finish Pre-Galvanized
 Length 4 in
 Manufacturer Part Number 52CADJ2
 Material Steel
 Mounting Type Surface
 PART NUMBER KEYWORDS 52CADJ2 ; 7TAA001150R0003 ; 10721784 ; 785991048605 ; 78599104860 ; 00785991048605
 Raised 1/2 to 1-1/2 in
 Standards/Approvals UL E2969
 Type Adjustable
 Width 4 in

Features

▪ Double gang
▪ Patent-pending design, rugged steel construction similar to standard mud ring but with greater flexibility
▪ Quick release locking mechanism enables fast and easy adjustment of inner ring
▪ Locking mechanism located behind outer ring remains safe from router damage or excess mudding
▪ Adjustment screws located outside inner ring leaving maximum capacity for devices, won't take up crucial box area
▪ Measured rule on inner ring for simple pre-fab setting in pre-drywall installations
▪ Mounts to any standard 4 in square 2-1/8 in deep outlet box and accepts industry standard devices, including GFCIs
▪ For hospital construction where drywall depth often varies, ceramic tile walls
▪ For any other application in which a stud-mounted box and mud ring may require depth adjustment prior to final trim work
▪ Mud Rings feature an inner ring that adjusts from 1/2 in to 1-1/2 in in depth to accommodate various drywall thicknesses

Resources

 Catalog Page
 Product Data Sheet
