Description: B-Line Horizontal Bend, 18 in Tray Width, 90 deg Angle, 24 in Bend Radius, 36 in Length, 7 in Height, 9 in Rung Spacing, Aluminum

Manufacturer PN: 7A-18-90HB24

Kendall Electric Inc PN: 2793833

Invoice Description:

7A-18-90HB24 B-LINE

How Can We Make This Page Better?

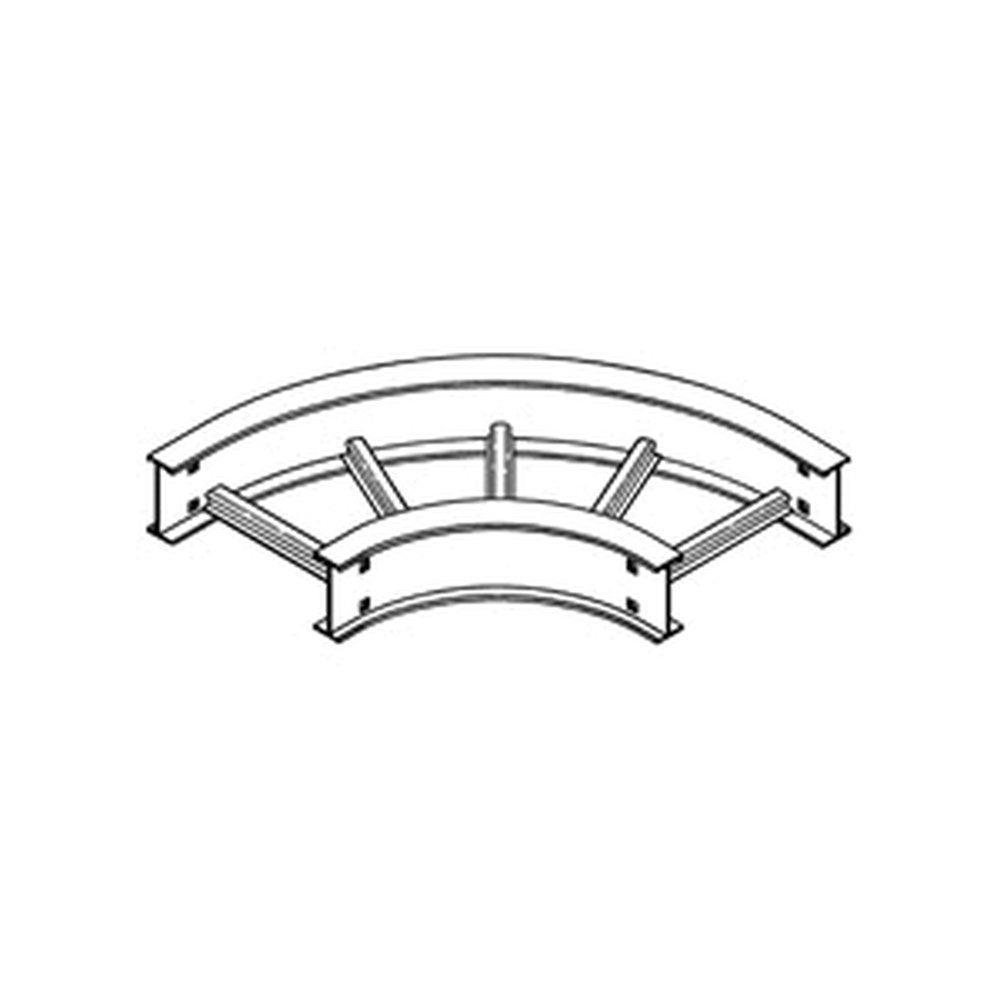

B-Line 7A-18-90HB24 Horizontal Bend, 18 in W Tray, 90 deg, 24 in Bend Radius, Aluminum

Note: Lead times are estimates only

Description Specifications Features Resources

Description

As one of the largest manufacturers of Ladder Cable Tray, B-Line provides a variety of options, materials and finishes to meet virtually any commercial or industrial application need. B-Line Ladder Cable Tray is designed and tested for ladders up to 36 in wide. Rung connections are made using a multiple-point welding system, that results in unmatched strength and reliability. All trays are designed to support a 200 lb. concentrated load beyond the cataloged cable load. Our Steel Ladder Cable Tray is available in both light-duty with a C-Shaped side rail and heavy-duty with B-Line's unique I-Beam side rail. Our lightweight and durable Aluminum Ladder Cable Tray is constructed of marine-grade aluminum, making it ideal for a variety of applications, both indoor and outdoor. The I-Beam side rail provides additional strength while using less material.

B-Line Horizontal Bend, 18 in Tray Width, 90 deg Angle, 24 in Bend Radius, 36 in Length, 7 in Height, 9 in Rung Spacing, Aluminum

Specifications

Application	Indoor/Outdoor Use
Bend Radius	24 in
Brand Name	B-Line
Height	7 in
Includes	Pair of Splice Plates with Hardware
Length	36 in
Manufacturer Part Number	7A-18-90HB24
Material	Aluminum
PART NUMBER KEYWORDS	7A-18-90HB24 ; 7A1890HB24 ; 781011233068 ; 78101123306
Rung Spacing	9 in
Standards/Approvals	6 in NEMA
Tray Width	18 in
