Schneider Electric
  • 781XAXRM4L120A SQD
  • 781XAXRM4L120A SQD
  • 781XAXRM4L120A SQD
  • 781XAXRM4L120A SQD
  • 781XAXRM4L120A SQD

Description: Schneider Electric, 781XAXRM4L-120A, Relay, Legacy, 15 A, 1.9 VA Power, 120 V AC Coil, 1NO-1NC 1 Form A/1 Form B Contact Form, Silver Enclosure, -40 to 55 deg C

Manufacturer PN: 781XAXRM4L-120A

UPC:  60648078059

Kendall Electric Inc PN: 4163495

Invoice Description:

781XAXRM4L120A SQD


SPEC SHEET

▸ See All in Power Relays


How Can We Make This Page Better?

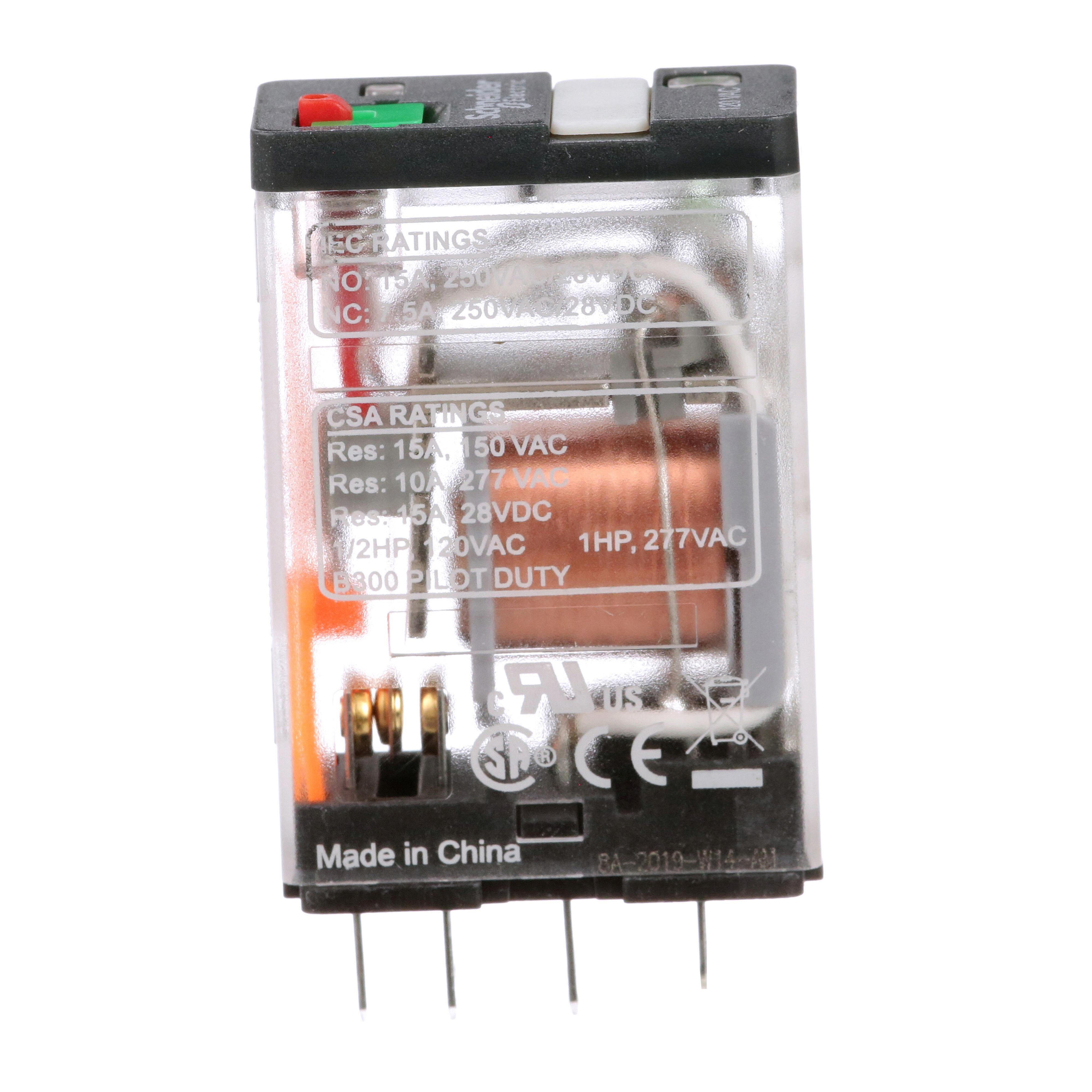

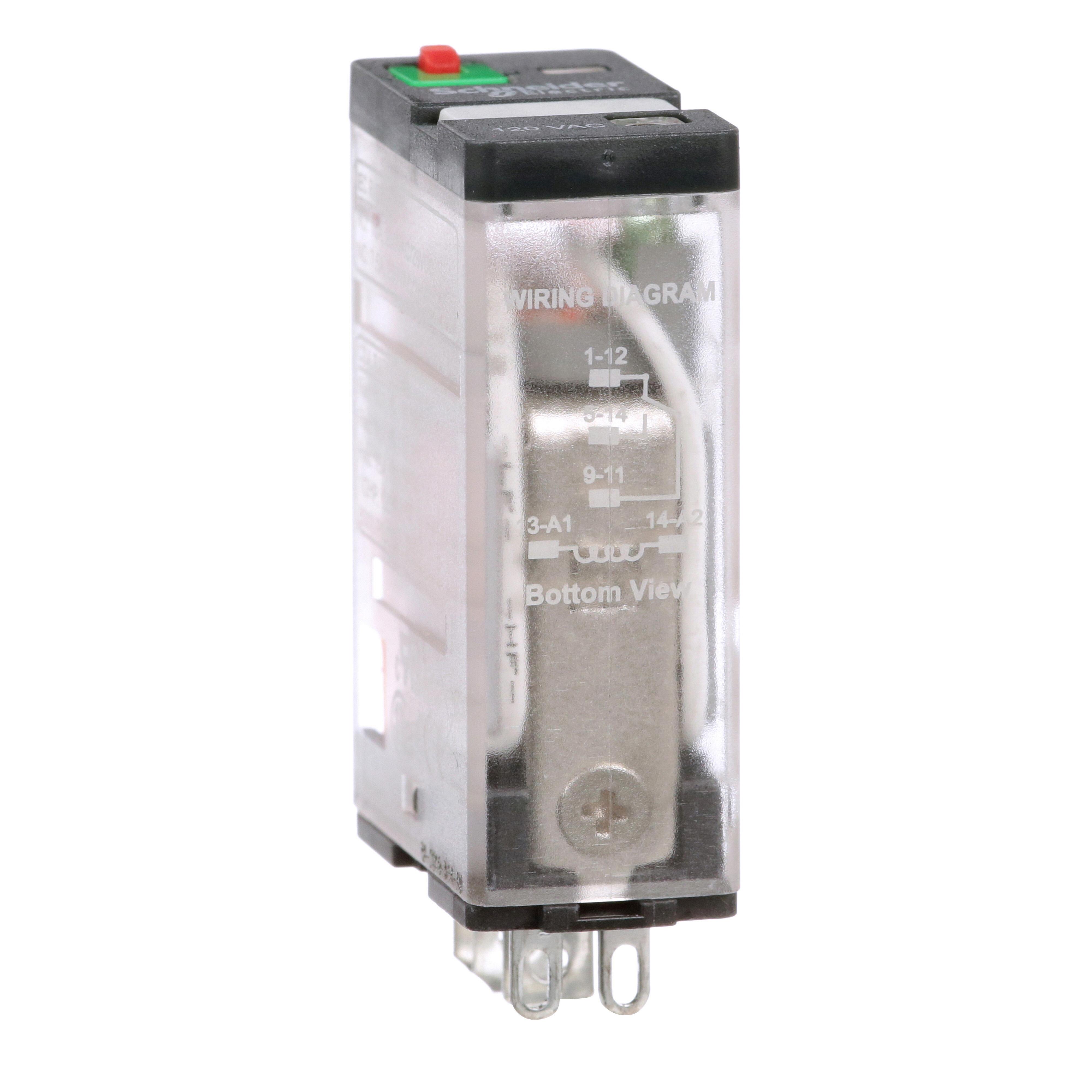

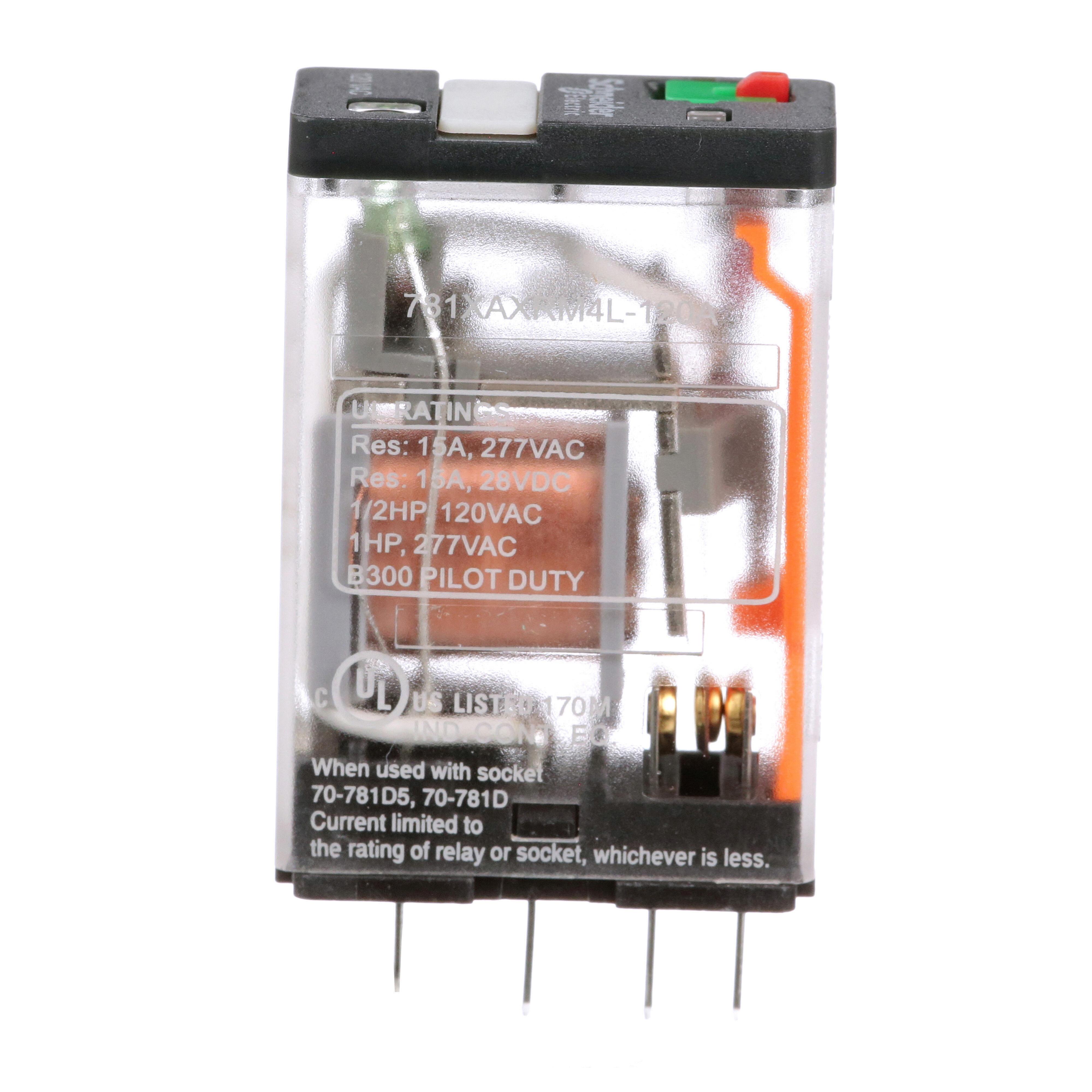

Schneider Electric 781XAXRM4L-120A Legacy Relay, 15 A, 1NO-1NC 1 Form A/1 Form B Contact, 120 V AC V Coil

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

The SE Relays 781R series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Contacts rated as 10A resistive at 277VAC, motor 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 120VAC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact SPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Slim design of 14 mm width saves valuable space. Mechanical standard flag indicator displays the relay status during testing or operation.
Schneider Electric, 781XAXRM4L-120A, Relay, Legacy, 15 A, 1.9 VA Power, 120 V AC Coil, 1NO-1NC 1 Form A/1 Form B Contact Form, Silver Enclosure, -40 to 55 deg C

Specifications

 Amperage Rating 15 A
 Application Choice for automation panels and controls
 Brand Name Square D
 Coil Voltage 120 V AC
 Contact Form 1NO-1NC 1 Form A/1 Form B
 Enclosure Silver
 Manufacturer Part Number 781XAXRM4L-120A
 PART NUMBER KEYWORDS 781XAXRM4L-120A ; 781XAXRM4L120A ; 3606480780592
 Power Rating 1.9 VA
 Standards/Approvals PROP65|WEEE|CSA|UL|CE
 Temperature Rating -40 to 55 deg C
 Type Legacy

Features

▪ Used in robust conditions
▪ Durable, open frame construction
▪ With optional blowout magnet for DC switching
▪ 2HP motor load rating
▪ Wide range of operating temperature from -30C to 50C

Resources

 Catalog
 Product Data Sheet
 RoHS
