Eaton

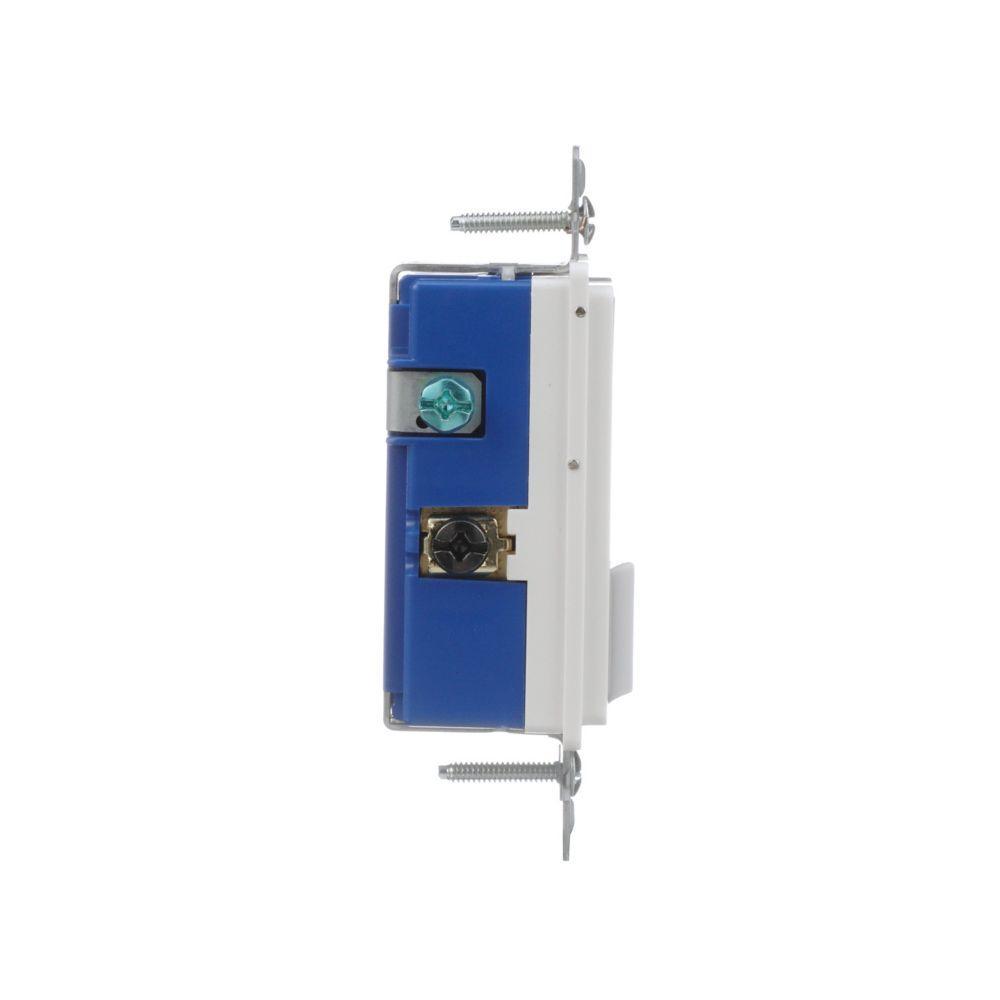

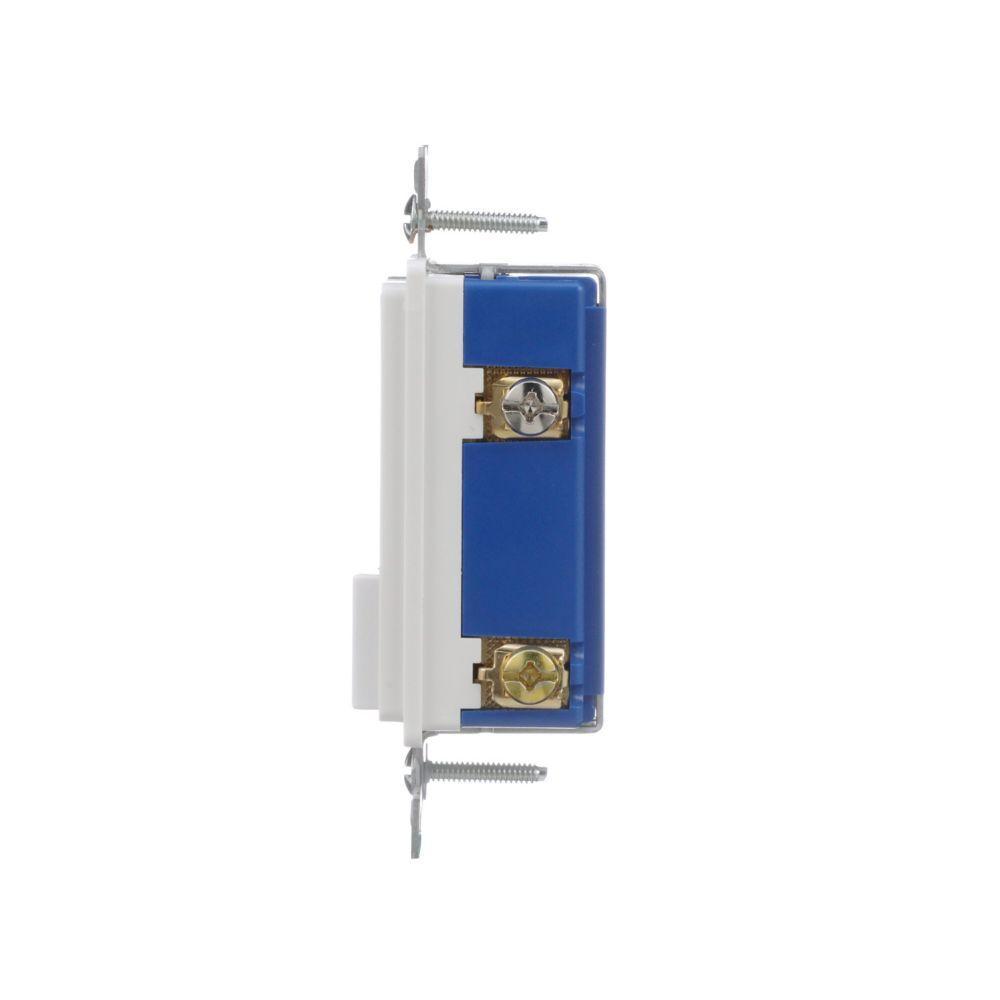

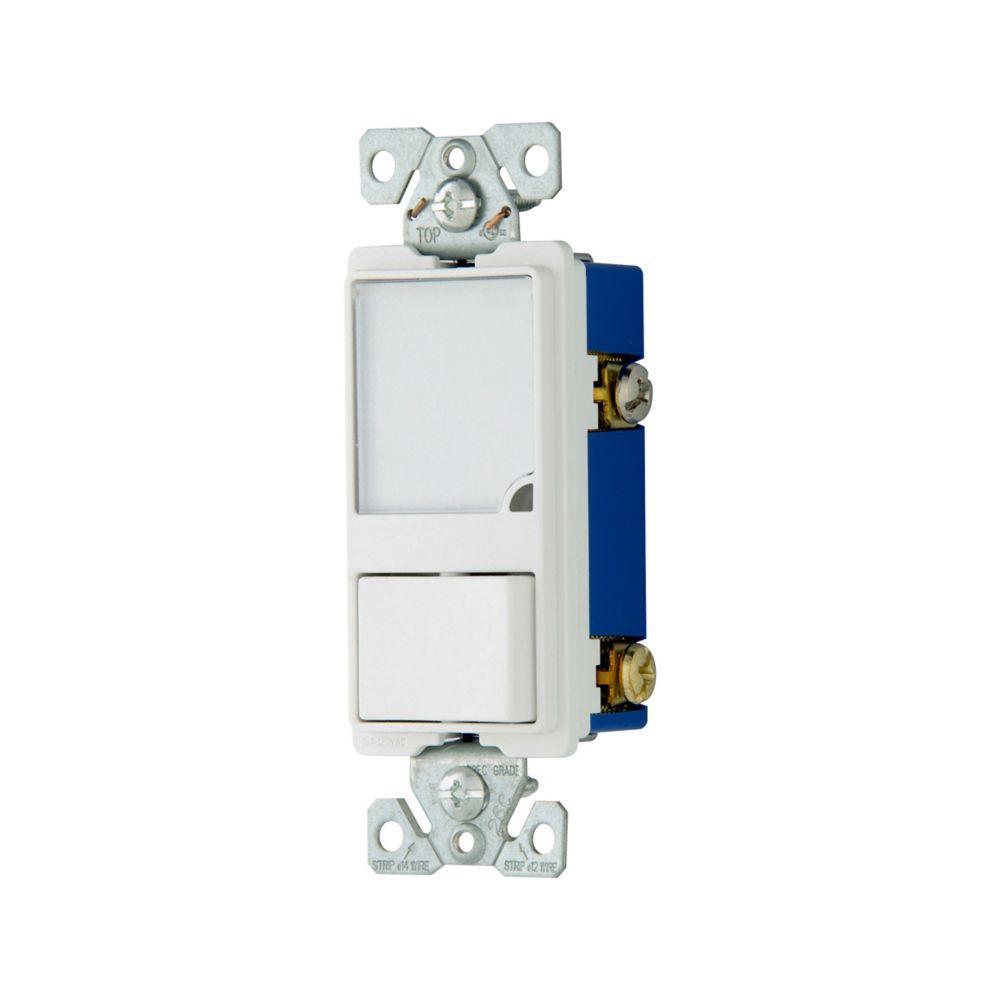

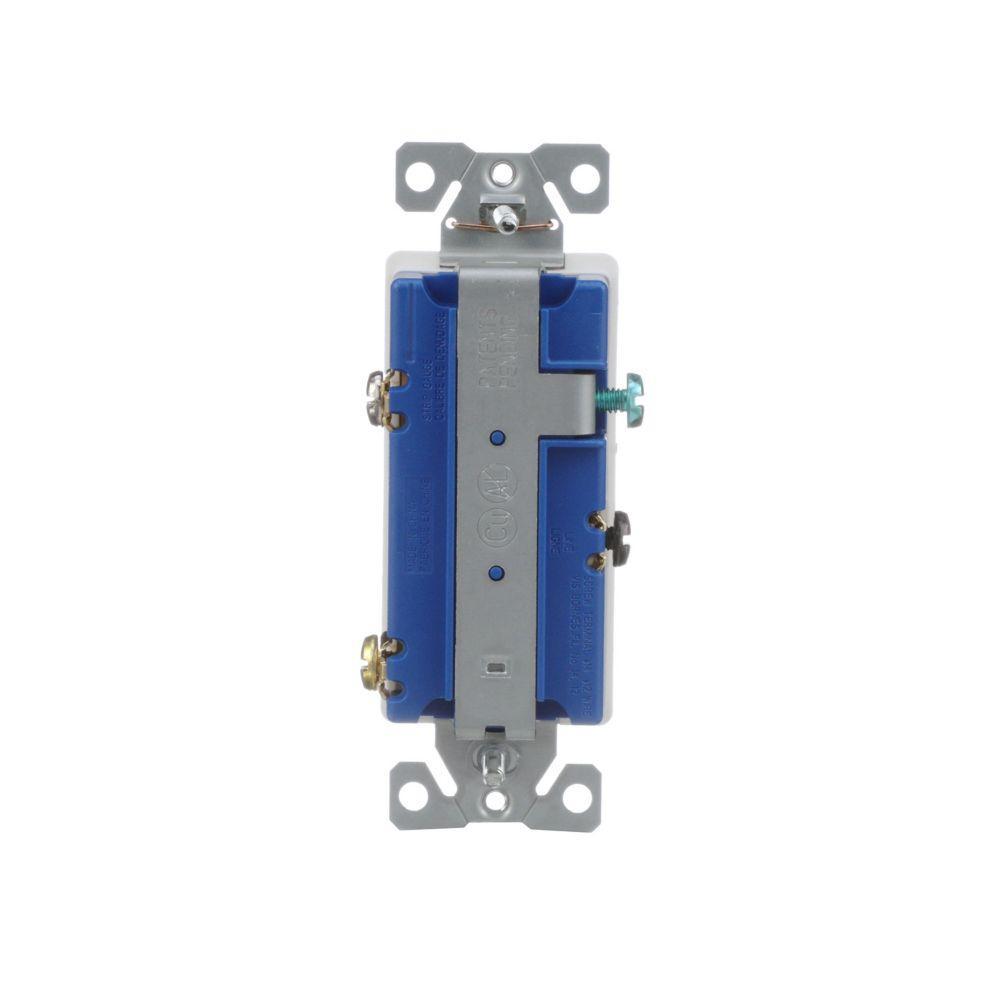

7738W-BOX CWD SWITCH/NIGHTLIGHT COMBO 15A 120V, WH 03266472780

Mouse over image to zoom, click to enlarge

  • 7738W-BOX CWD SWITCH/NIGHTLIGHT COMBO 15A 120V, WH 03266472780
  • 7738W-BOX CWD SWITCH/NIGHTLIGHT COMBO 15A 120V, WH 03266472780
  • 7738W-BOX CWD SWITCH/NIGHTLIGHT COMBO 15A 120V, WH 03266472780
  • 7738W-BOX CWD SWITCH/NIGHTLIGHT COMBO 15A 120V, WH 03266472780
  • 7738W-BOX CWD SWITCH/NIGHTLIGHT COMBO 15A 120V, WH 03266472780

Description: EATON Patrol™ Wallbox Night Light, Combination Dimmable Heavy Duty, 120 V AC, 15 A, 1 W Wattage, 1 Pole, LED/Audible Alarm Lamp, ON/OFF Action, NEMA 5-15R Enclosure, Surface Mounting, Screw Terminal, -20 to 60 deg C, Thermoplastic/Polycarbonate/PVC, White, 4.19 in H x 1.3 in W x 1.08 in D Dimensions

Manufacturer PN: 7738W-BOX

UPC:  03266472780

Kendall Electric Inc PN: 2866765

Invoice Description:

7738W-BOX CWD SWITCH/NIGHTLIGHT COMBO 15A 120V, WH 03266472780


SPEC SHEET

▸ See All in Switches & Lights


How Can We Make This Page Better?

EATON Patrol™ 7738W-BOX Combination Dimmable Heavy Duty Wallbox Night Light With Switch, 120 V AC, 15 A, 1 W

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's nightlight receptacles combine a convenient LED nightlight with a variety of receptacles, allowing dimly lit interiors such as hallways or stairs to have their own customizable way-finding system. An integrated sensor automatically turns the nightlight on when it becomes dark and automatically turns it back off once the room has enough light. Additionally, our nightlight receptacles are dimmable, allowing you to set the perfect level of desired light for your needs.
EATON Patrol™ Wallbox Night Light, Combination Dimmable Heavy Duty, 120 V AC, 15 A, 1 W Wattage, 1 Pole, LED/Audible Alarm Lamp, ON/OFF Action, NEMA 5-15R Enclosure, Surface Mounting, Screw Terminal, -20 to 60 deg C, Thermoplastic/Polycarbonate/PVC, White, 4.19 in H x 1.3 in W x 1.08 in D Dimensions

Specifications

 Amperage Rating 15 A
 Application Residential Applications Like Bathrooms, Hallways, Stairs and Landings
 Brand Name EATON
 Color White
 Dimensions 4.19 in H x 1.3 in W x 1.08 in D
 Enclosure NEMA 5-15R
 Lamp Type LED/Audible Alarm
 Manufacturer Part Number 7738W-BOX
 Material Thermoplastic/Polycarbonate/PVC
 Mounting Surface
 Number of Poles 1
 PART NUMBER KEYWORDS 7738W-BOX ; 7738WBOX ; 11126361 ; 032664727801 ; 32664727801 ; 03266472780 ; 00032664727801
 Standards/Approvals cULus Listed
 Temperature Rating -20 to 60 deg C
 Terminal Type Screw
 Type Combination Dimmable Heavy Duty
 Video Links
 Voltage Rating 120 V AC
 Wattage 1 W

Features

▪ Switch withstands 1500 VDC dielectric voltage per UL 20
▪ Back and Side wiring method
▪ Current interrupting at full-rated current
▪ Convenient patented built-in wire stripper speeds installation
▪ 0.045 in THK zinc plated steel mounting strap
▪ Phosphor bronze Auto ground clip
▪ 0.03 in THK brass line contacts
▪ 8 to 32 brass plated steel terminal screws
▪ 8 to 32 green zinc plated steel ground screw
▪ 140 Lumens maximum output, 1 fc at 0.9 ft light source
▪ Max 86 deg F temperature rise after 100 cycles of overload and 30000 cycles of endurance testing
▪ Ambient light sensor turns the nightlight on when ambient light is low and Off when ambient light is high
▪ Night lights are dimmable to desired light level
▪ Long lasting energy-efficient LED bulbs are rated for 50000 hr lamp life
▪ Night light features full dimming as well as 3 pre-set levels to easily match light levels on devices mounted in series
▪ Night lights use 3 LED lamps that consume a maximum of 1 W of energy
▪ Automatic grounding system eliminates the need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where a jumper is used
▪ Terminal screws are backed out and ready for wiring to enhance ease of installation
▪ Devices mounted in series can be controlled by an external switch in guide light mode
▪ 14 to 12 AWG base device terminal accommodation

Resources

 Catalog Page
 Product Data Sheet
