Broan-NuTone
765H110L NUTONE

Mouse over image to zoom, click to enlarge

  • 765H110L NUTONE
  • 765H110L NUTONE
  • 765H110L NUTONE
  • 765H110L NUTONE
  • 765H110L NUTONE

Description: NuTone® Heater Ventilation Fan, 110 cfm Flow Rate, 4 in Diameter Duct, 120 V, 14 A, 1500 W Heater Wattage, 16 in L x 10-1/4 in W x 5-7/8 in H Housing, 100 W Lamp, 4-Point/Bracket Mounting, 17-1/2 in L x 11-1/2 in W Grille, Steel Housing Material, No Humidity Sensing, No Motion Sensing, Galvanized Steel, Bright White

Manufacturer PN: 765H110L

UPC:  02671525794

Kendall Electric Inc PN: 4081581

Invoice Description:

765H110L NUTONE


SPEC SHEET

▸ See All in Heater/Fan/Light Combo


How Can We Make This Page Better?

NuTone® 765H110L Heater Ventilation Fan With Light, 110 cfm Flow Rate, 4 in Dia Duct, 100 W Lamp, 120 V, 1500 W

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Help provide comfort and functionality to your bathroom with the addition of the 765H110L exhaust ventilation fan Light with heater. This 110 cfm provides powerful airflow along with a rotatable heater grille that helps direct heat to conserve energy.
NuTone® Heater Ventilation Fan, 110 cfm Flow Rate, 4 in Diameter Duct, 120 V, 14 A, 1500 W Heater Wattage, 16 in L x 10-1/4 in W x 5-7/8 in H Housing, 100 W Lamp, 4-Point/Bracket Mounting, 17-1/2 in L x 11-1/2 in W Grille, Steel Housing Material, No Humidity Sensing, No Motion Sensing, Galvanized Steel, Bright White

Specifications

 Amperage Rating 14 A
 Brand Name Broan
 Color Bright White
 Duct Diameter 4 in
 Flow Rate 110 cfm
 Grille Size 17-1/2 in L x 11-1/2 in W
 Heater wattage 1500 W

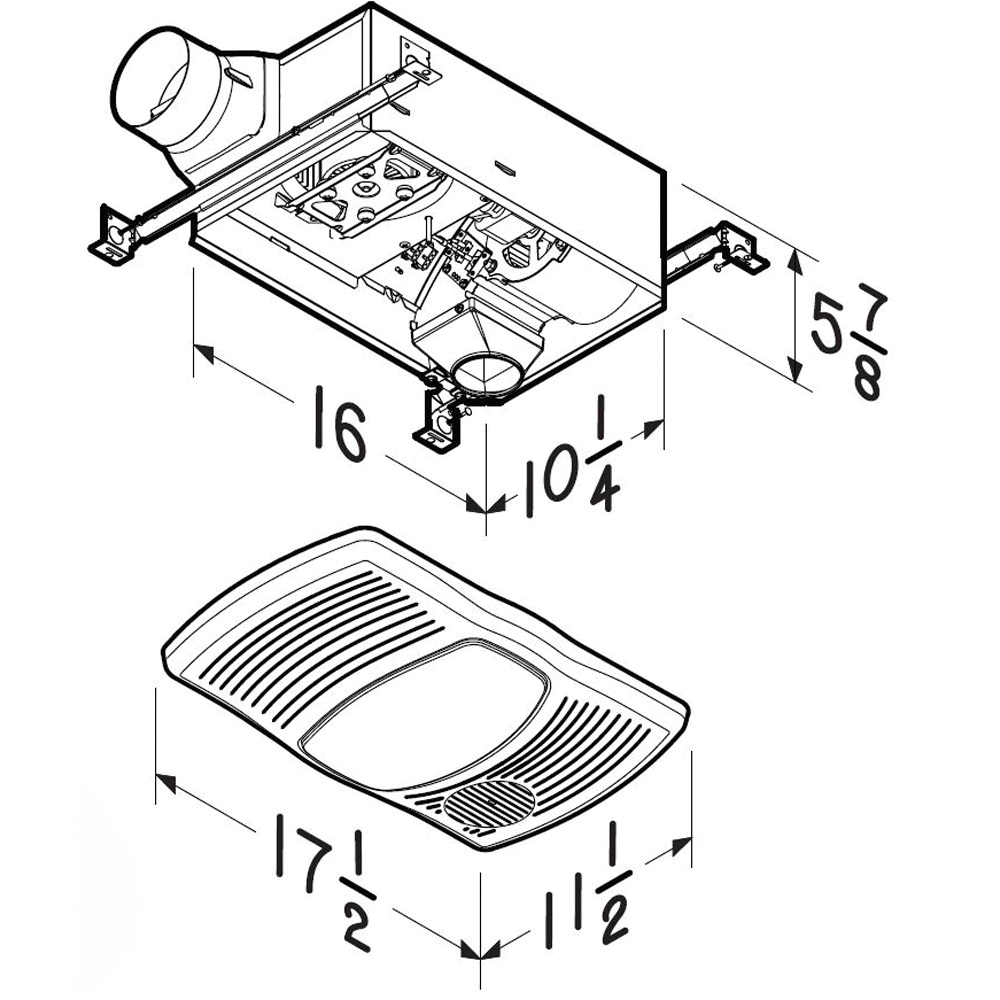

 Housing Dimensions 16 in L x 10-1/4 in W x 5-7/8 in H
 Housing Material Steel
 Humidity Sensing No
 Lamp Wattage 100 W
 Manufacturer Part Number 765H110L
 Material Galvanized Steel
 Motion Sensing No
 Mounting Type 4-Point/Bracket
 PART NUMBER KEYWORDS 765H110L ; 026715257942 ; 26715257942 ; 02671525794 ; 00026715257942
 Standards/Approvals HVI 2100 Certified|UL Listed
 Voltage Rating 120 V

Features

▪ 110 cfm, powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
▪ 2 sones for quiet performance, enough sound to know your fan is on
▪ Motor engineered for continuous operation
▪ 1500 W heater with 360 directionally-adjustable design so heat ends up exactly where you want it
▪ Brighter white grille matches any decor
▪ Select-your-bulb capacity (bulb not included)
▪ Rugged galvanized steel housing stands up to moisture
▪ UL listed for use in insulated ceilings (type IC)
