WAGO Corporation

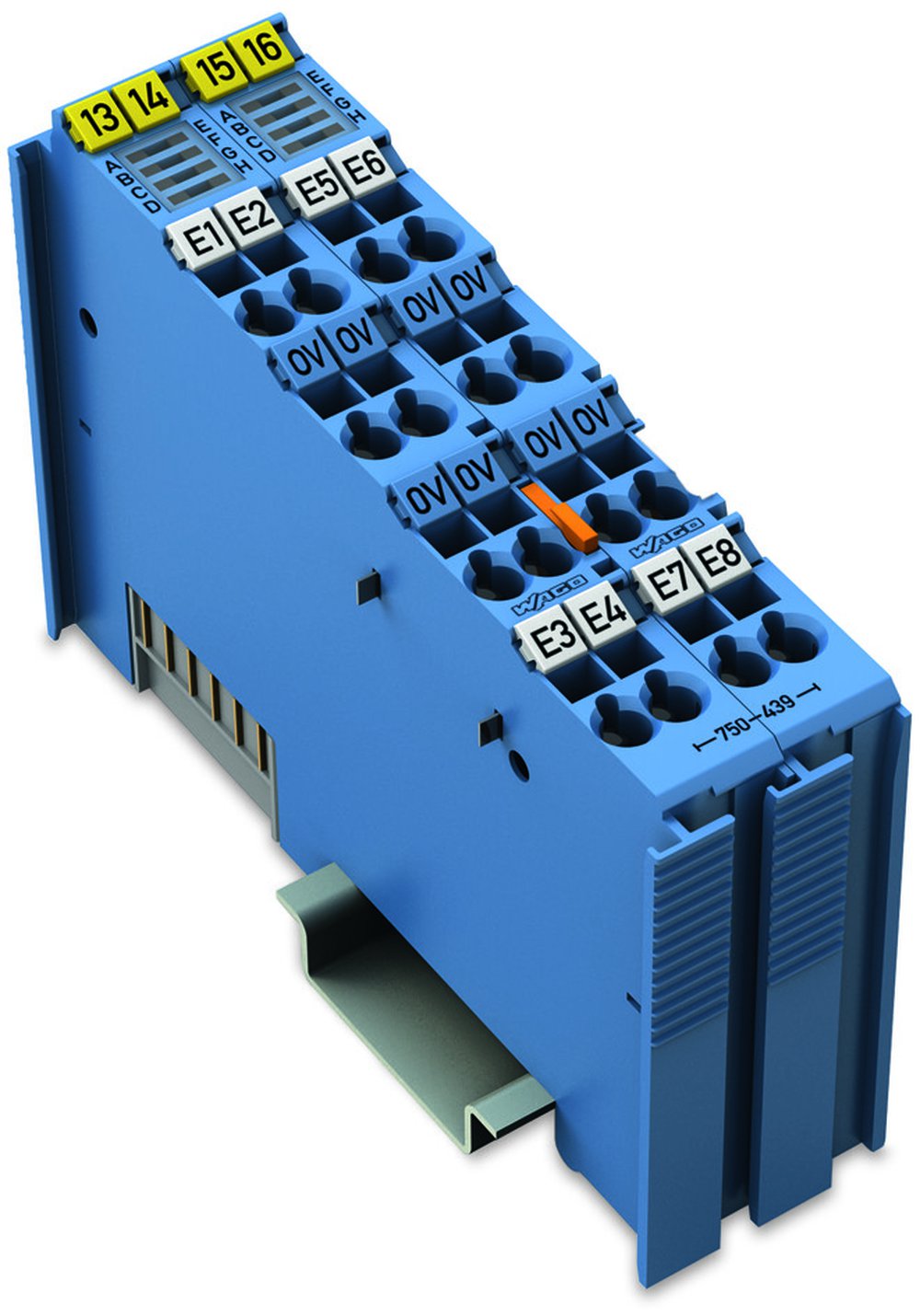

750-439 WAGO 7500439 8DINAMUR EX I

Mouse over image to zoom, click to enlarge

Description: WAGO, 750-439, Analog Input, 8-Channel, Digital Input, IP20 Enclosure, 35 mm DIN Rail Mounting, Polycarbonate/Polyamide 6.6, Blue, 3.93 in H x 0.47 in W x 2.66 in D Dimensions

Manufacturer PN: 750-439

UPC:  05082162336

Kendall Electric Inc PN: 3975010

Invoice Description:

750-439 WAGO 7500439 8DINAMUR EX I


SPEC SHEET

▸ See All in PLC Input-Output Digital Modules


How Can We Make This Page Better?

WAGO 750-439 8-Channel Analog Input, Digital Input

Log In for Pricing and Availability




Description

8-channel digital input; NAMUR; Intrinsically safeThis digital input module records binary signals from sensors operating in Zone 0+1 hazardous areas, permitting channel-by-channel short circuit and wire-break diagnostics. NAMUR sensors, optocouplers, mechanical contacts or other actuating elements can also be connected via intrinsically safe devices. The process image can be used to define the sensor type (break or make contact) as well as to switch off the diagnostics (e.g., if contact monitoring in order to suppress the LED diagnostics). The WAGO I/O System 750 must be installed either in Zone 2 or in a non-hazardous area. Each sensor is supplied with a short-circuit-protected voltage of 8.2 V. Indicators: Green LED (signal ON) Red LED (short circuit) Red flashing LED (wire-break) Field and system levels are electrically isolated.
WAGO, 750-439, Analog Input, 8-Channel, Digital Input, IP20 Enclosure, 35 mm DIN Rail Mounting, Polycarbonate/Polyamide 6.6, Blue, 3.93 in H x 0.47 in W x 2.66 in D Dimensions

Specifications

 Application For marine applications
 Brand Name WAGO
 Color Blue
 Dimensions 3.93 in H x 0.47 in W x 2.66 in D
 Enclosure IP20
 Input Type Digital
 Manufacturer Part Number 750-439
 Material Polycarbonate/Polyamide 6.6
 Mounting Type 35 mm DIN Rail
 PART NUMBER KEYWORDS 750-439 ; 750439 ; 7500439 ; 18643550 ; 7500439 ; 18643550 ; 4050821623366
 Standards/Approvals RoHS Compliant|CE|IP20
 Type 8-Channel

Features

▪ Green LED (signal ON)
▪ Red LED (short circuit)
▪ Red flashing LED (wire-break)
