Schneider Electric

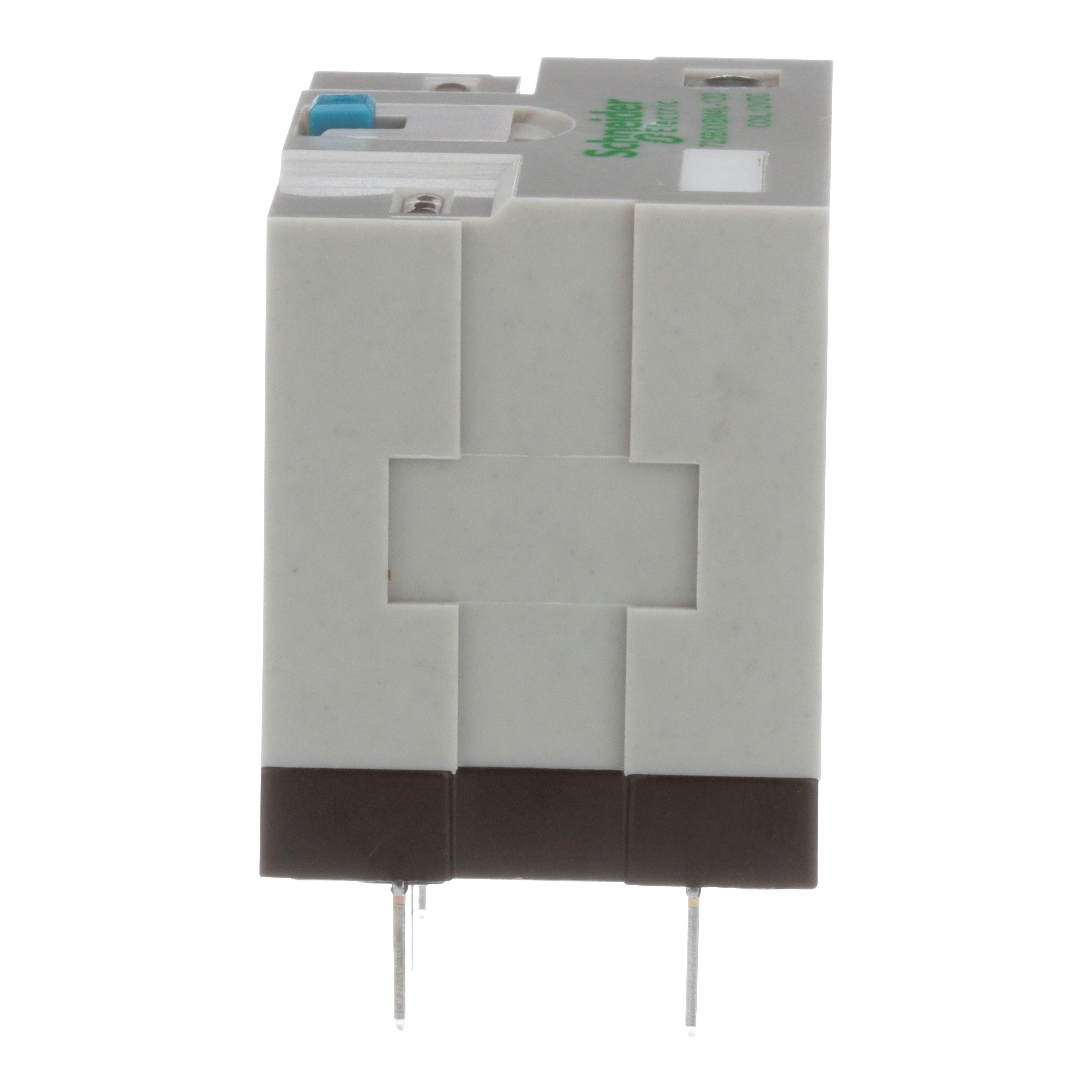

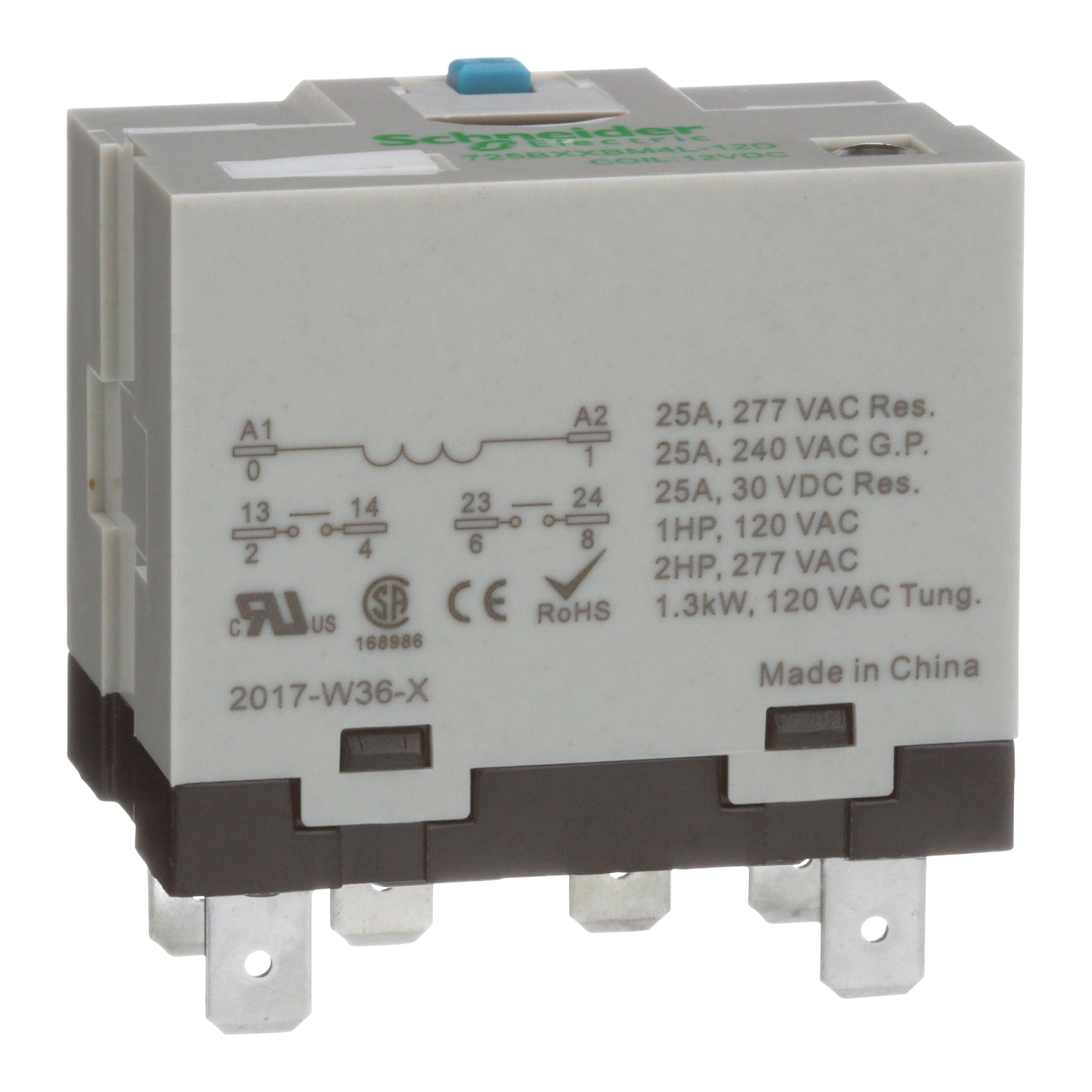

  • 725BXXBM4L-12D SQD POWER RELAY, SE RELAYS, 25A, 2NO, 12VDC, LED, FLAG INDICATOR, LOCKING PUSH BUTTON, BLADE TERMINAL, PLUG-IN SOCKET MOUNT
  • 725BXXBM4L-12D SQD POWER RELAY, SE RELAYS, 25A, 2NO, 12VDC, LED, FLAG INDICATOR, LOCKING PUSH BUTTON, BLADE TERMINAL, PLUG-IN SOCKET MOUNT
  • 725BXXBM4L-12D SQD POWER RELAY, SE RELAYS, 25A, 2NO, 12VDC, LED, FLAG INDICATOR, LOCKING PUSH BUTTON, BLADE TERMINAL, PLUG-IN SOCKET MOUNT
  • 725BXXBM4L-12D SQD POWER RELAY, SE RELAYS, 25A, 2NO, 12VDC, LED, FLAG INDICATOR, LOCKING PUSH BUTTON, BLADE TERMINAL, PLUG-IN SOCKET MOUNT

Description: Schneider Electric, 725BXXBM4L-12D, Power Relay, Series: 725, 25 A, 1.3 kW Tungsten at 120 V, 1 hp at 120 VAC, 2 hp at 277 VAC Power, 50/60 Hz Frequency, 12 V DC Coil, 2NO 2 Form A Contact Form, Plug-In/Socket Mounting, Blade Terminal, LED Display, IP40 Enclosure, -4 to 131 deg F, 1.97 in H x 1.3 in W x 2.09 in D Dimensions

Manufacturer PN: 725BXXBM4L-12D

UPC:  60648027895

Kendall Electric Inc PN: 4833049

Invoice Description:

725BXXBM4L-12D SQD POWER RELAY, SE RELAYS, 25A, 2NO, 12VDC, LED, FLAG INDICATOR, LOCKING PUSH BUTTON, BLADE TERMINAL, PLUG-IN SOCKET MOUNT


SPEC SHEET

▸ See All in Power Relays


How Can We Make This Page Better?

Schneider Electric 725BXXBM4L-12D 725 Power Relay, 25 A, 2NO 2 Form A Contact, 12 V DC V Coil

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This 725 power relay belongs to the Schneider Electric Harmony electromechanical relays range. 725 power relay has a LED status indicator with Flat (Faston type) terminals supporting Plug-in socket mounting. It’s a 25A 2 NO contact configuration mechanical relay with nominal coil voltage of 12Vdc and coil resistance of 75O. The full-feature cover offers push-to-test button, lock-down door, LED, flag indicators, and ID tag to simplify and expedite installation and testing. The push-to-test spring return button helps in testing the contacts and the lock-down door enables forced maintaining of the contacts for testing purposes. It weighs 0.120Kg. It is suitable for high-capacity switching applications such as EV charging, CNC machines, and HVAC compressors. Socket, Protection modules and spring clips are available. It is sold in lots of 10. The 725 relay range with high dielectric strength helps withstand severe voltage surges and spikes which provides protection for surrounding circuits.
Schneider Electric, 725BXXBM4L-12D, Power Relay, Series: 725, 25 A, 1.3 kW Tungsten at 120 V, 1 hp at 120 VAC, 2 hp at 277 VAC Power, 50/60 Hz Frequency, 12 V DC Coil, 2NO 2 Form A Contact Form, Plug-In/Socket Mounting, Blade Terminal, LED Display, IP40 Enclosure, -4 to 131 deg F, 1.97 in H x 1.3 in W x 2.09 in D Dimensions

Specifications

 Amperage Rating 25 A
 Application Suitable for high-capacity switching applications such as EV charging, CNC machines and HVAC compressors
 Brand Name Square D
 Coil Voltage 12 V DC
 Contact Form 2NO 2 Form A

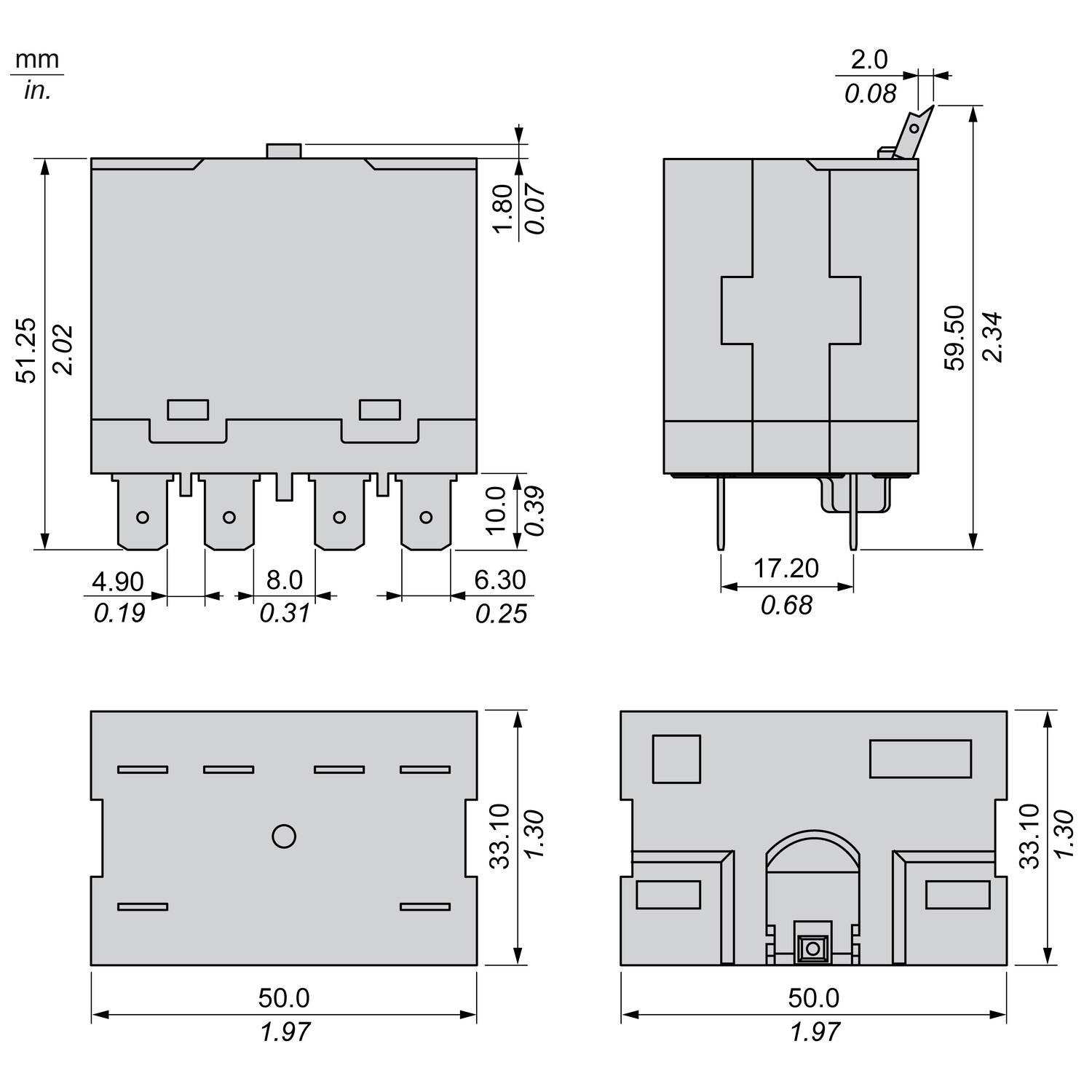

 Dimensions 1.97 in H x 1.3 in W x 2.09 in D
 Enclosure IP40
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 725BXXBM4L-12D
 Mounting Type Plug-In/Socket
 PART NUMBER KEYWORDS 725BXXBM4L-12D ; 725BXXBM4L12D ; 3606480278952
 Power Rating 1.3 kW Tungsten at 120 V, 1 hp at 120 VAC, 2 hp at 277 VAC
 Series 725
 Standards/Approvals UL 60947-4-1A|CSA|CE|IEC 60947-1
 Temperature Rating -4 to 131 deg F
 Terminal Type Blade

Features

▪ The electromechanical relays help to reduce the size of enclosures and at the same time increase machine reliability
▪ This range offers several terminal types, wide choice of control voltage, and flexible add-on accessories
