3M
72-N3* 3M NON-RE-ENTERABLE RESIN SPLICING KITS min/1ea

Mouse over image to zoom, click to enlarge

  • 72-N3* 3M NON-RE-ENTERABLE RESIN SPLICING KITS min/1ea
  • 72-N3* 3M NON-RE-ENTERABLE RESIN SPLICING KITS min/1ea

Description: 3M™, 7100007452, Splice Kit, Non-Re-Enterable Resin, Series: 72-N, 1 kV, Control/Non-Shielded/Shielded Cable, 5/8 to 1-1/2 in Diameter Cable, 22 AWG Conductor, 5/8 to 1-1/2 in OD Insulation, 15.438 in Splice Length, In-Line Connector, 90 to 130 deg C, 2-1/2 in Dia Dimensions

Manufacturer PN: 72-N3

UPC:  05400710627

Kendall Electric Inc PN: 2073665

Invoice Description:

72-N3* 3M NON-RE-ENTERABLE RESIN SPLICING KITS min/1ea


SPEC SHEET

▸ See All in Resins & Compounds


How Can We Make This Page Better?

3M™ 7100007452 72-N Non-Re-Enterable Resin Splice Kit, 1 kV, 5/8 to 1-1/2 in Dia Cable, 22 AWG Conductor, 15.438 in L Splice

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

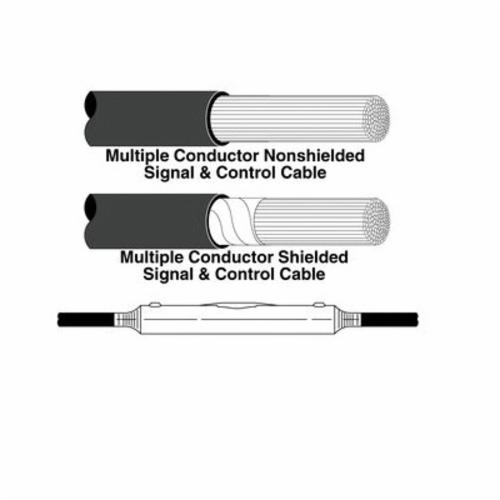

3M™ Scotchcast™ 72 N Series Inline Splice Kit is a 1 kV rated, rigid body splice designed to join signal and control cables. It fits shielded or unshielded constructions of plastic or rubber jacketed cables. It is perfect for inline splicing of shielded or unshielded cables, underground systems, joining of cable reel ends, direct burial applications, repair of cable failures and dig ins.
3M™, 7100007452, Splice Kit, Non-Re-Enterable Resin, Series: 72-N, 1 kV, Control/Non-Shielded/Shielded Cable, 5/8 to 1-1/2 in Diameter Cable, 22 AWG Conductor, 5/8 to 1-1/2 in OD Insulation, 15.438 in Splice Length, In-Line Connector, 90 to 130 deg C, 2-1/2 in Dia Dimensions

Specifications

 Application Control Cables, Direct Burial, Joining Signal and Underground Systems Applications
 Brand Name 3M
 Cable Diameter 5/8 to 1-1/2 in
 Cable Type Control/Non-Shielded/Shielded
 Conductor Size 22 AWG
 Connector Type In-Line
 Dimensions 2-1/2 in Dia
 Fitting Type In-Line
 Includes 2-Part Translucent Mold Body, Electrical Insulating and Sealing Compound 2104, (2) Pour Spouts, Scotch® Rubber Splicing Tape 23, Non-Conductive Abrasive Cloth, Jumper Wire, Instructions
 Insulation Size 5/8 to 1-1/2 in OD
 Manufacturer Part Number 7100007452
 Series 72-N
 Splice Length 15.438 in
 Standards/Approvals RoHS Compliant
 Temperature Rating 90 to 130 deg C
 Type Non-Re-Enterable Resin
 Voltage Rating 1 kV

Features

▪ Fits unshielded construction of plastic or rubber-jacketed cables
▪ The polypropylene mold has a built-in spacer web that automatically offers cable centering and compound coverage
