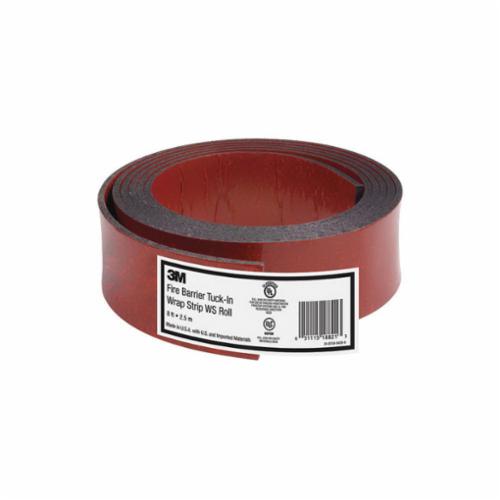

7000006390 3M 3M FIRE BARRIER TUCK-IN WRAP STRIPS

Mouse over image to zoom, click to enlarge

  • 7000006390 3M 3M FIRE BARRIER TUCK-IN WRAP STRIPS
  • 7000006390 3M 3M FIRE BARRIER TUCK-IN WRAP STRIPS

Description: 3M™, 7000006390, Wrap Strip, Fire Barrier, 8.2 ft Length, 2-1/2 in Width, Fire Rating: 3 hr, Specifications Met: UL Listed, Gray/Red

Manufacturer PN: WRAPSTRIP

UPC:  05111518821

Kendall Electric Inc PN: 4821392

Invoice Description:

7000006390 3M 3M FIRE BARRIER TUCK-IN WRAP STRIPS


SPEC SHEET

▸ See All in Firestop Pillows, Sheets & Wraps


How Can We Make This Page Better?

3M™ 7000006390 Fire Barrier Wrap Strip, 8.2 ft L x 2-1/2 in W, 3 hr Fire Rating, UL Listed

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

3M™ fire barrier tuck-in wrap strips are designed to help prevent the passage of fire and smoke in new or existing non-metallic (e.g. Plastic) pipe penetrations through wall or floor assemblies. 3M™ fire barrier tuck-in wrap strips are engineered primarily for top-side firestop installations and help eliminate the need for retaining collars, concrete screws, ladders or most other material and equipment necessary for bottom-side installations. 3M™ fire barrier tuck-in wrap strips come ready-to-install with an adhesive backed closure label (excludes WS roll). The wrap strips can be easily installed in both concrete floor and wall assemblies, as well as gypsum wallboard assemblies.
3M™, 7000006390, Wrap Strip, Fire Barrier, 8.2 ft Length, 2-1/2 in Width, Fire Rating: 3 hr, Specifications Met: UL Listed, Gray/Red

Specifications

 Application For PVC, ccPVC and FRPP plastic pipes penetrating through concrete floor, block and concrete walls and gypsum stud walls applications
 Brand Name 3M
 Color Gray/Red
 Fire Rating 3 hr
 Length 8.2 ft
 Manufacturer Part Number 7000006390
 Specifications Met UL Listed
 Width 2-1/2 in

Features

▪ Engineered for top side, firestop, through-penetration installations
▪ Expands 100x in volume
▪ Tested firestop performance, tested and listed up to 3 hr in accordance with astm e814 (ul 1479)
▪ Reduces excess hardware needs, top-side concrete floor installations help eliminate the need for steel retaining collars and most other bottom-side installation equipment and materials
▪ Easy install, adhesive-backed label offers quick installation
▪ Available in rolls or strips - ready-to-install 3/16 in thick x 2-1/2 in wide wrap strips - available in 8.2 ft rolls or strips precut to length for 2 in, 3 in and 4 in non-metallic pipes
▪ Flexible strips - the flexible intumescent strip wraps around the pipe and easily slides into the annular space and is designed to firestop plastic pipe penetrations through fire-rated floors and walls
