ABB

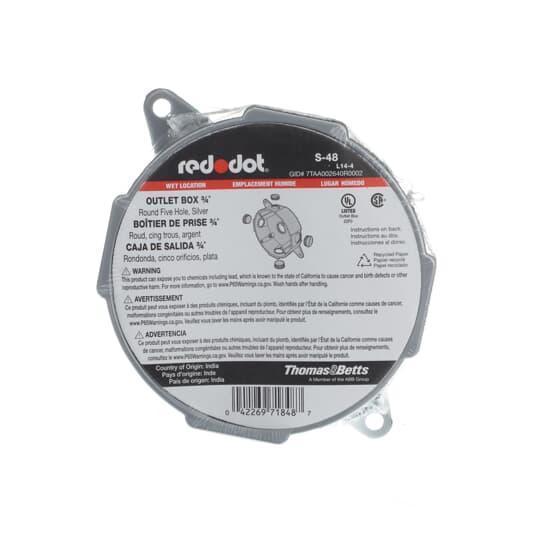

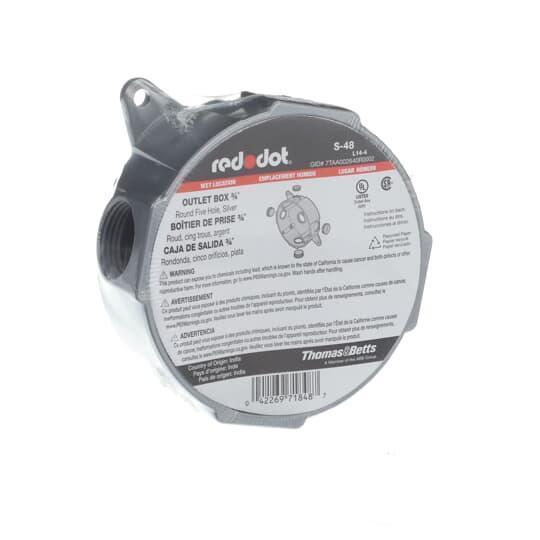

S-48 RED 4-IN RD WP BOX 5-3/4 HUBS..

Mouse over image to zoom, click to enlarge

  • S-48 RED 4-IN RD WP BOX 5-3/4 HUBS..
  • S-48 RED 4-IN RD WP BOX 5-3/4 HUBS..
  • S-48 RED 4-IN RD WP BOX 5-3/4 HUBS..

Description: Red Dot® Device Outlet Box, 5 Outlets, 3/4 in Hub, 4-1/8 in Diameter, Round Shape, Lug/Wall/Ceiling Mounting, 15.8 cu-in Capacity, Die Cast Aluminum, Aluminum Lacquered, Silver, 1-5/8 in D Dimensions

Manufacturer PN: S-48

UPC:  04226971848

Kendall Electric Inc PN: 53889

Invoice Description:

S-48 RED 4-IN RD WP BOX 5-3/4 HUBS..


SPEC SHEET

▸ See All in Weatherproof Round Boxes


How Can We Make This Page Better?

Red Dot® S-48 Device Outlet Box, Die Cast Aluminum, 15.8 cu-in Capacity, 5 Outlets, 1-5/8 in D

Log In for Pricing and Availability




Description

Preferred for more than 50 years, Red Dot® weatherproof and conduit body solutions withstand the harshest elements and ensure trouble-free installation and years of superior performance.
Red Dot® Device Outlet Box, 5 Outlets, 3/4 in Hub, 4-1/8 in Diameter, Round Shape, Lug/Wall/Ceiling Mounting, 15.8 cu-in Capacity, Die Cast Aluminum, Aluminum Lacquered, Silver, 1-5/8 in D Dimensions

Specifications

 Brand Name Red Dot®
 Color Silver
 Dimensions 1-5/8 in D
 Finish Aluminum Lacquered
 Hub Size 3/4 in
 Manufacturer Part Number S-48
 Material Die Cast Aluminum
 Mounting Type Lug/Wall/Ceiling
 Number of Outlets 5
 PART NUMBER KEYWORDS S-48 ; S48 ; 7TAA002640R0002 ; 10724213 ; 042269718487 ; 42269718487 ; 04226971848 ; 00042269718487 ; 5414363936596
 Shape Round
 Standards/Approvals UL File No. E286881

Features

▪ Precision cast and machined surfaces permit safer wire pulling
▪ Clean cover edges provide good gasket sealing
▪ Clear UL and cubic content markings speed approval by inspectors
▪ Deep slotted stainless steel cover screws for faster installations
▪ Spacious, accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
▪ Junction box for branch conduits
▪ With 5-outlets, (4) on the sides and (1) in back, mounting lugs and 4 closure plugs
▪ Weatherproof
▪ Raintight with cover closed and when used with appropriate Red Dot® boxes

Resources

 Catalog Page
 Product Data Sheet
