Eaton
68C6048G02 C-H MCCB ACCESSORIES 78668528463

Mouse over image to zoom, click to enlarge

  • 68C6048G02 C-H MCCB ACCESSORIES 78668528463
  • 68C6048G02 C-H MCCB ACCESSORIES 78668528463

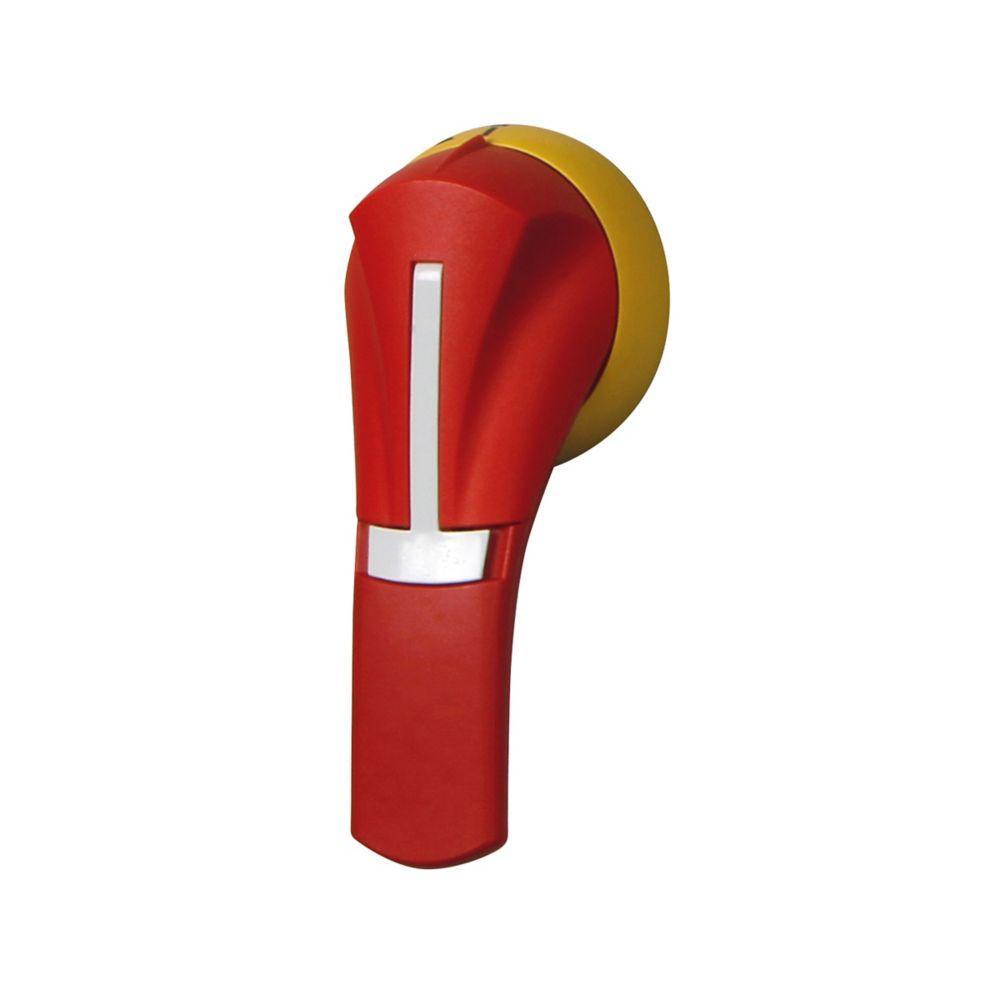

Description: EATON Rotary Handle, Type S2 Variable Depth, 1.77 in Length, 3.07 in Width, 6.45 in Height, Red/Yellow

Manufacturer PN: 68C6048G02

UPC:  78668528463

Kendall Electric Inc PN: 3433477

Invoice Description:

68C6048G02 C-H MCCB ACCESSORIES 78668528463


SPEC SHEET

How Can We Make This Page Better?

EATON 68C6048G02 Type S2 Variable Depth Rotary Handle, 1.77 in L x 3.07 in W x 6.45 in H, Red/Yellow

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The high performance rotary handle mechanism uses a simple, yet robust design to make installation and operation easy. The external handle's key functional components are all metallic, ensuring reliability. The metal on metal interface between the handle and shaft prevents contaminant buildup that could impede operation, while UV and chemical agent-resistant materials protect the handle from heat and fading in direct sunlight, as well as chemicals that may be introduced in harsh environments. In addition to its robust design features, the handle mechanism has standoff support that allows for easy operation with a gloved hand. With a shallow profile, the handle can easily be used in applications where an internal or double door is required. The high performance external handle can accept padlocks or multi-hasp locks. The door is interlocked when padlocked and cannot be bypassed.
EATON Rotary Handle, Type S2 Variable Depth, 1.77 in Length, 3.07 in Width, 6.45 in Height, Red/Yellow

Specifications

 Application For G series 1/3R/12/4/4X IP54/IP65 LG-frame molded case circuit breaker
 Brand Name EATON
 Color Red/Yellow
 Height 6.45 in
 Length 1.77 in
 Manufacturer Part Number 68C6048G02
 PART NUMBER KEYWORDS 68C6048G02 ; 12009592 ; 786685284637 ; 78668528463 ; 00786685284637
 Standards/Approvals Contact Manufacturer
 Type Type S2 Variable Depth
 Video Links
 Width 3.07 in

Features

▪ All handle mechanisms can accept padlocks or multi-hasp locks for added flexibility
▪ Fast, easy installation
▪ Three shaft lengths 6, 12 and 24 in, which can be cut to size to match enclosure depth
▪ Conveniently packaged as kit containing handle, shaft and mechanism
▪ Metallic functional components ensure reliability
▪ Metal on metal interface between handle and shaft
▪ UV and chemical agent-resistant materials protect the handle
▪ Shallow profile
▪ Compatible with both series C and series G molded case circuit breakers and molded case switch platforms
▪ Same handle can be used on multiple frame sizes, reducing the number of parts needed
▪ Red and yellow handles to designate emergency disconnecting means
