Generac Power Systems

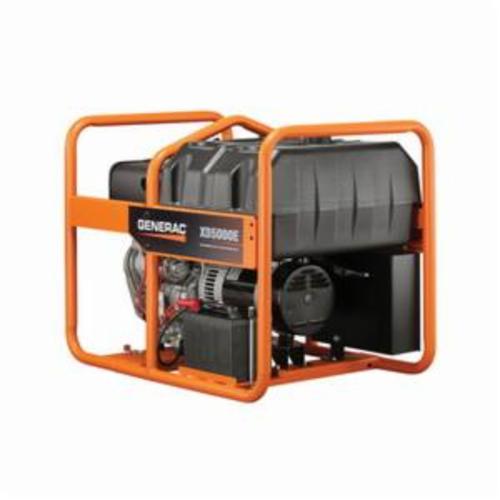

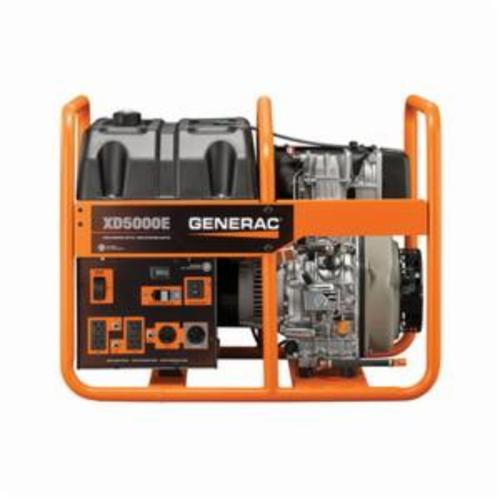

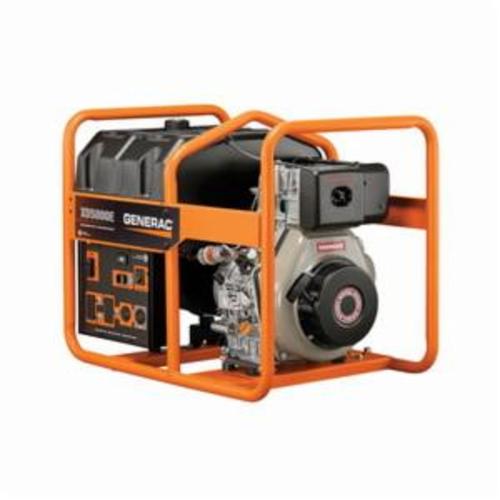

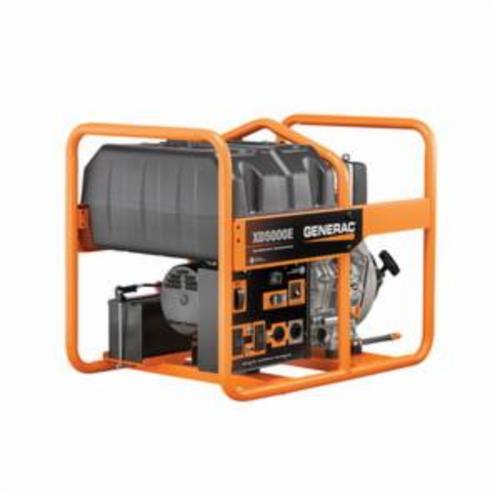

6864 GENERAC XD5000E DIESEL PORTABLE, 50 ST

Mouse over image to zoom, click to enlarge

  • 6864 GENERAC XD5000E DIESEL PORTABLE, 50 ST
  • 6864 GENERAC XD5000E DIESEL PORTABLE, 50 ST
  • 6864 GENERAC XD5000E DIESEL PORTABLE, 50 ST
  • 6864 GENERAC XD5000E DIESEL PORTABLE, 50 ST
  • 6864 GENERAC XD5000E DIESEL PORTABLE, 50 ST

Description: Generac® Portable Generator, Series: XD5000E, 120/240 V AC, 41.7 A, 60 Hz, 5500 W Starting/5000 W Running, Air Cooled, 4 Cycle, Vertical Cylinder Engine, Engine Specifications: 435 cc Displacement, Electric/Recoil Pull Engine Starter, 3600 rpm, Diesel, 45.4 gal Fuel Tank, 32.4 hr Run

Manufacturer PN: 6864

UPC:  69647106864

Kendall Electric Inc PN: 4830895

Invoice Description:

6864 GENERAC XD5000E DIESEL PORTABLE, 50 ST


SPEC SHEET

▸ See All in Portable Generators


How Can We Make This Page Better?

Generac® 6864 XD5000E Portable Generator, 120/240 V AC, 41.7 A, 5500 W Starting/5000 W Running Power Rating, Air Cooled, 4 Cycle, Vertical Cylinder Engine, 3600 rpm Speed

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

No Job Too Tough. No Workday Too Long. If you've got a tough job to do, look no further than the XD5000E generator. The sturdy steel frame features an integrated lifting eye for easy transport and on-site security. 6% total harmonic distortion for smooth operation of tools, appliances, even sensitive electronics. And it's engineered to keep on running, thanks to its large fuel tank.
Generac® Portable Generator, Series: XD5000E, 120/240 V AC, 41.7 A, 60 Hz, 5500 W Starting/5000 W Running, Air Cooled, 4 Cycle, Vertical Cylinder Engine, Engine Specifications: 435 cc Displacement, Electric/Recoil Pull Engine Starter, 3600 rpm, Diesel, 45.4 gal Fuel Tank, 32.4 hr Run

Specifications

 Amperage Rating 41.7 A
 Application For job sites and day long events
 Brand Name Generac
 Engine Specifications 435 cc Displacement
 Engine Starter Type Electric/Recoil Pull
 Engine Type Air Cooled, 4 Cycle, Vertical Cylinder
 Frequency Rating 60 Hz
 Fuel Tank Capacity 45.4 gal
 Fuel Type Diesel
 Manufacturer Part Number 6864
 PART NUMBER KEYWORDS 6864 ; 696471068641 ; 69647106864
 Power Rating 5500 W Starting/5000 W Running
 Run Time 32.4 hr
 Series XD5000E
 Speed 3600 rpm
 Standards/Approvals CARB Compliant|PROP65: Operating, servicing and maintaining this equipment can expose you to chemicals including engine exhaust, carbon monoxide, phthalates and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your equipment in a well ventilated area and wear gloves or wash your hands frequently when servicing your equipment. For more information go to www.P65Warnings.ca.gov
 Voltage Rating 120/240 V AC

Features

▪ Hour meter with maintenance resets tracks usage and monitors maintenance cycles
▪ TruePower™ technology provides less than 5% total harmonic distortion for clean, smooth operation of sensitive electronics, tools and appliances
▪ SAE 10W-30 recommended oil
▪ 33.1 in L x 22-1/2 in W x 25.6 in H
▪ 35-3/4 in L extended
▪ 41.7 A/20.8 A rated
▪ Diesel power requires less maintenance, is more efficient, and provides a long life
▪ Yanmar LW Series 435cc air-cooled direct injection, EPA tier IV, industrial-grade engine
▪ Large capacity 12 gal fuel tank with fuel gauge provides a long run time of 32.4 hrs at 50% load
▪ Compression release lever provides easier starting during cold ambient temperatures
▪ Low-oil pressure shutdown automatically safeguards engine from damage
▪ Fuel primer bulb provides quicker starts when the fuel tank has previously run empty
▪ Durable, fully welded 1-1/4 in steel frame
▪ Integrated lifting eye provides easy transport t and security on the jobsite
▪ 120/240 V selector switch provides full 120 V power
▪ Single touch electric start provides hassle-free start-up (battery not included)
