65/627R1 SATCO LED CANOPY FIXTURE 55 WATT CCT SELECTABLE WHITE FINISH

Mouse over image to zoom, click to enlarge

  • 65/627R1 SATCO LED CANOPY FIXTURE 55 WATT CCT SELECTABLE WHITE FINISH
  • 65/627R1 SATCO LED CANOPY FIXTURE 55 WATT CCT SELECTABLE WHITE FINISH
  • 65/627R1 SATCO LED CANOPY FIXTURE 55 WATT CCT SELECTABLE WHITE FINISH
  • 65/627R1 SATCO LED CANOPY FIXTURE 55 WATT CCT SELECTABLE WHITE FINISH
  • 65/627R1 SATCO LED CANOPY FIXTURE 55 WATT CCT SELECTABLE WHITE FINISH

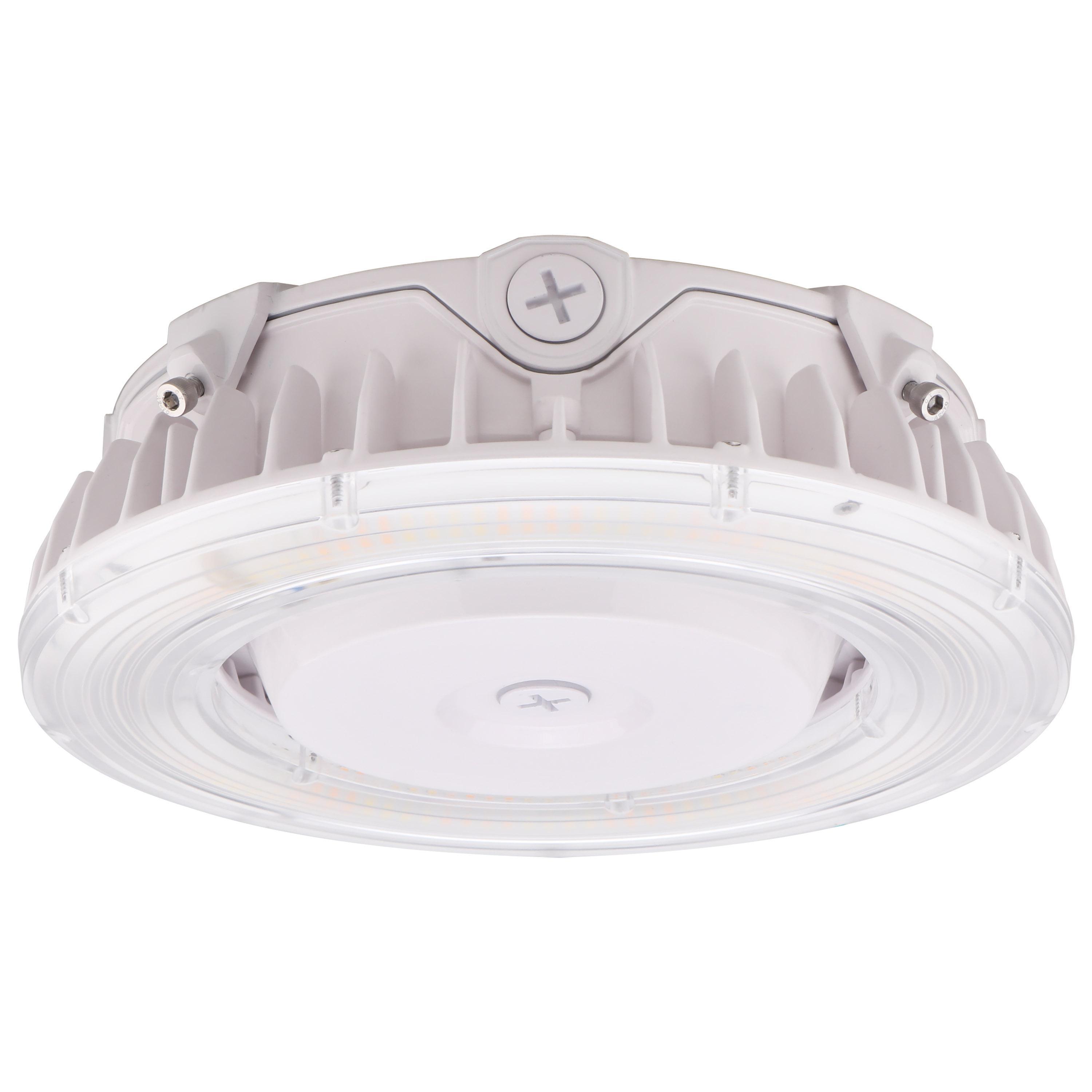

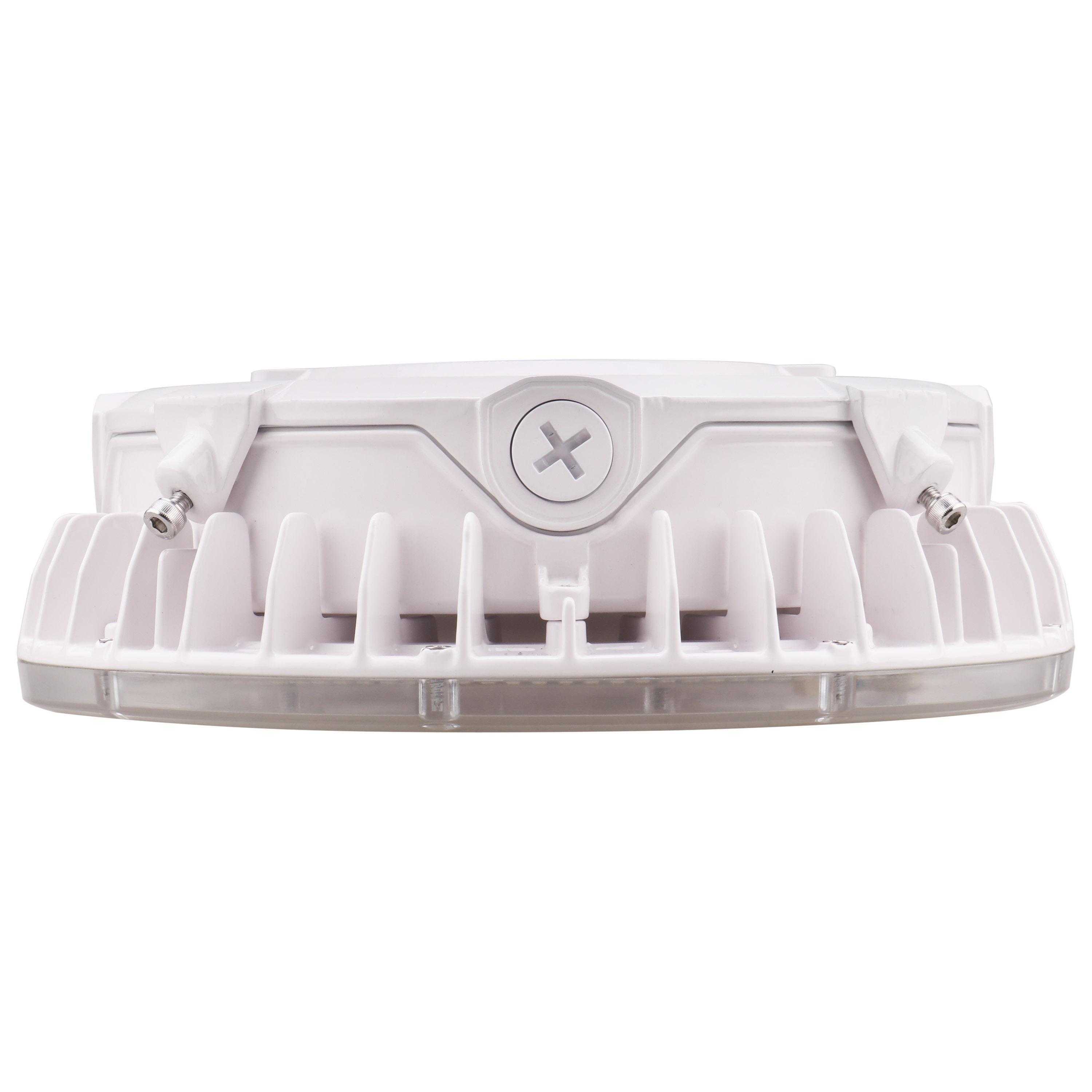

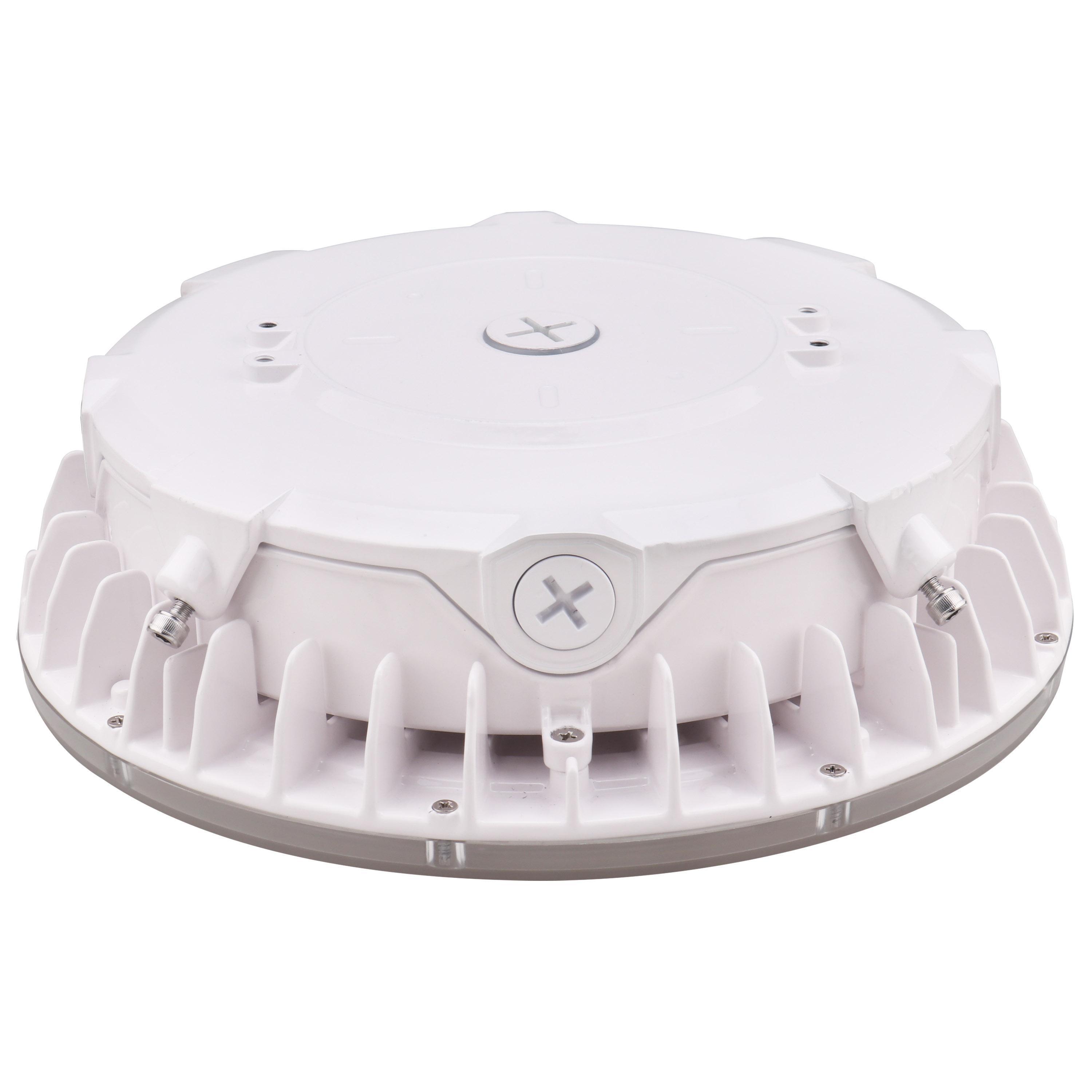

Description: NUVO® by SATCO, 65/627R1, Wide Beam Angle Canopy Light, Round, 120 to 277 V, 55 W Fixture, LED Lighting Technology, 151 Lumens/W Light Output, 50000 hr Average Life, Cool White/Warm White Light, 3000, 4000, 5000 K Color Temperature, 80 CRI, 0 to 10 V Dimming Ballast, Polycarbonate Lens, 7733, 8284, 8072 Lumens, IP65 Enclosure, Ceiling/Pendant Mounting, Die-Cast Aluminum Housing Material, 3.15 in H x 10.04 in W Dimensions

Manufacturer PN: 65/627R1

UPC:  04592365229

Kendall Electric Inc PN: 4762881

Invoice Description:

65/627R1 SATCO LED CANOPY FIXTURE 55 WATT CCT SELECTABLE WHITE FINISH


SPEC SHEET

▸ See All in Outdoor Canopy Lighting


How Can We Make This Page Better?

NUVO® by SATCO 65/627R1 Round Wide Beam Angle Canopy Light, 55 W Fixture, 120 to 277 V

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

NUVO® by SATCO, 65/627R1, Wide Beam Angle Canopy Light, Round, 120 to 277 V, 55 W Fixture, LED Lighting Technology, 151 Lumens/W Light Output, 50000 hr Average Life, Cool White/Warm White Light, 3000, 4000, 5000 K Color Temperature, 80 CRI, 0 to 10 V Dimming Ballast, Polycarbonate Lens, 7733, 8284, 8072 Lumens, IP65 Enclosure, Ceiling/Pendant Mounting, Die-Cast Aluminum Housing Material, 3.15 in H x 10.04 in W Dimensions

Specifications

 Application Recommended for Mounting Height, Multiple half-inch knockouts, Three quarter inch back knockout for pendant applications
 Average Life 50000 hr
 Ballast Type 0 to 10 V Dimming
 Brand Name NUVO® by SATCO
 Color Rendering Index CRI 80
 Color Temperature 3000, 4000, 5000 K
 Dimensions 3.15 in H x 10.04 in W
 Enclosure IP65
 Fixture Wattage 55 W
 Housing Finish White
 Housing Material Die-Cast Aluminum
 Light Color Cool White/Warm White
 Light Output 151 Lumens/W
 Lighting Technology LED
 Lumens 7733, 8284, 8072 Lumens
 Manufacturer Part Number 65/627R1
 Mounting Type Ceiling/Pendant
 Standards/Approvals cULus Certified|DLC Approved|FCC|RoHS Complaint
 Type Round
 Voltage Rating 120 to 277 V

Features

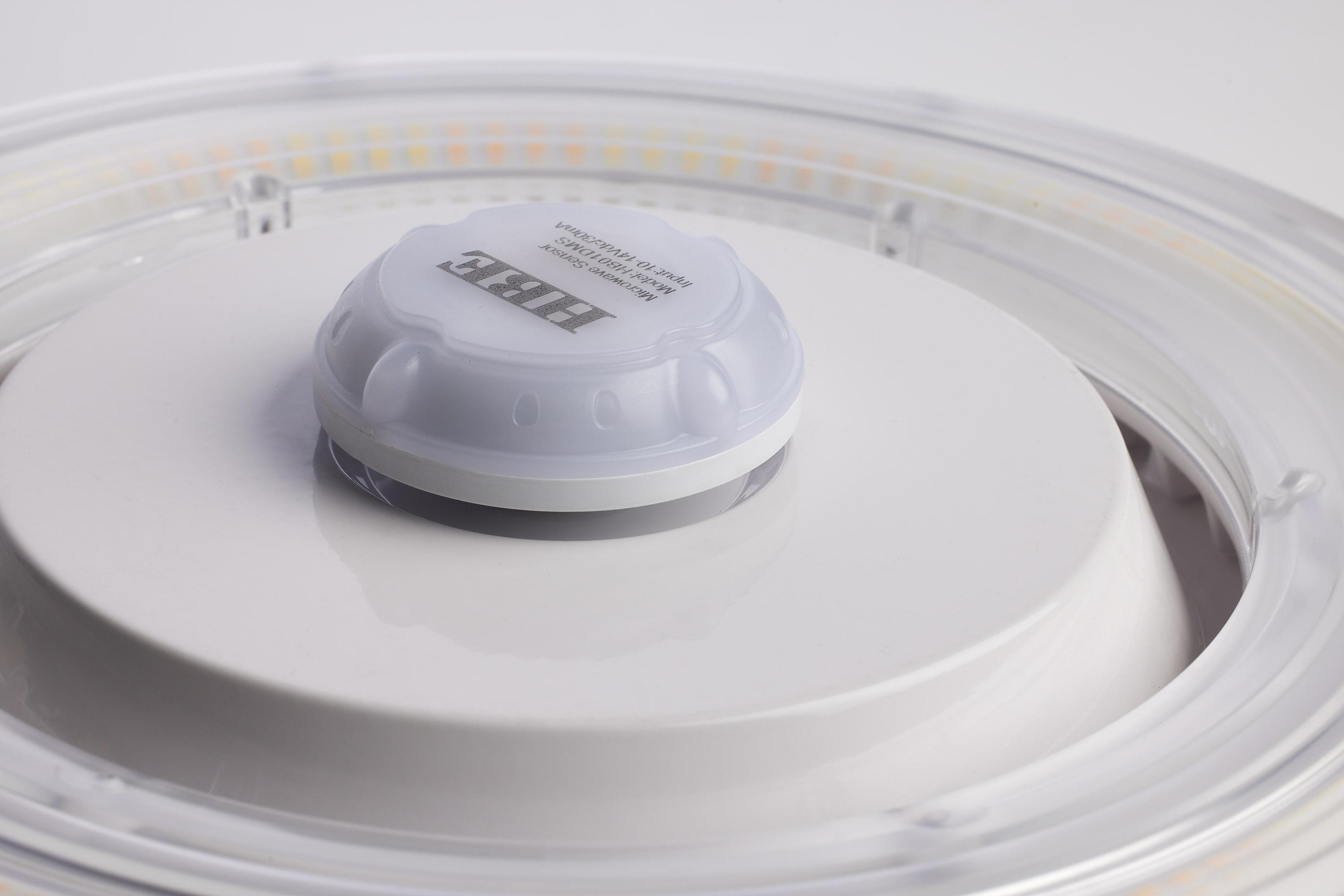

▪ Integrated DC Sensor Port
