Milwaukee Tool

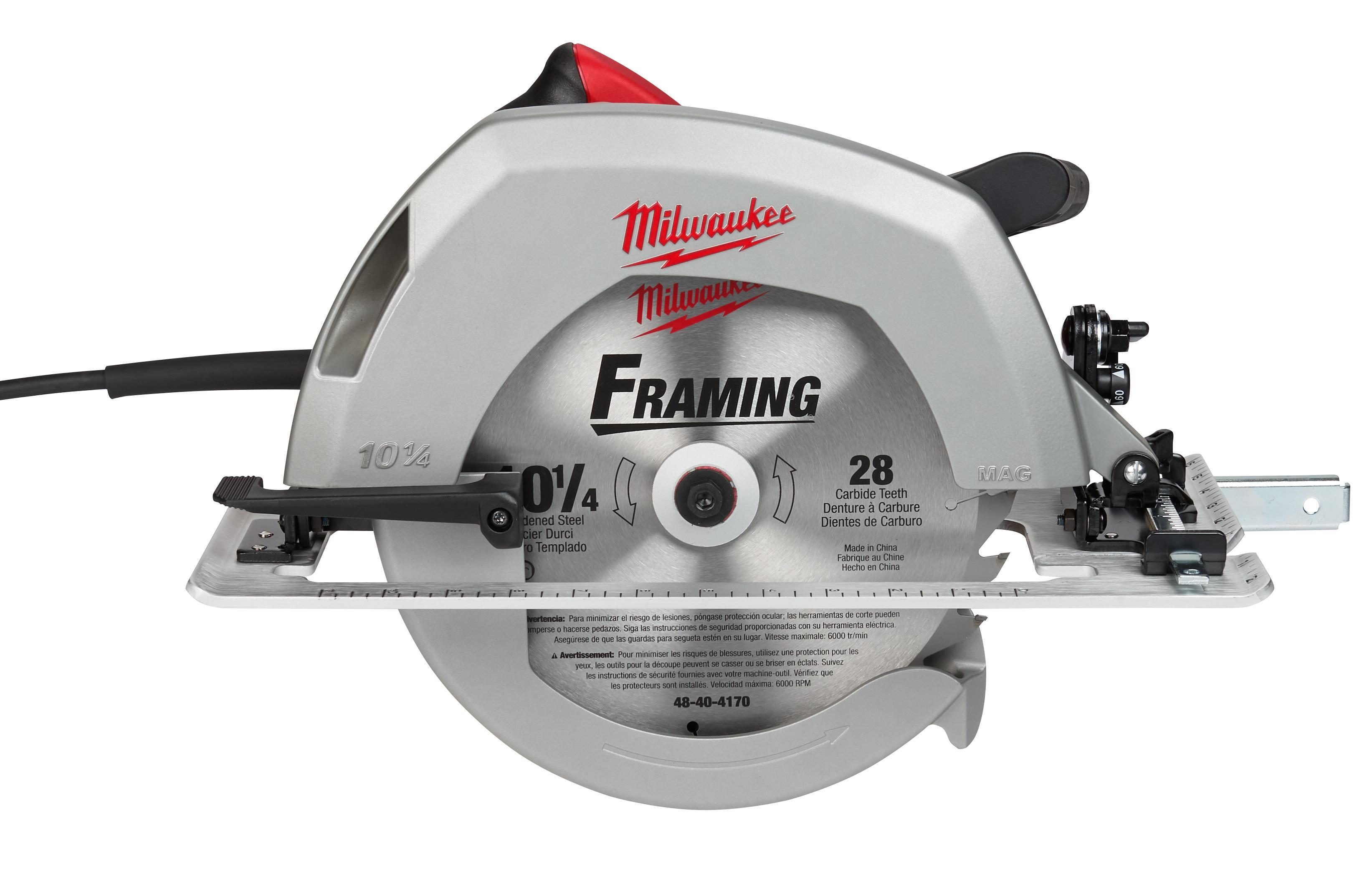

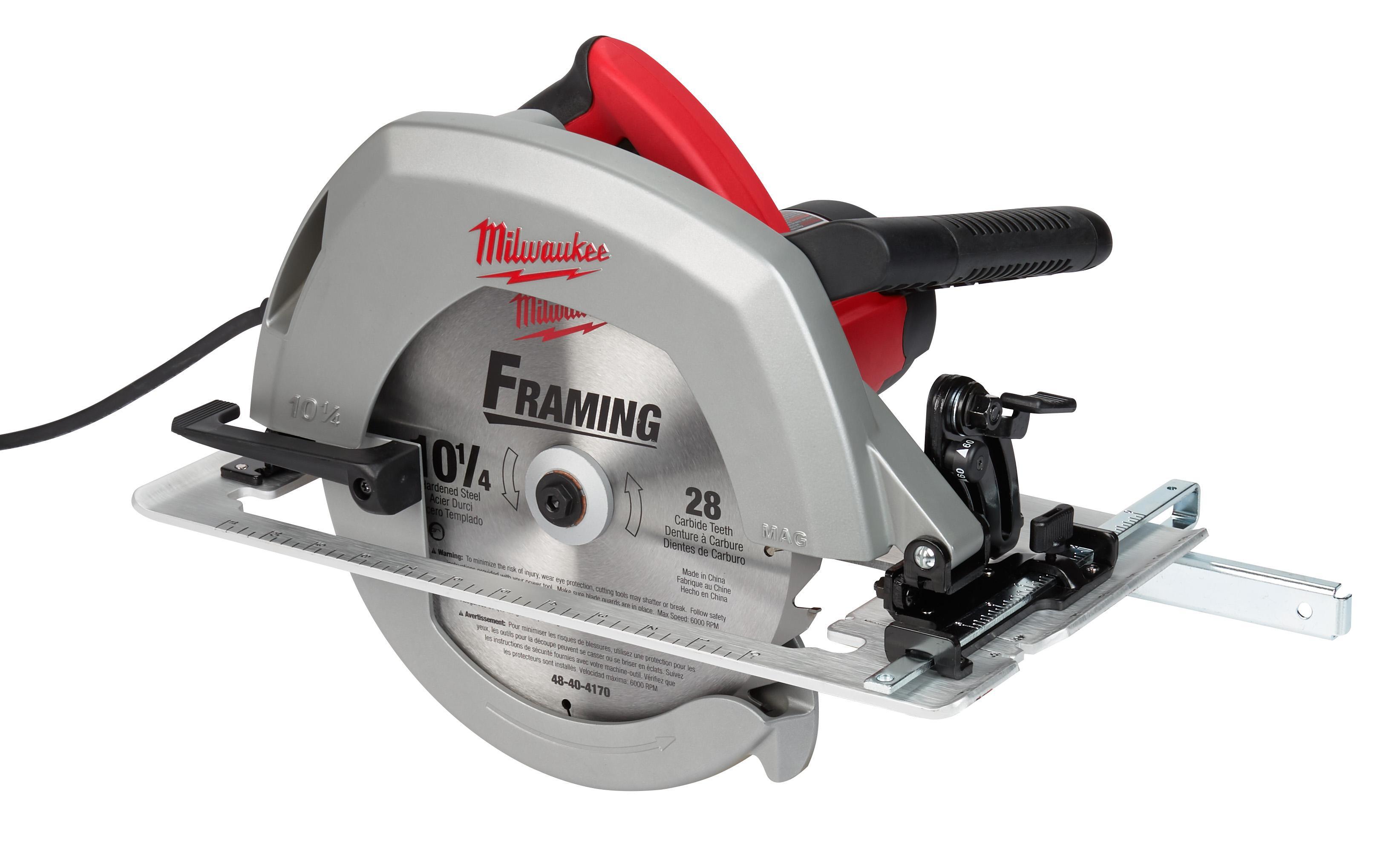

6470-21 MILWAUKE SAW CIRC 10-1/4 15A 04524215743

Mouse over image to zoom, click to enlarge

  • 6470-21 MILWAUKE SAW CIRC 10-1/4 15A 04524215743
  • 6470-21 MILWAUKE SAW CIRC 10-1/4 15A 04524215743
  • 6470-21 MILWAUKE SAW CIRC 10-1/4 15A 04524215743

Description: Milwaukee® Corded Circular Saw Kit, 10-1/4 in Dia Blade, Blade Side Right, 5/8 in Arbor/Shank, 5200 rpm Speed, Cutting Capacity: 2-3/4 in at 45 deg, 1-3/4 in at 60 deg, 3-13/16 in at 90 deg, 45/60/90 deg Cutting Angle, Bevel Capacity: 60 deg, Aluminum Shoe, 3.1 hp, 120 V AC, 15 A, Plastic Housing Material, Soft Barrel Grip Handle, 2-Wire Cord, 17-1/2 in L Dimensions

Manufacturer PN: 6470-21

UPC:  04524215743

Kendall Electric Inc PN: 3398727

Invoice Description:

6470-21 MILWAUKE SAW CIRC 10-1/4 15A 04524215743


SPEC SHEET

▸ See All in Electric Circular Saws


How Can We Make This Page Better?

Milwaukee® 6470-21 Corded Circular Saw Kit, 10-1/4 in Dia Blade, 5/8 in Arbor/Shank, 2-3/4 in at 45 deg, 1-3/4 in at 60 deg, 3-13/16 in at 90 deg Cutting, Right Blade Side

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The 6470-21, 10-1/4 in. circular saw is built with the power and capacity to handle the most extreme cutting applications. The powerful 15 amp, 5,200 RPM motor delivers maximum power for high performance cutting without bogging down under load. An aircraft aluminum shoe will not bend or warp in extreme cutting applications. The electric brake increases productivity by stopping the blade in seconds. These heavy duty features combined with the 3-13/16 in. depth of cut capacity and 60° bevel capacity make the 6470-21 the most popular 10-1/4 in. circular saw in the industry.
Milwaukee® Corded Circular Saw Kit, 10-1/4 in Dia Blade, Blade Side Right, 5/8 in Arbor/Shank, 5200 rpm Speed, Cutting Capacity: 2-3/4 in at 45 deg, 1-3/4 in at 60 deg, 3-13/16 in at 90 deg, 45/60/90 deg Cutting Angle, Bevel Capacity: 60 deg, Aluminum Shoe, 3.1 hp, 120 V AC, 15 A, Plastic Housing Material, Soft Barrel Grip Handle, 2-Wire Cord, 17-1/2 in L Dimensions

Specifications

 Amperage Rating 15 A
 Application For use to handle the most extreme cutting
 Arbor Shank Size 5/8 in
 Bevel Capacity 60 deg
 Blade Side Right
 Blade Size 10-1/4 in Dia
 Brand Name Milwaukee®
 Cord Type 2-Wire
 Cutting Angle 45/60/90 deg
 Cutting Capacity 2-3/4 in at 45 deg, 1-3/4 in at 60 deg, 3-13/16 in at 90 deg
 Dimensions 17-1/2 in L
 Handle Type Soft Barrel Grip
 Horsepower 3.1 hp
 Housing Material Plastic
 Includes Rip Fence, Steel Case and Wood Cutting Blade
 Manufacturer Part Number 6470-21
 PART NUMBER KEYWORDS 6470-21 ; 647021 ; 10811040 ; 045242157433 ; 45242157433 ; 04524215743 ; 00045242157433
 Shoe Material Aluminum
 Speed 5200 rpm
 Standards/Approvals UL Listed
 Tool Kit Kit
 Voltage Rating 120 V AC

Features

▪ 3-13/16 in depth of cut capacity - provides enough capacity to cut 4 in material in a single pass
▪ 60 Deg bevel capacity - provides maximum bevel capacity for cutting roof rafters, trusses and joists
▪ Electric brake - increases productivity by stopping the blade in seconds
▪ Aircraft aluminum shoe - will not bend or warp in extreme cutting applications
▪ Powerful 15 A, 5,200 RPM motor - delivers maximum power for cutting without bogging down under load
