Werner Co
6312 WERNER 12FT LADDER

Mouse over image to zoom, click to enlarge

  • 6312 WERNER 12FT LADDER
  • 6312 WERNER 12FT LADDER
  • 6312 WERNER 12FT LADDER
  • 6312 WERNER 12FT LADDER
  • 6312 WERNER 12FT LADDER

Description: WERNER® Step Ladder, Type IAA Single Sided, Series: 6300, 12 ft Ladder Height, 375 lb, Fiberglass, 11 Steps, 78-1/4 in Base Spread, 33-7/8 in Bottom Width, Ribbed Tread

Manufacturer PN: 6312

UPC:  05175103355

Kendall Electric Inc PN: 3746887

Invoice Description:

6312 WERNER 12FT LADDER

▸ See All in Step Ladders


How Can We Make This Page Better?

WERNER® 6312 6300 Type IAA Single Sided Step Ladder, 12 ft H Ladder, 375 lb Load, 11 Steps, Fiberglass

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The 6312 fiberglass 12 ft step ladder is ideal for professional contractors and industrial users. With a duty rating of 375 pounds, it features a holstertop with the lock-in system to secure tools from falling while keeping them right at hand. The ladder offers a full set of rear horizontals and heavy duty internal spreaders. All steps are knee braced and the foot pads are riveted to the EDGE® structure. The edge bracing system helps protect the rail from damage. Each TRACTION-TRED® step is slip resistant and double riveted. Fiberglass rails are non-conductive for working near electricity.
WERNER® Step Ladder, Type IAA Single Sided, Series: 6300, 12 ft Ladder Height, 375 lb, Fiberglass, 11 Steps, 78-1/4 in Base Spread, 33-7/8 in Bottom Width, Ribbed Tread

Specifications

 Application Climbing Equipment
 Base Spread 78-1/4 in
 Bottom Width 33-7/8 in
 Brand Name WERNER®
 Includes (2) Tool Holes, (2) Parts Trays, Paint Tray Slot, Can Hook, Lock in Accessory Sockets, Drill Hole, Paint, Quart and Gallon Paint Can and Tape Measure Slot
 Ladder Height 12 ft
 Load Capacity 375 lb
 Manufacturer Part Number 6312
 Material Fiberglass
 Number of Steps 11
 Series 6300
 Standards/Approvals ANSI A14.5 (2007)|OSHA Compliant
 Tread Ribbed
 Type Type IAA Single Sided

Features

▪ Every rivet backed up by metal, metal plates or washers to protect rails
▪ Optional manual pail shelf kit model no PK76-9 or automatic closing pail shelf kit model no 76-2
▪ Plastic rail shield, heavy edge bracing
▪ 9 ft 7 in H maximum standing
▪ 16 ft H reach
▪ 5-3/4 x 13 in top
▪ 3-1/8 in front rails
▪ 1-3/16 in front flange
▪ 1-7/8 in rear rails
▪ 1-3/16 in rear flange
▪ 3 in steps steel spreader

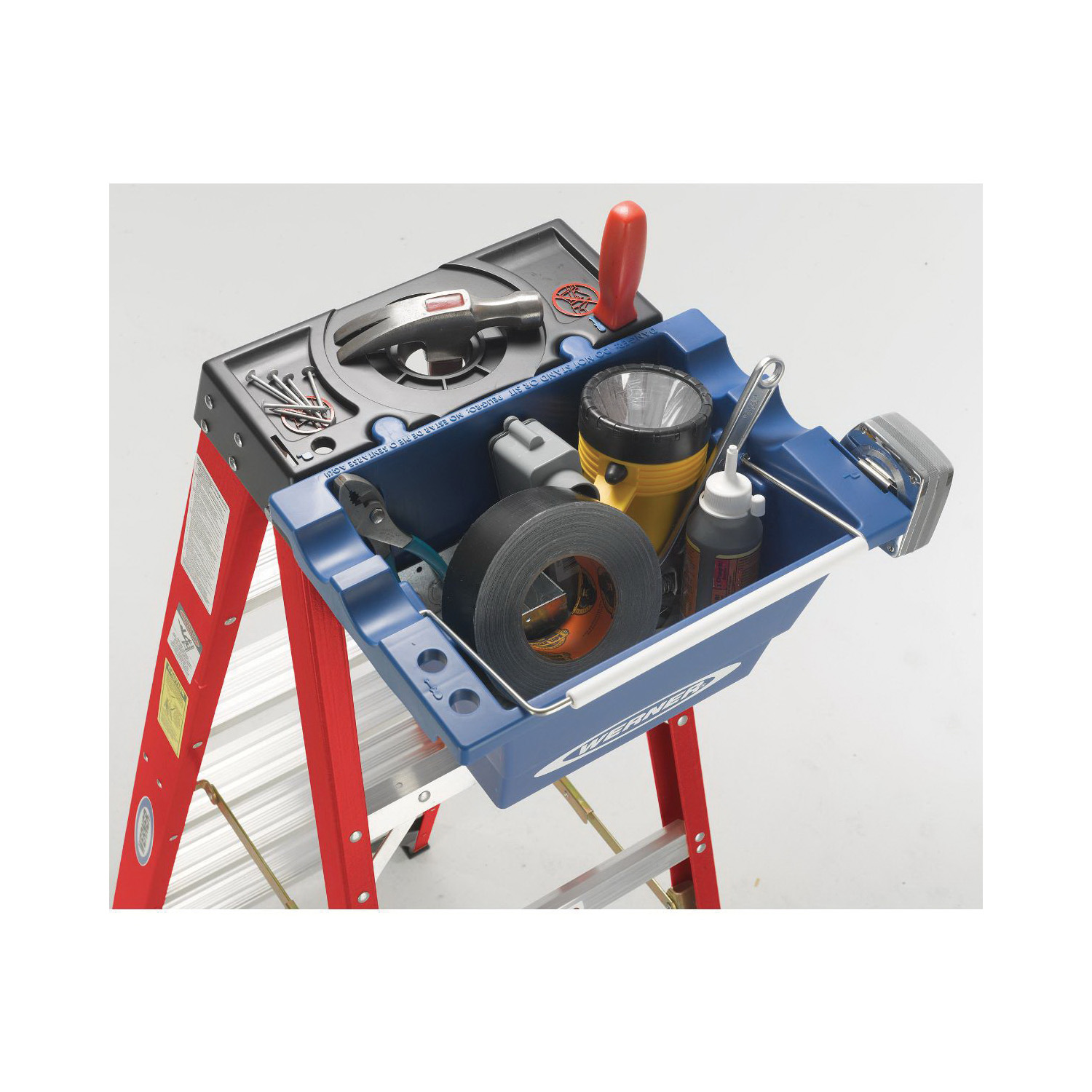

▪ Holstertop with lock-in system secures tools to increase productivity
▪ Shoulder bolt and nut on top hinge
▪ 4 rivets attach top to each front rail

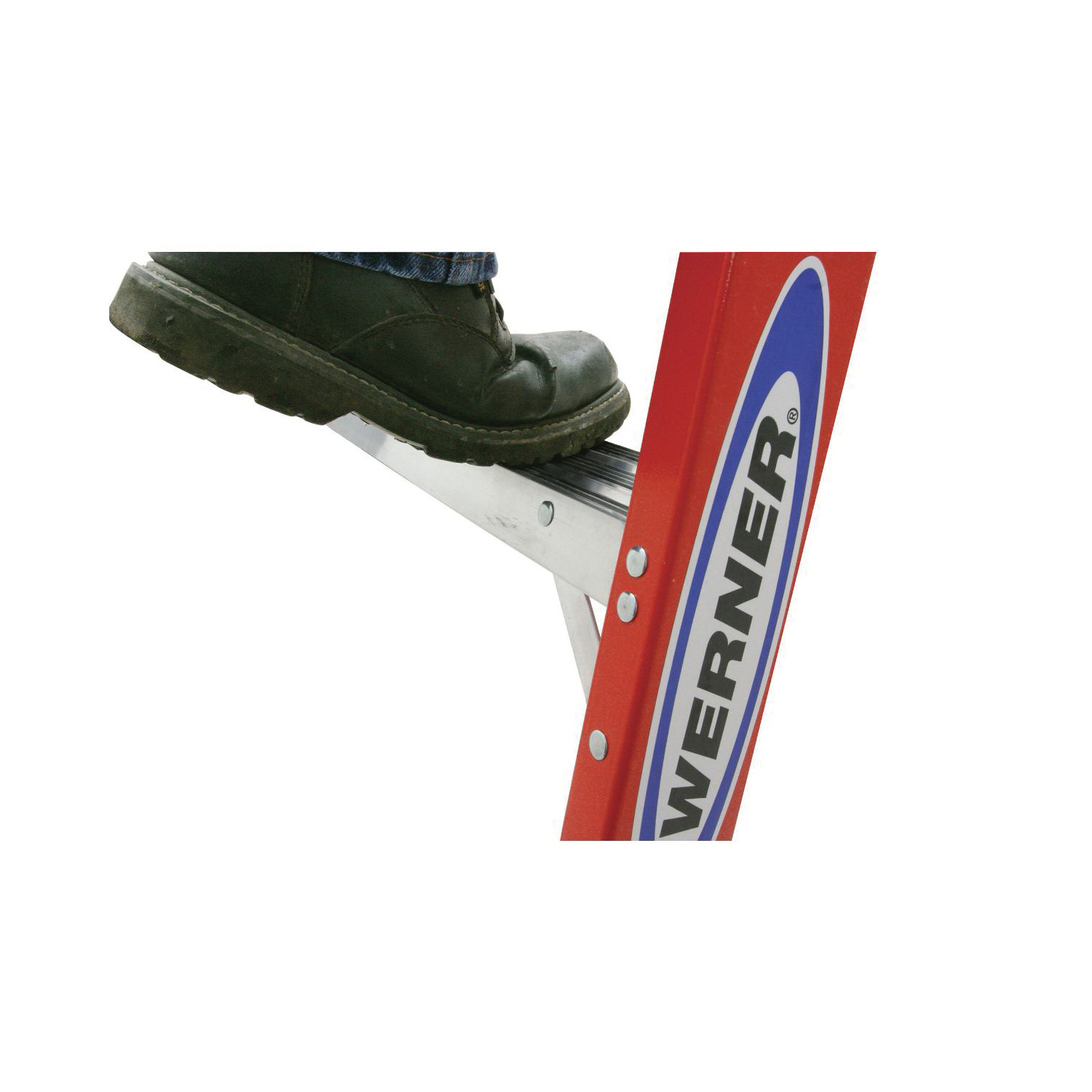

▪ Double riveted slip resistant TRACTION-TRED® steps
▪ Back up plates reinforce all top connectors
▪ Heavy duty internal spreaders
▪ Full set of rear horizontals spaced one per foot
▪ All steps and top rear horizontal are knee braced

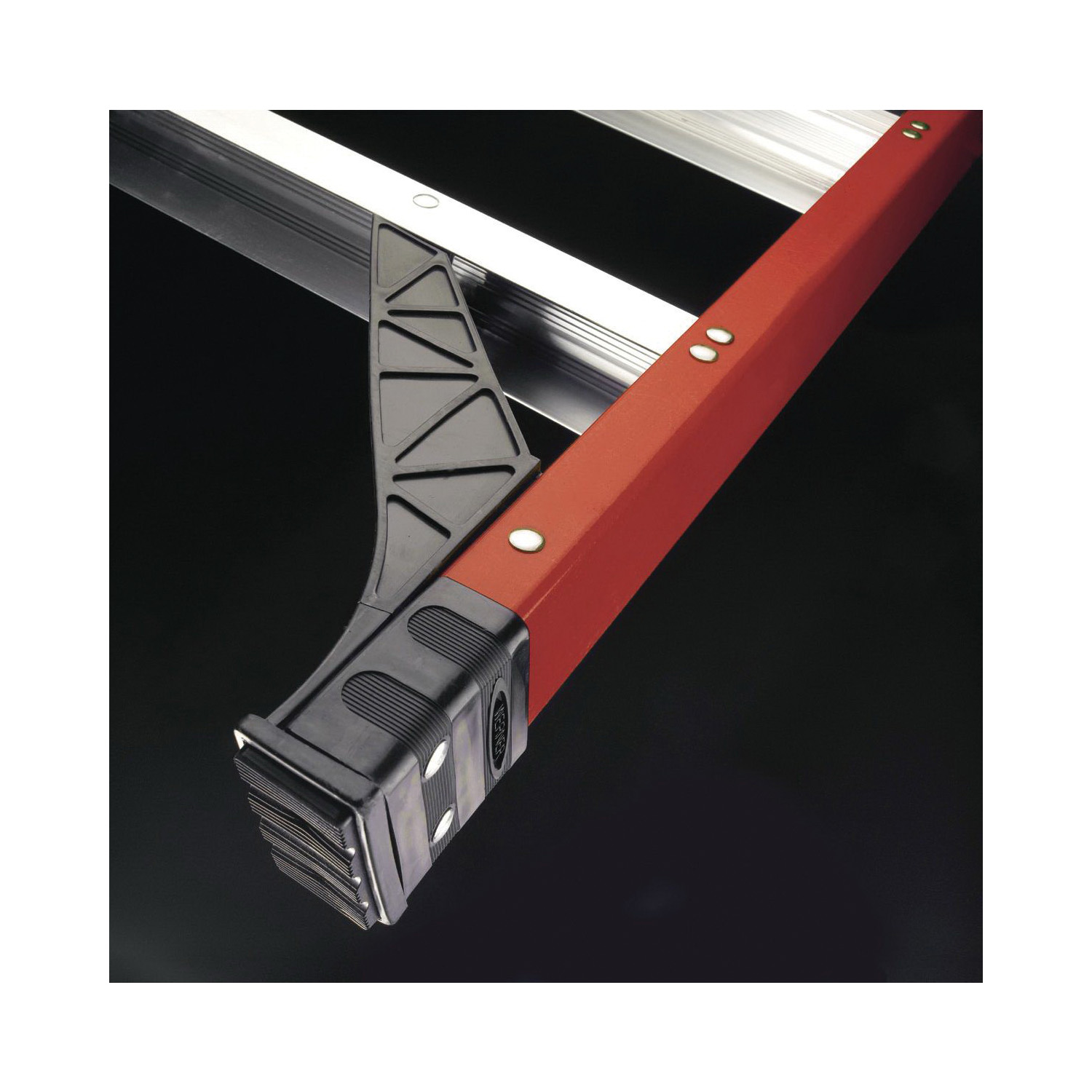

▪ Slip resistant foot pads attached to the EDGE® structure
