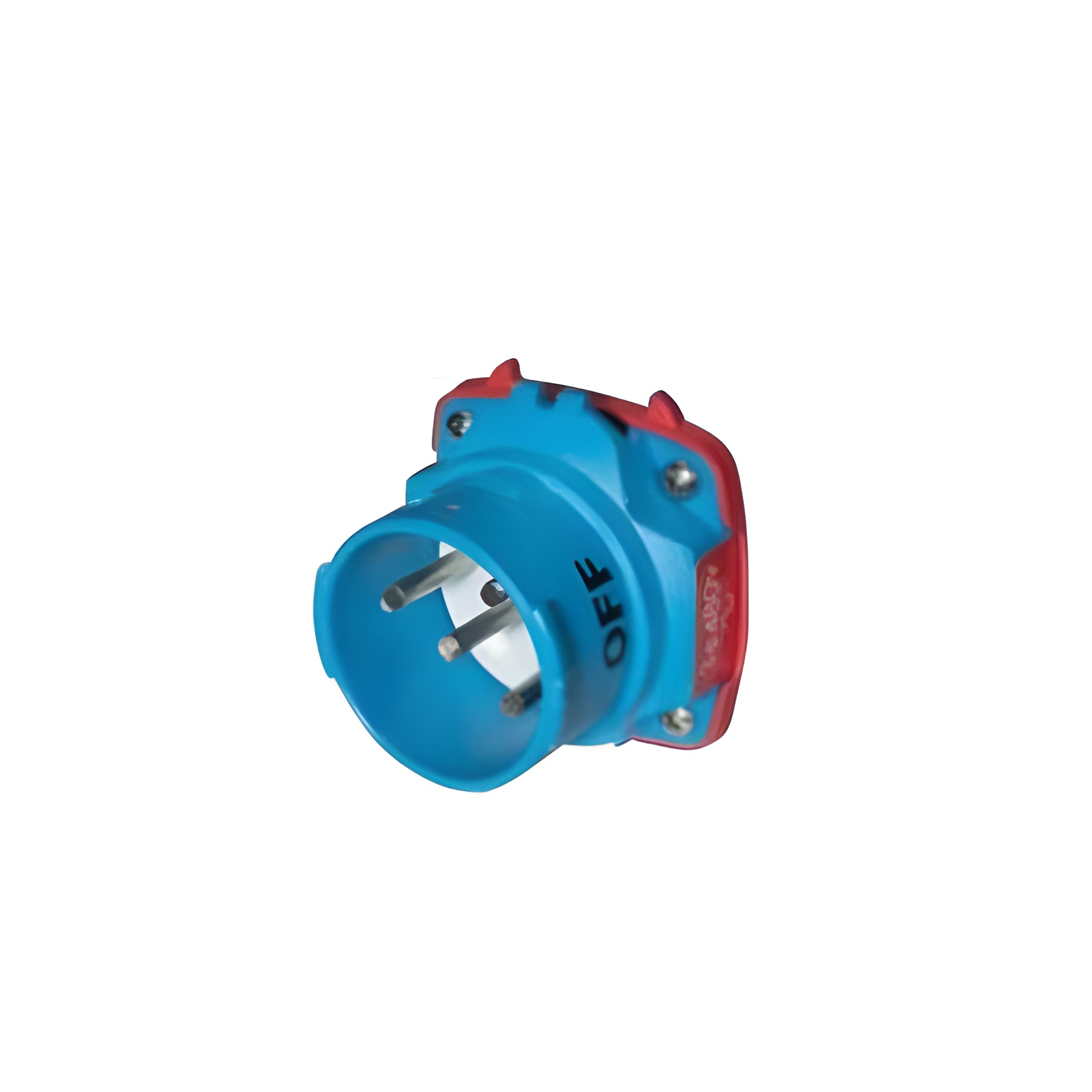

63-38143-A188 MELTRIC DSN30 INLET

Mouse over image to zoom, click to enlarge

  • 63-38143-A188 MELTRIC DSN30 INLET
  • 63-38143-A188 MELTRIC DSN30 INLET

Description: MELTRIC DECONTACTOR™ Switch Rated Inlet, Male, Series: DSN, 347/600 V AC, 30 A, 15 hp, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 4X, IP69K Enclosure, -40 to 140 deg F, Screw Terminal, PBT, Blue, 2.56 in D Dimensions

Manufacturer PN: 63-38143-A188

UPC:  78447461920

Kendall Electric Inc PN: 3954066

Invoice Description:

63-38143-A188 MELTRIC DSN30 INLET

▸ See All in Pin & Sleeve Inlets


How Can We Make This Page Better?

MELTRIC DECONTACTOR™ 63-38143-A188 DSN Male Switch Rated Inlet With Straight Insertion, 347/600 V AC, 30 A, 3 Poles, 4 Wires, Blue

Log In for Pricing and Availability




Description

DSN Series products are switch and hp rated for quick, safe equipment changeouts. DSN's are ideal for wet environments since they offer Type 4X watertightness as soon as the plug is latched to the receptacle or as soon as the receptacle lid is closed.
MELTRIC DECONTACTOR™ Switch Rated Inlet, Male, Series: DSN, 347/600 V AC, 30 A, 15 hp, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 4X, IP69K Enclosure, -40 to 140 deg F, Screw Terminal, PBT, Blue, 2.56 in D Dimensions

Specifications

 Amperage Rating 30 A
 Application Industrial, Wet/Washdown Environments, Plug and Play Electrical Connections
 Brand Name MELTRIC
 Color Blue
 Dimensions 2.56 in D
 Enclosure IP69K
 Frequency Rating 60 Hz
 Horsepower 15 hp
 Manufacturer Part Number 63-38143-A188
 Material PBT
 NEMA Rating NEMA 4X
 Number of Poles 3
 Number of Wires 4
 PART NUMBER KEYWORDS 63-38143-A188 ; 6338143A188 ; 784474619202 ; 78447461920 ; 00784474619202
 Series DSN
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682|UL 1682|CSA C22.2 No. 182.1
 Temperature Rating -40 to 140 deg F
 Terminal Type Screw
 Type Male
 Voltage Rating 347/600 V AC

Features

▪ Compact and lightweight design
▪ Automatic type 4X/IP69k watertightness
▪ Solid silver nickel contact surfaces provide superior conductivity, lid durability and corrosion resistance
▪ Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
▪ Spring assisted screw terminal patented design assures "Tighten and Forget" confidence
▪ Lockout tagout provisions allows plug to be easily locked out and tagged
▪ 15 hp at 600 VAC 3-phase horsepower rating
