Meltric Corporation

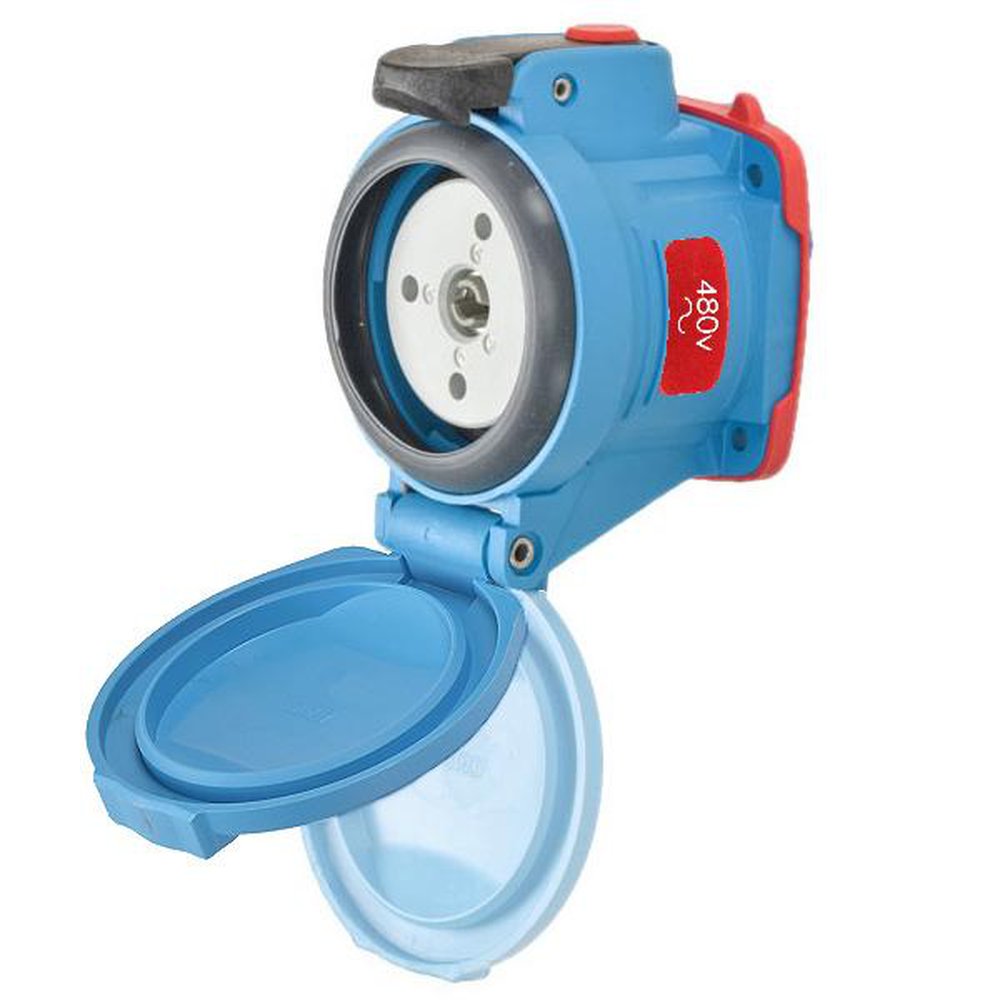

63-34043 MEL RECPT 480V 30A 3P 4W

Mouse over image to zoom, click to enlarge

Description: MELTRIC DECONTACTOR™ Female Receptacle, Switch Rated, Series: DSN30, 255/277/440/480 V AC, 30 A, 10 hp, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 4X NEMA Rating, IP66/IP67/IP69K Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 2.8 in Dia x 3.42 in L Dimensions

Manufacturer PN: 63-34043

UPC:  78447454420

Kendall Electric Inc PN: 2043219

Invoice Description:

63-34043 MEL RECPT 480V 30A 3P 4W


How Can We Make This Page Better?

MELTRIC DECONTACTOR™ 63-34043 DSN30 Switch Rated Female Receptacle With Ground, 255/277/440/480 V AC, 30 A, 3 Poles, 4 Wires, Blue

Log In for Pricing and Availability




Description

DSN series products are switch and hp rated for quick, safe equipment change outs. DSN's are ideal for wet environments since they offer Type 4X water tightness as soon as the plug is latched to the receptacle or as soon as the receptacle lid is closed.
MELTRIC DECONTACTOR™ Female Receptacle, Switch Rated, Series: DSN30, 255/277/440/480 V AC, 30 A, 10 hp, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 4X NEMA Rating, IP66/IP67/IP69K Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 2.8 in Dia x 3.42 in L Dimensions

Specifications

 Amperage Rating 30 A
 Application Wet or Washdown Environments, Plug and Play Electrical Connections
 Brand Name MELTRIC
 Color Blue
 Dimensions 2.8 in Dia x 3.42 in L
 Enclosure IP66/IP67/IP69K
 Frequency Rating 60 Hz
 Horsepower 10 hp
 Manufacturer Part Number 63-34043
 Material Polyester
 NEMA Rating NEMA 4X
 Number of Poles 3
 Number of Wires 4
 PART NUMBER KEYWORDS 63-34043 ; 6334043 ; 784474544207 ; 78447454420 ; 00784474544207
 Series DSN30
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682/1682|CSA 182.1|CE Certified|IEC Certified
 Temperature Rating -40 to 140 deg F
 Terminal Type Screw
 Type Switch Rated
 Voltage Rating 255/277/440/480 V AC

Features

▪ 1 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 5 hp at 208/240 VAC, 10 hp at 480 VAC, 15 hp at 600 VAC 3-phase horsepower rating
▪ Switch and hp rated (AC only)
▪ 100 kA short circuit rated withstand testing was performed with RK1 current limiting fuses sized at 400 PEC of the highest full load motor ampacity associated with the devices hp rating
▪ Compact, lightweight design
▪ Up to 4 auxiliary contacts
▪ Spring assisted screw terminals patented design assures ''tighten and forget'' confidence
▪ Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations
▪ Lid provides additional protection from harsh environments
▪ OFF button press to de-energize and provides push button circuit disconnection
▪ Dead front/safety shutter assures safety by preventing user access to live parts
